MIO-3121 Startup Manual 1

MIO-3121 Mini-PCI to 4 COM Module

Startup Manual

Advantech introduces its new MIO module, MIO-3121 with

Mini-PCI interface, an advanced 4 COM interface connec-

tion hub. Fully compliant to PCI local bus specification

3.0.UARTs fully S/W compatible with 16C550-type

devices. MiniPCI Type III Interface

Before you begin installing your card, please make sure

that the following materials have been shipped:

If any of these items are missing or damaged,

contact your distributor or sales representative

immediately

• Mini PCI Type III Interface

• Chipset: OxmPCI954

• Four 16C950 High performance UART channels

• 8-bit Pass-through Local Bus (PCI Bridge)

• IEEE 1284 Compliant SPP/EPP/ECP Parallel port

• Efficient 32-bit, 33 MHz MiniPCI interface, fully compliant

to PCI Local Bus specification 3.0 and PCI Power Man-

agement Specification 1.1

• UART up to 20MHz with the crystal oscillator

• 3.3V operation (5V tolerance on selected I/Os) Connec-

tor: 40pins 2.0mm 20X2 Box Header

• UART operation up to 60Mbps via external clock source.

Up to 20MHz with the crystal oscillator

• OS support: Win98, 2000, XP, NT4.0, Vista

Mechanical and Environmental

• Power Supply Voltage: 5V and 12V

• Size: 59.75mm x 52.75mm

• Operating Temperature: 0°C ~ 60°C (32°F ~ 140°F)

-40°C to 85°C (-40°F ~185°F)in Storage

• Operating Humidity: 0% to 90% relative humidity, non-

condensing

• Compliance Certifications: CE; FCC

Introduction Specifications

Packing list

• 1 MIO-3121 Mini-PCI to 4 COM Module

• 1 Startup manual

• 1 CD ROM for MIO-3121 Driver

• 1 FLAT CABLE 40P-2.0mm D-SUB

9P(M)/IDC 45cm p/n: 1700000447

Note 1: Acrobat Reader is required to view any PDF

file. Acrobat Reader can be downloaded at:

www.adobe.com/products/acrobat/

readstep2.html(Acrobat is a trademark of

Adobe.)

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit our

support website at:

http://www.advantech.com/support

This manual is for the MIO-3121 series Rev. A1.

Part No.2006312102 3rd Edition

Jan. 2008

2 MIO-3121 Startup Manual

The table below lists the function of each of the jumpers

and connectors

Jumpers & Connectors

CN1: COM 1~4 Connector

Pin Signal Pin Signal

1 COM3_DCD# 2 COM3_DSR

3 COM3_RXD 4 COM3_RTS#

5 COM3_TXD 6 COM3_CTS#

7 COM3_DTR# 8 COM3_RI

9GND 10GND

11 COM2_DCD# 12 COM2_DSR#

13 COM2_RXD 14 COM2_RTS#

15 COM2_TXD 16 COM2_CTS#

17 COM2_DTR# 18 COM2_RI

19 GND 20 GND

21 COM1_DCD# 22 COM1_DSR#

23 COM1_RXD 24 COM1_RTS#

25 COM1_TXD 26 COM1_CTS#

27 COM1_DTR# 28 COM1_RI

29 GND 30 GND

31 COM0_DCD# 32 COM0_DSR#

33 COM0_RXD 34 COM0_RTS#

35 COM0_TXD 36 COM0_CTS#

37 COM0_DTR# 38 COM0_RI

39 GND 40 GND

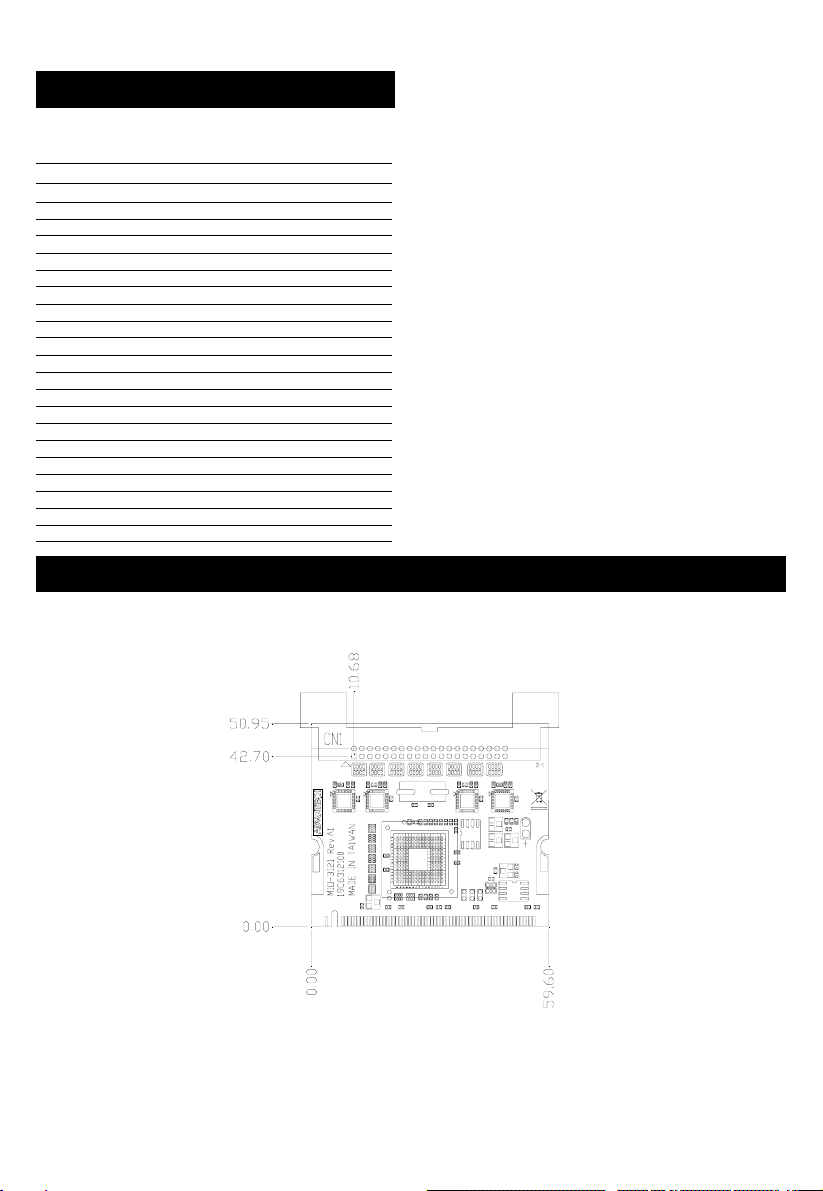

Board Layout

Mechanical Drawing (component side)

MIO-3121 Startup Manual 3

FCC This device complies with the requirements in part 15 of the FCC rules: Operation is subject to the fol-

lowing two conditions:

1.This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undes-

ired operation

This equipment has been tested and found to comply with the limits for a Class A digital device, pur-

suant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance

with the instruction manual, may cause harmful interference to radio communications. Operation of

this device in a residential area is likely to cause harmful interference in which case the user will be

required to correct the interference at his/her own expense. The user is advised that any equipment

changes or modifications not expressly approved by the party responsible for compliance would void

the compliance to FCC regulations and therefore, the user's authority to operate the equipment.

Caution!

Achtung!

There is a danger of a new battery exploding if it is incorrectly installed. Do not attempt to recharge,

force open, or heat the battery. Replace the battery only with the same or equivalent type recom-

mended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.
