ACME LITE PANEL 900 LP-900 WW BD30 Manual de usuario

LP-900 WW BD30

LP-900 CW BD30

User Manual

Please read the instructions carefully before use

CONTENTS

1. Safety Introductions.............................................................................................. 2

2. Technical Specifications......................................................................................... 3

3. How To Set The Fixture ......................................................................................... 4

3.1 Control Panel................................................................................................... 4

3.2 Main Function ................................................................................................. 5

4. How To Control The Unit ....................................................................................... 8

4.1 Master/Slave Function .................................................................................... 8

4.2 DMX Controller ............................................................................................... 9

5. DMX512 Configuration.......................................................................................... 9

6. DMX512 Connections ......................................................................................... 10

7. Troubleshooting .................................................................................................. 11

8. Fixture Cleaning .................................................................................................. 11

1. Safety Introductions

WARNING

Please keep this User Manual for future consultation. If you sell the unit to another user, be sure

that they also receive this instruction booklet.

Unpack and check carefully there is no transportation damage before using the unit.

Before operating, ensure that the voltage and frequency of power supply match the power

requirements of the unit.

It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.

The unit is for indoor use only. Use only in a dry location.

The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent

surfaces. Be sure that no ventilation slots are blocked.

Disconnect main power before replacement or servicing.

Make sure there are no flammable materials close to the unit while operating as it is fire hazard.

Use safety cables when fixing this unit.

Maximum ambient temperature is Ta: 40 degrees C. DO NOT operate it where the temperature

is higher than this.

Turn off the power and allow about 15 minutes for the unit to cool down before servicing.

In the event of a serious operating problem, stop using the unit immediately. Never try to repair

the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction.

Please contact the nearest authorized technical assistance center. Always use the same type

spare parts.

DO NOT touch any cables during operation as high voltage may cause electric shock.

Warning:

To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or

moisture.

The housing and lenses must be replaced if they are visibly damaged.

Please read the instructions carefully which includes important

information about the installation, operation and maintenance.

Caution:

There are no user serviceable parts inside the unit. Do not open the housing or attempt any

repairs yourself. In the unlikely event your unit may require service, please contact your nearest

dealer.

Installation:

The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is

firmly fixed to avoid vibration and slipping while operating. Make sure that the structure to which

you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s

weight. Also always use a safety cable that can hold 12 times of the weight of the unit when

installing the fixture.

The equipment must be installed by professionals. It must be fixed at a place where is out of the

reach of people and no one pass by or under it.

2. Technical Specifications

Lite Panel 900, an innovative LED fixture, creates even, soft and directional powerful output;

0 ~ 100% dimming;

High scanning frequency more than 1000Hz, no flicking, make it perfect for TV studios;

Low heat & low power consumption

Voltage:AC 100 ~ 240V, 50/60Hz

Power Consumption: 76W

Power Cable Daisy Chains: 4 fixtures Max. (230V, 50Hz)

LED Source:

WW: 900pcs Warm White LEDs

CW: 900pcs Cold White LEDs

Fuse: T 6.3A

Beam Angle: 30°

Color Temperature:

WW: 2800 ~ 3200K

CW: 6500 ~ 7000K

CRI: ≥ 82

Weight: 6.2Kgs

Dimension: 371 x 328 x 111mm

3. How To Set The Fixture

3.1 Control Panel

1.Display: Shows the various menus and the selected functions;

2. Indicator LED:

DMX

On DMX input present

MASTER

On Master Mode

SLAVE

On Slave Mode

POWER On Power On

3. Button:

To select the programming functions

DOWN

To go backward in the selected functions

To go forward in the selected functions

ENTER

To confirm the selected functions

4. Dimmer Adjust knob: Adjusts the lightness for the unit;

5. DMX OUT: DMX 512 link, use a 3/5 -pin XLR cable to link to the next unit;

6. DMX IN DMX 512 link, use a 3/5 -pin XLR cable to link the unit to a DMX controller;

7. POWER OUT: Connects to the next unit;

8. POWER IN: Connects to mains supply power.

3.2 Main Function

To select any of the given functions, press the MENU button up to the required selection as shown

on the display. Select the function with the ENTER button and the display will blink. Use the

DOWN/UP buttons to change the mode. Once the required mode has been selected, press the

ENTER button to confirm. To go back to the main functions without any changes press the MENU

button again. Press and hold the MENU button for about one second or wait for 7 seconds to exit

the current mode.

The main functions are shown below:

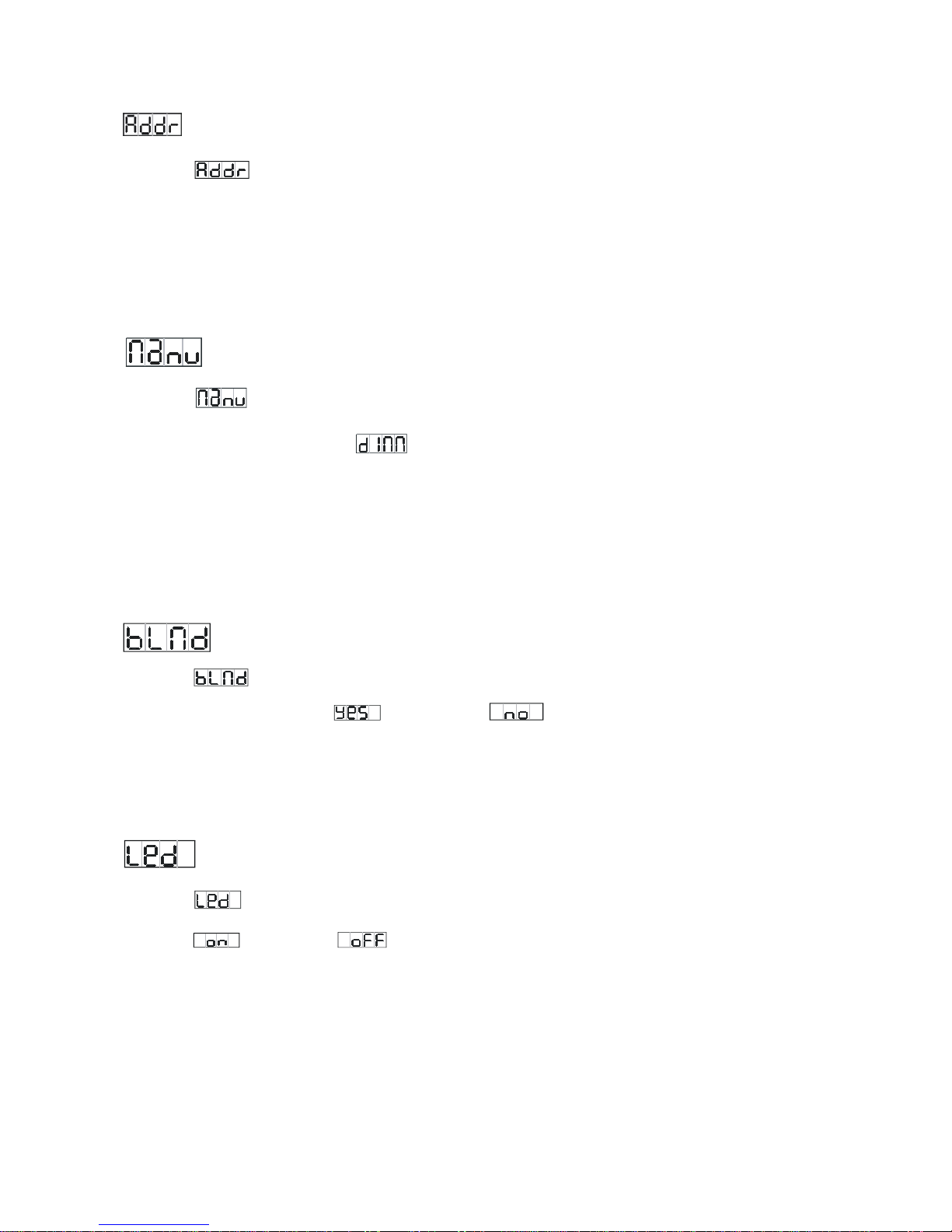

DMX 512 Address

To select , press the ENTER button to show DMX ADDRESS on the display. Use the

DOWN/UP buttons to adjust the address from 1to 512. Once the address has been selected, press

the ENTER button to setup or automatically exit menu mode without any change after 30 seconds.

To go back to the previous functions without any change press the MENU button.

Manual Mode

To select , press the ENTER button to show the MANUAL MODE on the display. Use the

DOWN/UP button to select the (dimmer) mode, press the ENTER button to confirm, then

use the DOWN/UP button to adjust the value between 0and 255, once select press the ENTER

button to setup or automatically exit menu mode without any change after 30 seconds. To go back

to the functions without any change press the MENU button.

Blackout Mode

To select , press the ENTER button to show BLACKOUT MODE on the display. Use the

DOWN/UP buttons to select (blackout) or (normal) mode. Once the mode has

been selected, press the ENTER button to setup or automatically exit menu mode without any

change after 30 seconds. To go back to the functions without any change press the MENU button

LED display

To select , press the ENTER button to show LED on the display. Use the DOWN/UP buttons

to select (LED on) or (LED off) mode. Once the mode has been selected, press the

ENTER button to setup or exit menu mode without any change after 30 seconds. To go back to the

functions without any change press MENU button again.

Display Inverse

To select , press the ENTER button to show DISPLAY on the display. Press the ENTER button

again and it will show the (inversion). To go back to the functions without any change press

MENU button.

Auto Test

To select , press the ENTER button to show TEST on the display and the unit will run a

self-test. To go back to the functions press the MENU button.

Fixture use hours

To select , press the ENTER button to show FIXTURE USE HOURS on the display and the

display will show the number of working hours of the unit. To go back to the functions press the

MENU button

Software Version

To select , press the ENTER button to show SOFTWARE VERSION on the display and the

display will show the version of the software of the unit. To go back to the functions press the

MENU button.

4. How To Control The Unit

You can operate the unit in two ways:

1. By master/slave function

2. By DMX controller

You do not need to turn the unit off when you change the DMX address, the new DMX address

setting will take effect immediately.

4.1 Master/Slave Function

By linking the units in master/slave connection, the first unit will be master automatically. You

should set the master unit effect via its knobs, then the other units (slave) will lighting as the

same.

4.2 DMX Controller

When using a universal DMX controller to control the units, you must set a DMX address from 1 to

512.

Press the MENU button up to when is showing on the display. Press the ENTER button and

the display will blink. Use the DOWN/UP buttons to change the DMX 512 address. Once the

address has been selected, press and hold the ENTER button until the display stops blinking or it

will store automatically 30 seconds later. To go back to the functions without any change press the

MENU button again.

If you use please refer to the following diagram to address your DMX512 channel for the first 4

units.

1 Channel Mode:

5. DMX512 Configuration

1 Channel Mode:

CHANNEL

VALUE

FUNCTIONS

0 ~ 255

DIMMER



100%
