3D Systems CUBE Manual de usuario

INF User Guide

Introduction

Thank you for purchasing the Cube® 3D Printer. This printer is portable with a plug

and print design that enables everybody in the family to express their creativity like

never before. With multiple material colors to choose from and two types of

materials, enjoy the freedom to print in your true colors or mix it up. With its ready-

to-print technology, the Cube provides a new dimension to your imagination and

helps you share your creations with others in the Cubify community at Cubify.com.

At Cubify.com you can:

Upload your creations

Purchase creations

Get your creations 3D printed and shipped to you

Engage with other creative partners

Buy the Cube 3D Printer, print cartridges, and supplies

without notice. This document is copyrighted and contains proprietary information

that is the property of 3D Systems, Inc. The 3D Systems logo, 3D Systems, Cube

and Cubify are registered trademarks of 3D Systems, Inc. Use of the Cubify.com

website constitutes acceptance of its Terms of Service and Privacy Policy.

Compliance

FCC NOTICE

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment oﬀ and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit diﬀerent from that to which the

receiver is connected.

—Consult the dealer or an experienced radio/TV technician for help.

NOTE: Changes or modiﬁcations to this equipment not speciﬁcally approved

by 3D Systems may void the user’s authority to operate this equipment.

KCC

이 기기는 가정용(B급) 전자파적합기기로서 주 로 가정에서 사용하는 것을 목적으로 하며, 모 든 지역에서 사용할 수 있습니다.

This equipment is home use (Class B) electromagnetic wave suitability equipment

and to be used mainly at home and it can be used in all areas.

This equipment conforms with International Electric Committee (IEC) 60950-1 and

meets the requirements of the applicable EC directives.

CAN ICES-3 (B)/NMB-3(B)

This device complies with Industry Canada license-exempt RSS standard(s).

Operation is subject to the following two conditions: (1) this device may not cause

interference, and (2) this device must accept any interference, including

interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux

appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions

suivantes: (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de

l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage

est susceptible d’en compromettre le fonctionnement.

Important Safety Information

Safety Symbols and Deﬁnitions

HOT SURFACE HAZARD: A HOT SURFACE IS ACCESSIBLE IN THE

VICINITY OF THIS SIGN OR AT THE PRINT JET. AVOID CONTACT WITH

THESE AREAS. HOT SURFACES CAN CAUSE SEVERE BURNS.

Caution: Indicates something may happen that could cause loss of data,

damage to equipment, or could cause personal injury.

Caution: Indicates a pinch point hazard that could cause personal injury.

SHOCK WARNING: INDICATES A POTENTIAL SHOCK HAZARD.

Safety Guidelines

Follow all safety rules in this section and observe all cautions and warnings in this

guide.

DO NOT modify any safety features or make modiﬁcations to the Cube. Doing so is

prohibited and voids the manufacturer’s warranty.

Use of print materials, or 3D prints other than 3D Systems’ print materials and

genuine 3D Systems’ components may void the warranty.

Adult supervision is required; observe children closely and intervene as necessary to

prevent potential safety problems and ensure the Cube’s appropriate use. Ensure

small 3D prints are not accessible to young children. These 3D prints are potential

choking hazards for young children.

DO NOT change a material cartridge during printing; doing so may damage the Cube.

HOT SURFACE HAZARD: DO NOT TOUCH THE PRINT JETS DURING

SETUP AND OPERATION. THE PRINT JETS BECOME VERY HOT.

Caution: DO NOT disconnect the CUBE from utility power while the print jets

are hot. Wait until the print jet’s amber light turns oﬀ before disconnecting

from utility power as this may damage the print jet.

Caution: Read and follow all instructions prior to setting up the printer.

SHOCK WARNING: DUE TO RISK OF SHOCK, AVOID CONTACT WITH

ALL INTERNAL ELECTRONIC COMPONENTS.

WARNING: THE CUBE SHOULD ONLY BE SERVICED BY AUTHORIZED

SERVICE TECHNICIANS. PRIOR TO ANY PART REPLACEMENT

PROCEDURE, THE PRINTER MUST BE POWERED OFF AND

DISCONNECTED FROM UTILITY POWER.

WARNING: HAZARDOUS MOVING PARTS. KEEP FINGERS AND OTHER

BODY PARTS AWAY.

To ensure safety, please exercise caution when operating your Cube. Read and

follow all safety precautions as outlined in this user guide. Be careful when

operating your Cube 3D Printer to ensure proper printing and be mindful of and

avoid hot surfaces.

INF Printing Best Practices

Reduce Shifting

Material diﬀerences between PLA/ABS and INF can cause the print pad to shift when

printing supports with INF material. Friction stickers should be added to the print

pad level adjustment knobs.

Remove the print pad from the printer.1.

Wipe the adjustment knobs with a clean, soft cloth dampened with water. Ensure the2.

knobs are dry before continuing.

Peel away the friction stickers (provided) and apply them to each of the three3.

adjustment knobs.

NOTE: Once the stickers have been placed, do not add more stickers

at any time.

Dispose of all debris from the bins.4.

Reinstall the print pad.5.

Perform the Auto level procedure.6.

Reduce Printing Defects

Auto Level should be performed at the beginning of each test and each time the

display prompts you to perform the procedure.

Reduce Voids in Printing

To reduce voids in your prints, empty all debris from the purge bins. In addition,

verify that no print material has collected around the jet wipers.

Glue

Using Cube Glue is always recommended for printing, especially for areas of the

print pad where INF prints. Ensure that glue is applied to the print pad in an area

that is larger than the base of your part.

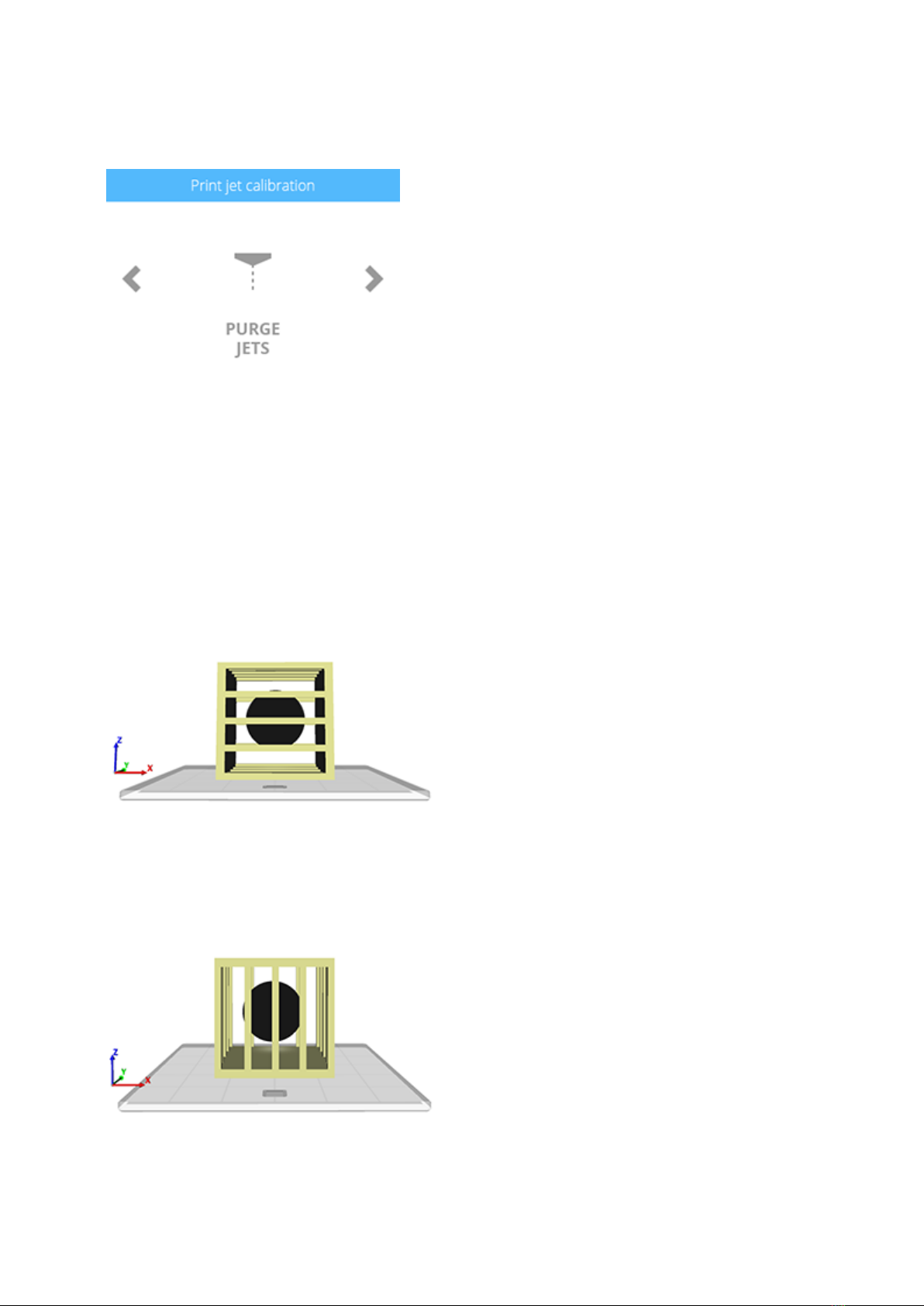

PURGING PLA AND INF

Purging is not always required but is recommended after performing a long print.

This will ensure that both jets are clear and ready for the next print. Purge the PLA

print jet and then purge the INF print jet before printing a new part.

Position The Part To Optimize The Print

For best results, position PLA parts in a way where there are fewer horizontal spans

between vertical features.

Preferred

Note the horizontal features of this part. Even though the bars in this part span a

signiﬁcant distance, these features will be properly supported by INF material.

Not Preferred

Note the vertical features of the part in this illustration. Spanning PLA material

between multiple vertical features may not print as intended.

Maintain Larger Footprints

Arrange the part where you will have the largest footprint touching the print pad.

You may also add a sidewalk to your print to increase the footprint.

Use PLA material to anchor your part to the print pad.

Preferred

Note the contact point of this part. Adding a sidewalk will stabilize it even more.

Not Preferred

Note the limited contact point of this part. This part may not be stable enough to

print properly.

Maintain Gaps

To ensure there is enough space for INF support, maintain at least .6 mm between

components that need to print with separation.
