ZKTeco ZKBio930 Manual de usuario

USER MANUAL

ZKBio930＆ZKBio950

Version：1.0 Date: July, 2019

Important Claim

Firstly, thank you for purchasing this hybrid-bio terminal. Before using, please read this manual

carefully to avoid the unnecessary damage! The company reminds you that the proper use will

improve the use affect and authentication speed.

No written consent from our company, any unit, or individual isn’t allowed to excerpt, copy the

content of this manual in part or in full, also spread in any form.

The product described in the manual maybe includes the software which copyrights are shared by

the licensors including our company. Except for the permission of the relevant holder, any person

can’t copy, distribute, revise, modify, extract, decompile, disassemble, decrypt, reverse

engineering, leasing, transfer, sub-license the software, other acts of copyright infringement, but

the limitations applied to the law is excluded.

Copyrights

document may be reproduced in any form or by any means without the prior written permission

from ZKTeco.

Due to the constant renewal of products, the company cannot undertake the actual product in

consistence with the information in the document, also any dispute caused by the difference between

the actual technical parameters and the information in this document. Please forgive any change

without notice.

Safety Instructions

1. Read these instructions carefully. Keep these instructions for future reference.

2. Please disconnect this equipment from AC outlet before cleaning. Don’t use liquid or sprayed

detergent for cleaning. Use moisture sheet or cloth for cleaning.

3. Please keep this equipment from humidity.

4. Lay this equipment on a reliable surface when install.A drop or fall could cause injury.

5. Make sure power cord such a way that people cannot step on it. Do not place anything over

the power cord.

6. All cautions and warnings on the equipment should be noted.

7. If the equipment is not used for long time, disconnect the equipment from main to avoid being

damaged by transient over voltage.

8. Never pour any liquid into opening; this could cause fire or electrical shock.

9. If one of the following situations arises, get the equipment checked by a service personnel:

10. The power cord or plug is damaged.

11. Liquid has penetrated into the equipment.

12. The equipment has been exposed to moisture.

13. The equipment does not work well or you cannot get it work according to user manual.

14. The equipment has dropped and damaged.

15. Do not leave this equipment in an environment unconditioned, storage temperature below

-20°C or above 60°C, it may damage the equipment.

16. Unplug the power cord when doing any service or adding optional kits.

Lithium Battery Caution:

1. Danger of explosion can happen if the battery is incorrectly replaced. Replace only the

original or equivalent type recommended by the manufacture. Dispose used batteries

according to the manufacturer’s instructions.

2. Do not remove the cover, and ensure no user serviceable components are inside. Take the

unit to the service center for service and repair.

Table of Contents

1. Packing List.............................................................................................................1

1.1. Standard Accessories.........................................................................................................1

1.2 Optional Accessories ...........................................................................................................1

2. System View............................................................................................................3

2.1. Rear View............................................................................................................................3

2.2. Back View............................................................................................................................3

2.3. Specification........................................................................................................................4

2.4. Internal Layout ....................................................................................................................4

3. Pin Definition ...........................................................................................................6

3.1. CPU.....................................................................................................................................6

3.2. pin and jumper setting.........................................................................................................6

4. BIOS Settings........................................................................................................15

BIOS Setting.....................................................................................................................15

4.1. MAIN MENU......................................................................................................................16

4.2. ADVANCED MENU...........................................................................................................17

4.3. Chipset MENU ..................................................................................................................28

4.4. Security MENU..................................................................................................................32

4.6. Save&Exit MENU..............................................................................................................34

5. LCD Surface Cleaning...........................................................................................35

ZKBio900 Series User Manual

1.Packing List

1.1. Standard Accessories

a. ZKBio930＆ZKBio950

b. PowerAdapter

c. Power cord

1.2 Optional Accessories

ZKBio900 Series User Manual

a. Single MSR

b. VFD

c. 2nd Display

d. 1D or 2D Handheld Type Barcode Scanner

e. Thermal Printer

f. Cash Drawer

ZKBio900 Series User Manual

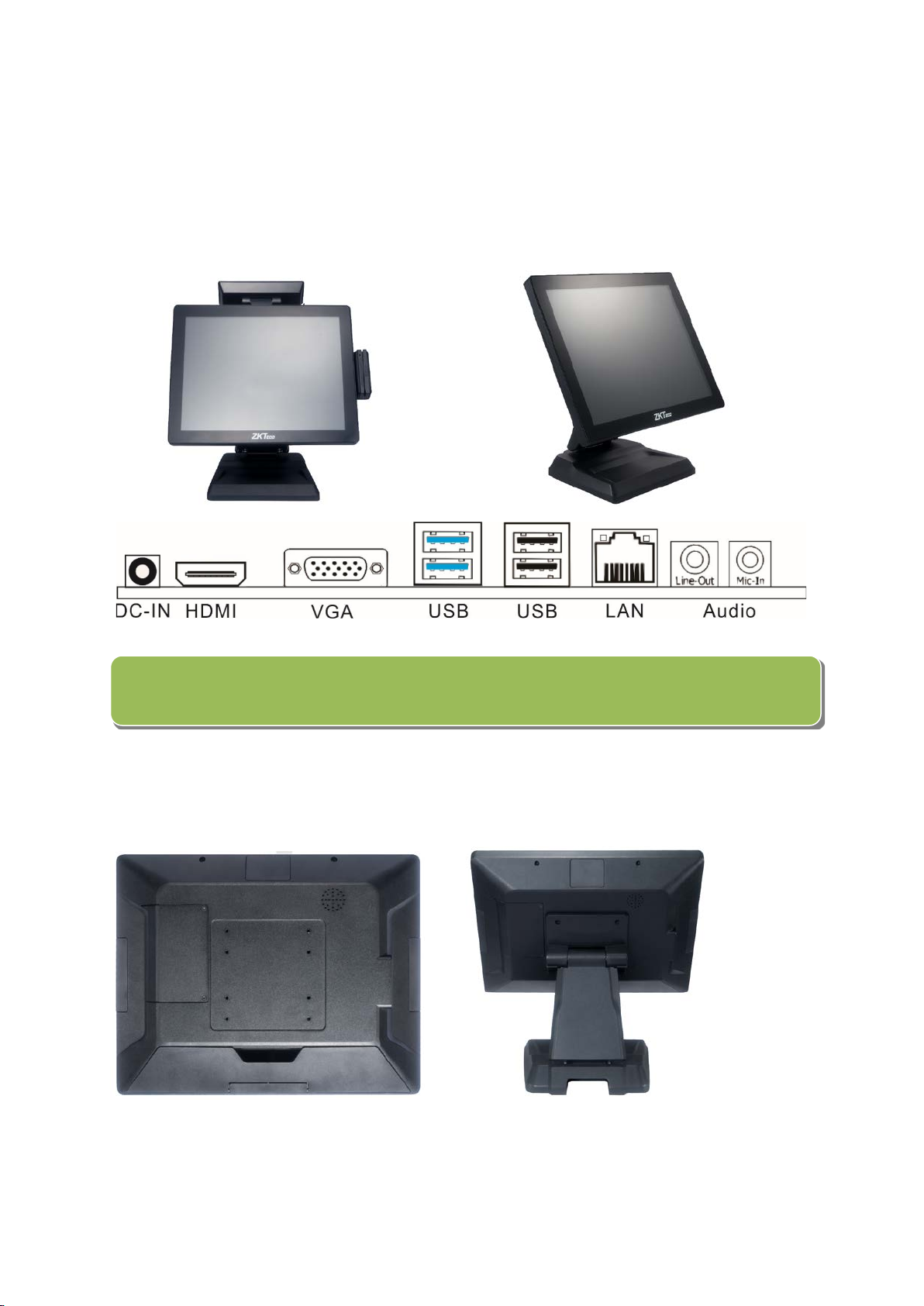

2.System View

2.1. Rear View

2.2. Back View

☆Please make sure 12V DC plug in the right direction before plugging in DC jack.

ZKBio900 Series User Manual

2.3. Specification

Display & Touch

LCD Display Size 15"TFT LCD

Max. Resolution 1024x768

Brightness 250 cd/㎡

Support Color 16.2M/ 262K colors

Backlight LED

Touch Type Standard Projected Capacitive

Main Board

Processor Intel®Core i3-4005U 1.7GHz(ZKBio930)

Intel®Core i5-4210U 2.6GHz(ZKBio950)

System Memory One SO-DIMM socket supports DDR3L

1600 up to 8GB

Storage HD 2.5” SATAII HDD x 1&MSATA x 1

I/O

USB X 5 (USB 2.0)

X 2 (USB 3.0)

Video output VGAX 1 HDMI X1

Audio Port x 1 Line-out x1 mic in

Network LAN X 1 (RJ45 10/100/1000 Base-T)

Environmental Temperature Operation 32° to 104° F (0° to 40° C)

Storage -4° to 140° F (-20° to 60° C)

Relative Humidity 20% to 80% non-condensing

Power Supply 12V 5A power adapter

OS Support POS

Ready 7 / Win 8.1 Industry / Win 10 IoT

Enterprise

Dimension 228*385*403 mm

Compliance Certifications CE / FCC

2.4. Internal Layout

M/B PCBA

ZKBio900 Series User Manual

In order to prevail in kind, the above picture is for reference only
