ZKTeco SpeedFace-V3L Manual de usuario

Quick Start Guide

SpeedFace-V3L

Version: 1.0

Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between the

actual product and the written information in this manual.

TX+

RX+

TX-

RX-

Overview

Flash

Microphone

2.4-inch Touchscreen

Camera

Doorbell Button

Fingerprint Sensor

Near-infrared Flash

Speaker

Terminal Block

12VIN

GND

COM

SEN

GND

BUT

AUX

GND

BELL+

BELL-

ALARM+

ALARM-

485A

485B

WD0-OUT

WD1-OUT

INWD0

INWD1

GND

12V-OUT

Installation Environment

Please refer to the following recommendations for installation.

Device Installation

AVOID DIRECT

SUNLIGHT

AND EXPOSURE

AVOID GLASS

REFRACTION

KEEP EFFECTIVE

DISTANCE

0.3-2.5m

KEEP DISTANCE

10ft

6.5ft

window

Fix the backplate on the wall using wall mounting screws.

Attach the device to the backplate.

Fasten the device to the backplate with a security screw.

①

②

③

④

Attach the mounting template sticker to the wall, and drill holes according to the

mounting paper.

1.5m

①

②

Standalone Installation

Power Connection

Recommended AC Adapter

1) 12V ± 10%, at least 1500mA.

2) To share the power with other devices, use an AC Adapter with higher current

ratings.

12V

TCP/IP

Alarm Smoke

Detector

Lock

Exit Button

Door Sensor

Reader

ZKBio Access

Ethernet Connection

Click on [COMM.] > [Ethernet] > [IP Address] , input the IP address and click on [OK].

IP address: 192.168.1.130

Subnet mask: 255.255.255.0

Default IP address: 192.168.1.201

Subnet mask: 255.255.255.0

Connect the device and computer software over an Ethernet cable. As shown in the

example below:

ZKBio Access

Note: In LAN, the IP addresses of the server (PC) and the device must be in the

same network segment when connecting to the ZKBio Access software.

Wiegand Reader Connection

Note: 485A and 485B can be connected to the Barrier gate or the 485 Reader,

separately, but cannot be connected to the gate and reader at the same time.

WD0

WD1

485A

485B

WD0-OUT

WD1-OUT

INWD0

INWD1

GND

12V-OUT

Wiegand

Reader

+12V

GND

WD1

WD0

Access

Controller

RS485 Connection

Door Sensor, Exit Button, Alarm & Auxiliary Connection

485 Reader

+12V

GND

485+

485-

485A

485B

WD0-OUT

WD1-OUT

INWD0

INWD1

GND

12V-OUT

COM

SEN

GND

BUT

AUX

GND

BELL+

BELL-

ALARM+

ALARM-

Alarm

Alarm Power

COM

Smoke

Detector

ExitButton

Door

Sensor

COM

SEN

GND

BUT

AUX

GND

BELL+

BELL-

ALARM+

ALARM-

Lock Relay Connection

The system supports Normally Opened Lock and Normally Closed Lock. The NO

LOCK (normally unlocked when power-on) is connected with 'NO' and 'COM'

terminals, and the NC LOCK (normally locked when power-on) is connected with 'NC'

and 'COM' terminals. Take NC Lock as an example below:

1)Device not sharing power with the lock2)Device sharing power with the lock

Normally Closed Lock

GND

DC12V

FR107

Maximum 30V 3A

input.

+12V

DC12V

GND

DC12V

FR107

+12V

COM

SEN

GND

BUT

AUX

GND

BELL+

BELL-

ALARM+

ALARM-

User Registration

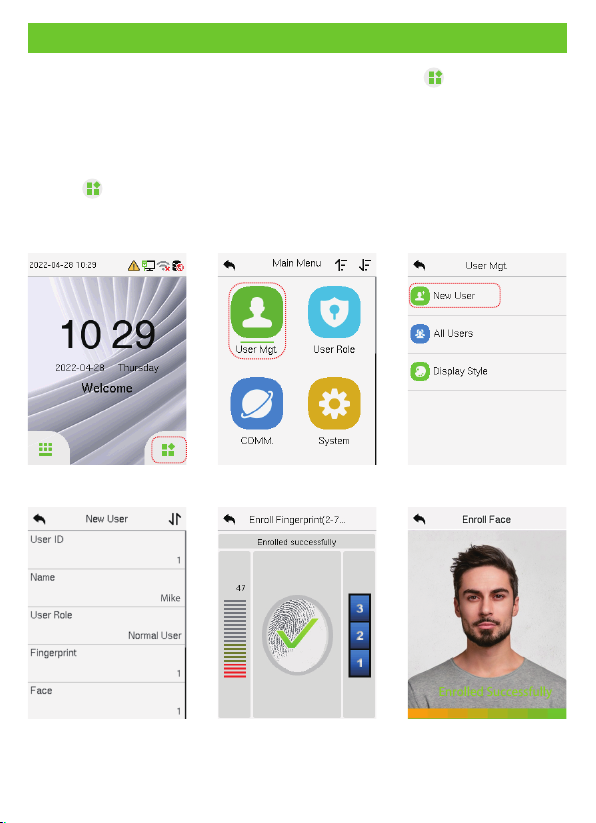

Method 1: Registering on the device

When there s no super administrator set in the device, click on enter the menu. i to

Add a new user and set User Role to Super Admin, then thethe system requests for

administrator’s veriﬁcation before entering the menu. It is recommended to register a

super administrator initially for security purposes.

Click on > [ ] > [ ] to register a new user. The options include User Mgt. New User

entering the user ID and Name, setting User Role and Access Control Role, registering

Fingerprint, Face, Card Number and Password.

Method 2: Register on ZKBio Access software

Please set the IP address and cloud service server address in the Comm. Menu option

on the device.

Click [Access] > [Access Device] > [Device] > [Search Device] to search the device

on the software. When an appropriate server address and port is set on the device,

the searched devices are displayed automatically.

Click [Add] in operation column, a new window will pop-up. Select Icon type, Area,

and Add to Level from each dropdowns and click [OK] to add the device.

Click [Personnel] > [Person] > [New] and fill in all the required fields to register a

new users in the software.

Click [Access] > [Device] > [Device Control] > [Synchronize All Data to Devices]

to synchronize all the data to the device including the new users.

For more details, please refer to the ZKBio Access User Manual.

Search Device

Search No device found? Download Search Tool s to Local Disk

Device Type Serial Number

Total Progress Sea rched de vices co unt :1

IP Address

IP Address MAC Address Subnet Mask Gateway Address Serial Number Device Type Set Ser ver Operat ions

192.168.213.79 255.255.255.0 192.168. 213 .1 Add

The c urrent s ysten commu nic ation port i s 660 9, please make sure the device is set correct ly.

Refresh New Delete Export Search Device Device Co ntrol Set up View and G et Device Info Communication

Step 1

Step 2

Step 3

Add

Device Name

Icon Type

Area

Add to Level

Clear Data in the Device when Adding

[Clear Data in the Device when Adding] will delete data in the device(except event

record), please use with caution!

OK Cancel

192.168.213.79

Door

Area Name

Step 4

Method 3: Register on the phone

Once the ZKBio Access software is installed, the users could enroll their face via a

browser application on their own mobile phone.

Click [Personnel] > [Parameters], input ‘’http://Server address: Port’’ in the QR Code

UGL bar. The software will automatically generate a QR code. Scan the QR code or

The users will be displayed in [Personnel] > [Temporary Personnel], click on [Review]

option and assign a department and click [OK] to successfully add the user.

Personnel

Person

Department

Temporary Personnel

Custom Attributes

Parameters

Personnel ID Setting

The Maximum Length:

Support Letters:

Personnel ID Auto-increment:

Card Setting

The Maximum Length:

Card Format Display:

Temporary Personnel Setting

Enable Temporary Personnel Auto-audit:

Self-service Registration

QR Code URL:

Yes No

Bits(Binary)

Decimal Hexadecimal

Yes No

http://Server address:Port

Download QR code image

Card Management

Personnel Registration

Personnel ID

First Name

Last Name

Mike

4835

Personnel

Person

Department

Temporary Personnel

Custom Attributes

Parameters

Card Management

Personnel ID Name

The current query conditions None

Refresh Review Delete

Personnel ID First Name Last Name Mobile Phone Status Create Time Operations

Delete4835 Mike

1-1 50 rows per page Jump To 1 /0 Page Total of 0 records

Welcome, admin
