ZKTeco Ultima Series Manual de usuario

USER GUIDE

ULTIMA Series

Time & AttendanceTerminal

ZKtechnology.com

The future of workforce

DATA COLLECTION

| ULTIMA Admin UI USER GUIDE 2

Cover page Intro page (This page) Admin UI menu

Installation GuideData SheetFingerprint EnrollmentBiometric Privacy Concerns

I N T R O D U C T I O N

This is an interactive PDF document

Simply click or touch (on touch screen) to navigate.

Ultima modules, plugs & indicators

Other Resources

| ULTIMA Admin UI USER GUIDE 3

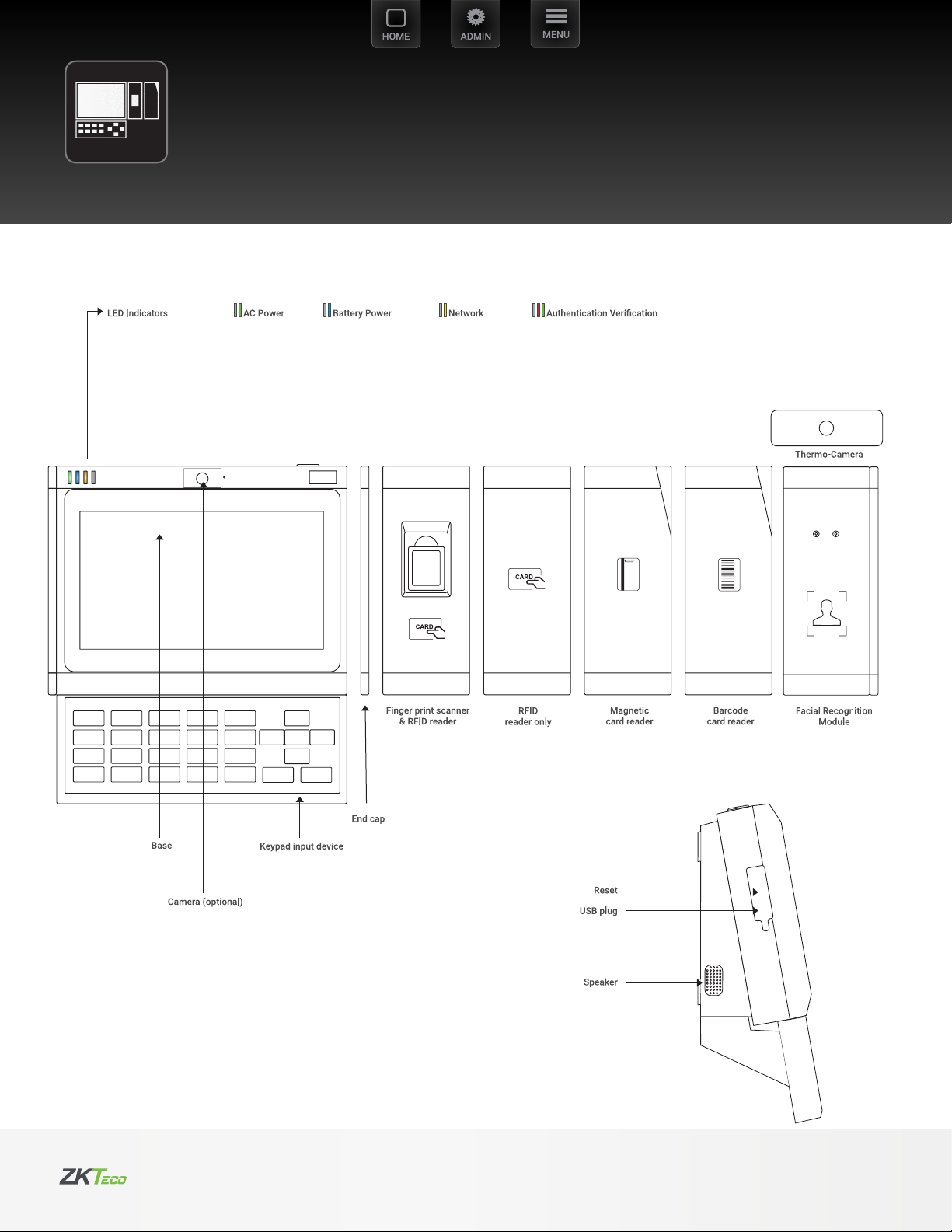

ULTIMA Base & Modules

Admin UI

| ULTIMA Admin UI USER GUIDE

User Manager

Search a User

Enroll Fingerprint

Delete Fingerprint

Enroll Badge

Delete Badge

Password

User Privilege

Verify Mode

Enroll Face ID

Device Info

About Device

System

Communication

Storage

Preferences

Look and Feel

Internationalization

Quick Menu

Clock Running Code

Device Setup

Badge Setup

-Smart Card Setup

-Barcode Setup

-Magnetic Setup

Biometric Setup

Bell Schedule

Tracking Code

Reference Page

General Settings

Display & Brightness

Sound

Date & Time

Authenticate to Access

| ULTIMA Admin UI USER GUIDE 5

Admin UI

Data Manager

Attendance Data

Clean Data

User Enrollment

Maintenance

Upgrade from USB

Upgrade from Server

Clock Back Up

Clock Recovery

Clock Reset

Auto Clean-up

Manual Clean-up

Diagnostic

Test Barcode

Test Control Relay

Test Display & Touch

Test Biometric Sensor

Test Keypad

Test Clock Health

Test MagStrip

Test Voice

Test Wiegand

Test LED

Test Proximity

Test Camera

Communication

Ethernet

WiFi

Web Server

Network Diagnostics

Technical Support

Support Contact

Troubleshooting

Attendance Setup

Function Menu

Attendance Rule

Provision

Update

| ULTIMA Admin UI USER GUIDE 6

Soft keypad alphabet mode will display by default.

Select soft-key button to switch the numeric soft key‐

pad

Select the User Manager icon

Start to enter users name or user ID.

It is a dynamic string search eld, which will show you results as

you type

Select the Search eld

User Manager Search a User

Jen| 1001|

Jennifer Hyman Employee

100114 Jennifer Hyman Employee

100114

| ULTIMA Admin UI USER GUIDE 7

Select Enroll

Select the User Manager icon

After reading the instruction.

Select Continue

Select a name

Select the Edit button

User Manager Fingerprint Enrollment

100114

Employee

100114

Jennifer Hyman

Employee

| ULTIMA Admin UI USER GUIDE 8

Step 2

Repeat the process

Select any available ngerprint to be scanned.

Step 3

Repeat the process. If successful Select Exit

If scanning quality is inadequate it will fail. So you need to start

to scanning process again

Scanning process takes 3 steps

Step 1

For instance:

Select number 7 (index nger).

Place your index nger on to scanner bed rmly.

User Manager Fingerprint Enrollment

| ULTIMA Admin UI USER GUIDE 9

On the ngerprint eld shows number of ngerprint has been

recorded.

Select Save

User Manager Fingerprint Enrollment

Jennifer Hyman

100114

Employee

Fingerprint

| ULTIMA Admin UI USER GUIDE 10

Select Delete button.

Select the User Manager icon

Select YES to conrm or NO to cancel

Select a name.

Select the Edit button.

User Manager Deleting Fingerprint

100114

Jennifer Hyman

61476

•••

100114

Employee

Fingerprint
