ZKTeco ProFace X SL Manual de usuario

Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between the

actual product and the written information in this manual.

Quick Start Guide

ProFace X (SL)

Version: 1.0

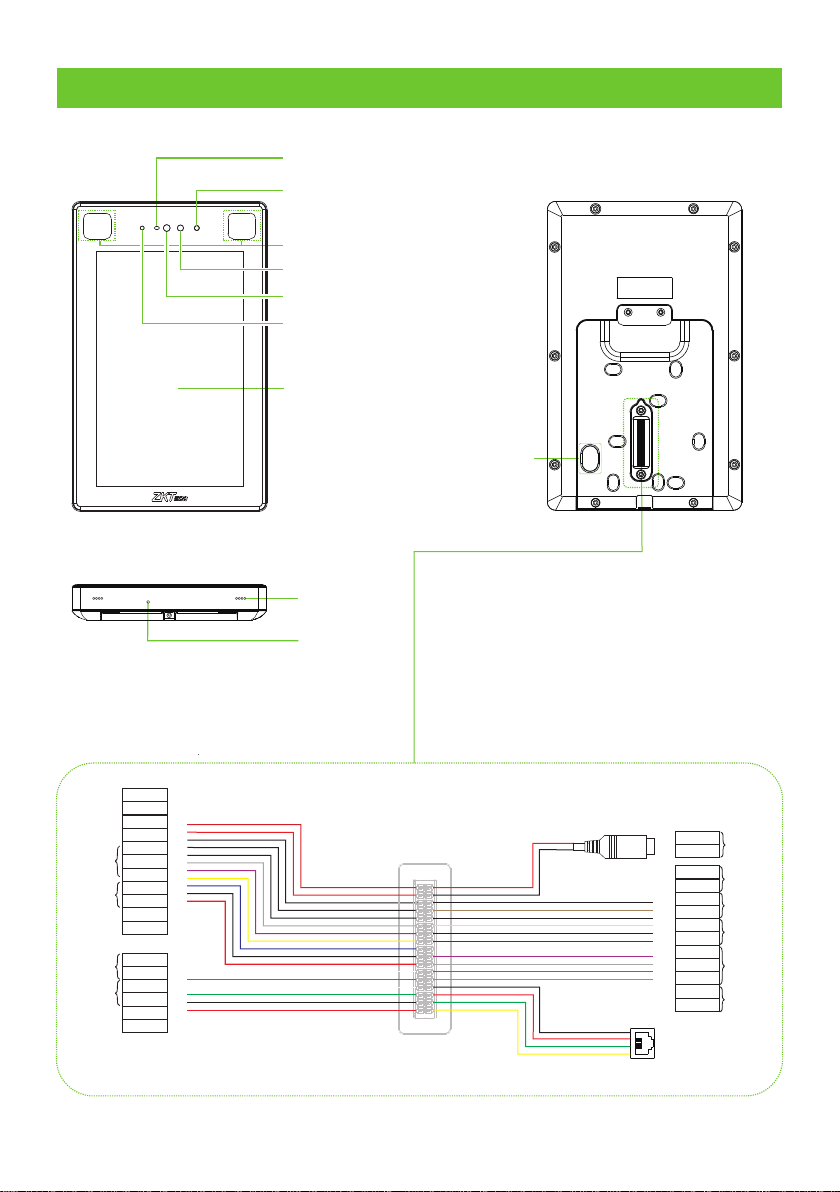

1Overview

Speaker

Reset Button

Exit

button

Auxiliary

input

AUX

AL+

AL-

COM

BUT

GND

SEN

GND

Alarm

Lock

Sensor

GND

+12V Power

GND

INWD0

INWD1

Wiegand

Out

12V

GND

WD0

WD1

Networkinterface

RS232

RS485

12V

485B

485A

GND

TXD1

RXD1

GND

12V

Power

interface

Tamper Switch

8-inch Touchscreen

RGB Camera

Near-infrared Flash

Flash

Proximity Sensor

Dot Projector

Infrared Camera

3 Device Installation

①Attach the mounting template sticker to the wall, and drill holes according to the mounting

paper.

②Fix the backplate on the wall using wall mounting screws.

③Attach the device to the backplate.

④Fasten the device to the backplate with a security screw.

Install on the wall

1 2

1.5m

Please refer to the following recommendations for installation.

AVOID DIRECT

SUNLIGHT

AND EXPOSURE

AVOID GLASS

REFRACTION

KEEP EFFECTIVE

DISTANCE

0.3-2.5m

KEEP DISTANCE

10ft

6.5ft

window

2 Installation Environment

①

②

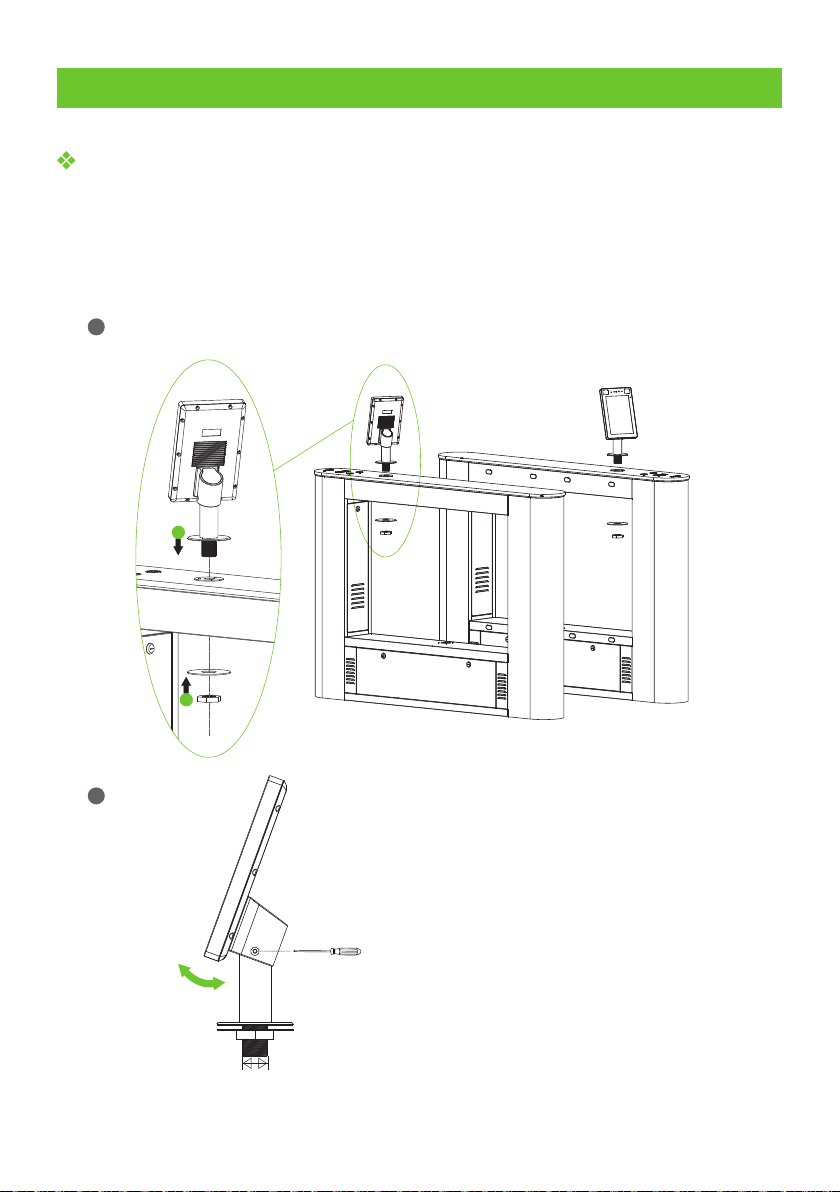

Install on the barrier gate

Please thread the wire through the bracket before installation.

①Drill a hole on the barrier gate, insert the bracket into the hole and fix it with a nut.

②Adjust the angle of the device.

3 Device Installation

30mm

①

②

4 Standalone Installation

Alarm Smoke

Detector

Lock TCP/IP

Exit Button

Door Sensor

Reader

5 Door Sensor, Exit Button & Alarm Connection

Door Sensor

Alarm Power

Alarm

Detector Power

SmokeDetector

ExitButton

AUX

AL+

AL-

COM

BUT

GND

SEN

GND

COM

6 Lock Relay Connection

The system supports Normally Opened Lock and Normally Closed Lock.

The NO LOCK (normally unlocked when power-on) is connected with 'NO' and 'COM' terminals, and

the NC LOCK (normally locked when power-on) is connected with 'NC' and 'COM' terminals.

Take NC Lock as an example below:

1)Device not sharing power with the lock

Normally Closed Lock

DC12V

2)Device sharing power with the lock

+12V

GND

FR107

Normally Closed Lock

GND

AUX

GND

SEN

GND

BUT

COM

AL-

AL+

DC12V

+12V

GND

AUX

GND

SEN

GND

BUT

COM

AL-

AL+

7 Wiegand Reader Connection

Access controller

+12V

GND

Wiegand reader

INWD0

INWD1

12V

GND

WD0

WD1

Maximum 30V 3A input.

8 Barrier Connection

9 RS485 Connection

Barrier gate

+12V

GND

485+

485-

12V

485B

485A

GND

TXD1

RXD1

GND

12V

485 reader

12V

485B

485A

GND

TXD1

RXD1

GND

12V

Note: 485A and 485B can be connected to the Barrier gate or the 485 Reader, separately, but cannot

be connected to the gate and reader at the same time.

11 Ethernet Connection

Connect the device and computer software over an Ethernet cable. An example is shown below:

: 192.168.1.201Default IP address

: 255.255.255.0 Subnet mask

: 192.168.1.130IP address

: 255.255.255.0 Subnet mask

Note: In LAN, IP addresses of the server (PC) and the device must be in the same network segment

when connecting to ZKBioSecurity software.

Click on [Comm.] > [Ethernet] > [IP Address], input the IP address and click on [OK].

10 Power Connection

12V3ADC

Recommended power supply: 12V - 3A

To share the power with other devices, use a power supply with higher current ratings.

ZKBioSecurity

12 UserRegistration

Clickon> [User Mgt.] > [New User] to register a new user. Settings include entering user ID and

name, face, password and proﬁle photo, setting user role and access control role.

Method1: Register on the device

When there is no super administrator set in the device, click on to enter the menu. After setting the

super administrator, the system will request for the administrator’s veriﬁcation before entering the menu.

For the security purpose, it is recommended to register a super administrator at the ﬁrst time you use

the device.

Tap-to-Wake

Main Menu

User Mgt. User Role COMM. System

Data Mgt.Personalize Attendance

Autotest System Info

Access Control

User Mgt.

New User

All Users

Display Style

Wednesday

*****

New User

User ID

Name

User Role

Face

Password

Proﬁle Photo

Access Control Role

Normal User

Enroll Face

Mike

Method2: Register on ZKBioSecurity software

Please set the IP address and cloud service server address in the Comm. Menu option on the device.

Click [Access] > [Access Device] > [Device] > [Search Device] to search the device on the software.

When an appropriate server address and port is set on the device, the searched devices are displayed

automatically.

Click [Add] in operation column, a new window will pop-up. Select Icon type, Area, and Add to Level

from each dropdowns and click [OK] to add the device.

For more details, please refer to the ZKBioSecurity User Manual.

Refresh New Delete Export Search Device Device Control Set up View and Get Device Info Communication

Search Device

Search No device found? Download Search Tools to Local Disk

Total Progress

IP Address

Device Type Serial Number

Searched devices count:2

Number of devices added:1

MAC Address Subnet Mask Gateway Address Serial Number Device Type Set Server Operations

192.168.0.31 255.255.255.0 192.168.0.1 S*********** This device has been added

Add

192.168.10.214 255.255.255.0 192.168.1.1

XXXX000000000

XXXX000000000 ProFace X [SL]

The current systen communication port is 8088, please make sure the device is set correctly.

Step 1

Step 2

Step 3

Add

Clear Data in the Device when Adding

Device Name *

Icon Type*

Area*

Add to Level

192.168.4.18

Door

Area Name

[Clear Data in the Device when Adding] will delete data in the device (except event

record), please use with caution!

OK Cancel

Step 4

Click [Personnel] > [Person] > [New] and fill in all the required fields to register a new users in the

software.

Click [Access] > [Device] > [Device Control] > [Synchronize All Data to Devices] to synchronize all

the data to the device including the new users.
