ZKTeco MiniAC Plus Manual de usuario
Quick Start Guide
MiniAC Plus
Version: 1.1
Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between
the actual product and the written information in this manual.
Overview
Flash
Camera & Palm collector
5-inch touchscreen
RS232
RS485
485B
485A
GN D
TXD
RXD
GN D
TXD2
RXD2
RS232
Power in
Wiegand
in
Wiegand
out
GN D
12V
+12V
GN D
IWD0
IWD1
WD0
WD1
ResetSpeaker
Microphone
Card reading area
Ethernet
TX+
RX+
TX-
RX-
Lock
AUX
Alarm
ExitButton
Sensor
AL+
AL-
NC1
COM
NO1
BU T
GN D
SEN
GN D
Auxiliary
input Magnetic tamper
switch
1
Installation Environment
KEEPEFFECTIVE
DISTANCE
0.3-2m
AVOID DIRECT
SUNLIGHT
AND EXPOSURE
AVOID GLASS
REFRACTION
KEEP DISTANCE INDOOR USE
Device Installation
1.5m
1 2 3
①
②
①Attach the mounting template sticker to the wall, and drill holes according
to the mounting paper. Fix the back plate on the wall using wall mounting
screws.
② Attach the device to the back plate.
③ Fasten the device to the back plate with a security screw.
TCP/IP
Alarm Smoke
detector
Lock
Exit button
Door sensor
Card
reader
PC
Standalone Installation
2
Lock Relay Connection
The system supports Normally Opened Lock and Normally Closed Lock.
The NO LOCK (normally opened at power on) is connected with 'NO1' and
'COM' terminals, and the NC LOCK (normally closed at power on) is connected
with 'NC1' and 'COM' terminals. Take NC Lock as an example below:
3
AUX
AL+
AL-
NC1
COM
NO1
BUT
GND
SEN
GND
-+
-+
+-
+
-
Door Sensor, Exit Button & Alarm Connection
Door Sensor
Alarm
Alarm's power switch
ExitButton
Smokedetector
RS485 Connection
Wiegand Reader/SRB Connection
WD0
WD1
+12V
GN D
Wiegand Reader
+12V
IW D1
IW D0
GN D
WD0
WD1
4
485B
485A
GND
TXD
RXD
GND
TXD2
RXD2
485+
485-
GND
RS485
Reader
Power supply
Normally Closed Lock
12V
IWD 0
IWD 1
NO
COM
NC
GND
+12V
IW D1
IW D0
GN D
WD0
WD1
FR107
SRB
Power Connection
Ethernet Connection
12V
GND
12V DC
GND
Recommended power supply
1) 12V ± 10%, at least 3000mA.
2) To share the power with other devices, use a power supply
with higher current ratings.
Default IP address: 192.168.1.201
Subnet mask: 255.255.255.0
Click [COMM.] > [Ethernet] > [IP Address] , input the IP address and click [OK].
Note: In LAN, IP addresses of the server (PC) and the device must be in the
same network segment when connecting to ZKBioAccess software.
IP address: 192.168.1.130
Subnet mask: 255.255.255.0
8
7
6RJ 45
5
4
3
2
1
RX
TX+
TX-
RX-
ZKBioAccess
5
User Registration
Clickon> [User Mgt.] > [New User] to register a new user. Settings include
entering user ID and name, registering a face, palm, password, and user photo, badge
setting user role and access control role.
Method1: Register on the device
When there is no super administrator set in the device, click on to enter the menu.
After setting the super administrator, the system will request for the administrator’s
verification before entering the menu. For the security purpose, it is recommended to
register a super administrator at the first time you use the device.
6
Badge Number
Method2: Register on ZKBioAccess software
Please set the IP address and cloud service server address on the device.
2. Click [Personnel] > [Person] > [New] to register users in the software.
3. Add users to access levels.
4. Click [Access] > [Device] > [Device Control] > [Synchronize All Data to Devices].
For more details, please refer to the ZKBioAccess User Manual.
1. Click [Access] > [Access Device] > [Device] > [Search Device] to add the device
to the software.
When the device has set the server address and port, it can be added automatically.
7
Method3: Register on the phone
2. The users will display in [Personnel] > [Temporary Personnel], click [Review].
Once ZKBioAccess software installation, users could enroll face via browser
application on their own mobile phone.
1. Click [Personnel] > [Parameters], input ‘’http://Server address:Port’’ in the QR Code
UGL bar. The software will automatically generates a QR code. Scan the QR code or
login onto ‘’http://Server address:Port/app/v1/adreg’’ by the mobile phone to register
users.
8

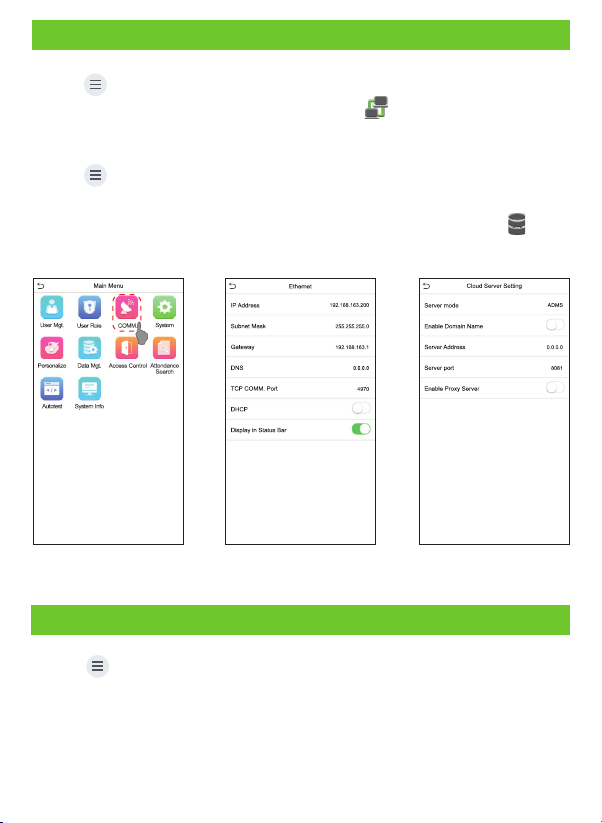

Ethernet and Cloud Server Settings
Clickon > [COMM.] > [Ethernet]to set the network parameters. If the TCP/IP
communication of the device is successful, the icon will be displayed in the
upper right corner of the standby interface.
Clickon > [COMM.] > [Cloud Server Setting] to set the server address and server
port,that is, the IP address and port number of the server after the software is
installed. If the device communicates with the server successfully, the icon will be
displayed in the upper right corner of the standby interface.
Access Control Settings
Clickon to enter the access control management interface and > [Access Control]
set relevant parameters of access control.
9
