ZKTeco SF101 Manual de usuario

SF series user manual V1.0

SF100 User Manual

Version 1.0

SF series user manual V1.0

Contents

1 Profile .................................................................................................................... 1

1.1 Basic function parameters............................................................................... 1

1.2 Panel introduction ........................................................................................... 2

2. System Installation .............................................................................................. 4

2.1 Installation Notices ......................................................................................... 4

2.2 Device Installation .......................................................................................... 5

2.3 Sketch Map of System Installation.................................................................. 7

3. Connection with the peripheral devices............................................................. 8

3.1 Connection with access controller （only SF101）...................................... 8

3.2 Connection with door lock.............................................................................. 9

3.3 Connections with exit button, alarm, doorbell, and door sensor ....................11

3.4 Power supply..................................................................................................13

4. Basic operations..................................................................................................14

4.1 Enroll a administrator ....................................................................................16

4.2 Enroll a user...................................................................................................17

4.3 User authentication ........................................................................................18

4.4 Delete a user...................................................................................................19

4.5 Delete all users...............................................................................................20

4.6 Fingerprint enrollment sub-flow and overtime judgement sub-flow..............21

5. Communications.................................................................................................23

SF series user manual V1.0

1 Profile

1.1 Basic function parameters

Features

Easy installation, high reliability

Simple and clear operation flow, voice prompts in the operations.

Support the ID / MF card, a wider use range.

Support the backup authentication, stronger function (also with the

extension function).

Basic function parameters are shown as follows:

Power DC12V

Access control device, has the

detection functions such as door

sensor, device dismantled etc.

Function

One Wiegand output (only SF101)

User number 200 (fingerprint, ID card and MF

card)

Record memory 30000 records

USBcommunication

RS232/485 (device monitors the

running)

Fingerprint head Optical fingerprint head

Door bell Support the wired doorbell

Speaker The voice prompts

Buzzer Alarm when the device is dismantled

LED Three-color indicate (Red, green,

All copyrights are reserved -1-

SF series user manual V1.0

blue)

Language Support multi-national voices

Sleep Support the sleep function

Explanation:

1. Access control function: support the access control output, door

sensor alarm, exit button, but not support time segment, duress alarm etc.

It is a comparatively simple access control.

2. Sleep function: during sleeping, the backlight of fingerprint head is

turned off and Led displays, if any key is pressed (except the Bell key),

it will be waked up automatically to work normally.

1.2 Panel introduction

Front panel

Enroll key: it is

also used as

exit key during

the enrollment.

Delete key: it is

also used as

exit key during

the deletion.

Fingerprint

reader

LED:

the indicator light with three colors of red,

finger

buckle

cover

doorbell key

All copyrights are reserved -2-

SF series user manual V1.0

Back panel:

Anti-dismantle button: Send

out the alarm signal through

the terminal when the device

Speaker (mainly used in voice prompt)

Bottom Panel

Reset key

Press this key to restart device if

device can not run normally due to

the error operations or other

accidents.

USB interface

All copyrights are reserved -3-

SF series user manual V1.0

2. System Installation

2.1 Installation Notices

Our products are mass-produced and in accordance with the strict

production and testing standards in China, the United States and the

European Union, but we hope you read the installation notices carefully

before the installation. The company to remind you the proper use, will

greatly improve your use effect and speed. If you don’t read the notes

carefully before the installation, probably because of improper

installation will cause a very serious accident damage, even though

we make every effort to provide you with good service, and you will

have to pay an unnecessary price.

1. Please connect the power supply later after all other wires are

connected well. If the machine cannot run normally, please cut off the

power and then start examination. Please remember: All connection

wires with power will damage the machine accidentally. We won’t

provide maintenance for such damage.

2. Recommend the use of 3A/12V DC power supply to the equipment.

For details, consult the relevant technical staff.

3. Please firstly read explanations of connection terminals carefully

and then connect the wires in strict accordance with the rules, due

to abnormal operations may result in equipment damages, do not

belong to the scope of warranty

4. All external connection wires are forbidden to be bared, both

connections and useless ends of wires must be bandaged with insulating

tape to prevent the accident contact of bared wires, which cause the

machine damage.

All copyrights are reserved -4-

SF series user manual V1.0

5. To prevent excessive instantaneous electrostatic damage to the

machine in winter or the place with a comparatively serious static,

please connect the ground wire firstly, then connect the other wires.

6. If the distance between power supply and machine is long, please

don't use the net cable or other types of lines to take place of power cord.

While selecting power cord, voltage attenuation caused by overlong

transmission distance should be taken into account.

7. When use 485 to organize a network, please use the professional

485 bus and RS232/485 transformer with power, and adopt the bus-type

wiring. If RS485 communication distance is over 300 meters, add a

terminal matched resistor about 120Ωto the RS485 bus.

8. Please use the access control software to connect the machine and

enroll users.

2.2 Device Installation

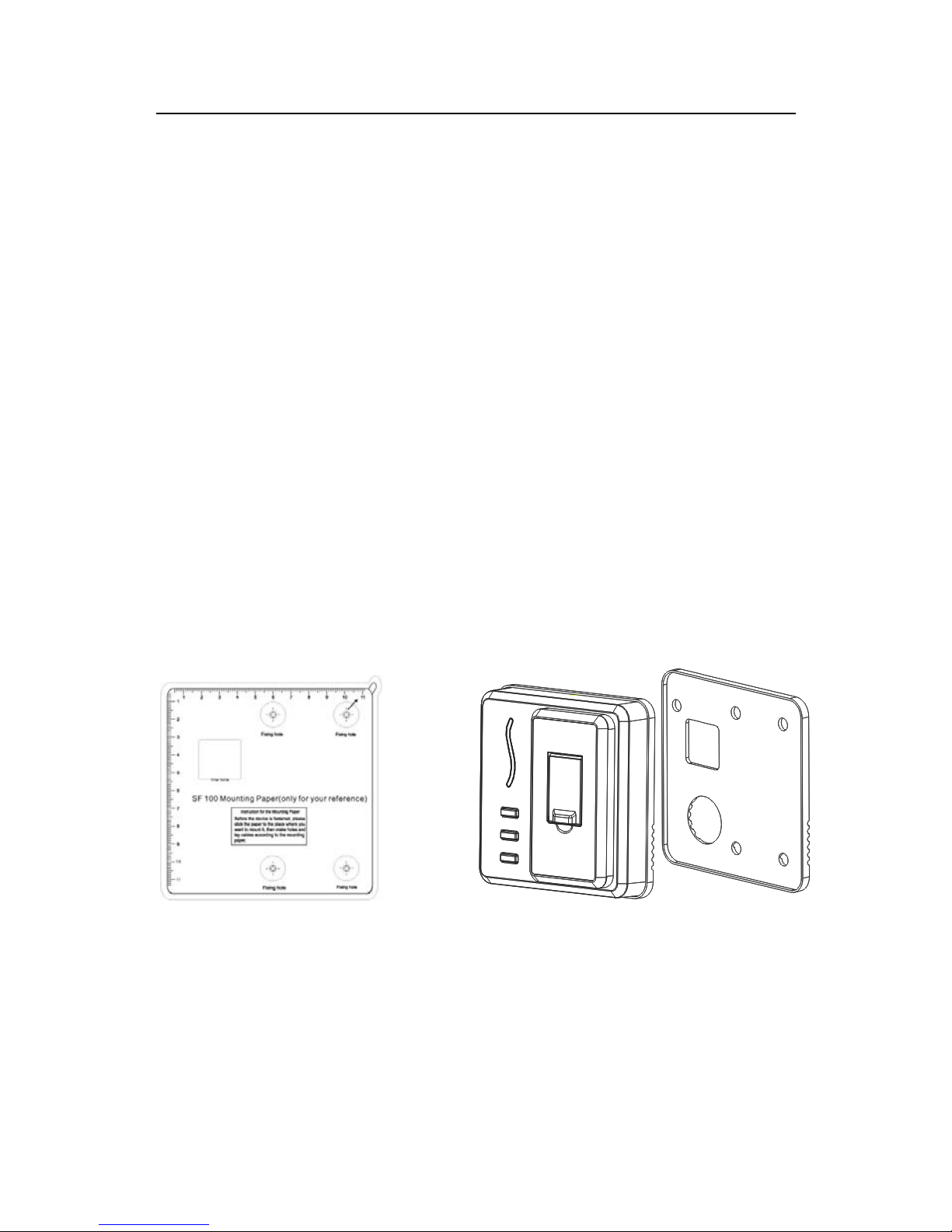

1）Post the moulding board on the

wall. Drill holes according to marks

on the moulding. (There should be

screw holes and lead wire hole)

2) Take the waterproof glue

away from the rear cover

All copyrights are reserved -5-

SF series user manual V1.0

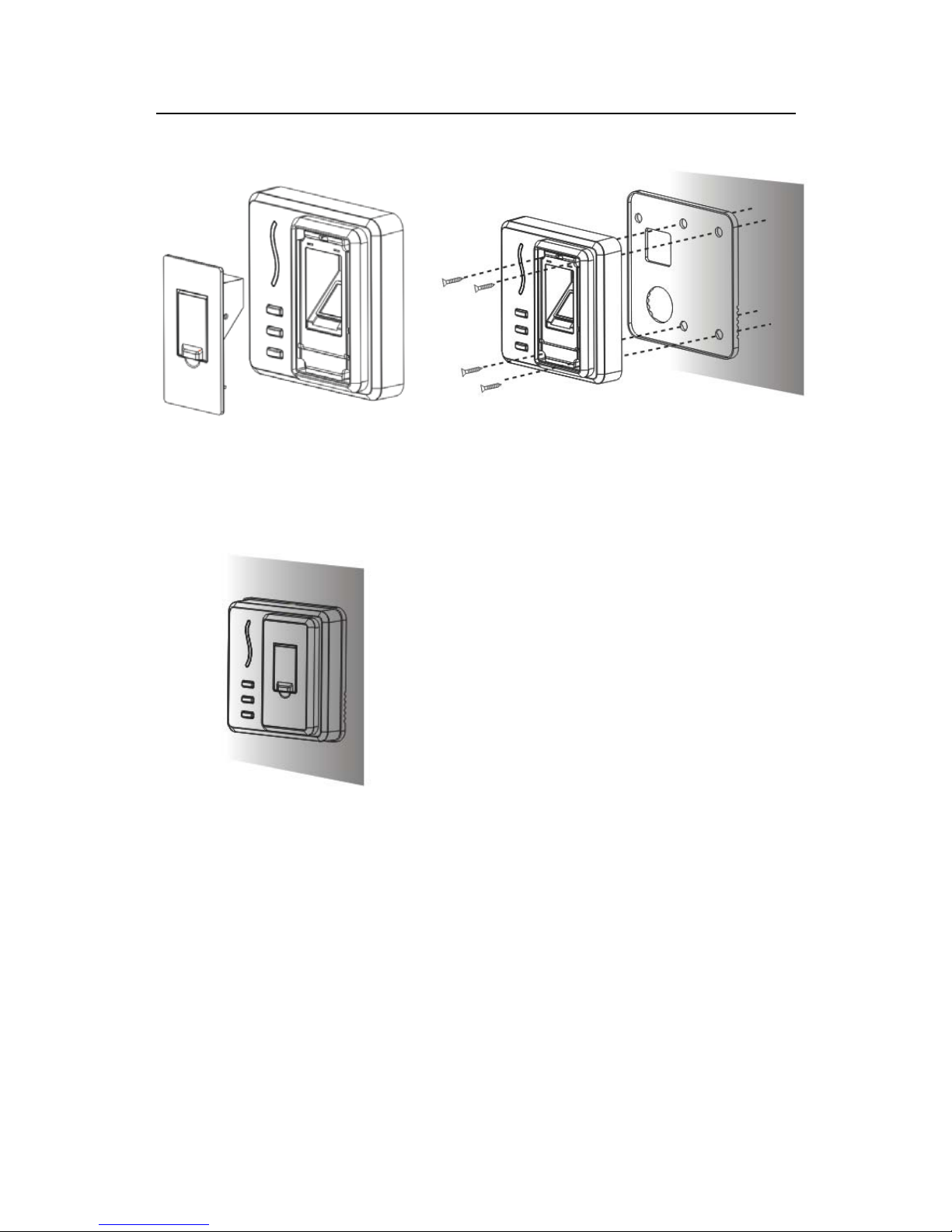

3) Take the finger buckle

cover away from the device

4) Use screws to fix the device and

waterproof glue on the wall.

5）At last, install the finger buckle

cover well to complete the device

installation.

All copyrights are reserved -6-

SF series user manual V1.0

2.3 Sketch Map of System Installation

1．When a person has passed the status authentication on the access

control device, the device will output the lock control signal to unlock.

2. Door sensor will automatically detect the switch state, when the door

is accidentally opened or the door is not closed well, it will trigger the

alarm signal (switch volume signal)

3. If the access control device is in unusual circumstances such as illegal

demolition etc., it will output the alarm signal (switch volume signal).

4. External wired doorbell can be connected.

5. External exit button can be connected, so it is convenient to open the

door from the indoors.

6. Through RS485/RS232/USB to connect with PC and transfer data to

PC, you can easily manage multiple terminal devices through access

control management software.

Note: The alarm and the wired doorbell are required to connect an

external power supply

All copyrights are reserved -7-

SF series user manual V1.0

3. Connection with the peripheral devices

3.1 Connection with access controller （only SF101）

SF100 as a fingerprint reader, can support various Wiegand format outputs,

and can connect with access controllers of majority manufacturers on the

market. Wiegand output has two modes as follows:

The mode to output user number: Wiegand outputs the fingerprint or

the user number after a successful card authentication, or the instruction

code after a failed authentication.

The mode to output card: Wiegand outputs the got card data, that is,

to output the card data as the original.

Note: 1) The recommended distance between device and access controller

should not be more than 90 meters (If a longer distance or an environment

with interference, please use the Wiegand signal extender).

2) Regardless of whether the device shares power supply with the access

controller, the device must share the ground with the access controller to

guarantee the stability of Wiegand signal.

3) Since SF100 and SF101 can not be used as readers, RLED, GLED, BEEP

are the idle terminals. In addition, SF100 has no Wiegand output, so 12V,

GND, WD0 and WD1 are also the idle terminals.

All copyrights are reserved -8-
