ZKTeco Horus Manual de usuario

Quick Start Guide

HORUS

Version: 1.2

Date: November 2019

Speaker

Fixing hole

Power

Reset button

Fixing hole

Microphone

Side

Flash

Type C-

power interface

SIM Card port-

Front

Camera

5 inch Screen

Infrared

sensors

Rear Bottom

Device Overview

Near-infrared

Type C power interface &-

OTG debugging interface

Side

Fingerprint & RFID (Optional)

Note:

1. The port on the back is used to DM10(RS485) and TCP/IP connection;

2. Not all the devices have the function with , the real product prevails.

Fingerprint Sensor &

ID/MF Card read area

Front

TCP/IP and RS485

extend port

(Horus E1-RFID, Horus

E1-FP has the port)

Rear

GND

485+

485-

TX+

TX-

RX+

RX-

RS485

Ethernet

Port Connection

Bottom

Reset Button

Type C power-

interface

Device Installation

1 Installation Environment.

Install the device indoors at least 10 feet

(3m) away from window, and 6.5 feet (2m)

from light source. It is not recommended

to install on the windows or in outdoor.

a. Recommended location

b Not recommended locations.

Direct Sunlight

Outdoor

Direct Sunlight

through window

Indirect Sunlight

through window

Too close to

light source

2 Installation Steps.

Step 1: Put the mounting template sticker onto the wall, and drill holes

according to the mounting paper.

Step 2: Fix the back plate onto the wall using wall mounting screws.

Step 3: Insert the device into back plate.

Step 4: Use security screw to fasten the device to back plate.

1.55m

Baseline

a. Mounting on the wall

1.5m

0 -0.7m.5

1.5m 1 8m-.

0.5m

0.7m

1.8m

1.5m

1.3m

3 4

b Mounting on the desktop holder.

Step 1: plateScrew the back to the desktop holder.

Step : Insert the back plate into device. se security screw to fasten2 And u

the device to back plate.

1 2

put it on the table

c Mounting on the glass door.

Step 1: Attach the double-sided tape to the back panel. Then attach the

back plate to the glass door.

Step : Use security screw to fasten the2 Fix the device to the back plate.

device to back plate.

1 2

Double-sided tape

86 box

d. Mounting on the wall through 86 box

Step 1: Install the 86 box (or Single Gang box) into the wall.

Step 2: Fix the back plate to the adaptor board (86 box and Singer Gang

has diﬀerent adaptor board) with two screw and nuts.

Step 3: Fix the adaptor board onto the 86 box (or Single Gang box) using

four wall mounting screws.

Step 4: Insert the device into back plate.

Step 5: Use security screw to fasten the device to back plate.

Wall

Adaptor board

Back plate

Power Connection

Recommended power supply:

12V ± 10%, at least 2000mA.

Please use the supplied Type-C power plug.

Equipment Connection

Connect the device and computer software over an Ethernet cable.

An example is shown below:

TX+

TX-

RX+

RX-

Default IP address: 192.168.1.201

Subnet mask: 255.255.255.0

IP address: 192.168.1.130

Subnet mask: 255.255.255.0

Note:

1. In LAN, IP addresses of the server (PC) and the device must be in

the same network segment.

2. It only supports Horus E1-RFID and Horus E1-FP.

1 Ethernet Connection.

2 RS485 Connection and Extend DM10.

GND

485+

485-

DC12V

GND

485A

485B

DM10

Note:

1. DM10 needs to be powered separately.

2. The address of the DM10 DIP switch defaults to .

3. It only supports Horus E1-RFID and Horus E1-FP.

4. Not all devices support all function: Door Sensor, Lock, Smoke Detector,

Alarm, Reader and Exit Button, it's based the Horus rmware, please

con rm with technical support before the sales.

Lock

Exit Button

Door Sensor

ReaderAlarm

Smoke

detector

1234

Quick Start

User Registration

User Authentication

View records

Verified

Network settings

Click >[System Settings]> [Netword settings] /[Cloud service settings]

to parameters of the ethernet, Wi-enter the settings interface, and to set

Fi, 4G and cloud service.

Network settings

Ethernet

Ethernet settings

Wi-Fi

Wi-Fi Settings

Mobile Network

Mobile Network Switch 4G/3G/2G

Comm connection

IP Address

0000...

Comm connection settings

ATT

Events

User Mgt. Access

Settings

Attendanc

e Search

Data Mgt.

Cloud service settings

Server

Server type

Enable domain name

Server address

Server port

Enable proxy server

Open HTTPS

ADMS

0.0.0.0

8081

Restart manually to complete

setup

Network settings

Date and time

ATT parameters

Cloud service settings

Serial port setting

Display settings

Sound settings

Biometric parameters

Auto-Testing

Advanced settings

About device

Restart

System Settings

Note: Plug the SIM card into your device, turn on the 4G/3G/2G function,

and you can use it directly.

2. Register on the software (BioTime 8.0)

a. Click [Device] > [Device] > [Add] to add the device to the software.

When the device has set the server address and port, in can be added

automatically.

Please set the IP address and cloud service server address on the device.

User registration

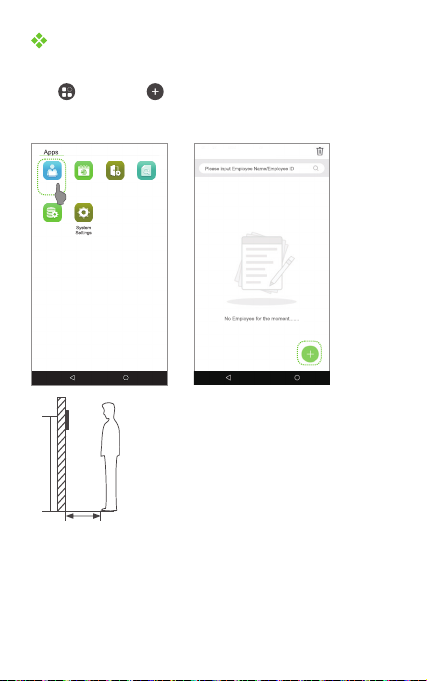

1. Register on the device

Click > User Mgt. > to register new user. Enter user name, ID,

optional), and password.

Note:

1. It's recommended to register multiple

administrators.

2. It's recommend enroll user's face in

0.5~0.75m distance, it's good for

1.5~1.8m height person.

0 5-0.7m.

1.5m

15m18m.-.

Attendanc

e Search

User Management

ATT

Events

User Mgt. Access

Settings

Attendanc

e Search

Data Mgt.

b. Click [Personnel] > [Employee] > [Employee] > [Add] to register users in

the software.

c. Synchronize personnel on the software to devices in the corresponding

area.

d. In the personnel list, select an employee (or employees) and click

[More] > [Synchronize to Device] to access the confirmation interface

for synchronizing. For more details, please refer to the BioTime 8.0 User

Manual.

Note: The icons or in the standby interface indicates that the

network connection or the server is abnormal. Please check the network

cable and network connection.

3. Register on the phone

Once BioTime 8.0 software installation, users could enroll face via broswer

application on their own mobile phone.

light device.

a. Choose [Personnel] > [Employee] > [Bio-photo] > [QR Code] to access

the QR Code getting interface.

b. Scan the QR code via broswer APP and enroll face user, user could input

the on the broswerhttp://server_ip_address:server_port/v1Register/

APP manually as well. The following interface is entered after successful

scanning:
