ZKTeco FaceDepot-7BL Manual de usuario

Version: 1.1

Date: December 2019

Quick Start Guide

FaceDepot 7BL-

Power

GND

+12V

Overview

Flash

Camera

7 inch touch screen

Microphone

Fingerprint sensor

Card reading area

Magnetic

tamper switch

Speaker

FP & RFID Reader (Optional)

Connection

interface

Lock

AUX

Alarm

Exit

Button

Sensor

AL+

AL-

COM

BUT

GND

SEN

GND

Auxiliary

input

Wiegand

Out

+12V

GND

INWD0

INWD1

W0D

W1D

RS232

RS485

12V

485A

GND

TXD1

RXD1

GND

TXD2

RXD2

RS232

485B

Connection interface

Reset

USB port

Network

interface

Device Installation

1.5m

123

①Attach the mounting template sticker to the wall, and drill holes according to

the mounting paper. Fix the back plate on the wall using wall mounting screws.

②Attach the device to the back plate.

③Fasten the device to the back plate with a security screw.

Method 1: Installation on the wall

Please route the wire through the bracket before installation.

1. Drill a hole on the barrier gate.

Insert the bracket into the hole and fix it with a nut.2.

3. Adjust the angle of the device.

Method 2: Install on the barrier gate

Adjust the device

1. Adjust the angle of the device.

2. Fix the screws.

Note: If you want to install FP & RFID reader, please insert the reader after step .①

TCP/IP

Alarm

Smoke

detector

Lock

Exit Button

Door Sensor

Card

Reader

ZKBioSecurity

Standalone Installation

AUX

AL+

AL-

COM

BUT

GND

SEN

GND

Door Sensor, Exit Button & Alarm Connection

Door Sensor

Alarm

Alarm's power switch

Exit Button

Smoke detector

Note: On this document, we just guide you to connect some normal components,

if you want more connection of SRB, external fingerprint reader and so on, please

check user manual document.

Lock Relay Connection

Wiegand Reader Connection

The system supports Normally Opened Lock and Normally Closed Lock.

F 107R

AUX

GND

SEN

GND

BUT

COM

AL-

AL+

The NO LOCK (normally opened at power on) is connected with 'NO' and 'COM'

terminals, and the NC LOCK (normally closed at power on) is connected with 'NC'

and 'COM' terminals. T NC Lock below:ake as an example

Normally Closed Lock

1) Device not sharing power with the lock 2) Device sharing power with the lock

WD0

WD1

+12V

GND

Wiegand Reader

+12V

IDW1

IDW0

GND

WD0

WD1

Access controller

GND

12V

DC12V

F 107R

AUX

GND

SEN

GND

BUT

COM

AL-

AL+

Normally Closed Lock

GND

12V

DC12V

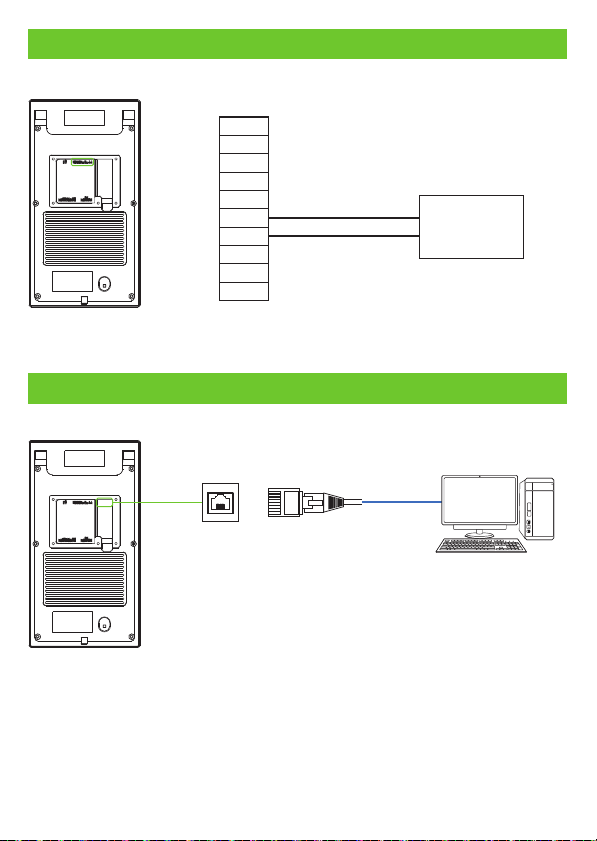

Barrier Connection

Ethernet Connection

Default IP address: 192.168.1.201

Subnet mask: 255.255.255.0

Click [COMM.] > [Ethernet] > [IP Address], input the IP address and click [OK].

IP address: 192.168.1.130

Subnet mask: 255.255.255.0

6RJ 45

Note: In LAN, IP addresses of the server (PC) and the device must be in the same

network segment when connecting to ZKBioSecurity software.

Barrier gate

ZKBioSecurity

AUX

GND

SEN

GND

BUT

COM

AL-

AL+

GND

User Registration

GND

12V DC

Recommended power supply

1) 12V ± 10%, at least 00mA.30

2) To share the power with other devices, use a power

supply with higher current ratings.

Power Connection

When there is no super administrator set in the device, click on to enter the menu.

After setting the super administrator, the system will request for the administrator’s

veriﬁcation before entering the menu. For the security purpose, it is recommended to

Method1: Register on the device

Click on > >[User Mgt.] [New User] to register a new user. Settings include

entering user ID and name, registering a ﬁngerprint, face, password, badge (optional)

and user photo, setting user role and access control role.

Method2: Register on ZKBioSecurity software

Please set the IP address and cloud service server address on the device.

1. Click [Access] > [Access Device] > [Device] > [Search Device] to add the device to

the software.

When the device has set the server address and port, it can be added automatically.

2. Click [Personnel] > [Person] > [New] to register users in the software.

3. Add users to access levels.

4. Click [Access] > [Device] > [Device Control] > [Synchronize All Data to Devices].

For more details, please refer to the ZKBioSecurity User Manual.

Step 1

Step 2

Step 3

Step 4

Method3: Register on the phone

Once ZKBioSecurity software installation, users could enroll face via browser

application on their own mobile phone.

1. Click [Personnel] > [Parameters], input ‘’http://Server address:Port’’ in the QR Code

UGL bar. The software will automatically generates a QR code. Scan the QR code or

users.

2. The users will display in [Personnel] > [Temporary Personnel], click [Review].

Ethernet and Cloud Server Settings

Click on > [COMM.] > [Ethernet] to set the network parameters. If the TCP/IP

communication of the device is successful, the icon will be displayed in the

upper right corner of the standby interface.

Click on > [COMM.] > [Cloud Server Setting] to set the server address and server

port, that is, the IP address and port number of the server after the software is

installed. If the device communicates with the server successfully, the icon will be

displayed in the upper right corner of the standby interface.
