Western Digital My Book Studio Manual de usuario

My Book™Duo

Desktop RAID Storage

User Manual

Accessing Online Support

Visit our product support website at support.wdc.com and choose from these topics:

▪Registration – Register your WD product to get the latest updates and special offers at: register.wdc.com

▪Downloads –Download software and updates for your WD product at: support.wdc.com/downloads

▪Email Support – Get technical and other support through email at: support.wdc.com/support

▪Warranty & RMA Services – Get warranty, product replacement (RMA), RMA status, accessories, and data

recovery information at: support.wdc.com/warranty

▪Knowledge Base – Search by keyword, phrase, or answer ID at: support.wdc.com/knowledgebase

▪WD Community – Share your thoughts and connect with other WD users at: community.wdc.com

▪Phone Support – Get phone numbers for contacting support by region at: support.wdc.com

Table of Contents

_________

Accessing Online Support.................................................................................ii

_________

1 About Your WD Storage Device....................................................................1

Features.............................................................................................................................1

Retail Box Contents..........................................................................................................1

Operating System Compatibility....................................................................................2

File System........................................................................................................................2

Physical Description.........................................................................................................2

Front LED..............................................................................................................................3

Power Button....................................................................................................................... 4

USB™Connectors................................................................................................................4

Kensington®Security Slot.................................................................................................. 4

Power Connector & Power Adapter.................................................................................. 4

Registering Your WD Product........................................................................................ 5

Handling Precautions.......................................................................................................5

_________

2 Getting Started..............................................................................................6

Connecting the Device....................................................................................................6

_________

3 WD Discovery Software................................................................................ 7

Installing WD Discovery Software.................................................................................. 7

WD Discovery Software – App & Device Access.......................................................... 8

WD Discovery Software – Import Data from a Cloud Service..................................... 8

Checking for Software Updates..................................................................................... 9

Firmware Update............................................................................................................. 9

_________

4 WD Backup™Software..................................................................................11

How the Backup Function Works..................................................................................11

Backing Up to a WD Device.......................................................................................... 12

Backing Up to a Cloud Service......................................................................................13

How the Restore Function Works.................................................................................14

Restoring Files.................................................................................................................14

View & Edit a Backup Plan............................................................................................. 15

_________

My Book Duo

User Manual i

5 WD Security Software................................................................................. 16

Password Protecting the Device...................................................................................16

Unlocking the Device..................................................................................................... 17

With WD Security Software..............................................................................................17

Changing Your Password...............................................................................................17

Disable the Device Lock Feature...................................................................................18

Five Invalid Password Attempts.................................................................................... 18

_________

6 WD Drive Utilities Software.........................................................................19

Diagnose – Checking Drive Health................................................................................19

RAID Management..........................................................................................................19

RAID Status........................................................................................................................ 20

Disk Status.......................................................................................................................... 21

RAID Conﬁguration............................................................................................................ 21

Settings...........................................................................................................................22

Sleep Timer........................................................................................................................22

LED Settings.......................................................................................................................23

Drive Erase......................................................................................................................23

_________

7 Acronis®True Image™WD Edition..............................................................25

Download and Install.....................................................................................................25

How to install Acronis True Image WD Edition on a Windows PC.............................. 25

Performing a Backup..................................................................................................... 25

Performing a backup using Acronis True Image WD Edition Software........................25

Performing Recovery.....................................................................................................25

Restoring an image backup from Acronis True Image WD Edition Software..............26

_________

8 Troubleshooting.......................................................................................... 27

Replacing a Drive........................................................................................................... 27

Removing........................................................................................................................... 27

Adding................................................................................................................................28

SES Driver - What is it?..................................................................................................29

_________

9 Knowledge Base and FAQ..........................................................................30

Frequently Asked Questions.........................................................................................30

Uninstalling the WD Software – Windows......................................................................30

Uninstalling the WD Software – macOS..........................................................................30

WD Knowledge Base Articles.......................................................................................30

WD Discovery Software Online User Guide....................................................................30

WD Discovery Software Solutions and Troubleshooting.............................................. 30

How to Partition and Format a WD Drive on Windows and macOS.............................31

My Book Duo

User Manual ii

How to Physically Connect or Disconnect a WD External Drive...................................31

Problems Booting a PC with an External USB Drive Connected................................... 31

Windows or macOS Cannot Find My Drive..................................................................... 31

Explanation of exFAT......................................................................................................... 31

Where to Download Software..........................................................................................31

How To Get an RMA To Replace a Defective Product, or Obtain a Power Supply

or USB Cable for a WD product..................................................................................31

Other Knowledge Base Articles....................................................................................32

Apple®Time Machine®Backup....................................................................................... 32

Microsoft®Windows®Backup......................................................................................... 32

_________

10 Compliance and Warranty Information................................................... 33

Regulatory Compliance.................................................................................................33

FCC Class B Information................................................................................................... 33

ICES-003/NMB-003 Statement........................................................................................ 33

Safety Compliance............................................................................................................ 33

CE Compliance For Europe.............................................................................................. 34

Environmental Compliance (China)..............................................................................34

Warranty Information.................................................................................................... 34

Obtaining Service..............................................................................................................34

Limited Warranty...............................................................................................................35

Warranty Information (Australia/New Zealand).............................................................35

Obtaining Service..............................................................................................................36

Warranty............................................................................................................................ 36

GNU General Public License (“GPL”)............................................................................ 37

My Book Duo

User Manual iii

1About Your WD Storage Device

The My Book™Duo drive has massive capacity ideal for storing photos, videos,

documents and music. It’s super-fast thanks to WD Red™drives inside and use of

the USB Type-C™port. That USB Type-C port with all cables included makes it

universally compatible (supports USB 3.1 Gen 1/3.0/2.0). Two USB Type-A hub ports

deliver ﬂexibility for additional accessories.

▪Features

▪Retail Box Contents

▪Operating System Compatibility

▪File System Information

▪Physical Description

▪Registering Your WD Product

▪Handling Precautions

Features

Massive Capacity — Free up valuable space on all your computers. Store and back up

your photo, video and music collections, and important documents in one reliable

place.

RAID-0 Ready Out of the Box — Ready to perform at maximum speed and capacity in

default mode, RAID-0. Reconﬁgure the drive to RAID-1 for redundancy (data

mirroring), or use it as two independent drives (JBOD) with the included WD Drive

Utilities™software.

RAID Optimized WD Red™Drives — The My Book™Duo drive comes with RAID-

optimized WD Red™drives inside to deliver high-speed, quality storage to rely on.

RAID-optimized ﬁrmware is perfect for two-disk array systems with auto

management of drive operations to help ensure read/write cycle data integrity.

USB 3.1 Gen 1-Ready, USB 3.0 Compatibility — Compatible with USB 3.1 Gen 1 and USB

3.0, the My Book™Duo drive works to deliver high-speed connectivity no matter

the interface. Includes both USB Type-C™to Type-C and Type-C to Type-A cables.

USB 3.0 Hub Ports — The My Book™Duo drive can serve as a quasi-docking station

with 2x USB 3.0 Type-A hub ports for accessories, including additional storage,

keyboard and mouse, card readers, USBs, or phone sync and charge.

256-bit AES Hardware Encryption and Password Protection — The My Book™Duo drive

comes with 256-bit AES Hardware Encryption with WD Security™software built in

to help keep private content secure. Set a personalized password to activate

hardware encryption and data protection.

Retail Box Contents

Your My Book Duo retail box includes the following items:

▪ My Book Duo two-bay storage unit, with WD Discovery™, WD Backup™,

WD Drive Utilities™, and WD Security™software installation ﬁles.

▪ USB™3.1 Gen-1 Type-C™to Type-C™Cable

▪ USB™3.1 Gen-1 Type-C™to Type-A Cable

About Your WD Storage Device

My Book Duo

User Manual 1

▪ Disk Replacement Tool

▪ AC to DC Power Adapter

▪ Quick Install Guide

▪ Drive Replacement Guide

Operating System Compatibility

The My Book Duo device, along with the following software: WD Discovery, WD

Backup1, WD Security, and WD Drive Utilities, are compatible with these operating

systems:

Table 1.1

Windows®macOS™/ OS X®

Windows 7 OS X Maverick – 10.9

Windows 8.x OS X Yosemite – 10.10

Windows 10 OS X El Capitan – 10.11

macOS Sierra – 10.12

Compatibility can vary, depending on hardware conﬁguration and operating

system. For highest performance and reliability, always install the latest updates.

File System

The My Book Duo device is pre-formatted as a single NTFS partition for

compatibility with all supported Windows operating systems. This ﬁle system can

be reformatted for compatibility with other operating systems. See the following

references for modifying the partition and Format type:

▪Drive Erase and Format

▪Answer ID 3865 | How to partition and format a WD drive without the WD Drive

Utilities software

Physical Description

The My Book Duo device has a single front LED that shows the various conditions

for Device Power and Device Activity. It also includes a rear-facing power button

and various connectors that are illustrated in Figure 1.1.

1WD Backup software is not compatible with any version of macOS or OS X.

About Your WD Storage Device

My Book Duo

User Manual 2

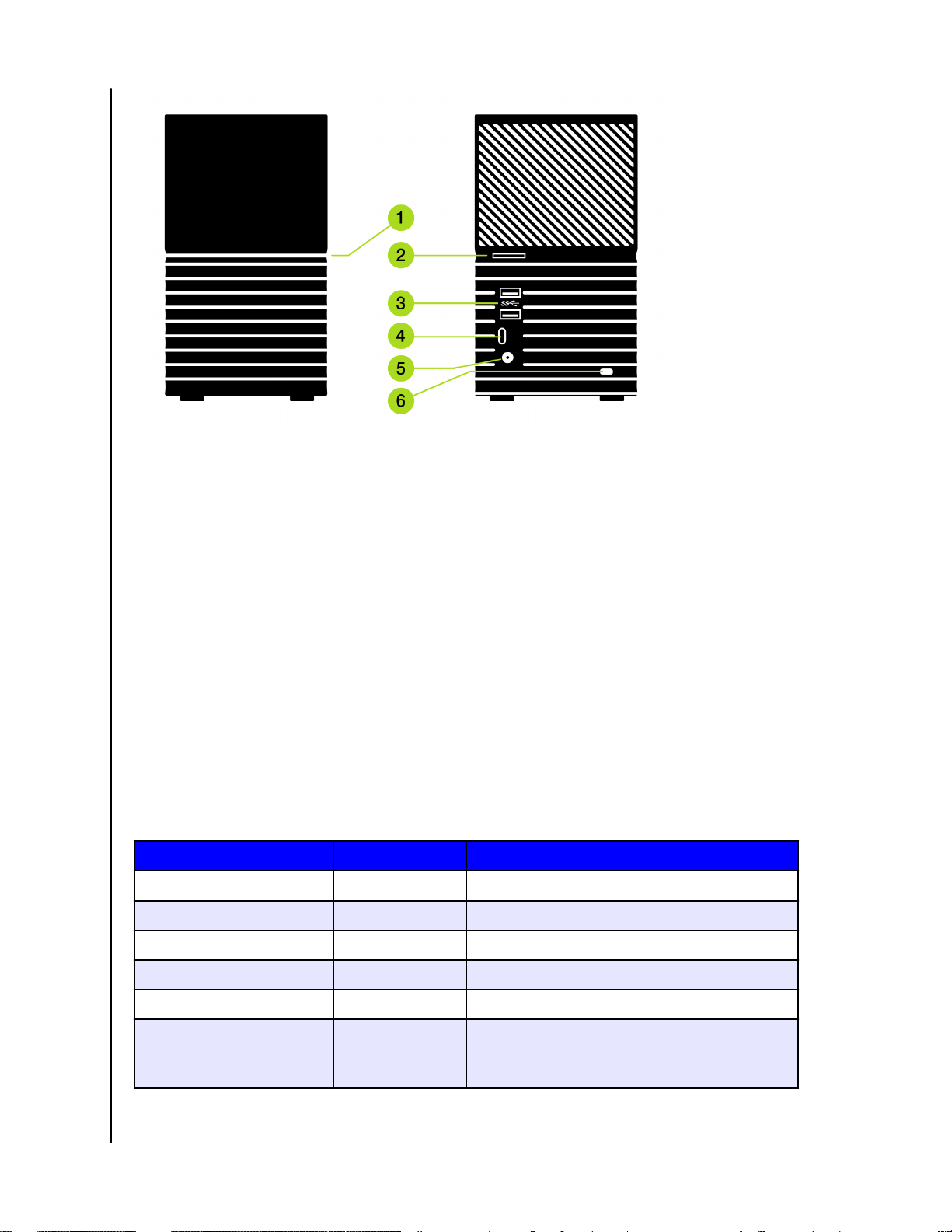

Figure 1.1

1. Front LED Indicator – indicating device power and device activity with a white

or amber light.

2. Power Button

3. Two (2) USB Type-A Ports – using the USB 3.1 Gen-1 communications protocol

4. One (1) USB Type-C Port – using the USB 3.1 Gen-1 communications protocol

5. DC In Power Connector – 12 volts direct current

6. Kensington®Security Slot – anti-theft system

Front LED

1. Front LED

When active, the front LED on a My Book Duo device will illuminate as a white or

amber colored light. The LED is either on, off or blinks with a certain rhythm to

indicate a speciﬁc "System Condition". A "System Condition" list is outlined below

in Table 1.2.

Table 1.2

LED Behavior LED Color System Condition

No LED light illuminated Off Power is Off or Disconnected

Solid Light - no blinking White Device is On and Ready

"Normal Breathing" rhythm White Transferring Data

"Slow Breathing" rhythm White Powering Up or Initializing

"Heartbeat" rhythm White RAID Rebuilding

"Fast Breathing" rhythm Amber Attention Required! - Use the WD Drive

Utilities software to check the status of the

device.

About Your WD Storage Device

My Book Duo

User Manual 3

Power Button

The My Book Duo device has a rear-facing power button with the following power

related functions:

Table 1.3

Power Button

Function

Device Operation

Press Once System will stop all services, clear cache and shut down gracefully.

Press and Hold

for 4 Seconds

When the power button is pressed and held for at least four seconds, the system

will force a shut down without any consideration for gracefully stopping services

or clearing cache.

USB™Connectors

The My Book Duo device has three (3) USB connectors, which are consolidated into

the following two functions:

1. Two (2) USB 3.1 Gen-1 Type-A Connectors – These two Type-A USB connectors

form a USB hub for connecting other USB devices to the My Book Duo external

storage device.

2. One (1) USB 3.1 Gen-1 Type-C Connector – This is the main USB interface to

connect the device to a host, such as a desktop computer or notebook

computer.

Kensington®Security Slot

As part of an anti-theft system, the Kensington®security slot accepts a standard

Kensington security cable (sold separately). For more information about the

Kensington security slot, the Kensington Security System, and available Kensington

products, visit www.kensington.com.

Power Connector & Power Adapter

The My Book Duo device has a standard 5.5 mm DC coaxial power connector with a

2.5 mm pin. Depending on the storage capacity of the unit, the power adapter will

be rated for 36 watts or 48 watts. The two different power adapters are listed

below and are packaged with the appropriate model.

▪12 TB Capacity and Below: 12 volts, 3 amp (36 watt) wall-wart style power adapter.

▪16 TB Capacity and Above: 12 volts, 4 amp (48 watt) universal power adapter with

a separate AC power cord. This power adapter is backwards compatible with My

Book Duo units that are 12 TB or less in capacity.

Note: If the My Book Duo device model was originally 12 TB in capacity or less, and the drives are

upgraded to increase the capacity beyond 12 TB, the power adapter must be updated to the

speciﬁed 12 volt, 4 amp (48 watt) unit. An updated power adapter can be obtained through WD

Support. Reference: Knowledge Base Answer ID 8.

About Your WD Storage Device

My Book Duo

User Manual 4

Registering Your WD Product

Always register your WD product to get the latest updates and special offers. You

can easily register your device using the WD Discovery software. Another way is to

Handling Precautions

WD products are precision instruments and must be handled with care during

unpacking and installation. A WD device may be damaged by rough handling,

shock, or vibration. Always observe the following precautions when unpacking and

installing your external storage device:

▪ Do not drop or jolt the device.

▪ Do not move the device during activity.

▪ Do not use this product as a portable device.

▪ To allow proper ventilation, do not block any of the enclosure’s air slots.

▪ Always use this device with the speciﬁed power supply unit.

About Your WD Storage Device

My Book Duo

User Manual 5

Otros manuales para My Book Studio

Tabla de contenidos

Otros manuales de Almacenamiento de Western Digital

Western Digital

Western Digital WDH1S5000 - My DVR Expander 500 GB External Hard... Manual de usuario

Western Digital

Western Digital WD1600AAJB - Caviar 160 GB Hard Drive Manual de usuario

Western Digital

Western Digital WD1200JB - Caviar 120 GB Hard Drive Manual de usuario

Western Digital

Western Digital WDG1S10000 - My DVR Expander Manual de usuario

Western Digital

Western Digital My Book WDH1CS10000 Manual de usuario

Western Digital

Western Digital WDBAAP0000NBK - TV Live Media Player Instrucciones de instalación

Western Digital

Western Digital WD Caviar Manual de usuario

Western Digital

Western Digital My Passport Pro Manual de usuario

Western Digital

Western Digital Caviar Green WD10EACS Manual de usuario

Western Digital

Western Digital WDBABM0010BBK - My Passport Essential SE Manual de usuario

Western Digital

Western Digital WD Elements WDBAAR2500 Manual de usuario

Western Digital

Western Digital My Book Essential Edition Manual de usuario

Western Digital

Western Digital Caviar Series Instrucciones de funcionamiento originales

Western Digital

Western Digital My Passport Pro Manual de usuario

Western Digital

Western Digital WDXMS1600 - Passport Portable 160 GB External Hard... Instrucciones de instalación

Western Digital

Western Digital WDBACX7500Axx - My Passport Essential SE Manual de usuario

Western Digital

Western Digital WD3000F9YZ Guía del usuario

Western Digital

Western Digital WD1200B05RNN - 120 GB External Hard Drive Manual de usuario

Western Digital

Western Digital My Book Studio Manual de usuario

Western Digital

Western Digital VelociRaptor Manual de usuario

Western Digital

Western Digital WDXB1200JB - Dual-Option Combo Manual de usuario

Western Digital

Western Digital WDBAAB2500ASL - My Passport For Mac Manual de usuario

Western Digital

Western Digital WD10000LSRTL - Caviar - 1 TB SATA II Instrucciones de instalación

Western Digital

Western Digital WD5000LUCT Manual de usuario

Manuales populares de Almacenamiento de otras marcas

QNAP

QNAP TS 32PXU Series Manual de usuario

LaCie

LaCie RUGGED RAID Manual de usuario

Freecom

Freecom CLS DOCK Manual de usuario

PNY

PNY Attache P-FD64MBATT3 Manual de usuario

HP StorageWorks MSL2024 Manual de usuario

OLT

OLT 6x6 Maximizer Manual de usuario

Transcend

Transcend JetFlash 160 Manual de usuario

LaCie

LaCie RUGGED MINI Manual de usuario

Thunderbolt

Thunderbolt 600 Manual de usuario

Panasonic

Panasonic LB-DH8 series Manual

Intel

Intel RAID High Availability Manual de usuario

LaCie

LaCie 12big Thunderbolt 3 Manual de usuario

Spectra Logic

Spectra Logic T-Series Spectra T50e Manual de usuario

Panasonic

Panasonic LKM-F931-1 Manual de usuario

Tabernus

Tabernus Enterprise Erase E2400 Manual de usuario

Rocstor

Rocstor COMMANDER 3F series Manual de usuario

HP P9000 Manual de usuario

Dell

Dell PowerVault MD3600f Series Manual de usuario
