Western Digital Scorpio Black WD7500BPKT Manual de operación

WD Scorpio®Black™

Mobile Hard Drives

Designed with top-of-the-line notebook computers in

mind, this high performance drive delivers the capacity

and speed needed to supercharge a notebook PC

without compromising battery life or quiet acoustics.

Features like these also make this drive an outstanding

option for compact desktops, external hard drives, and

gaming systems.

INTERFACE

SATA 3 Gb/s

WIDTH/HEIGHT

2.75 in./0.37 in.

69.85 mm/9.5 mm

ROTATIONAL SPEED

7200 RPM

CAPACITIES

160 GB to 750 GB

MODEL NUMBERS

WD7500BPKT WD3200BEKT

WD5000BPKT WD2500BEKT

WD5000BEKT WD1600BEKT

Note: Not all products may be

available in all regions of the

world.

Desktop-class performance

for notebook computers

With 7200 RPM spin speed,16 MB

cache, and capacities up to

750 GB, these drives enable you to

have the best of both worlds: the

capacity and performance of a

desktop PC with the convenience

and portability of a notebook.

Reliable and rugged

WD's ShockGuard™ technology

protects the drive mechanics and

platter surfaces from shocks during

shipping and handling and in daily

operation. WD’s SecurePark parks

the recording heads off the disk

surface during spin up, spin down,

and when the drive is off. This

ensures the recording head never

touches the disk surface, resulting

in improved long-term reliability due

to less head wear and improved

non-operational shock tolerance.

Massive capacity

WD’s 750 GB 2.5-inch drives offer

huge capacity for space-hungry

operating systems with plenty of

room left over for photos, music,

and video.

Low power consumption

With technologies like IntelliSeek™,

which calculates optimum seek

speeds to lower power

consumption and SecurePark™,

which reduces power by parking

the heads during low power idle

mode, this drive delivers

5400 RPM-equivalent power

consumption in a 7200 RPM drive.

Tested for compatibility

We perform tests on hundreds of

systems and a multitude of

platforms in our FIT Lab™ and

Mobile Compatibility Lab to give

WD customers confidence that our

drives will work in their systems.

Advanced Format (AF)

Technology being adopted by WD

and other drive manufacturers as

one of multiple ways to continue

growing hard drive capacities. AF is

a more efficient media format that

enables increased areal densities.

(BPKT models only)

Quiet

In a notebook drive, silence is

golden. WD’s exclusive

WhisperDrive™ combines state-of-

the-art seeking algorithms to yield

one of the quietest 2.5-inch hard

drives on the market.

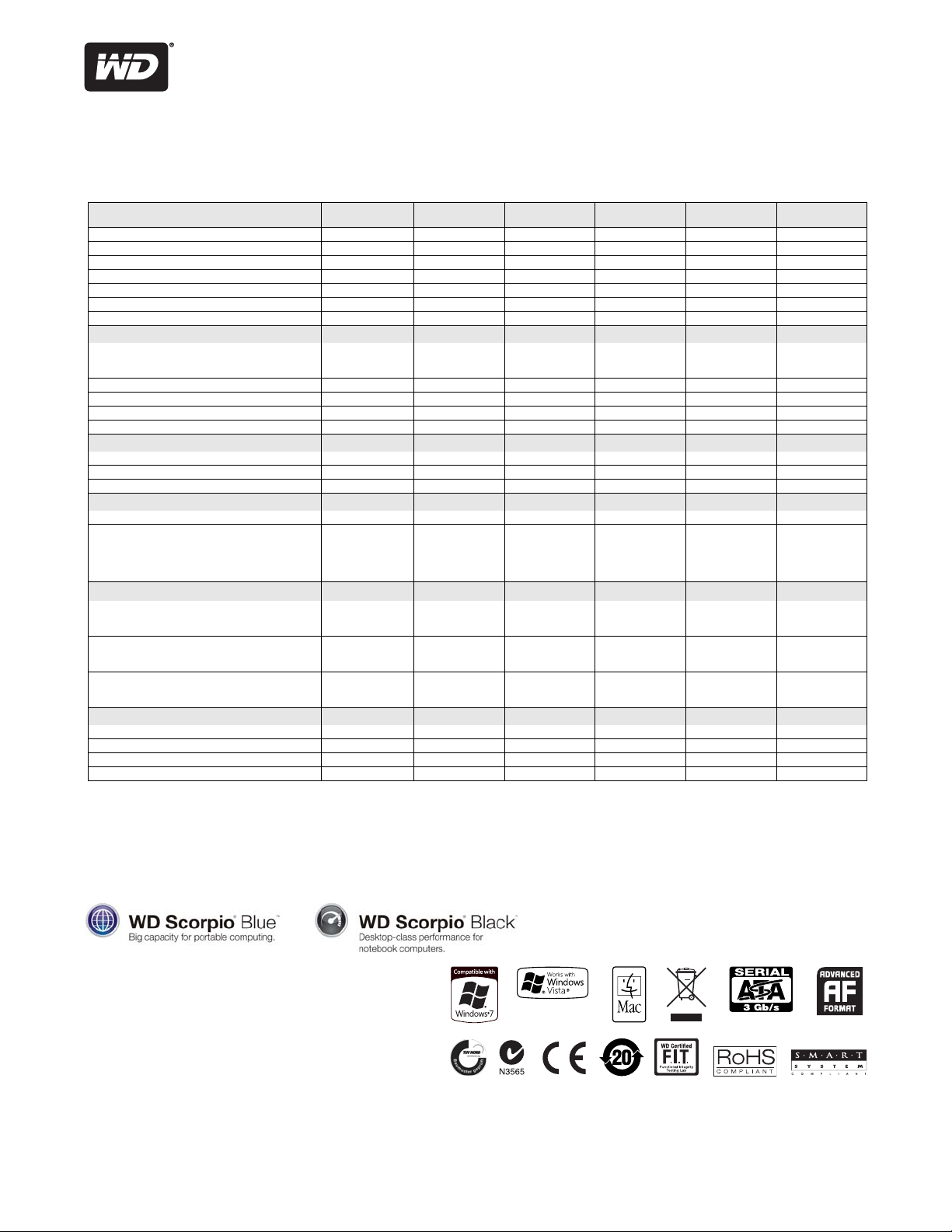

Product Features

WD Scorpio Black

Specifications1750 GB 500 GB 500 GB 320 GB 250 GB 160 GB

Model number WD7500BPKT WD5000BPKT WD5000BEKT WD3200BEKT WD2500BEKT WD1600BEKT

Interface SATA 3 Gb/s SATA 3 Gb/s SATA 3 Gb/s SATA 3 Gb/s SATA 3 Gb/s SATA 3 Gb/s

Formatted capacity 750,156 MB 500,107 MB 500,107 MB 320,072 MB 250,059 MB 160,041 MB

User sectors per drive 1,465,149,168 976,773,168 976,773,168 625,142,448 488,397,168 312,581,808

Form factor 2.5-inch 2.5-inch 2.5-inch 2.5-inch 2.5-inch 2.5-inch

Advanced Format (AF) Yes Yes No No No No

RoHS compliant2Yes Yes Yes Yes Yes Yes

Performance

Data transfer rate (max)

Buffer to host

Host to/from drive (sustained)

3 Gb/s

160 MB/s

3 Gb/s

160 MB/s

3 Gb/s

154 MB/s

3 Gb/s

147 MB/s

3 Gb/s

115 MB/s

3 Gb/s

115 MB/s

Cache (MB) 16 16 16 16 16 16

Average latency (ms) 4.2 4.2 4.2 4.2 4.2 4.2

Rotational speed (RPM) 7200 7200 7200 7200 7200 7200

Average drive ready time (sec) 4 4 4 4 4 4

Reliability/Data Integrity

Load/unload cycles3600,000 600,000 600,000 600,000 600,000 600,000

Non-recoverable read errors per bits read <1 in 1014 <1 in 1014 <1 in 1014 <1 in 1014 <1 in 1014 <1 in 1014

Limited warranty (years)45 55555

Power Management

5VDC ±10% (A, peak) 1.15 1.15 1.15 1.75 1.75 1.75

Average power requirements (W)

Read/Write

Idle

Standby

Sleep

1.75

0.8

0.2

1.75

0.8

0.2

1.75

0.8

0.2

1.75

0.8

0.2

1.75

0.8

0.2

1.75

0.8

0.2

Environmental Specifications5

Temperature (°C)

Operating

Non-operating

0 to 60

-40 to 70

0 to 60

-40 to 70

0 to 60

-40 to 70

0 to 60

-40 to 70

0 to 60

-40 to 70

0 to 60

-40 to 70

Shock (Gs)

Operating (2 ms)

Non-operating (2 ms)

350

1000

350

1000

350

1000

350

1000

350

1000

350

1000

Acoustics (dBA)6

Idle

Seek (average)

Physical Dimensions

Height (in./mm, max) 0.374/9.50 0.374/9.50 0.374/9.50 0.374/9.50 0.374/9.50 0.374/9.50

Length (in./mm, max) 3.94/100.20 3.94/100.20 3.94/100.20 3.94/100.20 3.94/100.20 3.94/100.20

Width (in./mm, ± .01 in.) 2.75/69.85 2.75/69.85 2.75/69.85 2.75/69.85 2.75/69.85 2.75/69.85

Weight (lb./kg, ± 10%) 0.25/0.115 0.25/0.115 0.24/0.111 0.23/0.106 0.23/0.106 0.23/0.106

1As used for storage capacity, one megabyte (MB) = one million bytes, one gigabyte (GB) = one billion bytes, and one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environment. As used for buffer or cache, one megabyte (MB) = 1,048,576

bytes. As used for transfer rate or interface, megabyte per second (MB/s) = one million bytes per second, and gigabit per second (Gb/s) = one billion bits per second. Effective maximum SATA 3 Gb/s transfer rate calculated according to the Serial ATA specification published by the

SATA-IO organization as of the date of this specification sheet. Visit www.sata-io.org for details.

2WD hard drive products manufactured and sold worldwide after June 1, 2006, meet or exceed Restriction of Hazardous Substances (RoHS) compliance requirements as mandated by the European Union for electrical and electronic products. The RoHS Directive 2002/95/EC of the

European Parliament, which is effective in the EU beginning July 1, 2006, aims to protect human health and the environment by restricting the use of certain hazardous substances in new equipment, and consists of restrictions on lead, mercury, cadmium, and other substances.

3Controlled unload at ambient condition.

4The term of the limited warranty may vary by region. Visit http://support.wdc.com/warranty for details.

5No non-recoverable errors during operating tests or after non-operating tests.

6Sound power level.

Western Digital, WD, the WD logo, and WD Scorpio are registered trademarks in the U.S. and other countries; and WD Scorpio Blue, WD Scorpio Black, FIT Lab, SecurePark, IntelliSeek,

WhisperDrive, and ShockGuard are trademarks of Western Digital Technologies, Inc. Other marks may be mentioned herein that belong to other companies. Product specifications subject to

change without notice.

Western Digital

3355 Michelson Drive, Suite 100

Irvine, California 92612

U.S.A.

For service and literature:

http://support.wdc.com

www.westerndigital.com

800.ASK.4WDC North America

800.832.4778 Spanish

+800.6008.6008 Asia Pacific

00800.27549338 Europe

(toll free where available)

+31.880062100 Europe/Middle East/Africa

Canada ICES-003 Class B / NMB-003 Classe B
