WeBoost Office 200 Manual de usuario

ENGLISH

FRANÇAIS

Installation Guide

Cell Signal Booster

Oce 200

(Directional/Panel)

Oce 200

A WILSON ELECTRONICS BRAND

NEED HELP? weboost.ca 1-866-294-1660

Package Contents 1

Preparation 3

STEP 1: Inside Antenna & Booster Placement 5

STEP 2: Mount Outside Antenna 6

STEP 3: Route & Connect Outside Antenna To Booster 7

STEP 4: Route & Connect Inside Antenna To Booster 8

STEP 5: Power Up The Booster 9

Measuring Booster Performance 11

Menu System 13

Troubleshooting 17

Safety Guidelines 18

Speciﬁcations 20

Warranty 21

______

Index

OFFICE 200 (DIRECTIONAL/PANEL) CELL SIGNAL BOOSTER

ENGLISH

______

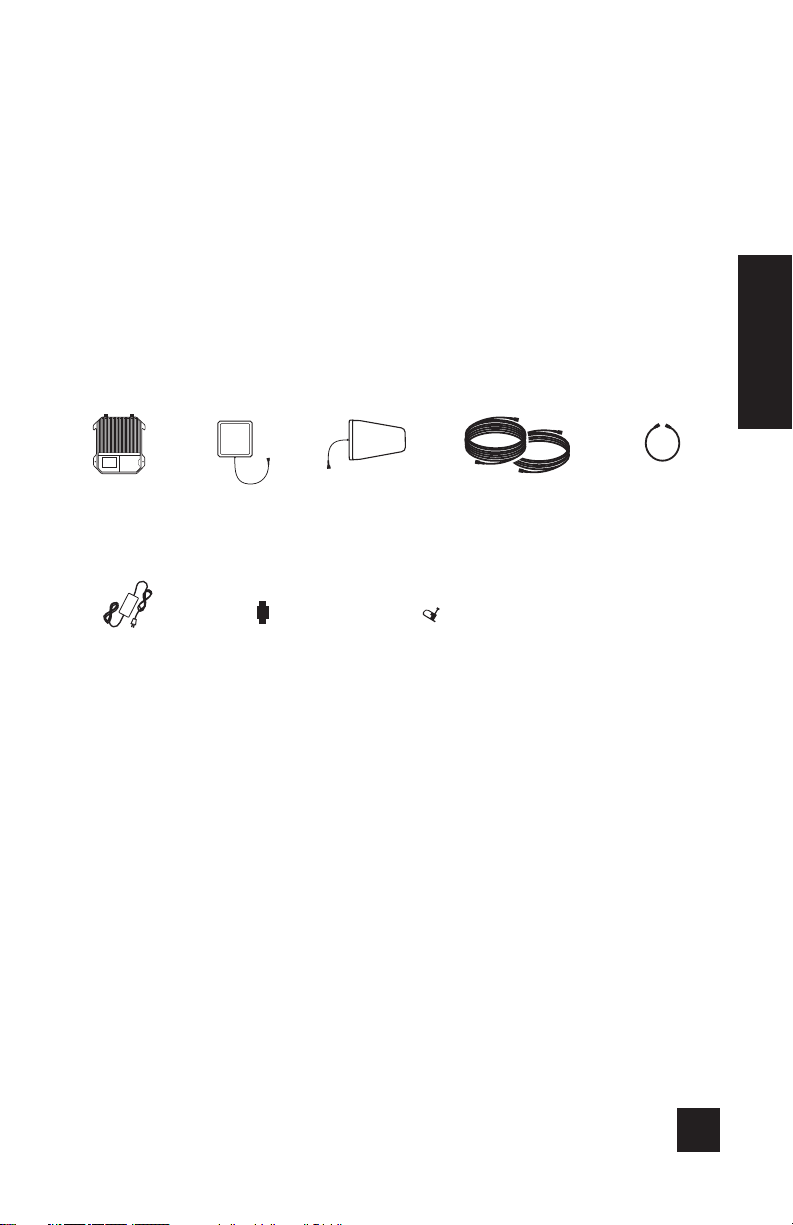

Package

Contents

Office 200

Booster

Power

Supply

(850026)

Lightning Surge

Protector

(859902)

Cable Mounting

Clips

22 m & 18 m

Wilson 400 Cables

(952360 & 952375)

.6 m Wilson

400 Cable

(952302)

Inside

Antenna

(311234)

Outside

Antenna

(314411)

(Directional/Panel)

2CELL SIGNAL BOOSTER (DIRECTIONAL/PANEL) OFFICE 200

ENGLISH

______

Key Features

Extended Dynamic Range (XDR) for continuous

connectivity: XDR lets the Oce 200 system work with

any incoming signal and never shuts down due to a

strong outside signal.

Simple Wall-Mount Installation: An indoor and outdoor

port are located on top of the ampliﬁer for easy antenna

connections, while an exposed mounting ﬂange at each

corner of the ampliﬁer provides for simple and clean wall-

mount installation.

Onboard Software for Better Control: The ampliﬁer is

automatically controlled with automatic onboard software,

ensuring great connectivity throughout large spaces and

multi-story buildings. The ampliﬁer will adjust its gain

level up or down as required by the conditions of the

immediate signal environment.

Color LCD Touch Screen: The Oce 200 utilizes a color

LCD touch screen for assessing ampliﬁer performance,

making adjustments to the outside antenna, and turning

bands on and o.

OFFICE 200 (DIRECTIONAL/PANEL) CELL SIGNAL BOOSTER

ENGLISH

______

Preparation

You Will Need (tools not included)

Make sure the following materials are prepared and ready for your installation.

1 to 2 hours

o Ladder

o Drill

o 2.5 - 5 cm diameter existing pole for mounting

Outside Antenna (#901117 Pole Mount can be

purchased separately if needed)

o Recommended: Power Strip with surge protection

4CELL SIGNAL BOOSTER (DIRECTIONAL/PANEL) OFFICE 200

ENGLISH

______

Installation Diagram

Outside

Antenna

Booster

to power

Lightning Surge

Protector

Inside

Antenna

22 m Coax Cable

18 m Coax Cable

Troubleshooting section recommends increasing distance

further if needed.

18 METER HORIZONTAL OR 7 METER VERTICAL DISTANCE

OFFICE 200 (DIRECTIONAL/PANEL) CELL SIGNAL BOOSTER

ENGLISH

AT LEAST 60 cm APART

Oce 200

NOTE: Do not connect booster to power until the system is fully installed.

______

Step 1: Inside Antenna &

Booster Placement

Place the inside antenna in the ceiling over where you need the greatest signal

boost and place booster in your desired location at least 60 cm away from

inside antenna.

6CELL SIGNAL BOOSTER (DIRECTIONAL/PANEL) OFFICE 200

ENGLISH

______

Step 2: Mount Outside Antenna

NOTE: Mounting on existing roof exhaust pipe would be a good time-saver option. Watch

out for power lines.

Pole mounting and wall mounting options are included.

Attach the L-bracket to the outside antenna and use the U-bolt and pole

bracket to attach the antenna to a pole or exhaust pipe.

Outside

Antenna

U-Bolt &

Pole Bracket

L-Bracket

existing

pole

OFFICE 200 (DIRECTIONAL/PANEL) CELL SIGNAL BOOSTER

ENGLISH

______

Step 3: Route & Connect

Outside Antenna To Booster

Route cable to the Oce 200 booster and connect to the port labeled

‘OUTSIDE ANTENNA’.

Outside

Antenna

Outside

Antenna

Lightning Surge

Protector

Booster

Cable Mounting Clips

provided

Lightning Surge

Protector

22 m Coax Cable .6 m Coax Cable

Connect .6 m. coax cable to outside antenna, attach the lightning surge

protector, then connect the black 22 m coax cable and route into building.

8CELL SIGNAL BOOSTER (DIRECTIONAL/PANEL) OFFICE 200

ENGLISH

______

Step 4: Route & Connect

Inside Antenna To Booster

Inside

Antenna

Booster

Outside

Antenna

Booster

Cable Mounting Clips

provided

Inside

Antenna

18 m Coax Cable

Connect the black 18 m coax cable to inside antenna and route to the Oce

200 booster and connect to the port labeled ‘INSIDE ANTENNA’.
