weBoost Drive 4G-M Manual de usuario
User Manual
Vehicle Signal Booster Kit
DRIVE 4G-M
A WILSON ELECTRONICS BRAND
NEED HELP? support.weboost.com 866.294.1660
______
Index
Package Contents
1
STEP 1: Mount Outside Magnetic Antenna
2
STEP 2: Mount Inside Antenna
4
STEP 3: Connect Coax Cables To Booster
5
STEP 4: Connect Power Supply To Booster
6
STEP 5: Plug Power Adapter Into Vehicle’s Power Supply
7
Light Patterns
8
Troubleshooting
9
Safety Guidelines
10
Specifications
11
Warranty
12
DRIVE 4G-M VEHICLE SIGNAL BOOSTER 1
________
Package
Contents
Booster
Optional: Adhesive disk for aluminum vehicles
Outside
Antenna
Inside
Antenna
Power
Supply
2VEHICLE SIGNAL BOOSTER DRIVE 4G-M
______
Step 1: Mount Outside
Magnetic Antenna
NOTE: For aluminum roofs, use the included adhesive disk to secure outside
antenna in place.
WORKS WITH ALL VEHICLES
Identify a location on the top of your vehicle that is:
Near the center of the roof
At least 12 inches away from any other antennas
At least 6 inches away from any windows
(including sunroofs)
Clean the surface where you will place the outside
antenna.
Mount the outside antenna by placing on top of vehicle.
6 in. away from windows
(including sunroofs)
DRIVE 4G-M VEHICLE SIGNAL BOOSTER 3
See options below on how cable can be routed with
different vehicles.
NOTE: When going through car wash,
remember to remove your antenna.
NOTE: The cable is strong enough that it may be shut in most vehicle doors
without damaging the cable.
Car/Sedan: Cable routed
into rear side door.
SUV/Van/Hatchback: Cable
routed into top of hatchback door.
Truck: Cable routed into
side door.
______
(STEP 1 cont.)
4VEHICLE SIGNAL BOOSTER DRIVE 4G-M
______
Step 2: Mount Inside Antenna
Identify a place to mount the 4G In-Vehicle Antenna, either on
the side of the seat or on the dash and mount. The location
should be at least 18 inches but no more than 36 inches
from where the cellular device will be used. Use the Velcro®
adhesive strip/adhesive strip provided and attach to
desired location.
In-Vehicle
Antenna
In
In
n-
-
V
Veh
i
c
A
An
Ant
enn
In-Vehicle Antenna
DRIVE 4G-M VEHICLE SIGNAL BOOSTER 5
INSIDE
ANTENNA
OUTSIDE
ANTENNA
POWER
______
Step 3: Connect Coax Cables
To Booster
Connect the cable from the Mini-Mag Mount Antenna to the
port labeled “Outside Antenna” on the Drive 4G-M booster.
Connect the cable from the 4G In-Vehicle Antenna to the port
labeled “Inside Antenna” on the booster.
from Outside Antenna
from Inside Antenna
6VEHICLE SIGNAL BOOSTER DRIVE 4G-M
OUTSIDE
ANTENNA
POWER
______

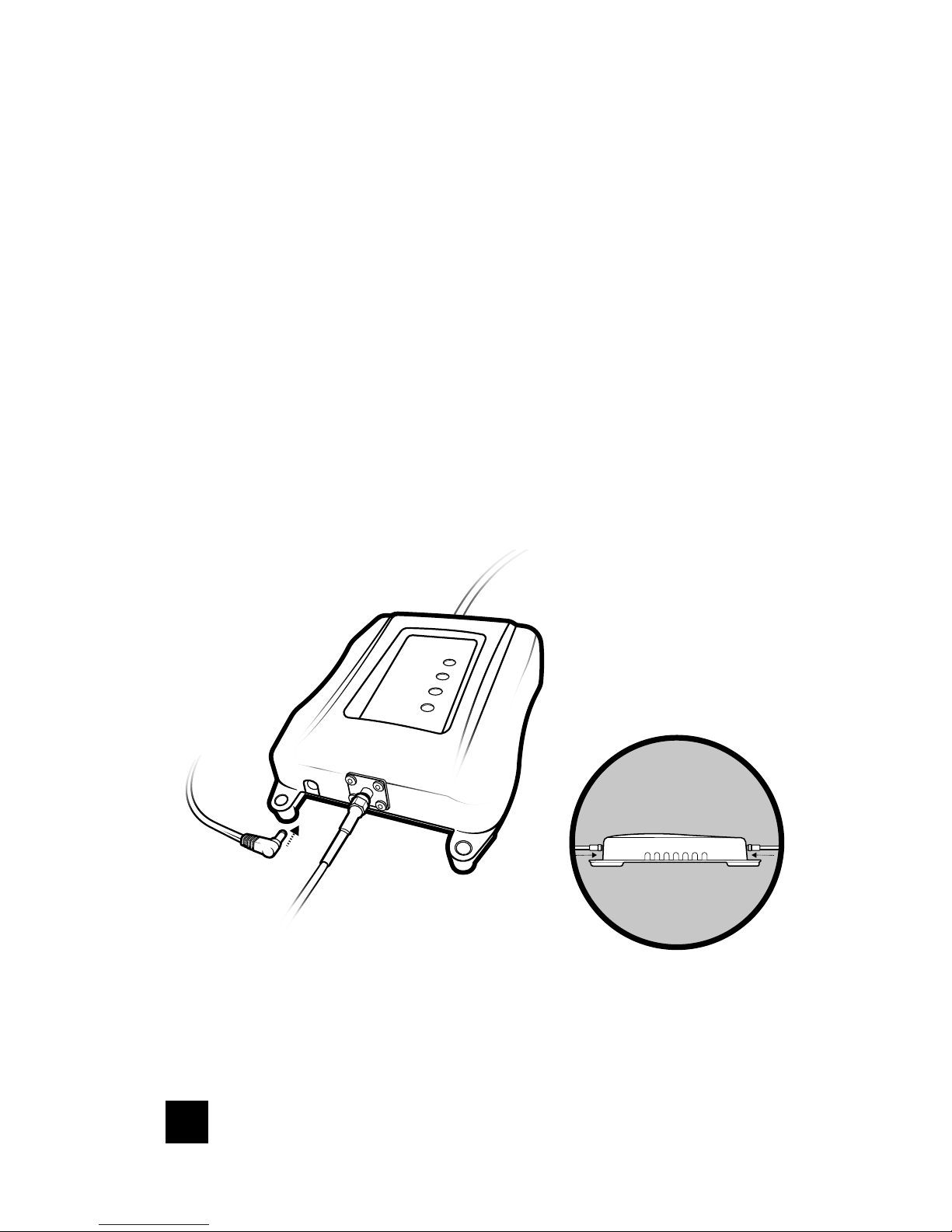

Step 4: Connect Power
Supply To Booster
Connect the power supply cord to the end of the Drive 4G-M
labeled “Power.”
NOTE: Do NOT connect the power to the Signal Booster until you have
connected both the Inside and Outside Antennas.
Power Supply
DRIVE 4G-M VEHICLE SIGNAL BOOSTER 7
______
Step 5: Plug Power Adapter
Into Vehicle’s Power Supply
Plug the power adapter into vehicle’s 12V DC power supply.
Power up your Drive 4G-M by flipping the switch on the back
of the DC power adapter on. If your Drive 4G-M is working
correctly, the light on the power adapter will be red, and the
light on the booster will be green.
NEED HELP? support.weboost.com 866.294.1660
DC Power Adapter
8VEHICLE SIGNAL BOOSTER DRIVE 4G-M
______
Light Patterns
NEED HELP? support.weboost.com 866.294.1660
Solid Green
This indicates that your booster is functioning properly and there are no issues
with installation.
Green/Red Blinking
This indicates that one or more of the booster bands has reduced power due
to a feedback loop condition called oscillation. This is a built in safety feature
to prevent harmful interference with a nearby cell tower. If you are already
experiencing the desired signal boost, then no further adjustments are necessary.
If you are not experiencing the desired boost in coverage then refer to the
Troubleshooting section.
Solid Red
This is due to a feedback loop condition called oscillation. This is a built in safety
feature that causes a band to shut off to prevent harmful interference with a nearby
cell tower. Refer to Troubleshooting section.
Light O
If the Drive 4G-M Signal Booster’s light is off, verify your power supply has power.
NOTE: The Signal Booster can be reset by disconnecting and reconnecting
the power supply.
After troubleshooting you must initiate a new power cycle by disconnecting and
then reconnecting power to the Booster.
