weBoost Connect RV 65 Manual de usuario
User Manual
RV Cellular Signal Booster
With Telescoping Pole
CONNECT RV 65
A WILSON ELECTRONICS BRAND
NEED HELP? support.weboost.com 866.294.1660
a
a
______
Index
Package Contents
1
STEP 1: Mount Outside Antenna
2
STEP 2: Mount Telescoping Pole To RV
3
STEP 3: Booster Location
5
STEP 4: Mount Inside Antenna
7
STEP 5: Connect Power Supply
9
Test System: Lights
10
Safety Guidelines
12
Specifications
14
Warranty
15
CONNECT RV 65 RV CELLULAR SIGNAL BOOSTER 1
________
Package
Contents
Booster
Telescoping
Pole
Ground
Mount
Wall
Mounts
Inside
Antenna
Outside
Antenna
Power
Supply
Coax Cables
2 - 15ft. 1 - 30ft.
+ Flat Cable
Contents of Box 1
Contents of Box 2
2RV CELLULAR SIGNAL BOOSTER CONNECT RV 65
______
Step 1: Mount Outside
Antenna To Telescoping Pole
Mount outside antenna to telescoping pole (using the included
hardware). See examples below.
Connect coax cable to outside antenna after mounting to
telescoping pole.
NOTE: Do not over tighten.
Run the coax cable through
L-Bracket and mount using the
phillips screws and lock washers.
Drip hole
CONNECT RV 65 RV CELLULAR SIGNAL BOOSTER 3
______

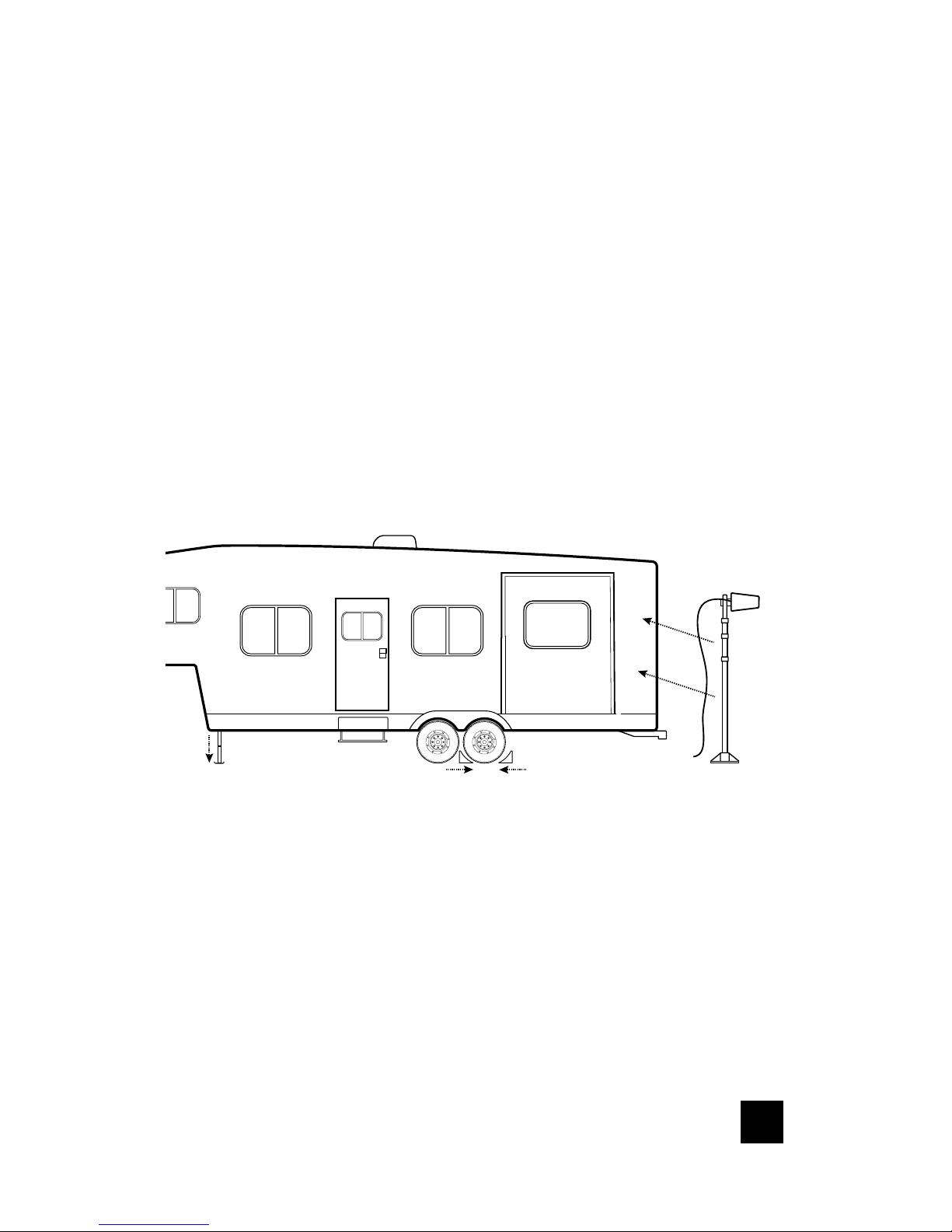

Step 2: Mount Telescoping
Pole To Side Of RV
Determine where you want to mount telescoping pole on your
RV. Extend pole to maximum height. Use wall mount plates
and ground mount to secure pole. We recommend mounting
near slider or toy hauler ramp door on the side.
WARNING: Check for and avoid any powerlines or overhead obstructions
there may be.
NOTE: DO NOT INSTALL POLE ON RV UNTIL STABILIZER JACKS AND
WHEELS CHOCKS ARE IN PLACE AND RV IS IMMOBILIZED.
Stabilizer
jacks down Wheel chocks in
place
Recommended
placement
4RV CELLULAR SIGNAL BOOSTER CONNECT RV 65
Clean the flat surface of the RV where wall mounts will be
placed. Fully extend the pole and attach the wall mount to
the top black ‘foot’ mount located on the pole. Remove the
adhesive backer and, making sure the pole is level at a 90°
angle, firmly attach the wall mount to the RV near the top.
There must be at least 4’ of separation between the top and
bottom mounts for best performance. Next, attach the other
wall mount to the bottom foot mount located on the pole and
insert the attached pin. Then remove the adhesive backer and
stick to the clean, flat surface.
RVs With Corrugated Sides
We recommend using the side of a slider. Just ensure the following:
• There is enough clearance for the wall mount to
be retracted into the slider.
• There is still 4’ of separation.
Outside Antenna
Extend
Pole
Min. 4 ft.
separation
between wall
plates
Ground Mount
(stakes can be used to secure to ground, not included)
______
(STEP 2 Mounting Telescoping Pole cont.)
CONNECT RV 65 RV CELLULAR SIGNAL BOOSTER 5
______
Step 3: Booster Location
NOTE: We recommend in a cabinet near a power source. Be sure it’s in a
location that the 30’ RG-6 cable can reach.
Find a location to place the booster inside the RV and
connect cable from outside antenna to port on booster
labeled ‘Outside Antenna’. We recommend routing the
cable through the slider gasket OR through the back door
of a toy hauler using the flat cable provided.
Connect cable from outside
antenna to port on booster
labeled ‘Outside Antenna’.
NOTE: Do not over tighten.
6RV CELLULAR SIGNAL BOOSTER CONNECT RV 65
______
(STEP 3 Booster Location cont.)
Run cable through the slider on your RV (using the slider
gasket as a seal) OR through the back door of a toy hauler
using the flat cable provided. For toy haulers, we recommend
using the flat cable and closing this in the back ramp door.
NOTE: Do not fully extend your slide until
you route the cable through, then it may
be fully extended.
TIP: It’s easiest to create a loop with the
coax cable, lift up the gasket, and push
the loop through the other side.
CONNECT RV 65 RV CELLULAR SIGNAL BOOSTER 7
______

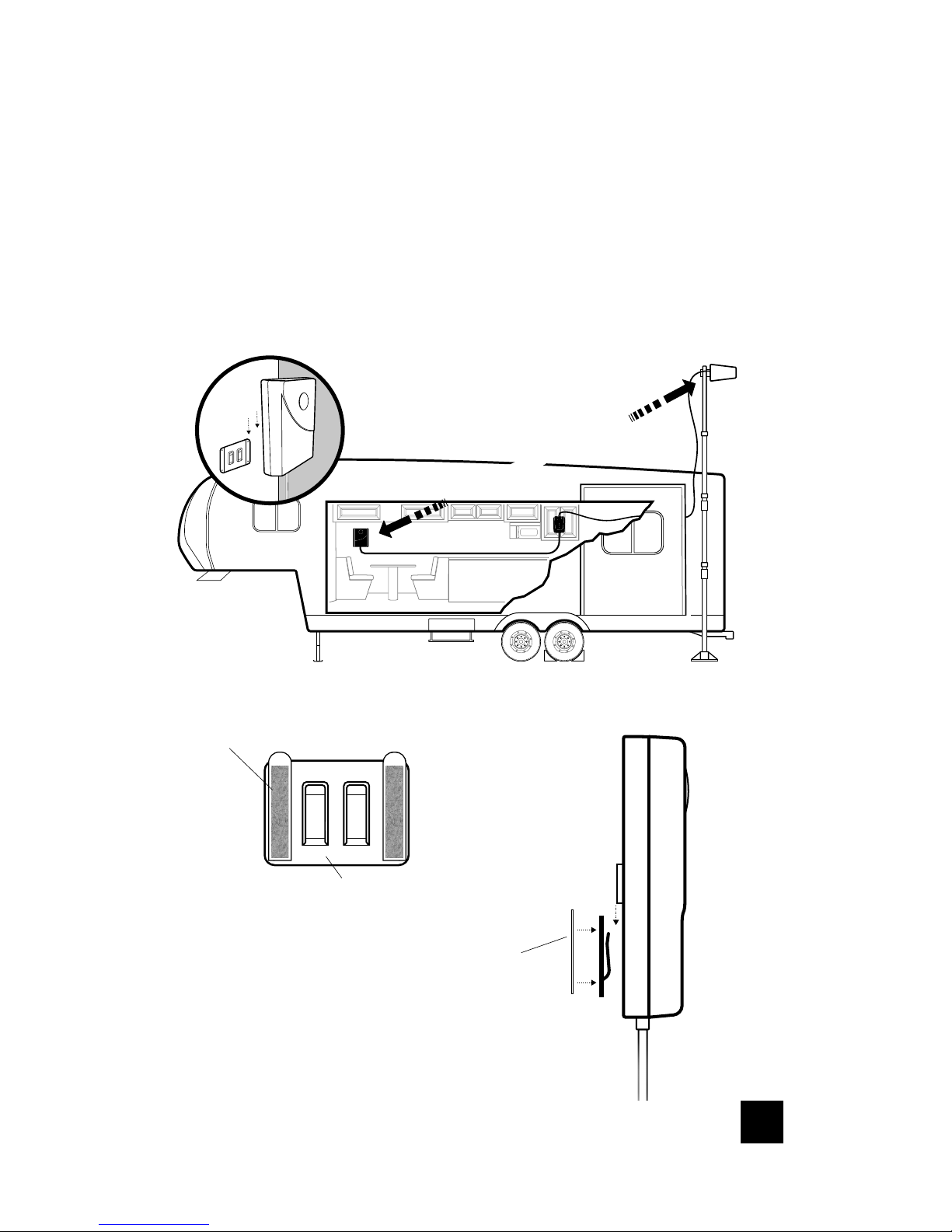

Step 4: Mount Inside Antenna
Mount inside antenna using included 3M command strips and
connect coax cable. Be sure to have adequate distance from
outside antenna.
Apply 3M Command
Strips on wall bracket
Wall Bracket
3M Command Strips
connect to booster
Have adequate distance from outside antenna
8RV CELLULAR SIGNAL BOOSTER CONNECT RV 65
Connect coax cable to inside
antenna and to booster port
labeled ‘Inside Antenna’.
______
(STEP 4 Mount Inside Antenna cont.)
