Volt VFL-4027 Manual de usuario

VOLT®LOW VOLTAGE LANDSCAPE LIGHTING

V O LT ®Mini Round Wall Wash

ITEM: VFL-4027

INSTALLATION INSTRUCTIONS

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

V O LT ®Mini Round Wall Wash - VFL-4027

INSTALLATION INSTRUCTIONS

IMPORTANT: PLEASE READ BEFORE INSTALLATION

IMPORTANT SAFETY INSTRUCTIONS

This luminaire is intended for installation in accordance with local codes

and the National Electric Code (NEC). Failure to adhere to these codes and

instructions may result in serious injury, property damage and void the warranty.

These instructions do not intend to cover all variations in installation, operation

maintenance or mounting situations.

1. Make sure that the power is turned OFF before installing or servicing this

xture.

2. Warning: this xture is not intended to be installed within 10 feet [3 meters]

of a pool, spa or fountain.

3. This xture is intended to be used only with a power supply (transformer)

rated maximum of 300 watts (25 AMPS) at 15 volts.

4. Underground Low Energy Cable must not be buried over 6” (15.2 cm) in

order to connect to the main low voltage cable.

5. Wiring connections must be made with UL Listed wire connectors that are

suitable for the application.

6. Position the wire connector so that it is located within 6 inches (15.2 cm)

from a building structure, a luminaire, or tting.

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS

LIGHTED LAMP IS HOT!

WARNING – To reduce the risk of FIRE OR INJURY TO PERSONS.

1. Turn off/unplug and allow to cool before reducing lamp.

2. Lamp gets HOT quickly!

3. Do not touch the hot lens, guard or cowl.

4. Keep lamp away from materials that may burn.

5. Do not touch lamp at any time.

6. Use a soft cloth.

7. Oil from skin may damage lamp.

8. Do not operate the xture with a damaged or missing lens or shield.

813.978.3700 • [email protected] • www.voltlighting.com

PACKAGE CONTENTS

PRODUCT DIMENSIONS

REMOVE LENS

A. (1) Fixture Body

813.978.3700 • [email protected] • www.voltlighting.com

PARTS REQUIRED

A. (1) G4 Bulb B. Mounting Accessory

3.14”

1.83”

1”

Loosen the lens and remove

it from the xture body by

rotating it counter-clockwise.

Fixture Body

Lens

INSTALL G4 BULB

INSTALL LENS

V O LT ®Mini Round Wall Wash - VFL-4027

INSTALLATION INSTRUCTIONS

813.978.3700 • [email protected] • www.voltlighting.com

Insert G4 bulb with correct

wattage and type marked on

xture label.

CAUTION: Do not exceed

maximum wattage marked

on luminaire label.

Socket

G4 Bulb

Thread the previously

removed lens back onto

the xture body and hand

tighten until snug.

Fixture Body

Lens

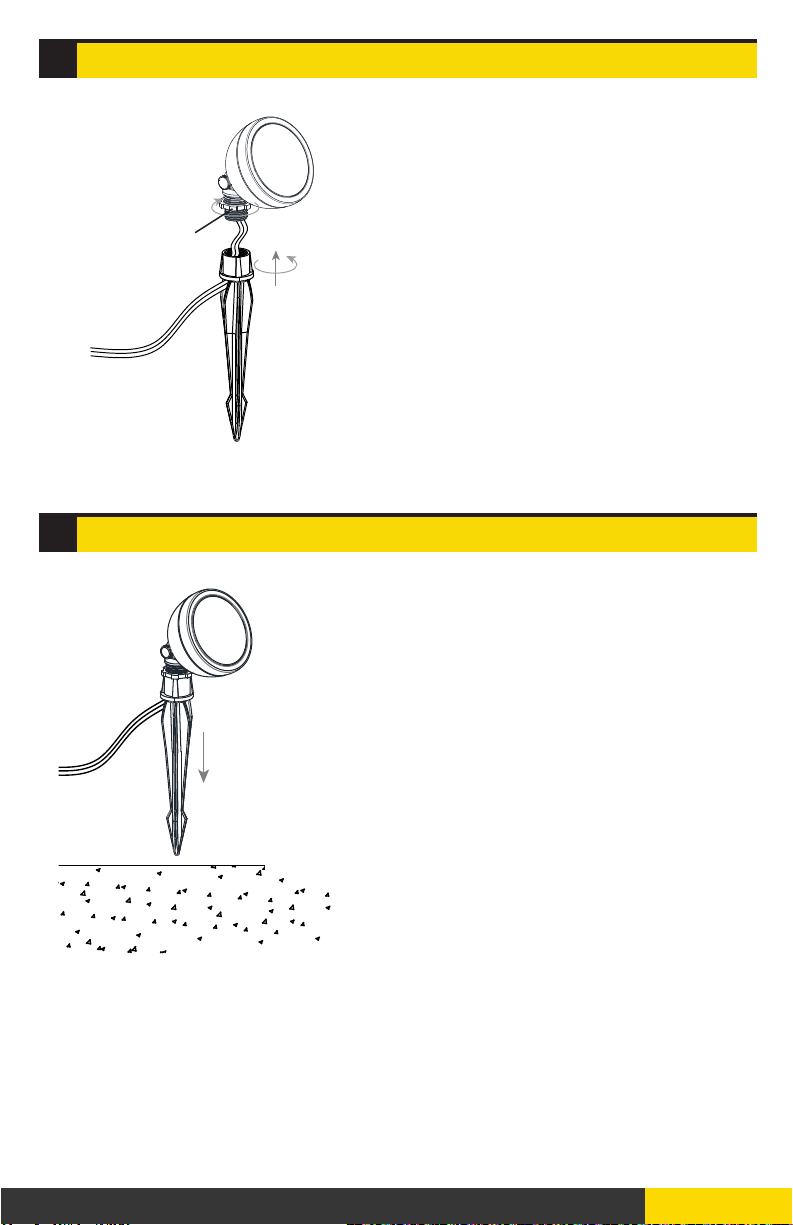

Install Fixture Body to Stake

Install Stake

813.978.3700 • [email protected] • www.voltlighting.com

Pass xture wire through the

stake and thread the stake onto

the xture body. Screw the lock

ring against the stake and hand

tighten until snug.

Fixture Body

Lock Ring

Stake

Fixture Wire

Determine the desired location for

mounting the xture. Insert the

stake into the ground until ange

of stake is ush to grade.

NOTE: If the ground is hard and

the stake is difcult to install,

make a crosscut in the ground

using a at shovel.

Stake

Ground

Soil

WIRE CONNECTION

V O LT ®Mini Round Wall Wash - VFL-4027

INSTALLATION INSTRUCTIONS

813.978.3700 • [email protected] • www.voltlighting.com

Strip both the leads from the luminaire pigtail. Using two UL listed wire

connectors (sold separately), connect the leads from the luminaire to

the main supply cable leads.

Pigtail

Main Supple Cable

Wire Connectors

INSTALL REPLACE LAMP

Please reverse Step 2 - Step 3 to expose the G4 bulb and replace

it with the correct wattage and type marked on the xture label.

Then, reinstall the lens.

IMPORTANT: The G4 bulb must be protected from moisture and

dust at all times. Always reinstall the lens when removed.

813.978.3700 • [email protected] • www.voltlighting.com

Specications and product details subject to change without notice.

[email protected] • www.voltlighting.com

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
