INSTALLATION INSTRUCTIONS

VOLT®LOW VOLTAGE LANDSCAPE LIGHTING

VOLT®

Gentle Splash Cast Brass Flood Light & Wall Wash

ITEM: VFL-430-4-BBK

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

INSTALLATION INSTRUCTIONS

VOLT® Gentle Splash Flood Light & Wall Wash VFL-430-4-BBK

IMPORTANT: PLEASE READ BEFORE INSTALLATION

IMPORTANT SAFETY INSTRUCTIONS

813.978.3700 • [email protected] • www.voltlighting.com

This luminaire is intended for installation in accordance with local codes and the

National Electric Code (NEC). Failure to adhere to these codes and instructions may

result in serious injury, property damage and void the warranty.

These instructions do not intend to cover all variations in installation, operation

maintenance or mounting situations.

1. Make sure that the power is turned OFF before installing or servicing this

luminaire.

2. WARNING: risk of electrical shock. Install all luminaires 10 feet (3.05M) or more

from pool, spa or fountain.

3. This luminaire is intended to be used only with a power supply (transformer)

rated maximum of 300 watts (25 AMPS) at 15 volts.

4. Wiring connections must be made with UL listed wire connectors that are

suitable for outdoor use.

5. Position the low voltage wire and wire connector so that it is located within 6

inches (15.2 cm) from a building structure, a luminaire or tting.

6. The main low voltage cable is intended for shallow burial - less than 6 inches

(152 mm)

7. If additional lengths of low voltage cable is required, please contact www.

voltlighting.com or call 1-813-978-3700.

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS

Lighted lamp is HOT!

WARNING – To reduce the risk of FIRE OR INJURY TO PERSONS.

1. Turn off/unplug and allow to cool before replacing lamp.

2. Lamp gets HOT quickly! Contact only switch/plug when turning on.

3. Do not touch the hot lens, guard or enclosure.

4. Keep lamp away from materials that may burn.

5. Do not touch lamp at any time. Use a soft cloth. Oil from skin may damage

lamp.

6. Do not operate the luminaire tting with a missing or damage shield.

SAVE THESE INSTRUCTIONS

PACKAGE CONTENTS

PRODUCT DIMENSIONS

INSTALL STAKE

Determine the desired location

for mounting the stake mount.

Hammer the stake into the

ground until ange of stake is

ush to grade. To avoid damage

to the stake, place a board on top

of the stake while hammering.

Note: If the ground is hard and

the stake is difcult to install,

make a crosscut in the ground

using a at shovel.

Board

GroundSoil

Stake

813.978.3700 • [email protected] • www.voltlighting.com

A. (1) Stake

B. (1) Luminaire

4”

1.5”

2”

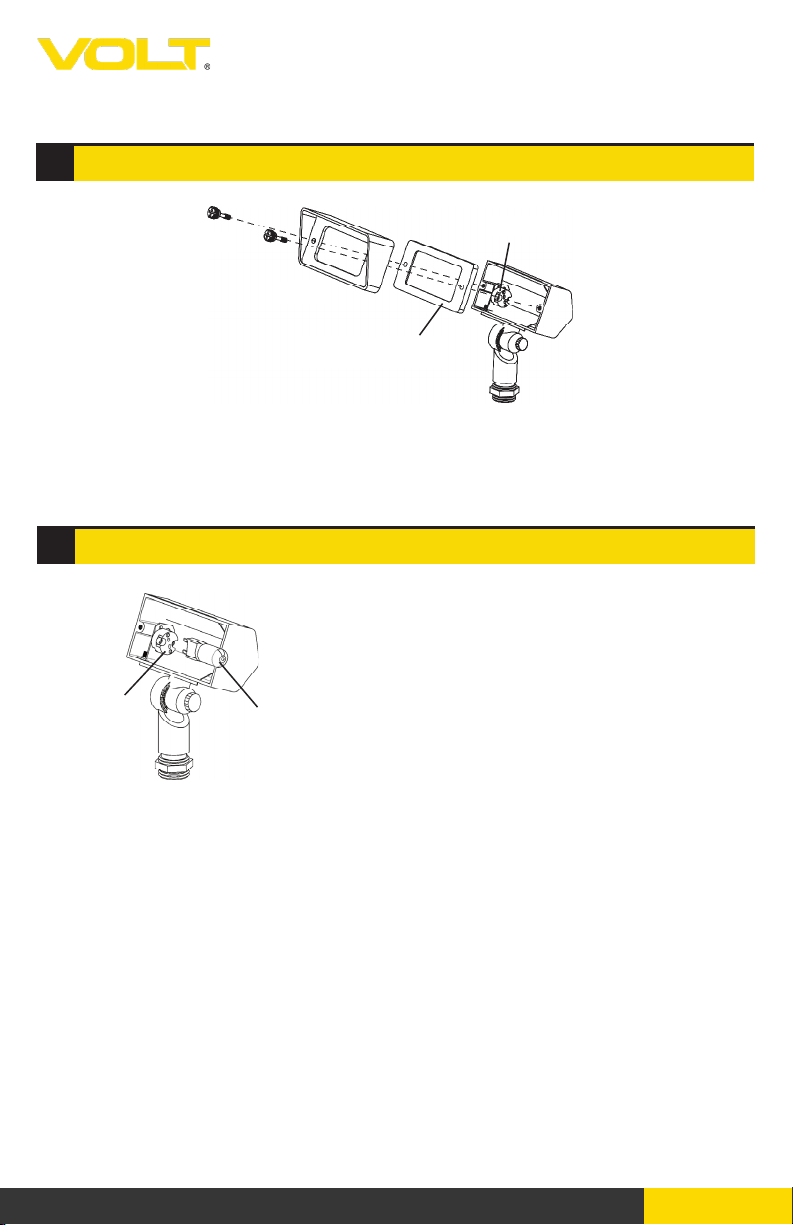

Remove Cover and Gasket with Lens

Install Bulb

INSTALLATION INSTRUCTIONS

VOLT® Gentle Splash Flood Light & Wall Wash VFL-430-4-BBK

813.978.3700 • [email protected] • www.voltlighting.com

Loosen the lock screws and remove the cover and gasket

with the lens from the luminaire to expose the socket.

Lock Screw

Cover

Gasket with lens

Socket

Luminaire

Insert the bulb with correct

wattage and type marked on

the luminaire label.

CAUTION: Do not exceed

maximum wattage marked on

luminaire label.

NOTE: DO NOT touch bulb

with bare hands. Use soft

cloth to handle lamp.

Bulb

Socket

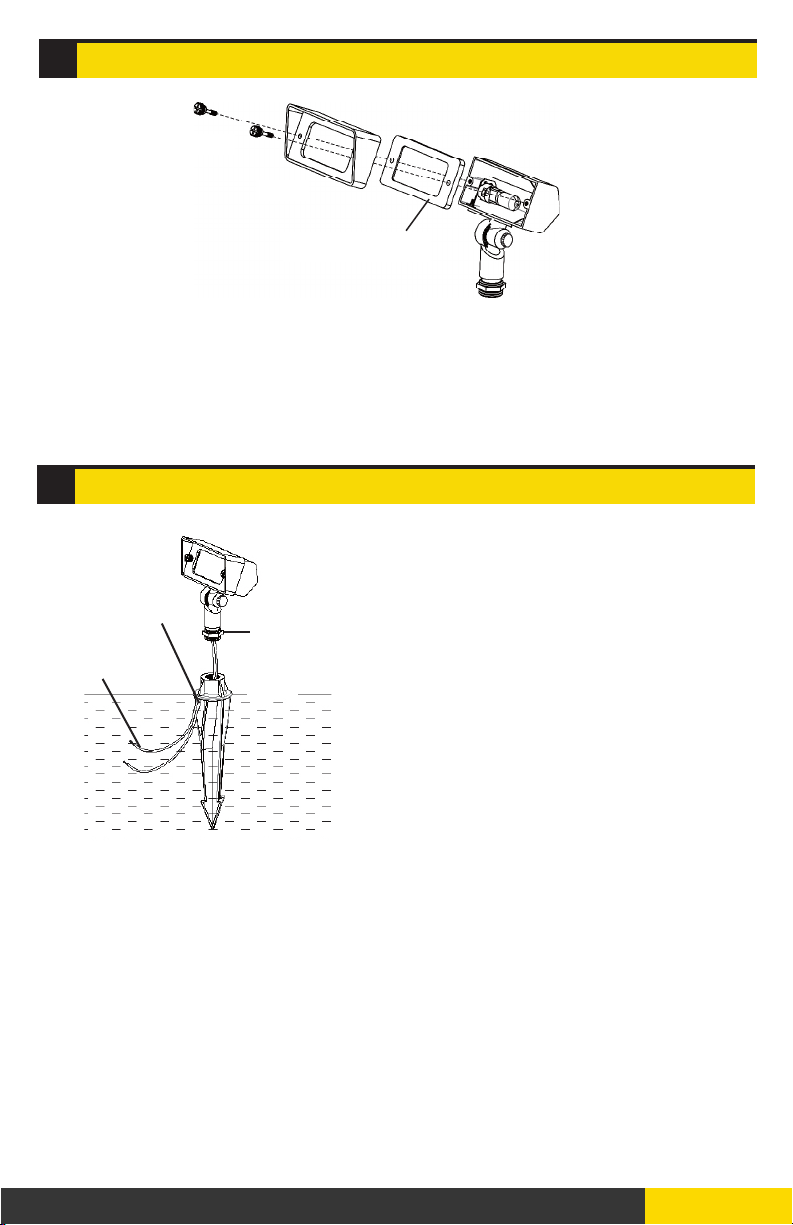

Remove Glare Guard

813.978.3700 • [email protected] • www.voltlighting.com

Decide which lens you would like to use with this xture.

Then install the gasket with your lens of choice back onto the

luminaire and secure with the lock screws.

Lock Screw

Cover

Gasket with lens

Luminaire

Socket

Install Luminaire to Stake

Clear away an area in the

ground at the wireway slot

on top of the stake. Lay the

luminaire pigtail into the

wireway slot and screw the

xture on to the stake. Tighten

the hex nut on the luminaire

against the stake and tighten

until snug.

Luminaire

Hex Nut

Stake

Pigtail

Wireway Slot

Wire Connection

VOLT® Gentle Splash Flood Light & Wall Wash VFL-430-4-BBK

INSTALLATION INSTRUCTIONS

813.978.3700 • [email protected] • www.voltlighting.com

Strip both leads from the luminaire pigtail. Using two wire

connectors (sold separately), connect the leads from the

luminaire to the main supply cable leads.

Pigtail

Wire Connectors Main Low Voltage

Supply Cable

Specications and product details subject to change without notice.

[email protected] • www.voltlighting.com

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
