Vivotek PT3113 Manual de usuario

-1-

www.vivotek.com

T: 886-2-82455282

F: 886-2-82455532

Before You Use This Product

The use of surveillance devices may be prohibited by law in your country. The

Network Camera is not only a high-performance web-ready camera but also can be

part of a flexible surveillance system. It is the user’s responsibility to ensure that the

operation of such devices is legal before installing this unit for its intended use.

It is important to first verify that all contents received are complete according to the

list in the "Package Contents" chapter. Take notice of the warnings in “Quick

installation guide”before the Network Camera is installed, then carefully read and

follow the instructions in the “Installation” chapter to avoid damages due to faulty

assembly and installation. This also ensures the product is used properly as

intended.

The Network Camera is a network device and its use should be straightforward for

those who have basic network knowledge. The “Troubleshooting” chapter in the

Appendix provides remedies to the most common errors in set up and configuration.

You should consult this chapter first if you run into a system error.

The Network Camera is designed for various applications including video sharing,

general security/surveillance, etc. The “How to Use” chapter suggests ways to best

utilize the Network Camera and ensure proper operations. For the creative and

professional developers, the "URL Commands of The Network Camera" chapter

serves to be a helpful reference to customize existing homepages or integrating with

the current web server.

For paragraphs preceded by

the reader should use caution to understand

completely the warnings. Ignoring the warnings may result in serious hazards or

injuries.

-2-

www.vivotek.com

T: 886-2-82455282

F: 886-2-82455532

Table of Contents

Before You Use This Product 1

Package Contents 5

Installation 6

Hardware Installation 6

Software Installation 8

Initial Access to the Network Camera 10

Initial Access to the Network Camera 11

Check Network Settings 11

Add Password to Prevent Unauthorized Access 11

How to Use 12

Authentication 12

Installing Plug-in 13

Primary User’s Capabilities 14

Main Screen with Camera View 14

Client Settings 16

Administrator’s Capabilities 18

Fine-tuning for Best Performance 18

Opening Accounts for New Users 20

Building a Multimedia Web Attraction Site 21

Building a Security Application 25

Building a Security Application 26

Software Revision Upgrade 29

Definitions in Configuration 30

System Parameters 31

User Group Administration 32

Network Settings 33

HTTP 33

Streaming 34

WLAN Configuration 34

Mail & FTP 36

SMTP 36

-3-

www.vivotek.com

T: 886-2-82455282

F: 886-2-82455532

FTP 36

Video Codec Parameters 38

Motion Detection 39

Motion Detection 40

Application Setup 41

Weekly Schedule 41

Event Operation 41

Sequential Operation 42

Camera Control 43

UPnP and DDNS Settings 45

Remote Controller 46

Viewing System Parameters 47

Factory Default 47

Appendix 48

A. Troubleshooting 48

B. Frequently Asked Questions 46

C. URL Commands of the Network Camera 49

Capture Update Snapshot of JPEG Image 49

Query Status of the Digital Input 49

Drive the Digital Output 49

Restore Factory Default Settings 49

Restart System 50

Page URL 51

System Resource URL 51

General Format of Command URL 52

System Configuration URL 52

Security Configuration URL 53

Network Configuration URL 53

DDNS & UPnP Configuration URL 55

Mail&FTP Configuration URL 55

Audio/Video Configuration URL 56

Camera Control URL 58

Image Quality Configuration URL 58

-4-

www.vivotek.com

T: 886-2-82455282

F: 886-2-82455532

Application Configuration URL 59

D. Technical Specifications 61

-5-

www.vivotek.com

T: 886-2-82455282

F: 886-2-82455532

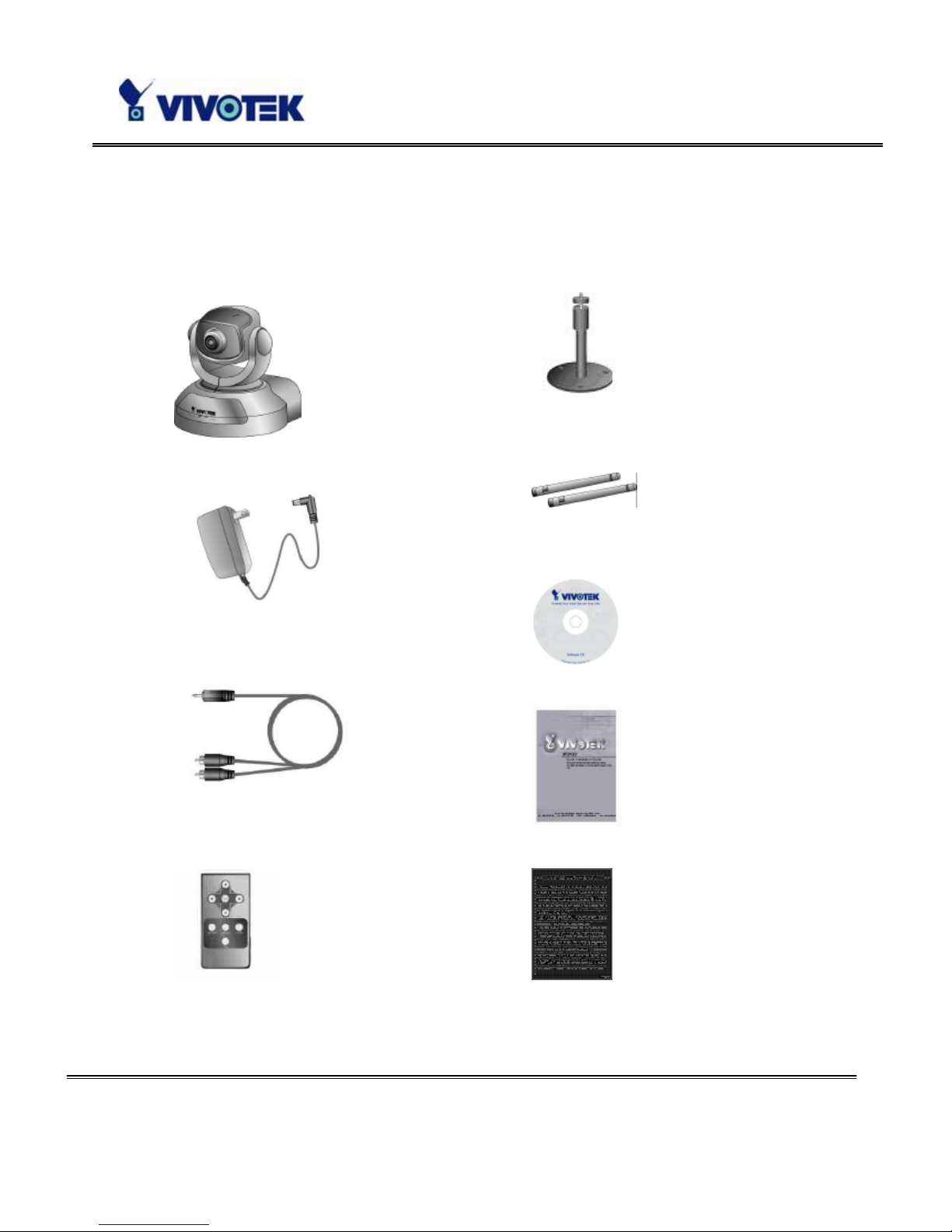

Package Contents

PT3113 or PT3123

Power adapter

A/V Cable

Remote Controller

Camera stand

Antennas

Software CD

Quick installation guide

Warranty card

-6-

www.vivotek.com

T: 886-2-82455282

F: 886-2-82455532

Installation

Hardware Installation

Please verify that your product package contains all the

accessories listed in the foregoing Package Contents.

Depending on the user’s application, an Ethernet cable may

be needed. The Ethernet cable should meet the specs of UTP

Category 5 and not exceed 100 meters in length.

Upon powering up, the device runs through a self-test procedure and the front LEDs

will blink between green and red a few times. If self-test passes, the LEDs will shut off

and the Network Camera will be on stand-by and ready for software installation. If

self-test fails the red LED will blink several times. Refer to Appendix A for

troubleshooting.

The Network Camera will first detect Ethernet. If it does not connect to Ethernet, the

Network Camera will try WLAN. During the searching and connecting process to the

wireless access point or station, the red LED of the Network Camera will flash every

second. Until the Network Camera connects to the other wireless device, the red LED

will become lighted. Operating in either network mode, the green LED will flash every

second as heartbeat to indicate alive.

To install in Ethernet

Make sure the Ethernet is firmly connected to a switch hub. After attaching the

Ethernet cable plug in the power adapter. If the LED turns out to be steady green after

Connect the power adapter jack to the Network

Camera before pluggi

ng in to the power socket. This will

reduce the risk of accidental electric shock.

-7-

www.vivotek.com

T: 886-2-82455282

F: 886-2-82455532

self-test, go to next paragraph “Software installation”. If the Ethernet is not available,

Network Camera will switch to wireless LAN mode.

To install in wireless LAN

If the Ethernet is not available while power on, the Network Camera will search for any

access point with the SSID “default”. Once any access point is found, the LED will turn

green to wait for installation. If the network environment cannot meet the default

settings, install Network Camera in Ethernet to proceed with wireless LAN

configuration.

The Network Camera provides a general I/O terminal block with one digital input and

one relay switch for device control. Pin 1 and Pin 2 can be connected to an external

sensor device and the state of voltage can be monitored from the initial state 'LOW'.

The relay switches Pin 3 and Pin 4 can be used to turn on or off an external device.

Consult with the dealer of the peripherals for correct installation.

1 DI+ INPUT (Max. 50mA, 12VDC)

2 DI-INPUT (Initial state of DI is Low)

3 SW_COMMON OUTPUT (open from SW_OPEN at initial state)

(close with SW_OPEN when DO is set to ON)

4 SW_NOPEN OUTPUT (Max. 1A, 24VDC or 0.5A, 125VAC)

-8-

www.vivotek.com

T: 886-2-82455282

F: 886-2-82455532

Software Installation

In this manual, "User" refers to whoever has access to the Network Camera, and

"Administrator" refers to the person who can configure the Network Camera and grant

user access to the camera.

At the end of the hardware installation, the Administrator must place the product

software CD into the CD-ROM drive of the PC running in MS Windows. An auto-run

program will pop up (If the program is not on auto-run, go to theroot directory of the

software CD and click on “autorun.exe”).

Click on the IP installer and run Vivotek’s Installation program.

Install the Network Camera on Ethernet before install it on WLAN.

Refer to the

network setting chapter to setup wireless network parameters.

-9-

www.vivotek.com

T: 886-2-82455282

F: 886-2-82455532

Upon IP installer’s start up, a searching box will pop

up. This program searches for Vivotek’s product on

the same LAN:

After searching the LAN, the main window of IP installer will pop up.

The IP addresses shown in

the "Current IP Address"

field reflect those on the

local network. They may

be from the DHCP server.

If there is no DHCP server,

the camera will try to find a

free IP address (this takes

from 15 second to 3

minutes, depending on the

LAN status). The method of

finding IP address is

seeking from 192.168.0.99,

to 192.168.0.254. If any of

the address inside this

range is free, the Network

Camera will be assigned to

this IP, and its subnet mask

would be 255.255.255.0. If

none of the addresses is free, the Network Camera will try the range from 192.168.0.2

to 192.168.0.98. After an IP address is assigned to the camera, the “Activity”status

LED blinks.
