Vivotek SF8172V Manual de usuario

EN - 1

English

Warning Before Installation

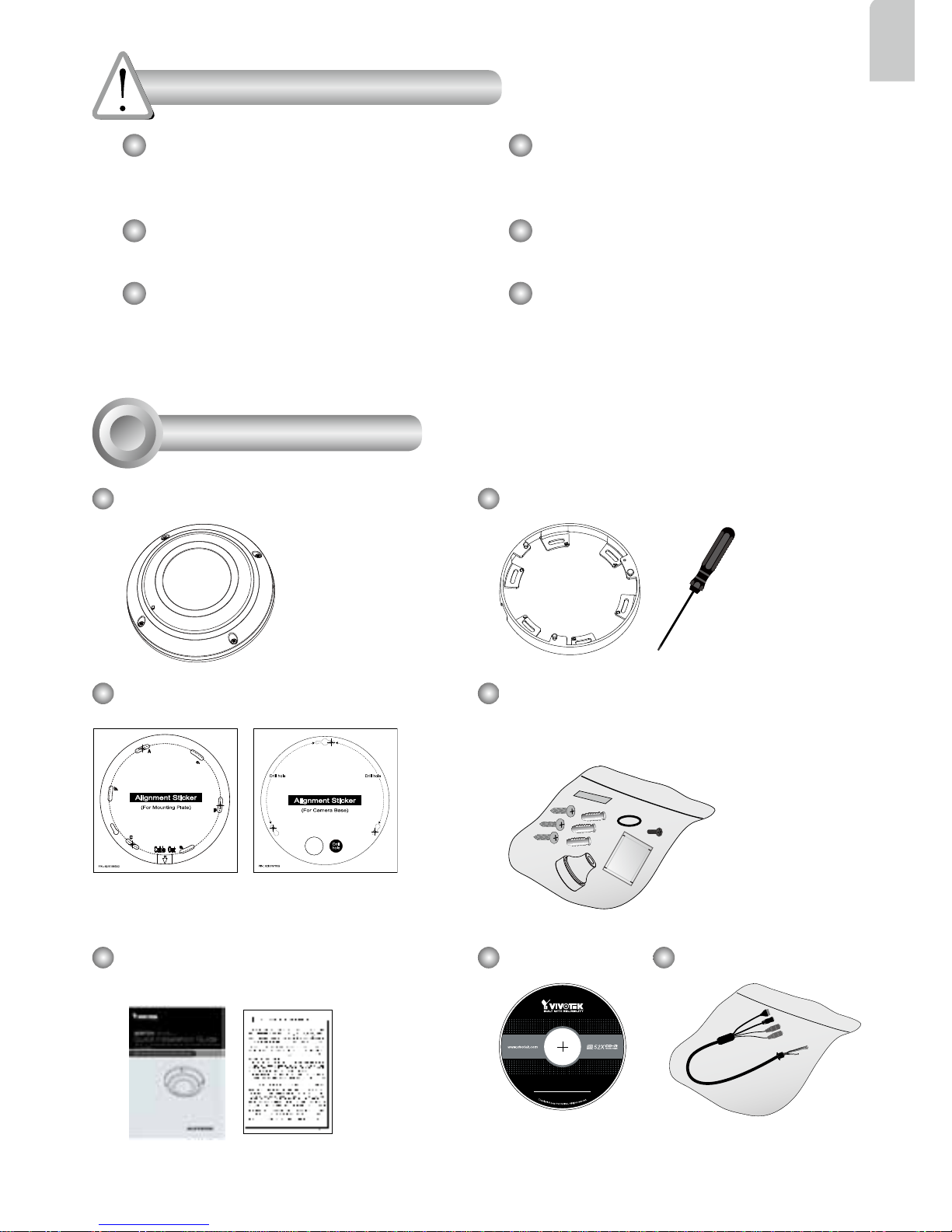

Package Contents

Power off the Network Camera as

soon as smoke or unusual odors

are detected.

Refer to your user’s manual for the

operating temperature.

Do not place the Network Camera

on unsteady surfaces.

Do not touch the Network Camera

during a lightning storm.

Do not insert sharp or tiny objects

into the Network Camera.

Do not drop the Network Camera.

SF8172V Mounting Plate / Screwdriver

Alignment Stickers

For Mounting Plate For Camera Base

Screws / Desiccant Bag /

Double-sided Tape / Rubber Seal

Plug / Rubber Washer

Quick Installation Guide /

Warranty Card

Software CD

Power & I/O Cables

EN - 2

Physical Description

Header (J7)

Spring Contacts (A)

Lens

Contacts for Internal Microphone (B)

Header (J6)

Ethernet 10/100 RJ45

Socket

Align (B) to (A) when

attaching the dome cover

MicroSD/SDHC/SDXC Card Slot

Reset Button

Status LEDs

083236

Outer View

Built-in Microphone

IP66-rated Vandal-proof

Dome Cover

IMPORTANT:

Record the MAC address under the camera base

before installing the camera.

Inner View

EN - 3

English

Hardware Installation

Rubber Stopper on the hole for

Power & IO Cables

Tamper-proof Screw

Rubber Seal Plug on the hole

for RJ45 Ethernet Cable

First, use the supplied screwdriver to loosen the four screws and detach the dome cover from the

camera base. Then, follow the steps below to install the camera to either a ceiling or a wall.

Remove the stoppers and route cables through the

openings.

2. Strip part of the sheath from the Ethernet

cable.

1. Drill a hole on the rubber seal plug and insert

an Ethernet cable through the opening.

Connecting RJ45 Ethernet Cable

RJ45 Cable Dimension (unit: mm)

Recommended cable gauge: 24AWG (0.51 mm)

Assembly Steps

Rubber Seal

Plug

EN - 4

3. You will need an RJ45 crimping tool to

attach the Ethernet wires to a connector.

When done, connect the cable to the

camera’s Ethernet RJ45 socket.

44. Feed the Ethernet cable from the bottom of the

camera and through the hole. Attach the rubber seal

plug for water proofing.

Connecting DC Power Cable

1. Add the supplied rubber washer to the cable as shown in the picture.

2. Feed the cable from the bottom of the camera and tighten the plastic base for waterproofing.

o: white/orange stripe

O: orange solid

g: white/green stripe

B: blue solid

b: white/blue stripe

G: green solid

br: white/brown stripe

BR: brown solid

Connect the supplied power & IO cables if

your switch does not support PoE.

NOTE:

EN - 5

English

Ceiling Mount Installation

Hole marked as D+

To attach the camera to AM-51A

mounting adaptor,

1. Remove the camera's top cover.

2. Fasten 2 included screws to the D

holes (not the D+ hole).

3. Route cables through the adapter.

4. Align the camera with the

mounting adapter and let the 2

screws enter the key holes located

on the sides where the camera's

cabling interfaces reside, e.g., the

Ethernet port.

5. Rotate the camera counter-

clockwise. You can then see the

D+ hole through the slotted screw

hole (in front of the Micro SD slot).

6. Fasten screws to secure the

camera to the mounting adapter.

456 mm

178 mm

47mm

AM-116

AM-51A

AM-114

Attach Camera to Mounting Adapter

Install the Pendant Pipe

Below is a sample procedure using a

pendant pipe:

1. Determine a hard surface ceiling

location, and use the four mounting

holes on the pendant head to mark

the positions where holes will be

drilled to secure the pendant head.

Note that screws are user-supplied

and they should be at least 11mm

long.

2. Route cables through the pendant

pipe and the pendant head.

IMPORTANT:

Refer to the "Panoramic PTZ Installation Guide" in your product CD for design considerations before

you proceed with physical installation.

EN - 6

30~100cm AM1010

NOTE:

Header (J7)

Header (J6)

Install to the Ceiling

1. Drill pilot holes into the ceiling. Then hammer four anchors into the holes.

2. Secure the pendant head to the ceiling using four screws.

3. Connect the two white header connectors to the J6 and J7 connectors.

4. Connect the Ethernet cable to the RJ-45 socket.

5. You will find a desiccant bag attached to the camera. Replace the desiccant bag included in the

camera with the one shipped within the accessory bag.

6. Attach the dome cover to the camera by driving its anti-tamper screws.

7. Route cables through a 3/4” conduit from the pendant head.

Arrange the cables neatly to avoid getting in the way when the dome cover is attached.

EN - 7

English

AM-51A

AM-116

AM-212

Wall Mount Bracket Installation

Below is a sample procedure using a wall mount bracket and a pendant pipe:

1. Determine a hard surface ceiling location. Use the four mounting holes on the wall mount bracket

to mark the positions where holes will be drilled to secure the bracket and routing cables. Note that

screws are user-supplied and they should be at least 11mm long.

2. Feed cables through the bracket.

3. Install the pendant pipe.

4. Install the camera to the mounting adapter. See Attach Camera to Mounting Adapter on the previous

page.

5. Install the mounting adapter to pendant pipe.

6. Tighten the connection using the included hex wrench.

EN - 8

Network Deployment

30~100cm

7. Install the speed dome camera next to the fisheye, with their lens positioned at approximately the

same height. For details about speed dome installation, please refer to its documentation.

8. Connect all cabling, including the IO cables to J6 and J7, and the Ethernet cable to RJ-45 connector.

9. Install the dome cover by fasteninng the anti-tamper screws.

General Connection (without PoE)

1. Connect RJ45 Ethernet cable to a switch.

2. Connect the power cable from the Network Camera to a power outlet.

3. If you have external devices such as sensors and alarms, make the connection from the general

I/O terminal block.

POWER C

OLLIS

ION

LINK

RECEIVE

PARTITION

12345

+3V3

GND

General I/O Terminal Block

Power Cord Socket (Black)

Microphone In (Pink)

Audio Out (Green)

+3V3: Power, 3.3V DC

DO: Digital Output

D I: Digital Input

GND: Ground

NOTE:

If DC power is preferred, it should comply with: O/P:

12VDC, 1.5Amin., L.P.S. per IEC 60950-1.

EN - 9

English

When using a non-PoE switch

Use a PoE power injector (optional) to connect between the Network Camera and a non-PoE

switch.

Power over Ethernet (PoE)

When using a PoE-enabled switch

The Network Camera is PoE-compliant, allowing transmission of power and data via a single

Ethernet cable. Follow the below illustration to connect the Network Camera to a PoE-enabled switch

via Ethernet cable.

POWER C

OLLIS

ION

LINK

RECEIVE

PARTITION

12345

PoE Switch

POWER C

OLLIS

ION

LINK

RECEIVE

PARTITION

12345

PoE Power Injector

(optional)

Non-PoE Switch

NOTE:

1. This equipment is only to be connected to PoE

networks without routing to outside plants.

2. For PoE input connection, use only UL listed I.T.E.

with PoE output.
