Vivotek FD8361L Manual de usuario

Quick Installation Guide

English 繁中日本語 Español Português

簡中 Français Deutsch Italiano Türkçe Polski Русский Česky Svenska

VIVOTEK INC.

6F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C.

|T:+886-2-82455282|F:+886-2-82455532|E:[email protected]

VIVOTEK USA, INC.

2050 Ringwood Avenue, San Jose, CA 95131

|T: 408-773-8686|F: 408-773-8298|E: [email protected]

IR Illuminators • 3-axis • Video Cropping • ePTZ

All specications are subject to change without notice.

P/N:625012601G Rev. 1.1

FD8361L Fixed Dome

Network Camera

EN - 1

English

Power off the Network Camera as

soon as smoke or unusual odors are

detected.

Contact your distributor in the event of

occurrence.

Refer to your user's manual for the

operating temperature.

Warning Before Installation

Do not place the Network Camera on

unsteady surfaces.

Do not touch the Network Camera

during a lightning storm.

Do not insert sharp or tiny objects

into the Network Camera.

Do not drop the Network Camera.

EN - 2

Software CD

FD8361L

Quick Installation Guide /

Warranty Card

Alignment Sticker / Ceiling Hole Template Sticker

Bottom Base

Package Contents

L-type Hex Key Wrench / RJ45 Female/Female Coupler / Silica Gel / Screws

Quick Installation Guide

English 繁中日本語 Español Português

簡中 Français Deutsch Italiano Türkçe Polski Русский Česky Svenska

VIVOTEK INC.

6F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C.

|T:+886-2-82455282|F:+886-2-82455532|E:[email protected]

VIVOTEK USA, INC.

2050 Ringwood Avenue, San Jose, CA 95131

|T: 408-773-8686|F: 408-773-8298|E: [email protected]

IR Illuminators • 3-axis • Video Cropping • ePTZ

All specications are subject to change without notice.

P/N:625012601G Rev. 1.1

FD8361L

Fixed Dome

Network Camera

Ceiling Hole Template Sticker

Drill hole

EN - 3

English

SD/SDHC Card Slot

IR LEDs (18 units,

distance 20m)

Recessed Reset

Button

AC24V

Focus Controller

Zoom Controller

Status LED

Light Sensor

Physical Description

Pan Adjustment Screw

Inner View

Ethernet 10/100 RJ45 Plug

AC 24V Terminal Block

Ground

Fan

Operating environment: -20° ~ 50°C

When the temparature inside the Network

Camera reaches over 50°C, the fan will operate

automatically; when the temparature inside the

Network Camera drops to 0°C, the heater and fan

will both operate automatically.

BNC Video Output

Heater

Rotation Adjustment

Screw

Vari-focal Lens

(f= 3~9 mm)

Tilt Adjustment Screw

NTSC/PAL Video Output

Switch

EN - 4

Record the MAC address under

the camera base before installing

the camera.

Network Camera

Model No: FD8361L

Made in Taiwan

This device complies with part 15 of the FCC rules. Operation is subject to

the following two conditions:

(1)This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference

that may cause undesired operation.

Pat. 6,930,709

RoHS

V I

MAC:0002D1083236

CLASS A

IP66-rated Vandal-proof

Bottom Base

Outer View

IP66-rated Vandal-proof

Dome Cover

AC24V

Camera Base

Hole a~c:

Holes to secure the bottom base.

EN - 5

English

First, use a screwdriver to loose the three screws and detach the dome cover from the

camera base. Then, follow the steps below to install the camera to either a ceiling or a wall.

Hardware Installation

Ceiling mount (with the bottom base)

1. Attach the supplied alignment sticker to the ceiling.

2. Using the 10 circles on the sticker, drill at least 2 pilot holes symmetrically on each side into the ceil-

ing. Then hammer the four supplied plastic anchors into the holes.

3. Through the four holes on the bottom base, insert the four supplied screws into the corresponding

holes and secure the bottom base with a screwdriver.

4. Feed the cables through hole A or B. If you want to use hole B, remove the rubber stopper with a

screwdriver.

5. Secure the camera base to the bottom base with three supplied screws.

AC24V

EN - 6

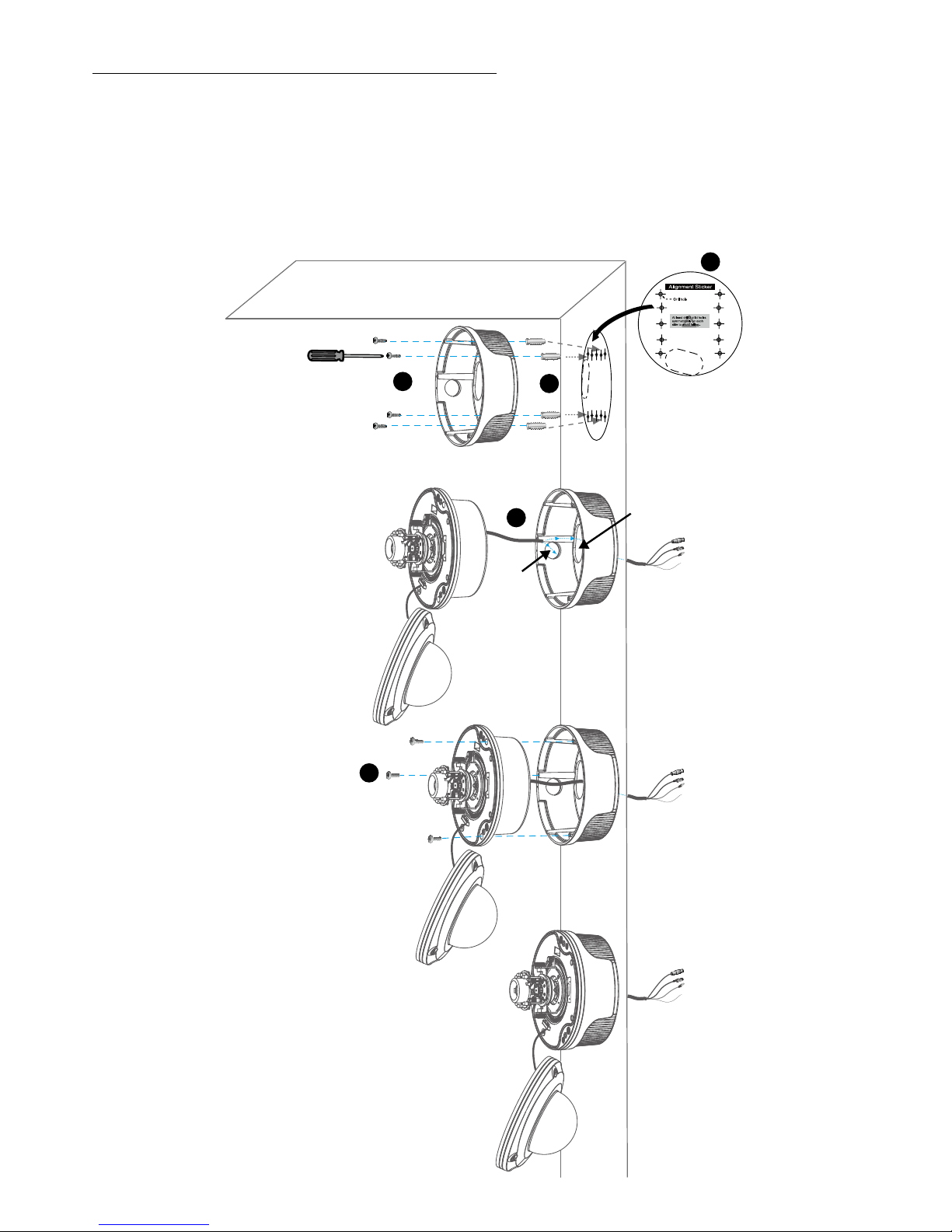

Wall mount (with the bottom base)

1. Attach the supplied alignment sticker to the wall.

2. Using the 10 circles on the sticker, drill at least 2 pilot holes symmetrically on each side into the wall.

Then hammer the four supplied plastic anchors into the holes.

3. Using the four holes on the bottom base, insert the four supplied screws to corresponding holes and

secure the bottom base with a screwdriver.

4. Feed the cables through hole A or B. If you want to use hole B, remove the rubber stopper with a

screwdriver.

5. Secure the camera base to the bottom base with three supplied screws.

EN - 7

English

General Connection (without PoE)

POWER C

OLLIS

ION

LINK

CEIVE

PARTITION

12345

AC24V

Network Deployment

1. Connect the power cable to the AC 24V terminal block.

2. Use the supplied RJ45 female/female coupler

to connect the Network Camera to a switch.

Use a Category 5 Cross Cable when Network

Camera is directly connected to PC.

AC24V

AC24V: Power in AC 24V

Drop-ceiling mount (without the bottom base)

1. Attach the supplied ceiling hole template sticker to the ceiling.

2. Open a hole along the inner circle of the sticker.

3. Using the 3 circles on the sticker, drill 3 pilot holes into the ceiling. Then hammer the three supplied

plastic anchors into the holes.

4. Mount the Network Camera to the ceiling and feed the cables through.

5. Using the three holes on the side of the camera base, insert the three supplied screws into the cor-

responding holes and secure them with a screwdriver.

Ceiling Hole Template Sticker

Drill hole

EN - 8

Power over Ethernet (PoE)

POWER COLLISION

LINK

RECEIVE

PARTITION

12345

AC24V

PoE Switch

POWER COLLISION

LINK

RECEIVE

PARTITION

12345

AC24V

When using a non-PoE switch

Use a PoE power injector (optional) to connect between the Network Camera and a

non-PoE switch.

When using a PoE-enabled switch

The Network Camera is PoE-compliant, allowing transmission of power and data via a

single Ethernet cable. Follow the below illustration to connect the Network Camera to a

PoE-enabled switch via Ethernet cable.

Non-PoE Switch

PoE Power Injector

(optional)

EN - 9

English

Network Camera

Model No: FD8361L

Made in Taiwan

This device complies with part 15 of the FCC rules. Operation is subject to

the following two conditions:

(1)This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference

that may cause undesired operation.

Pat. 6,930,709

RoHS

V I

MAC:0002D1083236

CLASS A

1. Install “Installation Wizard 2” from the Software Utility directory on the software CD.

2. The program will conduct an analysis of your network environment. After your network is

analyzed, please click on the “Next” button to continue the program.

3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network

Cameras on the same LAN.

4. After searching, the main installer window will pop up. Click on the MAC that matches the

one labeled on the bottom of your device to connect to the Network Camera via Internet

Explorer.

0002D1083236

00-02-D1-08-32-36 192.168.5.109 FD8361L

Installation

Wizard 2

Assigning an IP Address
