Vivotek CC8130 Manual de usuario
Power off the Network Camera as soon as smoke or
unusual odors are detected.
Do not place the Network Camera on unsteady
surfaces.
Do not insert sharp or tiny objects into the Network
Camera.
CC8130

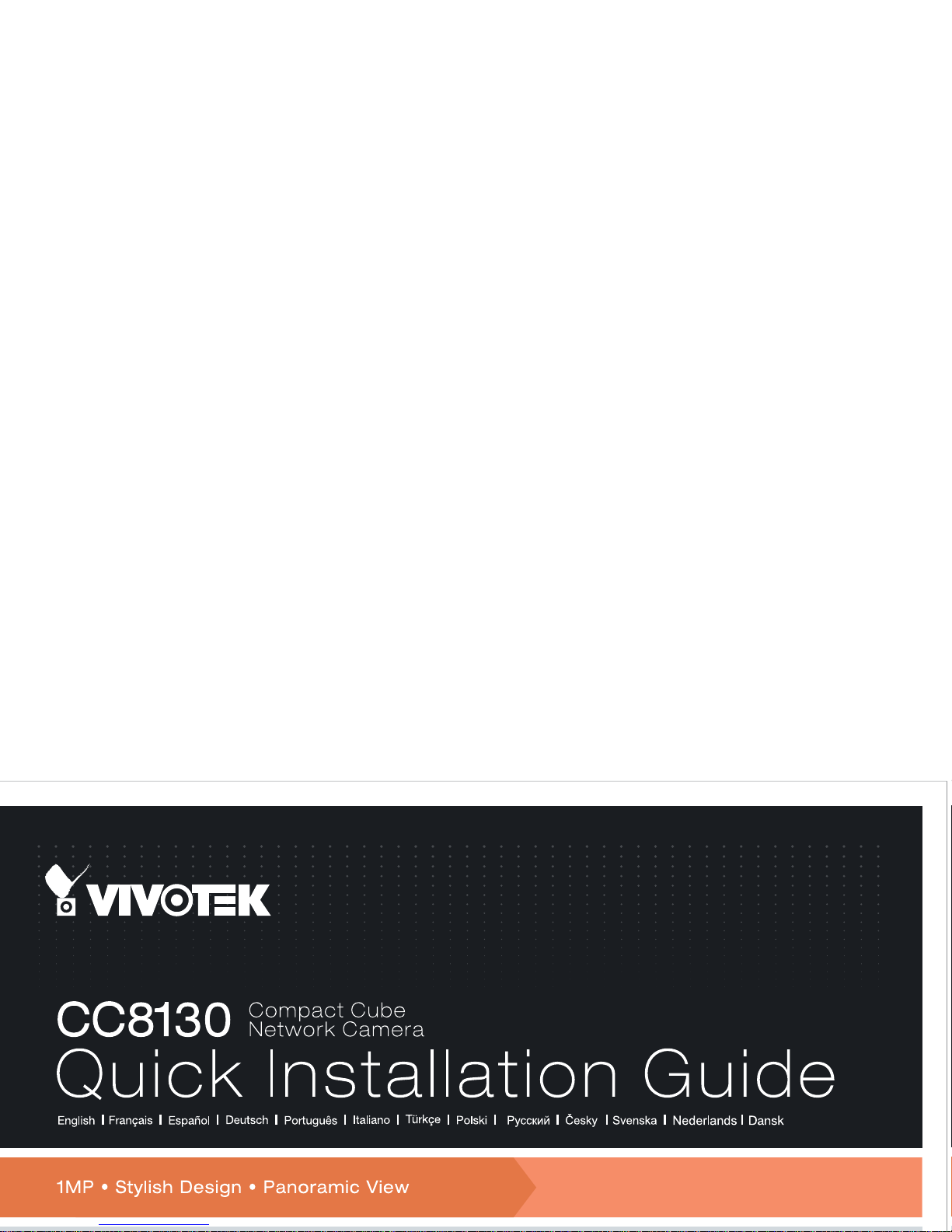

Quick Installation Guide / Warranty Card
Keep the Network Camera away from water. If
the Network Camera becomes wet, power off
immediately.
Do not touch the Network Camera during a
lightning storm.
Do not place the Network Camera in high humidity
environments.
Screws
Software CD
Warning Before Installation
5
0
0
0
2
4
7
0
1
G
1. Package Contents
EN - 2
Reset button
Microphone
Lens
LED
RJ-45 release button
Camera bracket
Camera View Coverage
Vertical:
105º Horizontal:
180º
Top View
Side View
2. Physical Description
3. Considerations
Outer View
EN - 3
English
1.6~1.8m
3m
2m
The camera is designed to capture human activities in
a near-hemispheric field of view, at a place such as a
cashier or bank counter. Due to the optical characteristics
of wide-angle lens, image quality decreases as distance
from an object increases. It is therefore recommended to
install the camera within 3 meters or closer to the objects
of your interest. The focus center should also be aligned
with objects of importance, say, human faces.
Installation Concern
Recognition
Perception
Round cable
Flat cable
4. Hardware Installation
Connecting Ethernet Cable
1. Insert your Ethernet cable through the
opening at the bottom of the camera
bracket.
2. If using a round cable: When the RJ-45
plug is fully inserted, use the round-
head screw with a washer to secure its
position from the bottom of the bracket.
If using a flat cable: Pass the cable
through the opening and attach to
camera.
EN - 4
Strain relief boot
Mounting the Network Camera - Desktop or Wall Mount
1. You can install the camera to a desktop or to a wall by driving screws through the holes shown
below.
2. Flip the hang ring to the top. You may also secure a camera to wall using the hang rings.
3. Install camera by sliding it down against the bracket. Make sure the RJ-45 connector is properly
mated.
1
234
IMPORTANT:
Record the MAC address before installing
the camera.
NOTE:
It is recommended to use an Ethernet cable that
comes without the strain relief boot. You can remove
the boot if your cable comes with one.
4. Secure the installation by driving a pan head screw through
the hang ring and to the bracket behind.
NOTE:
To detach a camera, remove the retention screw from
the top and from the bottom, and insert a straightened
paperclip into the release button to press on the RJ-45
locking tab.
EN - 5
English
POWER C
OLLIS
ION
LINK
RECEIVE
PARTITION
12345
Power over Ethernet (PoE)
POWER C
OLLIS
ION
LINK
RE
CEIVE
PARTITION
12345
PoE Switch
Non-PoE Switch
PoE Power Injector
(optional)
When using a PoE-enabled switch
This Network Camera is PoE-compliant, allowing transmission of power and data via a single
Ethernet cable. Follow the below illustration to connect the camera to a PoE-enabled switch via an
Ethernet cable.
When using a non-PoE switch
Use a PoE power injector (optional) to connect between the Network Camera and a non-PoE switch.
5. Network Deployment
EN - 6
1. Install “Installation Wizard 2” from the Software Utility directory on
the software CD.
2. The program will conduct an analysis of your network
environment. After your network is analyzed, please click on the
“Next” button to continue the program.
3. The program will search for VIVOTEK Video Receivers, Video
Servers, and Network Cameras on the same LAN.
4. After a brief search, the main installer window will pop up.
Double-click on the MAC address that matches the one printed
on the camera label or the S/N number on the package box
label to open a browser management session with the Network
Camera.
0002D10766AD
172.16.7.13 PZ71X2
CC8130
For further setup, please refer to the user's manual on
the software CD.
1. A browser session with the Network Camera should
prompt as shown below.
2. You should be able to see live video from your
camera. You may also install the 32-channel
recording software from the software CD in a
deployment consisting of multiple cameras. For
its installation details, please refer to its related
documents.
6. Assigning an IP Address
7. Ready to Use
