Vivotek PZ7151 Manual de usuario

EN - 1

English

Contact your distributor when such

cases happen.

Keep the Network Camera away

from water. If the Network Camera

is wet, power off immediately.

Refer to your user's manual for the

operating temperature.

Power off the Network Camera

as soon as it is found smoking or

smelt unusual.

Do not place the Network Camera

around the heat sources, such as

television or oven.

Keep the Network Camera away

from direct sunlight.

Do not place the Network Camera

in high humid environments.

Contact your distributor when such

cases happen.

Warning Before Install

EN - 2

Do not place the Network Camera

on unsteady surfaces.

Do not touch the Network Camera

when it's lightening.

Do not disassemble the Network

Camera.

Do not drop the Network Camera.

Do not insert any object into the

Network Camera, such as needles.

Do not manually pan and tilt the

Network Camera when the power is

on.

EN - 3

English

Antenna (PZ7152 only) Screws

PZ7151 / PZ7152

Warranty card

Power adapter

Quick installation guide Software CD

Ceiling mount brackets

Package Contents

EN - 4

Front panel

Back panel

Built-in Microphone

Status LED

Lens

Mic. In

12VDC Ethernet Ext. I/O Ext. Int.

Audio

Out Indented reset button

Ethernet 10/100

RJ45 socket

External/Internal

Microphone switch

General I/O

terminal block

Audio out

Microphone in

Power cord socket

Antenna

(PZ7152 only)

Physical Description

EN - 5

English

Mounting the Network Camera

1. Attach ceiling mount bracket A to the Network Camera and secure it with two

small screws.

2. Drill three pilot holes into the ceiling; hammer the plastic anchors into the holes.

3. Fasten ceiling mount bracket B to the ceiling with three screws.

4. Slide the Network Camera into ceiling mount bracket B.

5. Secure ceiling mount bracket A and B with a small screw.

A B

Hardware Installation

EN - 6

Network Deployment

General Connection (without PoE)

1. If you have external devices such as sensors and alarms, make connection from

general I/O terminal block.

2. Connect the camera to a switch via Ethernet cable.

3. Connect the supplied power cable from the Network Camera to a power outlet.

Ethernet switch

POWER COLLISION

LINK

RECEI VE

PARTITION

12345

1: Power

2: Digital ouput

3: Digital input

4: Ground

EN - 7

English

Power over Ethernet (PoE) (PZ7151 only)

When using a non-PoE switch

Use a PoE power injector (optional) to connect between the Network Camera and

a non-PoE switch.

When using a PoE-enabled switch

The Network Camera is PoE-compliant, allowing transmission of power and data

via single Ethernet cable. See the following illustration to connect the Network

Camera to a PoE-enabled switch via Ethernet cable.

POWER COLLISION

LINK

RECEIV E

PARTITION

12345

PoE switch

non-PoE switch

PoE power injector

(optional)

POWER COLLISION

LINK

RECEIV E

PARTITION

12345

EN - 8

0002D1715100

RoHS

Network Camera

0002D1715100

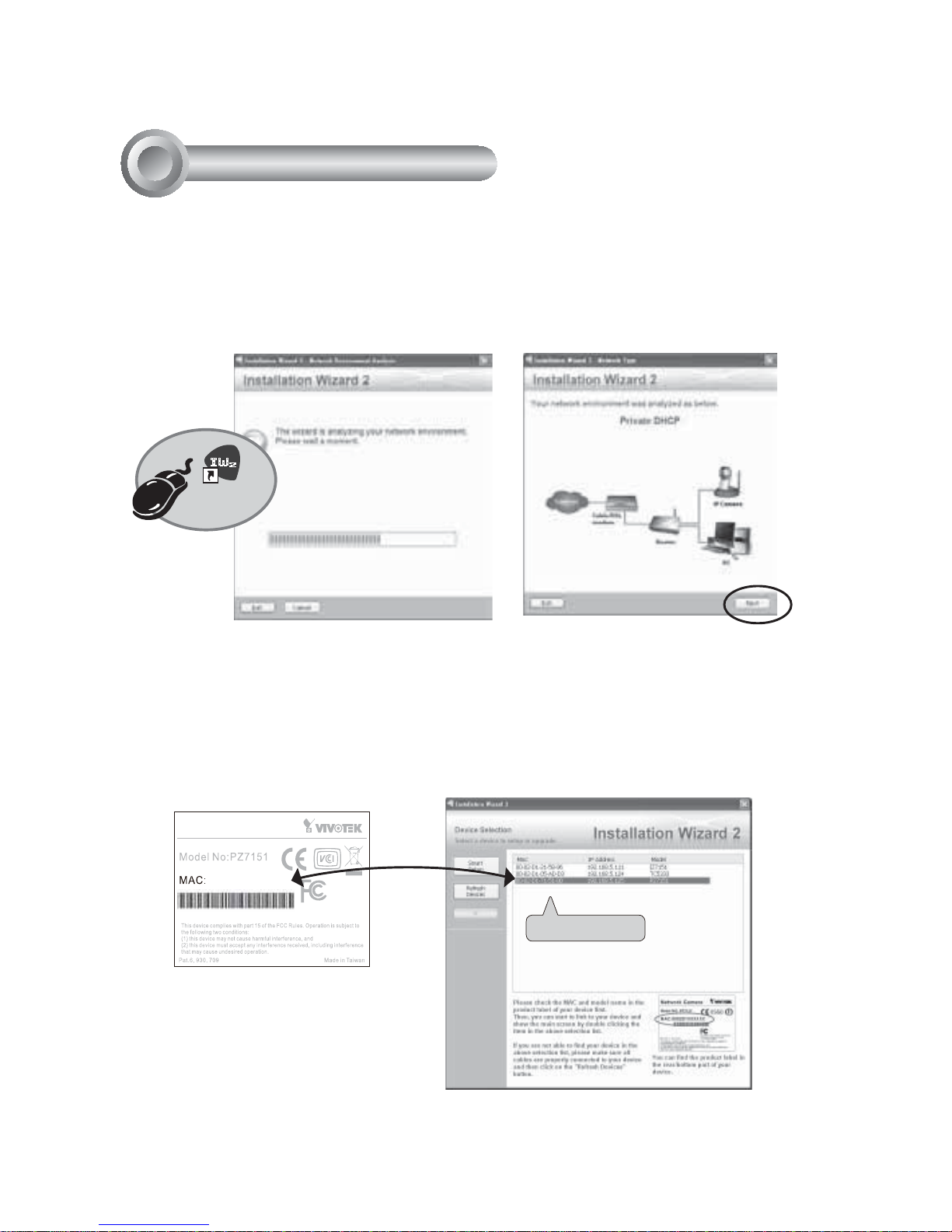

1. Install the "Installation Wizard 2" under the Software Utility directory from software

CD.

2. The program will conduct analyses on your network environment. After your

network is analyzed, please click on the "Next" button to continue the program.

3. The program will search the VIVOTEK Video Receivers, Video Servers or Network

Cameras on the same LAN.

4. After searching, the main installer window will pop up. Click on the MAC that

matches the one labeled on the bottom of your device to connect the Internet

Explorer to the Network Camera.

Installation

Wizard 2

IW2

Assigning IP Address

EN - 9

English

For further setup, please refer to user's manual on the software CD.

Retrieving Images
