Vivotek IP816A-LPC-v2 Manual de usuario

IP Surveillance

Installation Guide

IP816A-LPC-v2

License Plate Capturing Solution

Highway & Street

Rev. 1.0

Ordering part no.:

IP816A-LPC-v2 (Highway): 199002900G

IP816A-LPC-v2 (Street): 199002800G

Document part no.: 625041100G

Specications

Model Number LPC enclosure

Power Input 24V AC

Max. Output power budget 48W (Street); 80W (Highway)

Power Consumption Window heater: 10W; Blower: 2W; Camera: 6 ~ 8W

Environmental Operation Temp. -20°C ~ +50°C (-4°F ~ +149°F)

Protection Level IP68, IK10

Mounting Bracket Fully-cable Management

Construction Die-cast Aluminum Alloy

Coating White epoxy powder coating

Dimensions 502.8 (L) x 170 (W) x 400 (H) mm

Net Weight 6,482g (9.24 lb)

CAUTION:

TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT REMOVE COVER.

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

UNPACKING:

Unpack carefully. Electronic components can be damaged if improperly handled or

dropped. If an item appears damaged in shipment, place it properly in its carton and

notify the shipper.

IMPORTANT!:

1. Read and follow Instructions: All operating and user instructions should be read and

followed before the unit is to be operated.

2. Electrical Connections: Only a qualied electrician is allowed to make electrical

connections.

English

Mounting Conguration & Dimensions

Swivel Positions and Directions

105 mm

502.8 mm

135.5 mm

158.5 mm

170 mm

400 mm

77.4 mm

USABLE

AREA

255 mm

USABLE AREA

400

170 502.8

Installation Suggestions

If you plan to install this camera enclosure into a tropical, sea coastal, or an environment

where salt water or corrosive industrial waste water/moist are present, please seal each

stainless steel screws and ttings with a silicon grease compounds. This will help prevent

electrolysis to occur and extend the life span of the camera and housing.

IMPORTANT:

1. Disconnect devices: A readily accessible disconnect device in the building installation wiring

should be incorporated.

2. Electrical Connection: Only a qualied electrician is allowed to make electrical connections.

Component Description

III

Camera Mounting Platform

M16 1/2" Waterproof cable gland

Power distribution

board

Ventilation fan Window frame heater

coil

• Please avoid eye exposure or apply appropriate protection, such as wearing a pair of Infrared

protection glasses, when working with the product. Always use camera live view to oberve IR

lighting effects.

WARNING:

English

Installation

1. Install the wall-mount bracket to a preferred location at your installation site. Drill

mounting holes and a cable routing hole (if preferred) on a wall. Install the bracket.

Prepare and route the wiring, Ethernet and 24V power source.

2. Install the IR illuminator to the bottom of the housing. Attach the included grip stricker

to the U bracket.

3. Secure the U bracket to the IR illuminator using the included wrench and hex screws.

4. Flip the housing over and place it on a clean, stable surface. Secure the IR illuminator

to the bottom of the housing using the included wrench and a hex socket screw.

English

6. Prepare power wires, a ground wire, and a CAT5e Ethernet cable. Pass them through

the M16 waterproof connectors under the housing.

Ethernet cable Ø4 ~ 6.5mm

Power wires & DI/DO wires,

a combo cable from IR illuminator

5. You can turn the IR illuminator so that its at side is parallel with the housing, and that

you can turn the assembly over and work on the inside of the housing.

7. When done, tighten up and install the waterproof connectors.

8. Assemble the camera components, e.g., the CS ring and lens module. Secure the

mounting plate to the bottom of the camera (the label side) using the included screw.

There is a plastic mount pad in the package. You do not need the mounting pad

using the VIVOTEK camera.

o: white/orange stripe

O: orange solid

g: white/green stripe

B: blue solid

b: white/blue stripe

G: green solid

br: white/brown stripe

BR: brown solid

You may need to remove the RJ45 connector, and use a crimping tool to connect the

Ethernet wires to an RJ45 connector inside the enclosure. Use an Ethernet cable of the

width of 4 ~ 6.5mm.

English

Lens flush

w/ edge of

enclosure

9. Adjust the camera's position so that the lens module can ush align with the tempered

glass. Secure the camera using the screws and washers to the bottom of the housing.

10. Connect 24V power source to the power input terminal. Connect power wires from

the DC 12V output to the camera. Connect the 24V power output to drive the external IRs.

DC 12V OUT - to camera

AC 24V OUT - to external IR

AC 24V IN - external power

source

Ground

Not used for this model

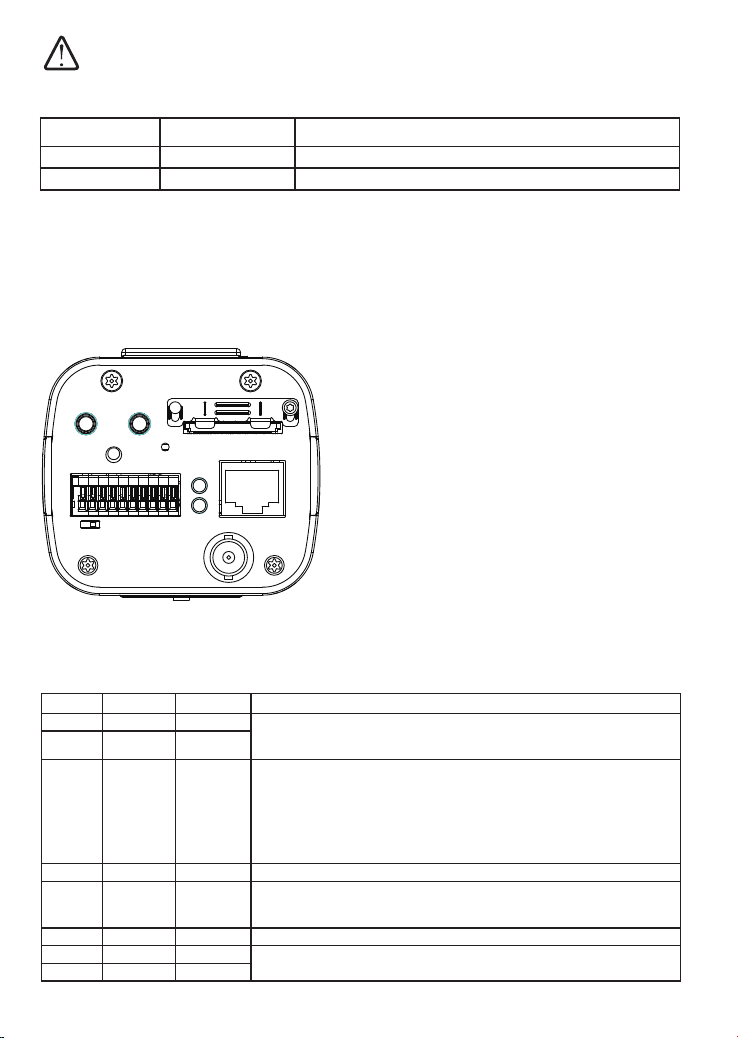

You should prepare a power adaptor of the sufcient capacity for supplying 24V input.

Below are the requirements:

Total consumption Power adaptor

LPC Highway 80W 7A

LPC Street 48W 5A

12. Also pass the combo cable of the IR illuminator through a waterproof connector.

13. Connect the day/night signal lines from the IR unit to the DI/DO connectors on the

camera's terminal block.

DO+

DO-

DI1+

DI2+

DI3+

DI-

RS485-

RS485+

AC/DC pwr

The day/night mode DI connection enables the synchronization of IR light and the

automated day/night switching mechanism on the camera.

11. Connect the Ethernet cable to the camera's RJ45 socket.

Name Color Gauge Description

V+ Red (20AWG) Power input

12~24V DC±10%

24V AC±10% (50~60Hz), (14.5VDC current controlled)

V- Black (20AWG)

DI+ Green (26AWG) LED ON/OFF control

* Dry contact

Logic level 1(Open) = LED off

Logic level 0(Close to GND) = LED on

* Wet contact

Logic level 1: 4V~40 V = LED off

Logic level 0: 0.8V MAX = LED on

DI- Yellow (26AWG) Ground

DO+ Purple (26AWG) Light sensor status output

1. Open = Day

2. Short = Night (20 lux for IR ON)

DO- Blue (26AWG) Ground

RS485+ Orange (26AWG) RS485 interface control

RS485- Brown (26AWG)

Cable Pinouts (IR Illuminator)
