Vivotek PZ7111 Manual de usuario

P/N: 625006701G Ver.1.1

EN - 1

English

Contact your distributor when such

cases happen.

Keep the Network Camera away

from water. If the Network Camera

is wet, power off immediately.

Refer to your user's manual for the

operating temperature.

Power off the Network Camera

as soon as it is found smoking or

smelt unusual.

Do not place the Network Camera

around the heat sources, such as

television or oven.

Keep the Network Camera away

from direct sunlight.

Do not place the Network Camera

in high humid environments.

Activity

Power/MIC

Activity

Power/MIC

Activity

Power/MIC

Activity

Power/MIC

Contact your distributor when such

cases happen.

Warning Before Install

EN - 2

Do not place the Network Camera

on unsteady surfaces.

Do not touch the Network Camera

when it's lightening.

Do not disassemble the Network

Camera.

Do not drop the Network Camera.

Do not insert any object into the

Network Camera, such as needles.

Activity

Power/MIC

Activity

Power/MIC

Activity

Power/MIC

Activity

Power/MIC

Activity

Power/MIC

Do not manually pan and tilt the

Network Camera when the power is

on.

Activity

Power/MIC

EN - 3

English

Antenna

(PZ7112 / PZ7122 only)

Screws

PZ7111 / PZ7121/

PZ7112 / PZ7122

A/V cable

Power adapter

Quick installation guide /

Warranty card

Software CD

Activity

Power/MIC

Ceiling mount brackets

Package Contents

EN - 4

Front panel

Back panel

Activity

Power/MIC

Built-in microphone

Status LED

Lens

Indented reset button

Ethernet 10/100

RJ45 socket

External/Internal

microphone switch

General I/O

terminal block

AV out

Microphone in

Power cord socket

Antenna

(PZ7112 / PZ7122 only)

Physical Description

EN - 5

English

Mounting the Network Camera

1. Attach ceiling mount bracket A to the Network Camera and secure it with two

small screws.

2. Drill three pilot holes into the ceiling; hammer the plastic anchors into the

holes.

3. Fasten ceiling mount bracket B to the ceiling with three screws.

4. Slide the Network Camera into ceiling mount bracket B.

5. Secure ceiling mount bracket A and B with a small screw.

A B

Hardware Installation

EN - 6

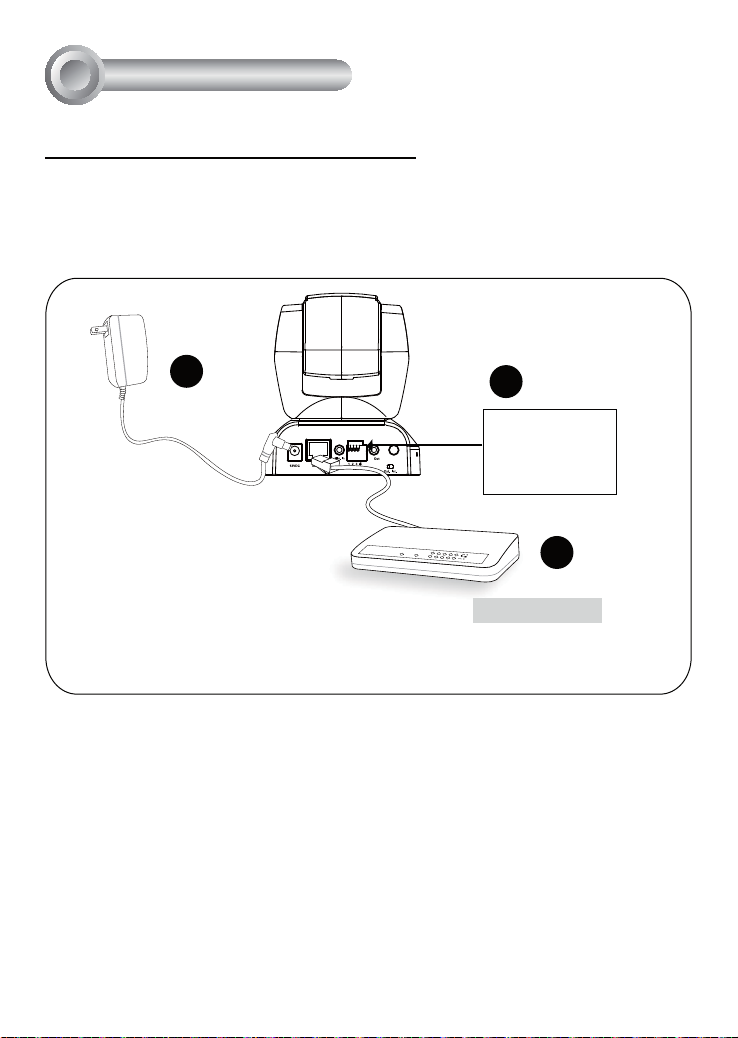

General Connection (without PoE)

1. If you have external devices such as sensors and alarms, make connections from gen-

eral I/O terminal block.

2. Connect the camera to a switch via a Ethernet cable.

3. Connect the supplied power cable from the camera to a power outlet.

POWER COLLISION

LINK

RECEIVE

PARTITION

12345

Ethernet switch

Network Deployment

1: Power

2: Digital output

3: Digital input

4: Ground

EN - 7

English

Power over Ethernet (PoE)

POWER COLLISION

LINK

RECEIVE

PARTITION

12345

PoE switch

POWER COLLISION

LINK

RECEIVE

PARTITION

12345

When using a non-PoE switch

Use a PoE power injector (optional) to connect between the camera and a non-PoE

switch.

PoE power injector

(optional)

When using a PoE-enabled switch

The camera is PoE-compliant, allowing transmission of power and data via single Ether-

net cable. See the following illustration to connect the camera to a PoE-enabled switch

via Ethernet cable.

non-PoE switch

EN - 8

0002D10766AD

RoHS

Network Camera

PZ7112

1. Install the "Installation Wizard 2" under the Software Utility directory from software CD.

2. The program will conduct analyses on your network environment. After your network is

analyzed, please click on the "Next" button to continue the program.

3. The program will search the VIVOTEK Network Devices in the same LAN.

4. After searching, the main installer window will pop up. Click on the MAC that matches

the one labeled on the bottom of your device to connect the Internet Explorer to the

Network Camera.

0002D10766AD

172.16.7.13 PZ71X2

Installation

Wizard 2

Assigning IP Address

EN - 9

English

For further setup, please refer to user's manual on the software CD.

Ready to Use

1. Access to the Network Camera from the Internet.

2. Retrieve live video through web browsers or recording software.
