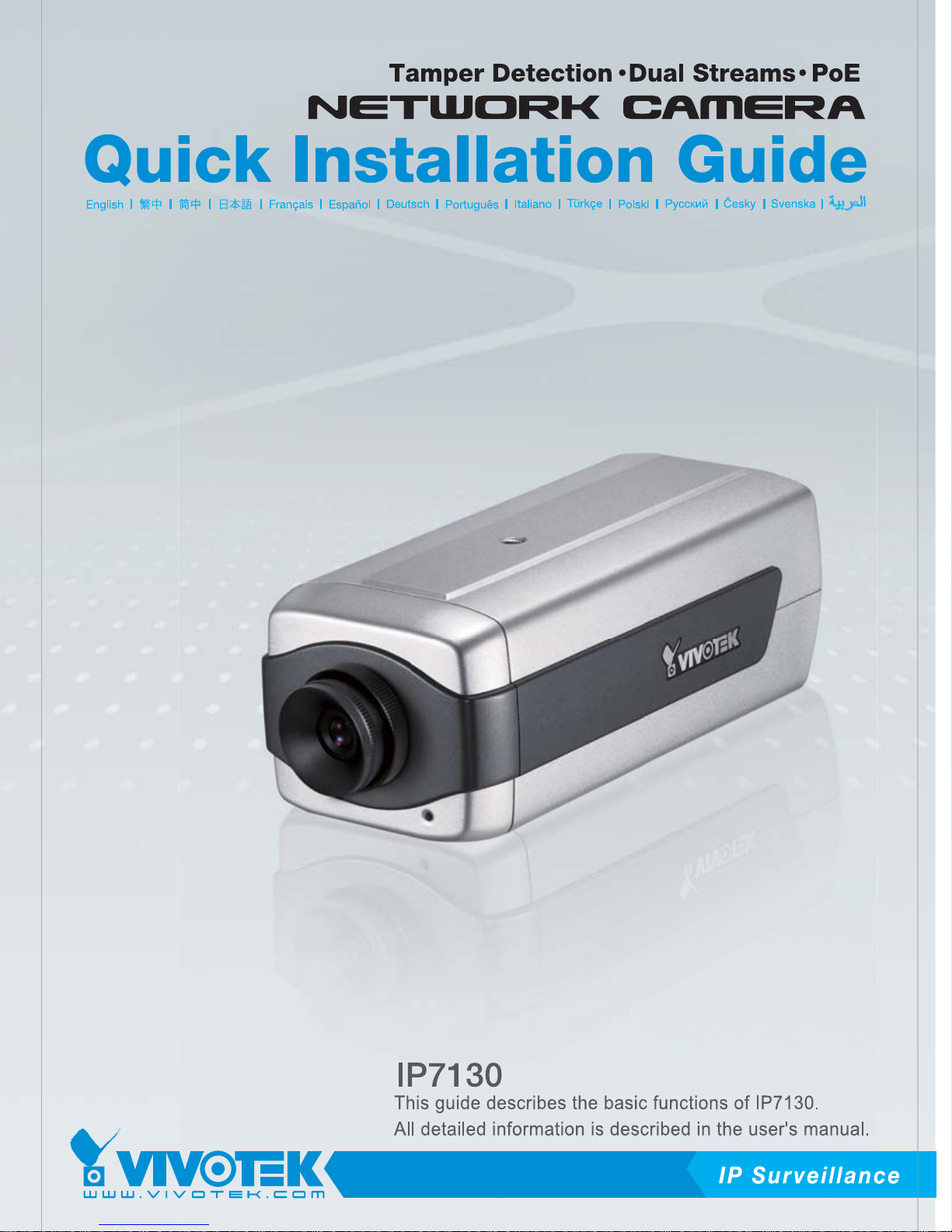

Vivotek IP7130 Manual de usuario

English

Contact your distributor in the event of

occurrence.

Keep the Network Camera away

from water. If the Network Camera

becomes wet, power off immediately.

Refer to your user’s manual for the

operating temperature.

Power off the Network Camera as

soon as smoke or unusual odors are

detected.

Do not place the Network Camera

around heat sources, such as a

television or oven.

Keep the Network Camera away from

direct sunlight.

Do not place the Network Camera in

high humidity environments.

Contact your distributor in the event of

occurrence.

Warning Before Installation

Do not place the Network Camera on

unsteady surfaces.

Do not touch the Network Camera

during a lightning storm.

Do not disassemble the Network

Camera.

Do not drop the Network Camera.

Do not insert sharp or tiny objects

into the Network Camera.

English

Camera Stand Software CD

IP7130 Power Adapter

Quick Installation Guide Warranty Card

1Package Contents

Power Cord Socket

Ethernet 10/100

RJ45 Socket

Indented Reset

Button

General I/O

Terminal Block

Audio Out

External/Internal MIC Switch

Microphone In

Front Panel

Back Panel

2Physical Description

Built-in Microphone

Status LED

Lens

English

General Connection (without PoE)

1. If you have external devices such as sensors and alarms, connect them to the general

I/O terminal block.

2. Connect the camera to a switch via Ethernet cable.

3. Connect the supplied power cable from the camera to a power outlet.

POWER COLLISION

LINK

RECEIV E

PARTITI ON

12345

3Network Deployment

Ethernet Switch

1: Power +12V

2: Digital output

3: Digital input

4: Ground

Power over Ethernet (PoE)

When using a non-PoE switch

Use a PoE power injector (optional) to connect between the Network Camera and a

non-PoE switch.

POWER COLLISION

LINK

RECEIV E

PARTITIO N

12345

When using a PoE-enabled switch

This Network Camera is PoE-compliant, allowing transmission of power and data via

a single Ethernet cable. Follow the below illustration to connect the camera to a PoE-

enabled switch via Ethernet cable.

POWER COLLISION

LINK

RECEIV E

PARTITION

12345

PoE Switch

Non-PoE Switch

PoE Power Injector

(optional)

English

Network Camera

Model No: IP7130

Made in Taiwan

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1)This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

Pat. 6,930,709

MAC:0002D1730202

RoHS

0002D1730202

00-02-D1-73-02-02 192.168.5.151 IP7130

Installation

Wizard 2

4Assigning an IP Address

1. Install "Installation Wizard 2" from the Software Utility directory on the software CD.

2. The program will conduct an analysis of your network environment. After your network

is analyzed, please click on the "Next" button to continue the program.

3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network

Cameras on the same LAN.

4. After searching, the main installer window will pop up. Click on the MAC that matches

the one labeled on the bottom of your device to connect to the Network Camera via

Internet Explorer.

For further setup, please refer to the user’s manual on the software CD.

Ready to Use

1. Access the Network Camera on the LAN.

2. Retrieve live video through a web browser or recording software.
