THE SHEAR / BRAKE / ROLL

OPERATION MANUAL

MODEL:3 IN 1/305

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents an

estimate of savings you might benefit from buying certain tools with us compared to the major

top brands and doses not necessarily mean to cover all categories of tools offered by us. You

are kindly reminded to verify carefully when you are placing an order with us if you are

actually saving half in comparison with the top major brands.

- 1 -

MODEL:3 IN 1/305

Have product questions? Need technical support? Please feel free to

Technical Support and E-Warranty Certificate

www.vevor.com/support

NEED HELP? CONTACT US!

This is the original instruction, please read all manual instructions

carefully before operating. VEVOR reserves a clear interpretation of our

user manual. The appearance of the product shall be subject to the

product you received. Please forgive us that we won't inform you again if

there are any technology or software updates on our product.

THE SHEAR / BRAKE /

ROLL

- 2 -

Warning-To reduce the risk of injury, user must read

instructions manual carefully.

SPECIFICATIONS

Model.............................................................................................3 in 1/305

Effective Width...............................................305mm (12 inches) Maximum

Shearing Thickness….........................................................1mm (20 gauge)

Bending Thickness……......................................................1mm (20 gauge)

BendingAngle...............90° Rolling thickness……...........…1mm (20 gauge)

Roll Diameter……....................................................….45mm (1-1/2 inches)

Standard accessories

UNPACKING

The SHEAR / BRAKE / ROLL 3-IN-1/12 is shipped from the manufacturer

in a carefully packed carton box. Thoroughly inspect the product upon

opening the package. After unpacking the unit, carefully inspect for any

damage that may have occurred during transit.If damage has occurred,

shipping damage claims must be filed with the carrier and are the

responsibility of the user. Check for completeness. Immediately report

missing parts to dealer.

Roller adjustment bolt

Fixed knob bolt

Rocker assembly

Guide rod assembly

Baffle

- 3 -

Warning

The warnings, cautions and instructions discussed in this instructions

or situations that could occur. It must be understood by the operator

that common sense and caution are factors that cannot be built into

this product, but must be supplied by the operator.

SAVE THESE INSTRUCTIONS

Thank you for purchasing 12-inch Shear/Brake/Roll machine. Before

attempting to operate your new tool please read these instructions

thoroughly. You will need these instructions for the safety warnings,

precautions, assembly, operation, maintenance procedures, parts list and

diagrams. Keep your invoice number with these instructions. Write the

invoice number on the inside of front cover. Keep the instructions and

invoice in a safe, dry place for future reference.

SAFETY RULES

1. Know your machine. Read this manual carefully. Learn the machine’s

applications and limitations, as well as specific potential hazards peculiar

to it.

2. Keep work area clean and well lit. Cluttered or dark work areas invite

accidents.

3. Keep Children away. All children should be kept away from the work

area. Never let a child handle a tool without strict adult supervision.

4. Do not operate this tool if under the influence of alcohol or drugs. Read

warning labels on prescriptions to determine if your judgment or reflexes

are impaired while taking drugs. If there is any doubt, do not attempt to

operate.

5. Use safety equipment. Eye protection should always be worn when

operating this machine. Use ANSI approved safety glasses. Everyday

eyeglasses only have impact resistant lenses. They are NOT safety

glasses. Dust masks, non-skid safety shoes, hard hat, or hearing

- 4 -

protection should be used in appropriate conditions.

6. Wear proper apparel. Loose clothing, gloves, neckties, rings, bracelets,

or other jewelry may present a potential hazard when operating this

machine. Please keep all apparel clear of the machine.

7. Don’t overreach. Keep proper footing and balance always when

operating this product.

8. Check for damage. Check your tool regularly. If part of the tool is

damaged it should be carefully inspected to make sure that it can perform

its’ intended function correctly. If in doubt, the part should be repaired.

Refer all servicing to a qualified technician. Consult your dealer for advice.

9. Maintain tools with care. Keep tools sharp and clean. Properly

maintained tools, with sharp cutting edges, are less likely to bind and are

easier to control.

10. When you move, install, clean or adjust the machine, keep away from

the shears.

11. Put down the protective cover when you don’t use the sliding roll of the

machine.

12. Keep your hands away from the die when you are working on it.

- 5 -

SET-UP AND ASSEMBLY

Floor Diagrams

Figure 1 – hole centers for Shear, Brake and Roll

Assembly

Tools required for setup and assembly:5, 6mm hex keys (“Allen

wrenches”)16mm open end wrench.

1. Take out machine and spare parts from box.

2. Carefully clean all rust protected surfaces with a mild solvent or

kerosene and a soft rag. Do not use lacquer thinner, paint thinner, or

gasoline, as these may damage painted surfaces.

3. Coat all machined surfaces with a very light film of oil to inhibit rust.

4. Carefully move machine to a workbench or stand. Machine location

must allow free access on all sides.

5. Bolt machine to stand or workbench. The stand or workbench must be

bolted to the floor. (NOTE: An optional stand is available for this machine;

see Section 8. Contact KAKA distributor to order.)

- 6 -

6. Remove one handle (A, Figure 2) from each operating handle assembly,

using 6mm hex key.

Figure 2

7. Loosen lock bolt (C, Figure 2).

8. Slide bar (B) into hub and tighten lock bolt (C) to secure.

9. Re-install handle (A).

10. Install both guide rods into either the upper or lower set of threaded

holes(Figures 3 & 4) and tighten the setting by rotating hex nut against the

cast base of the machine with 16mm wrench.

11. Install guide plate as shown in Figures3 or 4. Secure it to rods using the

T-handles.

Figure 3 (Brake position) Figure 4 (Shear position)

NOTE: For brake operation, install guide rods into upper set of holes

(Figure 3); for shear operation, install them in lower set of holes (Figure 4).

- 7 -

PRESS BRAKE SET-UP

Do not bend material larger than 12” 20-gauge mild steel.

Failure to comply may cause serious injury and/or damage to the

machine.

To set up for bending:

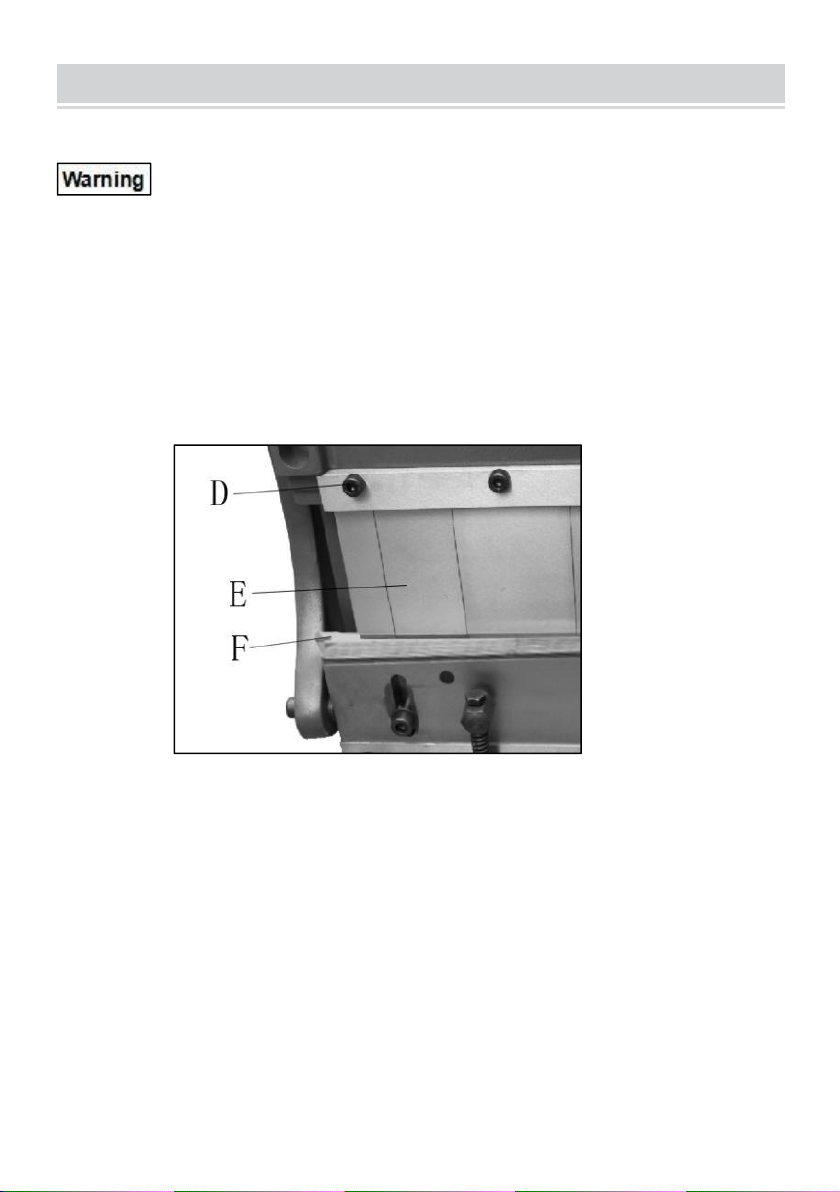

1. Place a strip of wood (F, Figure 5) on bottom die, the full length of die.

2. Close brake until the wood contact supper dies(E).

3. Loosen screws (D) using 5mm hex key.

Figure 5

4. Select upper dies (E) for desired job and remove the others by sliding

them out the left end.（Included die set sizes1”x1, 2”x2, 3”x1, 4”x1）

5. Move operating handle until the wood pushes up the dies so that they

seat uniformly in upper beam.

6. Securely re-tighten all screws (Figure3), then release and remove wood

strip.

7. If making repeated bends or using along workpiece, position guide rods

and plate for brake operation, as shown in Figure 3.

8. Scribe a line on workpiece for bend location. (Be sure to accommodate

bend allowance based on thickness of material. This can be done either

- 8 -

through trial and error, or by consulting a machinist’s handbook.)

9. Rest workpiece on v-block (lower die)so that the scribed line is aligned

with the tips of upper die(s).

10. Hold workpiece steady and use operating handle to make bend.

To adjust brake beam (G, Figure 6) for90° bends at bottom of stroke:

1. Slightly loosen locking screws (H)using 6mm hex key.

2. Turn brake beam adjusting screws (G)with 16mm wrench, until test

bend reflects 90° bend at both ends of brake.

3. Re-tighten screws (H).

Figure 6

For special repetitive bends, the brake beam may be adjusted to over-bend

the desired angle since the metal will have some degree of “spring back”.

Shear set-up

Do not shear material larger than 12” 20 gauge mild steel.

Failure to comply may cause serious injury and/or damage to the

machine.

1. Install guide rods and plate in shear position (Figure 4) and adjust to

desired length of workpiece cut.

2. Place workpiece against guide block at right edge of table (K, Figure 7).
