VEVOR XF-E004A-2 Manual de usuario
Technical Support and E-Warranty Certificate www.vevor.com/support
QUICK SUPPORT ROD
USER MANUAL
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODEL: XF-E004A-2，XF-E004A-4
Have product questions? Need technical support? Please feel free to
contact us:
CustomerService@vevor.com
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
QUICK SUPPORT ROD
- 2 -
GENERAL SAFETY RULES
WARNING: Read and understand all instructions. Failure to follow
all instructions listed below may result in serious injury.
Various dangers may occur if the hand lever grease gun is improperly
handled during installation, commissioning and daily operation.
Risk of injury and damage to material property because of improper
handling.
Hold the manual at the disposal of the operating staff at the usage site of
the unit.
Country-specific safety measures and accident prevention regulations
must be observed.
Persons are qualified if they are, due to their training, experience,
instruction and knowledge of the relevant standards, able to assess
assigned tasks and to identify potentially hazardous situations.
It is strictly prohibited to use the support rod for overload.
CAUTION:
Defective accessories can lead to personal injury and material damage.
During their period of use, accessories must be checked for wear,cracks,
and other damage.
Defective accessories should be replaced immediately.
SAVE THESE INSTRUCTIONS.
- 3 -
MODEL AND PARAMETERS
Model
XF-E004A-2
XF-E004A-4
Maximum Load Capacity
30kg
30kg
Adjustable Range
115 ~ 290cm
115 ~ 290cm
Support Feet
128*80mm
128*80mm
Material
Steel
Steel
Color
Blue
Blue
Packing quantity
2pcs
4pcs
- 4 -
STRUCTURE DIAGRAM
1. Adjusting leverⅠ
2. Release Button
3. Adjusting lever Ⅱ
4. Micro Adjustment Handle
5. Knob
6. Support Rod
7. Non-slip Pad
2
3
4
5
6
7
1
- 5 -
COMPONENTS
XF-E004A-2
XF-E004A-4
Quick Support Rod
2
4
Support Feet
6
10
Knob(M6)
1
1
Storage Bag
1
1
User Manual
1
1
Model
Parts
- 6 -
OPERATING INSTRUCTIONS
Operation Preparation:
1. Please prepare gloves to avoid being scratched by sharp parts that
may occur during installation.
2. Please open all the boxes to check that the accessories are complete
and in good condition.
Operation:
Step1：Buckle the support feet into both ends of the support rod, as shown
- 7 -

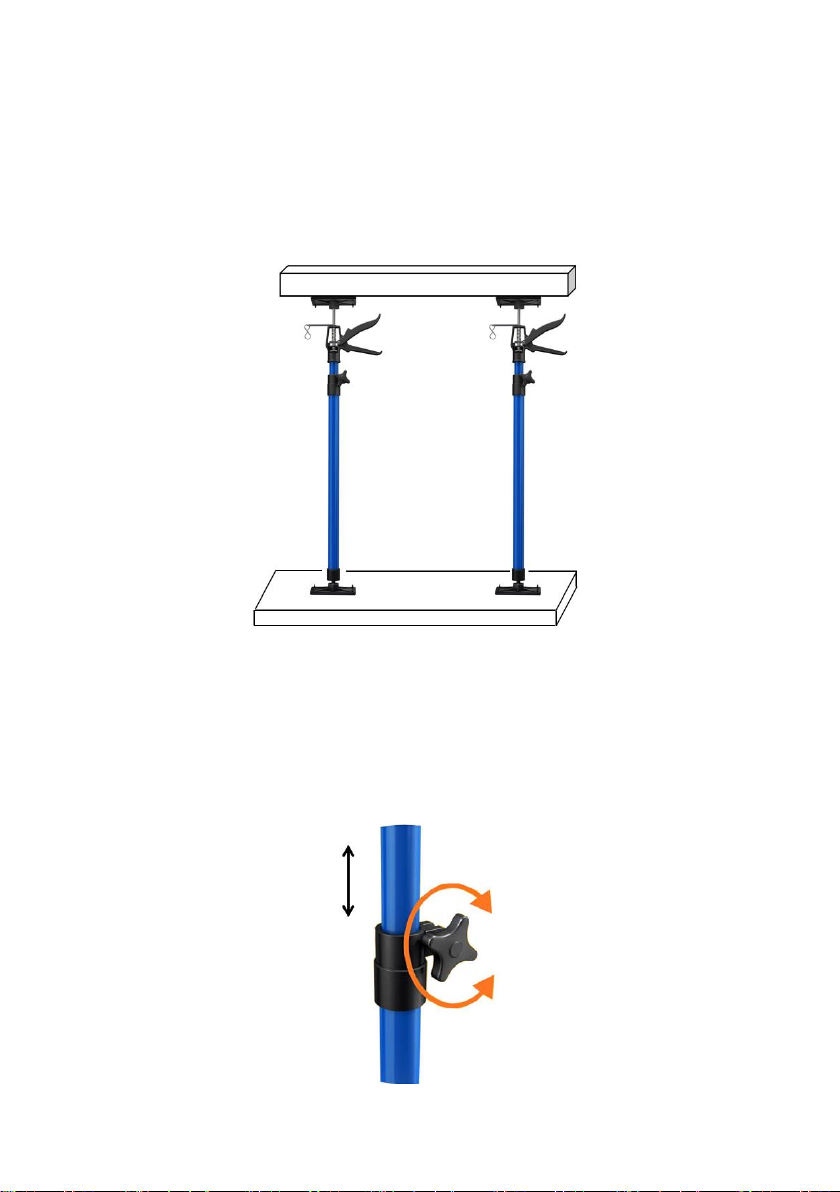

Step2：Multiple support rods can be selected according to the working
scenario, as shown in the following figure.
Support rod adjustment operation:
1) Loosen the knob to extend or shorten the rod and then tighten the
knob.
- 8 -
2) Press the handle to fine-tune the rod until it is fixed.
3) End of use and lift the release button to put away the rod.
- 9 -

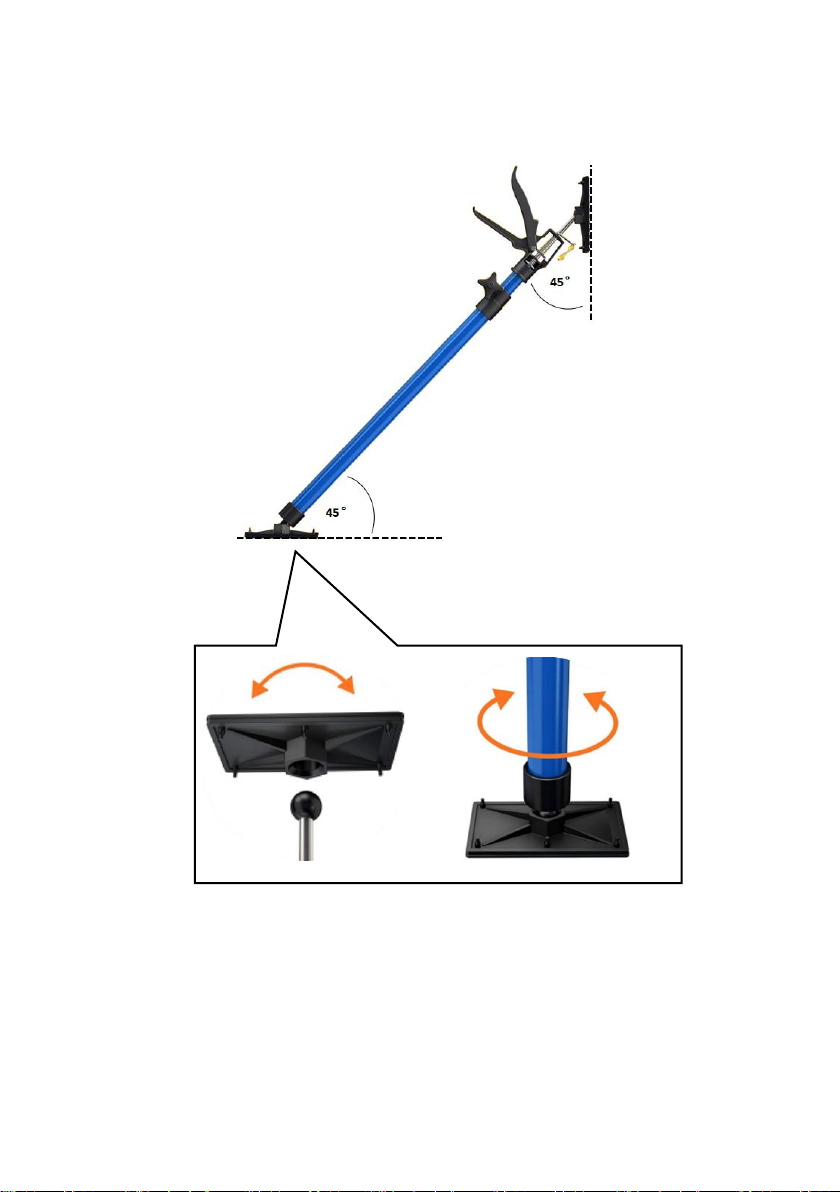

Step3：The support rod can also be used at any Angle, as shown below
Fully rotating head
