VEVOR KT1106A Manual de usuario

Technical Support and E-Warranty Certificate www.vevor.com/support

MANUAL RATCHET PIPE THREADER

USER MANUAL

Model: KT1106A

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents an

estimate of savings you might benefit from buying certain tools with us compared to the major

top brands and doses not necessarily mean to cover all categories of tools offered by us. You

are kindly reminded to verify carefully when you are placing an order with us if you are

actually saving half in comparison with the top major brands.

Model: KT1106A

Thanks for purchasing one of our products, please read carefully the assembly

instructions before the installation.

Have product questions? Need technical support? Please feel free to

CustomerService@vevor.com

NEED HELP? CONTACT US!

This is the original instruction, please read all manual instructions

carefully before operating. VEVOR reserves a clear interpretation of our

user manual. The appearance of the product shall be subject to the

product you received. Please forgive us that we won't inform you again if

there are any technology or software updates on our product.

MANUAL RATCHET

PIPE THREADER

PRODUCT PARAMETERS

Manual pipe threader is designed to thread pipe or conduit using individual die

heads for each size of pipe and a manually operated ratchet.

Suitable for copper pipes, aluminum pipes, galvanized pipes, iron pipes (not

recommended for use with stainless steel pipes)

ASSEMBLY AND USE PRECAUTIONS

1.Assemble needs to follow these instructions. Incorrect assembly can be

a hazard.

2.Do not assemble when tired or under the influence of alcohol, drugs or

medication.

3.Keep bystanders out of the area in use.

4.Use as intended only. Do not use handle extension to increase force.

5.Keep pipe lubricated with cutting oil (not included).

6.Secure pipe to be threaded in clamp before use.

7.Store idle equipment. When not in use, tools must be stored in a dry

location to inhibit rust. Always lock up tools and keep out of reach of

children.

8.Maintain tools with care. Keep tools sharp and clean for better and safer

performance. Follow instructions for lubricating and changing

accessories. Check tool cords periodically. If they are damaged, have them

repaired by an authorized technician. The handles must be kept clean, dry,

and free from oil and grease at all times.

9.Replace parts and accessories. Only the same replacement parts are

used for maintenance. Use of any other parts will void the warranty. Use

only accessories that are compatible with this tool. Approved accessories

Model

Die Sizes

Screw Die

Material

KT1106A

1/4″ (18 TPI)

3/8″ (18 TPI)

1/2" (14 TPI)

9SiCr

3/4" (14 TPI)

1" (11.5TPI)

1-1/4″(11.5TPI)

are available from Harbor Freight Tools.

10.The warnings, precautions, and instructions discussed in this instruction

manual cannot cover all possible conditions and situations that may occur.

The operator must understand that common sense and care are factors

that cannot be built into the product but must be provided by the operator.

WARNING: TO PREVENT SERIOUS INJURY AND DEATH FROM

TIPPING:

1.This product is not a toy. Do not allow children to play with or approach

this item.

2. Check before each use. Do not use the parts if they are loose or

damaged.

3.Wear safety goggles and heavy-duty work gloves in use.

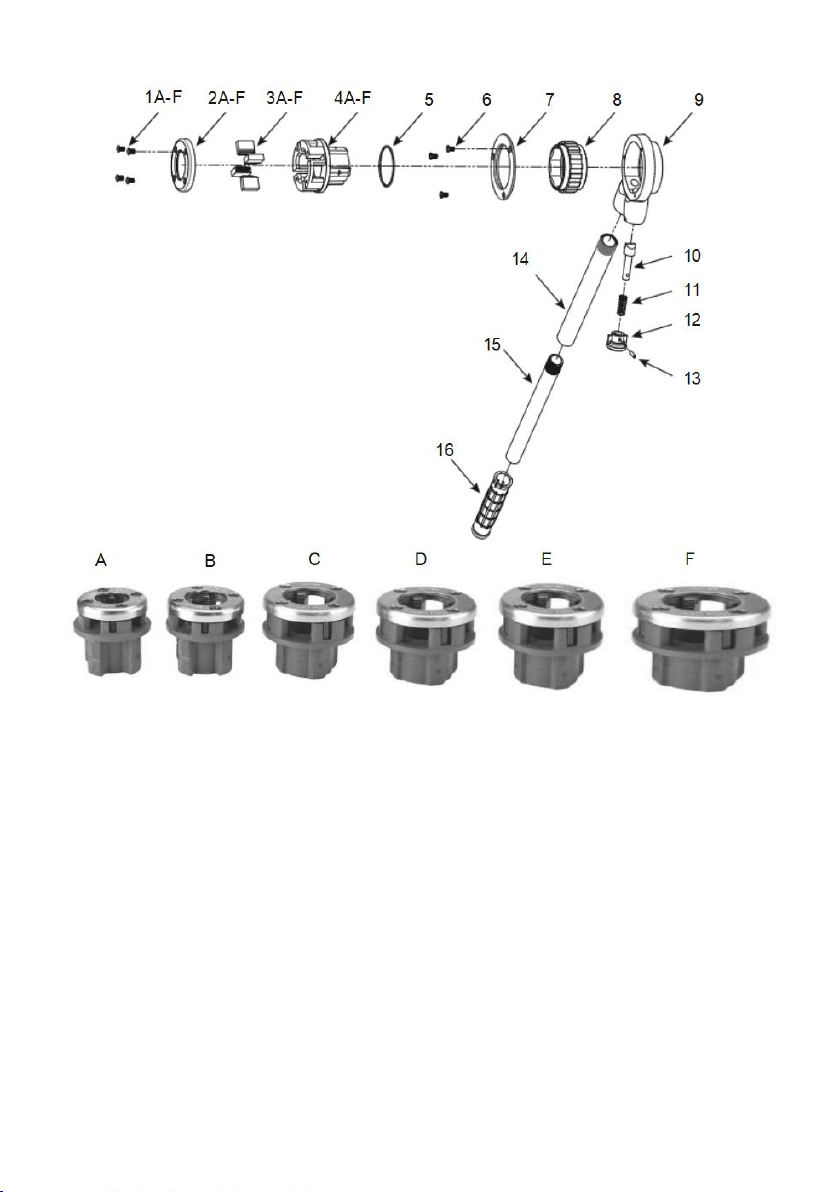

Parts List and Diagram

Operating Instructions

NOTICE: Make sure the pipe end and threads of the Die are sufficiently

oiled at all times.Otherwise, Die life will be shortened and the threads will

be rough. See Figure A.

1.Assemble the Handle and insert the threaded portion of the Handle Tube into the

Ratchet Holder.

2.Determine the size of the pipe to be threaded.

3.Pick the appropriate Die to be used.Die sizes are stamped on the outside of each

Die.

4.Place the rear of the Die next to the end of the pipe to be threaded.Verify that the

inside diameter of the Die matches the outside diameter of the pipe.

5.Insert Die into Ratchet Holder.It is a forced fitting, and once the Die is in the

Ratchet Holder, it may require light tapping with a wooden mallet to remove the Die.

6.Fill the Oil Can with Thread Cutting Oil (sold separately).Keep it nearby during the

threading operation.

7.Make sure that the pipe to be threaded is properly secured in a vise (sold

separately),and make sure the pipe end to be threaded is cut cleanly and squarely.

8.Make sure that the Reversing Knob is seated all the way down into the grooves of

the Ratchet Holder and its arrow is pointing away from the handle.

9. Slide the pipe guide at the end of the ratchet holder through the pipe. When

pressure is applied to the front end of the die, the handle is used to rotate the

ratchet support to engage the die to the pipe end. See Figure B. Continue this

operation until the desired thread length is achieved.

10. Stop threading when the end of the Die is flush with the end of the pipe.

11. To disengage the Die after threading is complete, pull out the Reversing Knob,

turn it 180 degrees until the arrow points in the opposite direction (toward the

handle), and drop it back into place.This will reverse the Pawl.

12. Use the Handle to rotate the Ratchet Holder in the opposite direction until the

Die disengages fully from the pipe end.Maintain control of the Ratchet Holder as

the Die slides off the pipe.Be careful not to damage newly cut threads.

13. Clean any spilled oil off the ground. Clean the threader and store it indoors in a

dry clean area.

Cleaning, Maintenance, and Lubrication

--For cleaning, wipe the surface with a damp (not wet) cloth or wipe dry

with a clean lint free cotton cloth.

--DURING USE, ensure that pipe end and die threads are oiled with

Thread Cutting Oil (not included) at all times.

-- Worn die blades will result in poor thread quality. If the blade is worn,

replace it with a qualified technician.

Technical Support and E-Warranty Certificate

www.vevor.com/support

Made In China
