Vello BG-N4.2 Manual de usuario

BG-N4.2

BATTERY GRIP

Designed For The Nikon D7000

SLR Camera

USER’S MANUAL

Introduction

Thank you for choosing Vello and congratulations

on your new BG-N4.2 battery grip purchase. Enjoy

the many benefits that a battery grip offers, such as

extended shooting time and more control and comfort

when shooting in a vertical (portrait) orientation.

The Vello BG-N4.2 is compatible with the Nikon

D7000 DSLR cameras. The BG-N4.2 accepts one

Nikon EN-EL15 rechargeable battery, in addition

to the camera’s internal battery. Six AA batteries

(alkaline, Ni-MH, lithium, or nickel-manganese) can

be used instead for added convenience. The BG-N4.2

is equipped with an alternate shutter-release button,

AE-L/AF-L button, multi selector, and main and sub-

command dials for shooting in a vertical position.

Please read through this entire manual before

using the BG-N4.2 battery grip.

Precautions

1. The BG-N4.2 should only be used with compatible

devices specified in this manual.

2. Only use with batteries and battery holders

recommended in this manual.

3. Cover the power terminals with the contact cap

when the BG-N4.2 is not in use. This prevents

electrical shorts caused by metal objects touching

the power terminals.

4. When the battery holder is removed from the

grip, remove the batteries or place the holder in

a container to prevent electrical shorts caused by

contact with other metal objects.

5. The memory card access lamp may light up when

the BG-N4.2 is mounted or removed from the

camera. This is part of the normal operation.

6. If you notice smoke, an unusual smell or noise from

the battery pack, discontinue use immediately.

Remove the batteries and take the device to a

Vello authorized reseller.

7. The BG-N4.2 does not have a power switch.

Instead, use the camera power switch to turn the

power on or off.

8. The battery level may not display properly if

batteries are inserted before mounting the grip.

9. Remove batteries from the grip when not in use.

10. Do not attempt to disassemble.

11. Avoid water or extreme humidity and keep in a

dry and cool place.

12 . Keep out of reach of children.

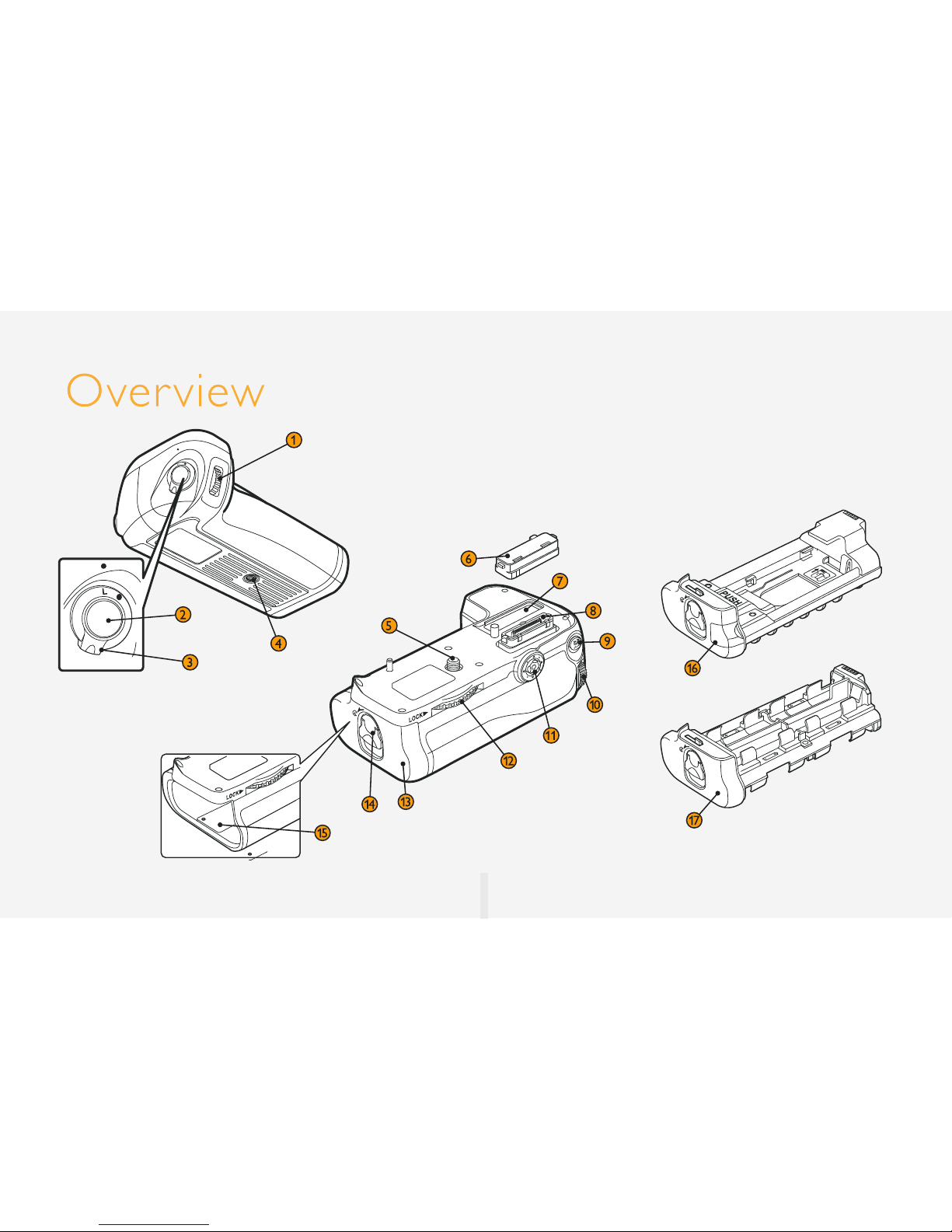

OVERVIEW INTRODUCTIONASSEMBLYOPE R ATI ON

1Sub-Command Dial *

2Shutter-Release Button *

3Control Lock Switch

To prevent accidental triggering,

the control lock switch locks the

shutter-release button, AE-L/AF-L

button, multi selector dial, as well

as the main and sub-command dials

on the BG-N4.2. Unlock prior to use

by switching to the position. The

control lock is not a power switch.

4Tripod Socket

5Mounting Screw

6Contact Cap

7Camera Contact Cover Holder

8Signal Contacts

9AE-L/AF-L Button *

10 Main Command Dial *

11 Multi Selector *

12 Attachment Wheel

13 Battery Chamber Cover

14 Battery Chamber Latch

15 Battery Chamber

16 EN-EL15 Battery Holder

For EN-EL15 rechargeable batteries.

17 AA Battery Holder

Holder for six AA batteries.

* These controls perform the same

function as their on-camera equivalents

and are affected by changes to the

Custom Settings menu (Group a for

the AE-L/AF-L button, Group f for

other controls). See camera manual for

details.

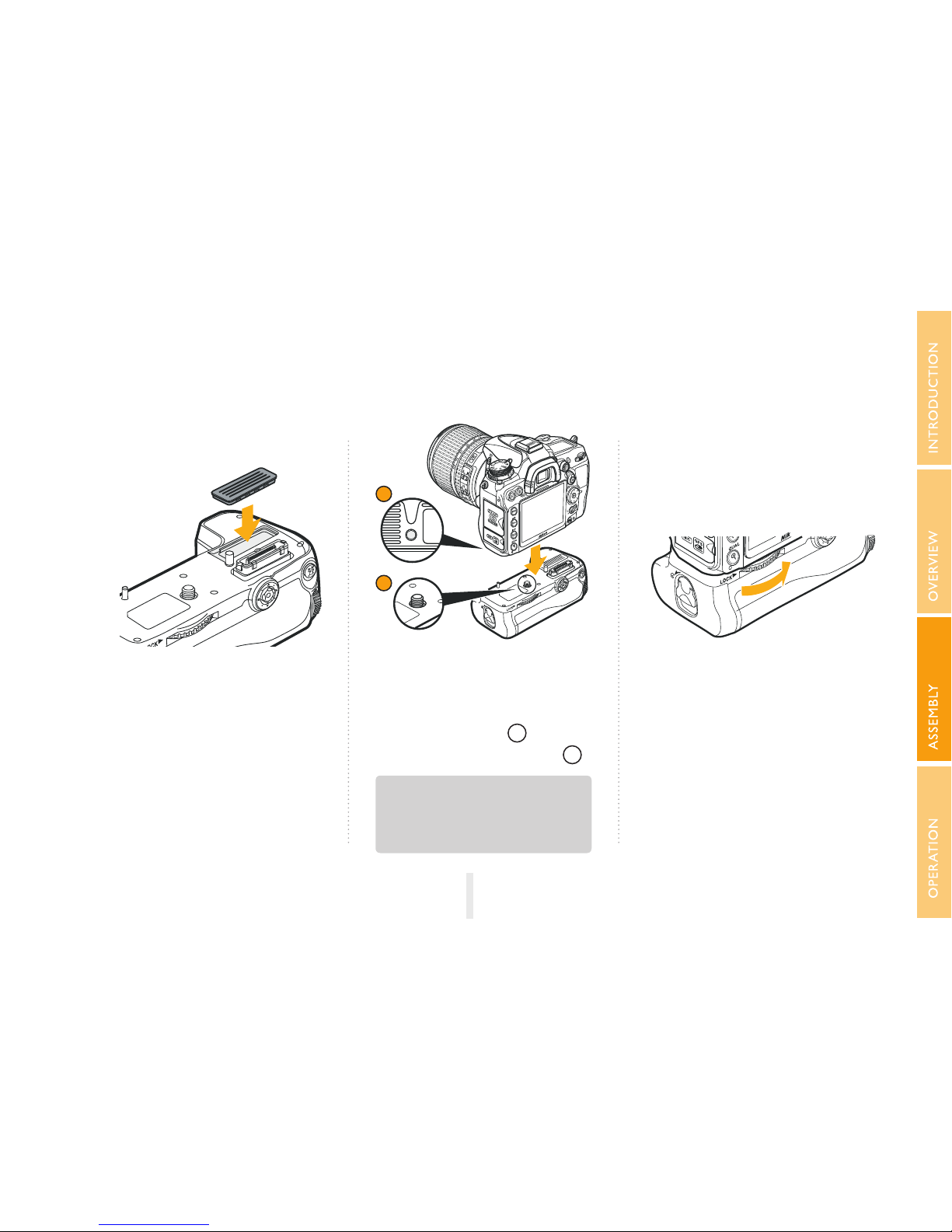

1. Ensure that the power is

turned off on the camera

and that the Control Lock

on the BG-N4.2 is in the L

position before attaching

the grip.

2. Remove the contact cap

from the BG-N4.2 battery

grip. Replace the cap when

not in use to protect the

contacts.

3. The contacts for the BG-

N4.2 are on the bottom

of the camera where they

are protected by a contact

cover. Remove the contact

cover before mounting the

grip.

4. To prevent loss, place the

camera contact cover in

the contact cover holder

on the BG-N4.2 by

pushing it into groove until

it is secure.

5. Connect the BG-N4.2

grip to the camera, while

aligning the camera’s

tripod socket Awith the

grip’s mounting screw B.

6. Rotate the attachment

wheel in the direction

shown by the LOCK arrow

until it is firmly tightened.

Removing the battery from the

camera before mounting the

grip is not required.

Inserting Batteries

1. Ensure that the power is

turned off on the camera

and the Control Lock on

the BG-N4.2 is in the L

position. Turn the battery-

chamber latch counter-

clockwise to open the

battery chamber door.

2. Remove the battery

holder from the BG-N4.2

grip. The EN-EL15battery

holder comes pre-installed

when shipped.

3. Nikon EN-EL15Battery:

Match the arrow on

the battery Awith the

battery holder’s contact

and push the battery

down B. Slide the battery

as indicated by the arrow

Cuntil it click into place.

4. AA Batteries: Place six

AA batteries of the same

type in the AA battery

holder as shown, while

ensuring that they are in

the correct orientation.

5. Insert the battery holder

into the grip and turn the

latch clockwise to lock it,

and return the latch to the

down position. Turn the

camera on and check the

battery level in the control

panel or viewnder.

6. To use the Nikon EP-

B5 DC coupler (sold

separately), insert the

adapter into the EN-EL15

battery holder in the

same manner as a regular

battery A. Open the

latch Band pass the cable

through C.

The camera displays the following battery levels .

Nikon EN-EL15Battery:

Control Panel Viewnder Description

Battery fully

charged.

Battery partially

discharged.

Low battery.

Prepare spare

batteries.

(blinking) (blinking)

Battery

exhausted.

Shutter release is

disabled.

AA Batteries:

Control Panel Viewnder Description

Battery fully

charged.

Low battery.

Prepare spare

batteries.

(blinking) (blinking)

Battery

exhausted.

Shutter release is

disabled.

Battery Info
