Vello freewave stryker Manual de usuario
FREEWAVE
STRYKER
LIGHTNING/MOTION TRIGGER
2
The Vello FreeWave Stryker
for Canon and Nikon is a
2-in- solution for intense
light and infrared (IR) image
triggering. In Lightning mode,
the device will trigger your
camera’s shutter release within
approximately 0. milliseconds
after a lightning burst reaches
the sensor, allowing you to
capture striking images of
storms or fireworks. Motion
mode sets the device to trigger
your camera once the unit
detects movement using the
IR motion sensor. This is ideal
for taking remote, candid shots
of passing humans or wildlife.
THANK YOU FOR CHOOSING VELLO
3
• Detects lightning and IR
heat motion
Triggers your camera
approximately 0.
milliseconds after detection
• Portable
Compact and lightweight
• Easy to use
Streamlined design for
simple operation
The Vello FreeWave
Stryker transmitter comes
in a Nikon or Canon kit.
The device can also be
used with other cameras
by using the appropriate
cables. See included cable
compatibility insert.
FEATURES COMPATIBLE DEVICES
4
• Please read and follow these
instructions and keep this
manual in a safe place.
• Lightning is very dangerous.
Stay in a safe place in a
storm area.
• Do not operate the unit in
the presence of flammable
gas or vapors.
• There are no user-
serviceable parts inside the
devices. Do not attempt to
disassemble or perform any
unauthorized modification.
• Turn o the power of the
camera before inserting or
removing the transmitter.
• Clean the unit with a soft,
dry cloth.
• Keep out of reach of
children. This device
contains small parts which
may pose a choking hazard.
• Observe caution when
handling batteries. Batteries
may leak or explode if
improperly handled. Use
only the batteries listed in
this manual. Make certain
to align the battery with the
correct polarity.
PRECAUTIONS
5
• Batteries are prone
to leakage when fully
discharged. To avoid damage
to the product, be sure
to remove the batteries
when leaving the product
unattended for prolonged
periods or when no charge
remains.
• Make sure the item is
intact and that there are no
missing parts.
• Handle the unit with care.
• Do not use or leave the
devices in conditions of
extreme heat, severe cold,
or high humidity.
• Do not handle with wet
hands or immerse in or
expose to water or rain.
Failure to observe this
precaution could result in
fire or electric shock.
• Dispose of used batteries,
packaging, and old devices in
accordance to appropriate
local environmental
regulations.
• All photos are for
illustrative purposes only.
2.5 mm
Output Jack
Cold Shoe
Mount
Indicator
Light
Sensitivity
Dial
Battery
Compartment
Mode
Switch
Lightning
Sensor
On/O
Switch
IR Motion
Sensor
Front
LeftTo p Bottom
6
OVERVIEW
RCC-C and RCC-C2 with RC-LMC
RCC-N and RCC-N2 with RC-LMN
7

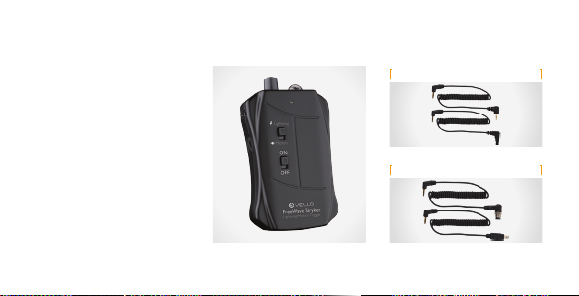

• Trigger
• 2 camera-compatible cables
(Canon or Nikon)
• User manual
• Cable compatibility list
CONTENTS
Installing the Batteries
The Vello FreeWave Stryker
is powered by two AAA
batteries. To install, remove the
battery compartment door on
the bottom of the unit. Insert
the batteries with the correct
orientation, as displayed
within the compartment.
Re-install compartment door
to complete the process.
BEFORE YOU BEGIN
9

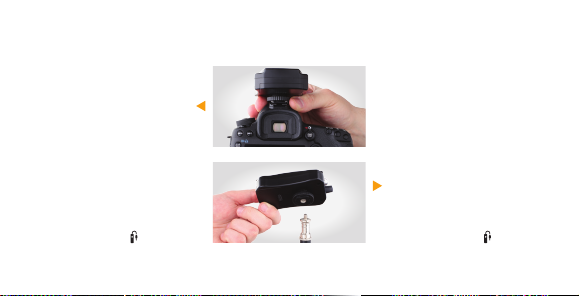

On-Camera or Bracket
The Vello FreeWave Stryker
has a cold-shoe foot on the
bottom of the unit. To mount
the device to a camera or
bracket, simply slide the shoe
mount foot into a shoe-mount.
Tighten the foot’s locking
ring to secure the device.
Then connect the included
shutter cable to the Stryker
and camera ports [ ].
On a Light Stand
The Vello FreeWave Stryker
has a /4"-20 threaded socket
on the unit’s cold-shoe foot.
To secure the device to a
light stand, simply screw it
onto a compatible threaded
post by turning it clockwise.
Rotate the device until secure.
Then connect the included
shutter cable to the Stryker
and camera ports [ ].
MOUNTING AND CONNECTING THE DEVICE
0
An individual’s trigger finger
is not fast enough to detect
and capture lightning as it
strikes. With your Vello
FreeWave Stryker in lightning
triggering mode, your camera
will automatically activate
your camera’s shutter within
approximately 0. milliseconds
of the trigger detecting a
flash or burst of light.
LIGHTNING TRIGGERING
For operation in lightning
mode, point the device’s
sensor and camera in the
direction of where you’re
expecting a lightning flash.
Attach the camera and trigger
to a tripod for best results. We
recommend turning the trigger
on before the camera after
the two have been connected
with a cable. Additionally, your
camera’s shutter speed should
be set to a longer exposure.
To activate lightning triggering
mode, move the mode switch
to “Lightning”. For best
results, start at a 0 second
exposure & adjust your
camera’s exposure settings
while adjusting the Stryker’s
sensitivity using the dial on the
left side of the unit. Set your
camera / lens to manual focus.
