Vello Freewave micro Manual de usuario

FREEWAVE

MICRO

WIRELESS REMOTE

SHUTTER RELEASE

USER’S MANUAL

THANK YOU FOR CHOOSING VELLO

The FreeWave Micro Wireless Remote Shutter Release for Nikon is a low-proﬁle shutter trigger that helps

you take better pictures away from your camera and avoid camera shake. Setup is a snap by connecting to your

Nikon camera’s 10-pin remote terminal—there are no cables and no hogging your hot shoe. Select from 16

dierent wireless channels, and ﬁre the shutter from up to 328 feet away. Using the FreeWave Micro, you can

activate autofocus, trigger the shutter, open and close bulb exposures, and start and stop continuous shooting—

all without touching your camera.

• There are no user-serviceable parts inside the

devices. Do not attempt to disassemble or perform

any unauthorized modiﬁcation.

• Do not operate in the presence of ﬂammable gas

or vapors.

• Do not handle with wet hands or immerse in or

expose to water or rain. Failure to observe this

precaution can result in ﬁre or electric shock.

• Observe caution when handling batteries. Batteries

may leak or explode if improperly handled. Use

only the batteries listed in this manual. Make

certain to align batteries with correct polarity.

• Batteries are prone to leakage when fully

discharged. To avoid damage to the product, be

sure to remove the battery when leaving the

product unattended for prolonged periods or when

no charge remains.

• Do not use or leave the devices in conditions of

extreme heat, severe cold, or high humidity.

• Dispose of used batteries, packaging, and old

devices in accordance with appropriate local

environmental regulations.

• Do not attempt to disassemble or repair the

equipment—doing so will void the warranty, and

Vello will not be responsible for any damage.

• Handle the unit with care.

• Keep out of the reach of children. This device

contains small parts which may pose a choking

hazard.

• Make sure the item is intact and that there are no

missing parts.

• All images are for illustrative purposes only.

• Please read and follow these instructions, and keep

this manual in a safe place.

PRECAUTIONS

OVERVIEW

Receiver

1Antenna

216-channel DIP switch

3Power LED

4Focus LED

5Shutter LED

6Power switch

7Locking wheel

810-pin connector

9Channel selection pin

10 Protective sliding cover

11 Shutter release button

12 LED indicator

13 Battery compartment cover

14 Battery compartment

15 Strap hook

16 16-channel DIP switch

Transmitter

Lanyard

Connecting the Receiver

The camera must have a 10-pin

remote terminal in order to

connect the FreeWave Micro

Wireless Receiver.

INSTRUCTIONS

1. Turn your camera’s power

o, and insert the receiver’s

connector into the camera’s

10-pin remote terminal. Make

sure the receiver’s antenna is

pointed up.

2. Turn the locking wheel

clockwise until the receiver

is securely connected to the

camera.

3. Press the receiver’s power

switch once. You should see

the power LED quickly ﬂash

red, then blink at a steady rate.

To turn the receiver o, press

and hold the power switch

until the power LED quickly

ﬂashes red and then stops.

Note: The receiver will enter

sleep mode after it has been on

for two hours without being

activated. When the receiver is

in sleep mode, press the power

switch to resume operation.

Installing the Transmitter’s

Battery

1. Slide the transmitter’s battery

compartment cover in the

direction of the arrow. You

might need to press down on

the cover when sliding.

2. Install the included AAA

battery according to the image

in the battery chamber. Make

sure the polarity is correct.

3. Slide the cover closed until it

clicks to lock.

Pairing the Transmitter to

the Receiver

There are 16 radio frequencies

(channels), available on the

transmitter and receiver.

Conﬁgure the four DIP switches

on both devices in the same

positions for correct channel

selection.

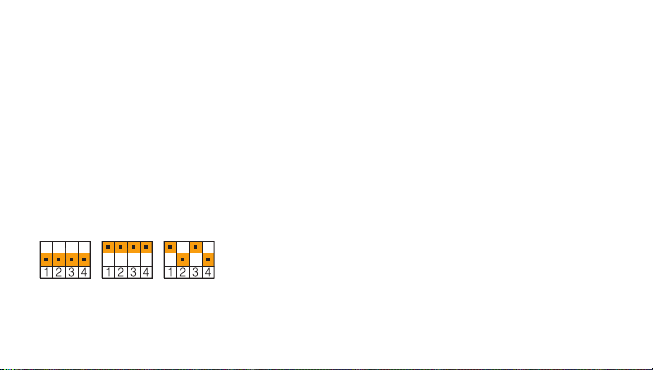

For example:

This allows you to use the

FreeWave Micro without

interference from other radio-

frequency devices nearby. Be sure

to maintain a minimum distance

of 20 inches (50 cm) between the

transmitter and receiver during

operation to prevent anti-RF

interference.

Setting the Channel on the

Transmitter and Receiver

1. Slide open the transmitter’s

battery compartment cover.

2. Using the channel selection

pin connected to the lanyard,

position each of the four DIP

switches up or down, into a

channel conﬁguration.

3. On the receiver, position

the DIP switches into the

same conﬁguration as on the

transmitter.

4. With the receiver on, press the

transmitter’s shutter release.

You should see the receiver’s

focus and shutter LEDs light

up, as well as the transmitter’s

LED indicator. If the two are

paired correctly, slide the

transmitter’s cover closed until

it locks. If not, repeat steps 2

and 3 until you reach a working

channel conﬁguration.

USING THE FREEWAVE MICRO

You can use the FreeWave Micro

to activate autofocus, trigger the

shutter, and open and close the

shutter while in bulb mode.

Autofocus

Press the transmitter’s shutter

release halfway. A blue LED

indicator on the transmitter will

light up, and the Focus LED on

the receiver will glow blue.

Taking a Shot

A full press of the transmitter’s

shutter release will take a picture

when everything is in focus. The

transmitter’s LED indicator will

change from bright to dim blue,

and the receiver’s shutter LED

will glow red.

Bulb Mode

1. Set your camera to manual

mode, and change the shutter

speed to bulb.

2. Press and hold the

transmitter’s shutter release

for three seconds to set the

camera to open the shutter

and activate bulb lock.

3. Press the transmitter’s shutter

release to end the exposure

and close the shutter.
