Vello BG-N7 Manual de usuario

BG-N7

BATTERY GRIP

Designed For The Nikon D800/

D800E SLR Cameras

USER’S MANUAL

Introduction

Thank you for choosing Vello and congratulations

on your new BG-N7battery grip purchase. Enjoy

the many benefits that a battery grip offers, such as

extended shooting time and more control and comfort

when shooting in a vertical (portrait) orientation.

The Vello BG-N7is compatible with the Nikon D800/

D800E DSLR cameras. The BG-N7accepts one

Nikon EN-EL15 rechargeable battery, in addition

to the camera’s internal battery. Eight AA batteries

(alkaline, Ni-MH, lithium, or nickel-manganese) can

be used instead for added convenience. The BG-N7

is equipped with an alternate shutter-release button,

AF-ON button, multi selector, and main and sub-

command dials for shooting in a vertical position.

Please read through this entire manual before

using the BG-N7battery grip.

Precautions

1. The BG-N7should only be used with compatible

devices specified in this manual.

2. Only use with batteries and battery holders

recommended in this manual. The BG-N7can not

be used with other batteries or battery holders.

3. Cover the power terminal with the contact cap

when the BG-N7is not in use. This prevents

electrical shorts caused by metal objects touching

the power terminals.

4. When the battery holder is removed from the

grip, remove the batteries or place the holder in

a container to prevent electrical shorts caused by

contact with other metal objects.

5. The memory card access lamp may light up when

the BG-N7is mounted or removed from the

camera. This is part of the normal operation.

6. If you notice smoke, an unusual smell or noise from

the battery pack, discontinue use immediately.

Remove the batteries and take the device to a

Vello authorized reseller.

7. The BG-N7does not have a power switch.

Instead, use the camera power switch to turn the

power on or off.

8. The battery level may not display properly if

batteries are inserted before mounting the grip.

9. Remove batteries from the grip when not in use.

10. Do not attempt to disassemble.

11. Avoid water or extreme humidity and keep in a

dry and cool place.

12 . Keep out of reach of children.

OVERVIEW INTRODUCTIONASSEMBLYOPERATION

Overview

OVERVIEW INTRODUCTIONASSEMBLYOPERATION

1Sub-Command Dial *

2Shutter-Release Button *

3Control Lock Switch

To prevent accidental triggering, the

control lock switch locks the shutter-

release button, AE-ON button, multi

selector dial, as well as the main and

sub-command dials on the BG-N7.

Unlock prior to use by switching to

the position. The control lock is not

a power switch.

4Tripod Socket

5Mounting Screw

6Contact Cap

7Camera Contact Cover Holder

8Power/Signal Contacts

9AF-ON Button *

10 Main Command Dial *

11 Multi Selector *

12 Locking Wheel

13 Battery Chamber Cover

14 Battery Chamber Latch

15 Battery Chamber

16 EN-EL15 Battery Holder

Holder for Nikon EN-EL15 batteries.

17 Power Terminals (EN-EL15 Holder)

18 AA Battery Holder

Holder for eight AA batteries.

19 Power Terminals (AA Holder)

* These controls perform the same

function as their on-camera equivalents

and are affected by changes to the

Custom Settings menu (Group a for

the AF-ON button, Group f for other

controls). See camera manual for

details.

Attaching The Grip

1. Ensure that the power is

turned off on the camera

and that the Control Lock

on the BG-N7is in the L

position before attaching

the grip.

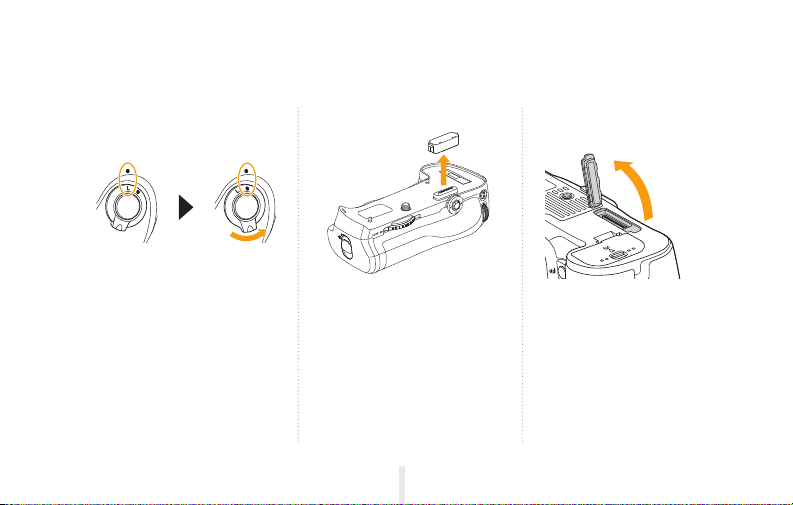

2. Remove the contact cap

from the BG-N7battery

grip. Replace the cap when

not in use to protect the

contacts.

3. The contacts for the BG-

N7are on the bottom of

the camera where they

are protected by a contact

cover. Remove the contact

cover before mounting the

grip.

4. To prevent loss, place the

camera contact cover in

the contact cover holder

on the BG-N7.

5. Connect the BG-N7

grip to the camera,

while aligning the grip’s

mounting screw with the

camera’s tripod socket.

6. Rotate the attachment

wheel in the direction

shown by the LOCK arrow

until it is firmly tightened.

Removing the battery from

the camera before mounting

the grip is not required.

OVERVIEW INTRODUCTIONASSEMBLYOPERATION

Inserting Batteries

1. Ensure that the power is turned off on the

camera and the Control Lock on the BG-N7

is in the Lposition. Turn the battery-chamber

latch counter-clockwise to open the battery

chamber door.

2. Remove the battery holder from the BG-N7

grip. The EN-EL15battery holder comes pre-

installed when shipped.

3. Nikon EN-EL15 Batteries:

Matching the indentations

on the battery with the

EN-EL15holder, press

the battery down and

slide it in the direction of

the arrow until the power

terminals click into place.

4. AA Batteries: Place eight

AA batteries of the same

type in the AA battery

holder as shown, while

ensuring that they are in

the correct orientation.

5. Insert the battery holder

into the grip. Close the

battery chamber and then

turn the latch clockwise

to lock. Turn the camera

on and check the battery

level in the control panel

or viewﬁnder.

OVERVIEW INTRODUCTIONASSEMBLYOPERATION

The camera displays the following battery levels .

Nikon EN-EL15 Battery:

Control Panel Viewﬁnder Description

Battery fully

charged.

Battery partially

discharged.

Low battery.

Prepare spare

batteries.

(blinking) (blinking)

Battery

exhausted.

Shutter release is

disabled.

AA Batteries:

Control Panel Viewﬁnder Description

Battery fully

charged.

Low battery.

Prepare spare

batteries.

(blinking) (blinking)

Battery

exhausted.

Shutter release is

disabled.

Battery Info
