1 Indigo 202 Quick Guide

1.1 Introduction to Indigo Transmitters

1.35

% | Carbon dioxide

WLAN is activated



Indigo 202

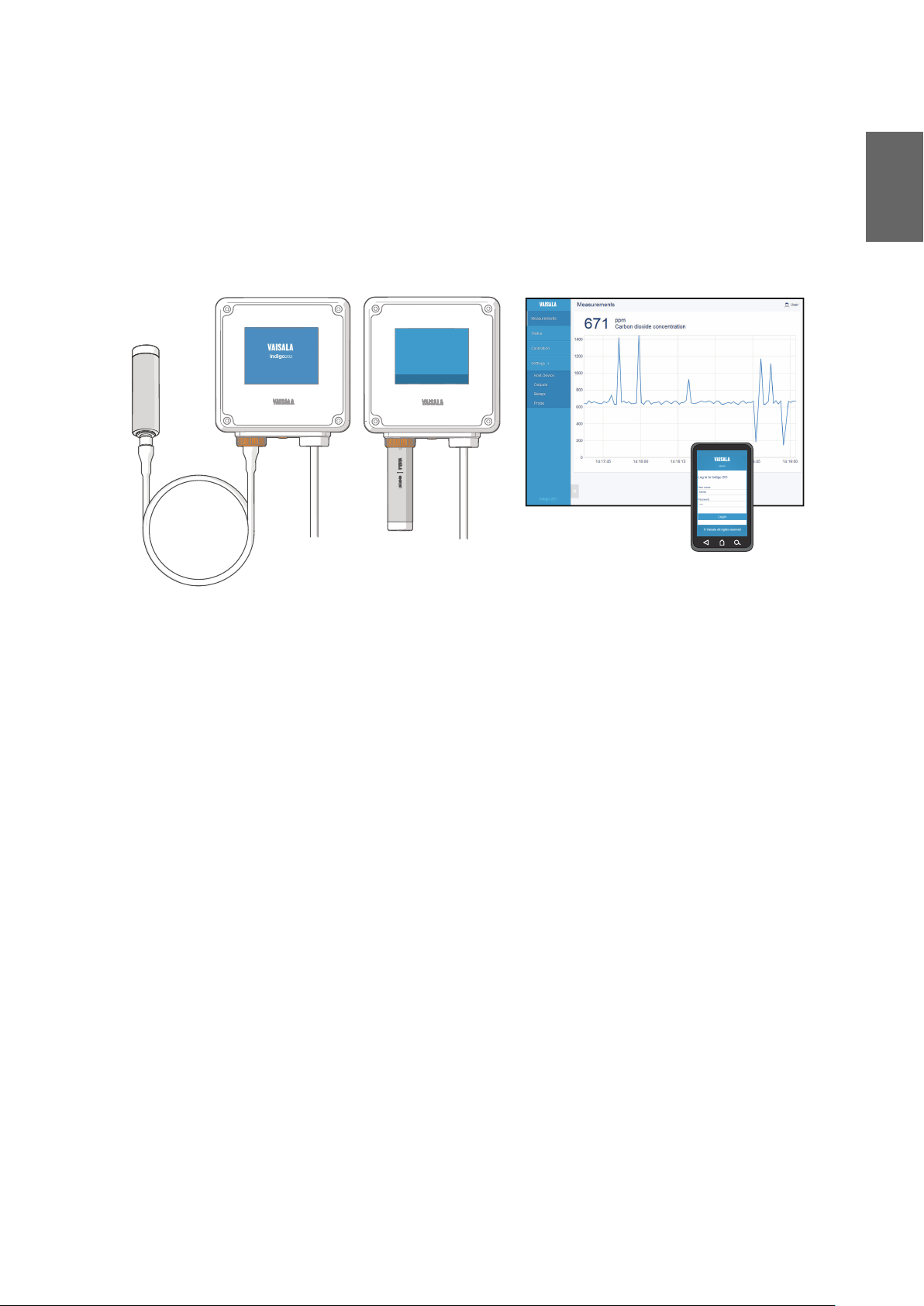

Figure 1 Probe Connection Options and Wireless Interface Examples (GMP251 Example)

Vaisala Indigo transmitters are a plug-and-play host device platform for Vaisala Indigo-

compatible probes. Indigo transmitters extend the feature set of connected probes with a

range of additional options for outputs, measurement viewing, status monitoring, and

conﬁguration interface access.

Indigo-compatible probes can be connected either directly on the transmitter body or using

a probe cable. The conﬁguration interface of Indigo transmitters is a browser-based wireless

UI that requires a mobile device or computer that supports wireless connectivity (IEEE

802.11 b/g/n WLAN).

1.1.1 Indigo 202 Basic Features and Options

• All Vaisala Indigo-compatible probes can be connected to all Indigo transmitter models

• Wireless conﬁguration interface: connect to the scalable browser-based UI of Indigo

202 to change probe and transmitter settings, view measurements, and review probe

and transmitter status

• 3.5” TFT LCD color display

• Power supply input 15 ... 30 VDC (24 VAC +/-10% 50/60Hz)

• Digital output: RS-485 Modbus RTU

• 2 conﬁgurable relays

• 1 m, 3 m, 5 m and 10 m probe connection cables available as accessories

Chapter – Indigo 202 Quick Guide

ENGLISH

1.2 Input and Output Speciﬁcation

Table 1 Inputs and Outputs

Property Speciﬁcation

Digital output RS-485 Modbus RTU

Relays 2 conﬁgurable relays (VAC/VDC)

Device maximum speciﬁcation (resistive load):

• Max. switching power 30 W / 37.5 VA

UL-rated maximum speciﬁcation (resistive load):

• AC: max. 28 V / 0.5 A

• DC: max. 40 V / 0.24 A

• Up to 30 VDC:

• max. switching current 1 A

• max. switching power 30 W

Power supply input 1) 15 ... 30 VDC (24 VAC +/-10% 50/60Hz)

Maximum current Transmitter and connected probe max. 1 A

Power consumption Transmitter max. 3 W (+ connected probe, varies

depending on probe type)

Probe connector M12/5 connector for probe or probe cable connection

(Vaisala Indigo-compatible probes)

Cable feed throughs 2 options: rubber lead-through on the bottom of the

transmitter, and opening with a seal at the back of the

transmitter

Screw terminal wire size 0.2 ... 1.5 mm2

1) Using a power supply with overload protection is recommended for electrical safety.

Do not modify the unit or use it in ways not described in the documentation.

Improper modiﬁcation may lead to safety hazards, equipment damage, failure to

perform according to speciﬁcation, or decreased equipment lifetime.

CAUTION!

M211967EN-E

1.3 Indigo Transmitter Parts

Figure 2 Indigo Transmitter Parts

1Display

2Probe and probe cable connector, locking wheel

3Wireless (WLAN) conﬁguration interface activation button

4Rubber lead-through with strain relief for input/output cable

5Top cover of the transmitter: display, circuit board and connector pins

6Transmitter base: input and output wiring (screw terminals), mounting base

Only use Vaisala Indigo-compatible probes with the transmitter. Attempting

to connect incompatible probes or probe cables can damage the equipment.

CAUTION!

Chapter – Indigo 202 Quick Guide

ENGLISH

1.4 Wiring Options

You can wire an input/output cable either through the opening on the back of the

transmitter, or through the rubber lead-through on the bottom of the transmitter.

Ø 7 ... 8 mm

Figure 3 Indigo Wiring Options

1Wiring from the back: cut the seal open

2Wiring through the rubber lead-through on the bottom of the transmitter

1. To wire the input/output cable through the back of the transmitter:

a. Cut o as much of the seal as is needed to ﬁt your cable through the opening.

b. Lead the cable through the opening and attach a strain relief as needed.

c. If you wire only through the back, plug or seal the lead-through on the bottom.

2. To wire the input/output cable through the rubber lead-through on the bottom:

a. Push the input/output cable through the lead-through.

b. The lead-through provides strain relief and holds the cable in place. Tightening is not

required.

The recommended cable diameter for wiring through the rubber lead-through is

7 ... 8 mm. If you use a dierent cable size, test that the strain relief works as

intended.

M211967EN-E

1.5 Opening and Mounting

To avoid damaging the connector pins of the transmitter, pull the

transmitter cover o the base in a straight angle. Do not twist or bend.

CAUTION!

1. Loosen the 4 screws on the transmitter cover.

2. Carefully open the transmitter cover part of the way from both sides so it is easier to

pull the cover o the base.

3. Pull the transmitter cover o the base in a straight angle. Do not twist or bend.

4. Place the transmitter base on the installation surface and mount it with 3 screws. See

the screw positions in Figure 4 (page 10).

5. Lead the input/output cable inside the transmitter (see Wiring Options (page 8)). If you

are wiring through the lead-through on the bottom of the transmitter, test that the

strain relief works with your cable.

6. Connect the input/output cable's wiring to the screw terminals (see Indigo Transmitter

Base (page 10)) and reattach the cover when done.

Chapter – Indigo 202 Quick Guide

ENGLISH

1.6 Indigo Transmitter Base

1 4

INDIGO 202

DIGITAL TRANSMITTER

Serial No. SX12345678

24V

RS485

A. Relay

B. Relay

Figure 4 Indigo 202 Transmitter Base Main Parts and Screw Positions

1Probe and probe cable connector inside the locking wheel

2Wireless (WLAN) conﬁguration interface activation button

3Wiring from the back: cut open the seal

4Rubber cable lead-through with strain relief

5Screw terminals for relays A and B

6Screw terminals for 24 V power supply input and RS-485 (Modbus) connection

Do not energize the power supply before the wiring has been connected.CAUTION!

M211967EN-E
