Ubiquiti USW-Flex-Mini Manual de usuario

12/11/2020 USW-Flex-Mini Quick Start Guide

dl-origin.ubnt.com/qsg/USW-Flex-Mini/USW-Flex-Mini_EN.html 1/8

UniFi Switch Flex Mini Power Adapter (5V, 1A)*

Package Contents

* Included only in the single-pack of the USW-Flex-Mini.

System Requirements

Linux, Mac OS X, or Microsoft Windows 7/8/10

Java Runtime Environment 1.8 or above recommended

Web Browser: Google Chrome (Other browsers may have limited functionality)

UniFi Controller software v5.12.5 (or newer), available at: ui.com/download/uni

Hardware Overview

USW-Flex-Mini Quick Start Guide

Click for

Table of Contents

All manuals and user guides at all-guidesbox.com

all-guidesbox.com

12/11/2020 USW-Flex-Mini Quick Start Guide

dl-origin.ubnt.com/qsg/USW-Flex-Mini/USW-Flex-Mini_EN.html 2/8

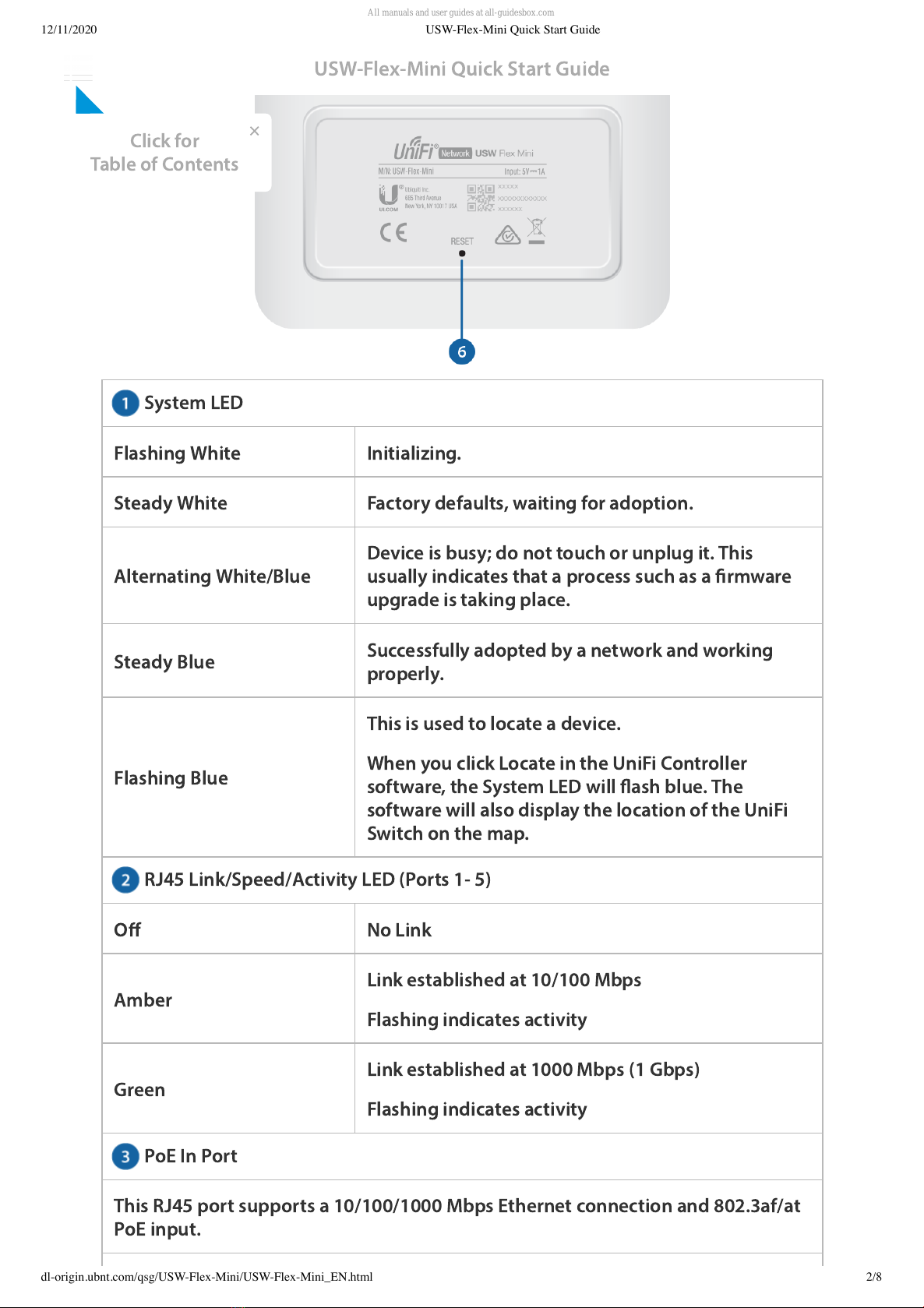

System LED

RJ45 Link/Speed/Activity LED (Ports 1- 5)

PoE In Port

Flashing White Initializing.

Steady White Factory defaults, waiting for adoption.

Alternating White/Blue Device is busy; do not touch or unplug it. This

usually indicates that a process such as a rmware

upgrade is taking place.

Steady Blue Successfully adopted by a network and working

properly.

Flashing Blue

This is used to locate a device.

When you click Locate in the UniFi Controller

software, the System LED will ash blue. The

software will also display the location of the UniFi

Switch on the map.

Oﬀ No Link

Amber Link established at 10/100 Mbps

Flashing indicates activity

Green Link established at 1000 Mbps (1 Gbps)

Flashing indicates activity

This RJ45 port supports a 10/100/1000 Mbps Ethernet connection and 802.3af/at

PoE input.

USW-Flex-Mini Quick Start Guide

Click for

Table of Contents

All manuals and user guides at all-guidesbox.com

12/11/2020 USW-Flex-Mini Quick Start Guide

dl-origin.ubnt.com/qsg/USW-Flex-Mini/USW-Flex-Mini_EN.html 3/8

Ports 2 - 5

Power Port

Reset Button

RJ45 ports support 10/100/1000 Mbps Ethernet connections.

Connect the included Power Adapter to the Power port.

Resets to factory defaults. The device should be running after bootup is

complete. Press and hold the Reset button for about 10 seconds until the LED

starts ashing and then becomes solidly lit. After a few seconds, the LED will turn

oﬀ, and the device will automatically reboot.

Connecting Power

Connecting Ethernet

USW-Flex-Mini Quick Start Guide

Click for

Table of Contents

All manuals and user guides at all-guidesbox.com

12/11/2020 USW-Flex-Mini Quick Start Guide

dl-origin.ubnt.com/qsg/USW-Flex-Mini/USW-Flex-Mini_EN.html 4/8

Software Installation

Download and install the latest version of the UniFi Controller software at

ui.com/download/uni and follow the on-screen instructions.

Note: If you already have UniFi Controller v5.12.5 or newer installed, skip to

“Adopting the UniFi Switch”.

After you have installed the software and run the UniFi Installation Wizard, a login

screen will appear for the UniFi Controller management interface. Enter the admin

name and password that you created and click Sign In.

To adopt the UniFi Switch, proceed to “Adopting the UniFi Switch”.

You can manage your network and view network statistics using the UniFi Network

Controller management interface. For information on using the UniFi Network

Controller software, refer to the User Guide located on our website at:

ui.com/download/uni

USW-Flex-Mini Quick Start Guide

Click for

Table of Contents

All manuals and user guides at all-guidesbox.com

12/11/2020 USW-Flex-Mini Quick Start Guide

dl-origin.ubnt.com/qsg/USW-Flex-Mini/USW-Flex-Mini_EN.html 5/8

Adopting the UniFi Switch

1. From the UniFi Controller dashboard, click Devices in the left menu bar.

2. On the Devices screen, locate the UniFi Switch in the list of devices under the

Model column. To adopt the UniFi Switch, click Adopt.

3. The System LED on the UniFi Switch will turn blue to conrm that it has been

successfully adopted.

Specications

USW-Flex-Mini

Dimensions 107.16 x 70.15 x 21.17 mm

(4.22 x 2.76 x 0.83")

Weight 150 g (5.29 oz)

Networking Interfaces (5) 10/100/1000 Mbps RJ45 Ports

USW-Flex-Mini Quick Start Guide

Click for

Table of Contents

All manuals and user guides at all-guidesbox.com

12/11/2020 USW-Flex-Mini Quick Start Guide

dl-origin.ubnt.com/qsg/USW-Flex-Mini/USW-Flex-Mini_EN.html 6/8

USW-Flex-Mini

PoE In Interface 802.3af/at PoE (Pins 1, 2+; 3, 6-)

Max. Power Consumption 2.5W

Power Method USB Type C, 5V

802.3af/at PoE (44 - 57VDC, 0.05 - 0.04A)

Power Supply 5V, 1A Power Adapter*

Voltage Range

USB Type C 4.7 - 5.2VDC

802.3af/at PoE 44 - 57VDC

LEDs

System Status

RJ45 Data Ports Link/Speed/Activity

ESD/EMP Protection ± 16kV Air, ± 12kV Contact

Operating Temperature -5 to 45° C (23 to 113° F)

Operating Humidity 10 to 90% Noncondensing

Certications CE, FCC, IC

* Included only in the single-pack of the USW-Flex-Mini.

Safety Notices

1. Read, follow, and keep these instructions.

2. Heed all warnings.

3. Only use attachments/accessories specied by the manufacturer.

WARNING: Failure to provide proper ventilation may cause re hazard. Keep at least 20

mm of clearance next to the ventilation holes for adequate airow.

WARNING: To reduce the risk of re or electric shock, do not expose this product to rain

or moisture.

WARNING: Do not use this product in location that can be submerged by water.

WARNING: Avoid using this product during an electrical storm. There may be a remote

risk of electric shock from lightning.

Electrical Safety Information

1. Compliance is required with respect to voltage, frequency, and current requirements

indicated on the manufacturer’s label. Connection to a diﬀerent power source than those

specied may result in improper operation, damage to the equipment or pose a re hazard if

the limitations are not followed.

USW-Flex-Mini Quick Start Guide

Click for

Table of Contents

All manuals and user guides at all-guidesbox.com

all-guidesbox.com

12/11/2020 USW-Flex-Mini Quick Start Guide

dl-origin.ubnt.com/qsg/USW-Flex-Mini/USW-Flex-Mini_EN.html 7/8

2. There are no operator serviceable parts inside this equipment. Service should be provided

only by a qualied service technician.

Limited Warranty

ui.com/support/warranty

The limited warranty requires the use of arbitration to resolve disputes on an individual basis,

and, where applicable, specify arbitration instead of jury trials or class actions.

Compliance

FCC

Changes or modications not expressly approved by the party responsible for compliance could

void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions.

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause

undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning

the equipment oﬀ and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit diﬀerent from that to which the receiver is

connected.

Consult the dealer or an experienced radio/TV technician for help.

ISED Canada

CAN ICES-3(B)/NMB-3(B)

Australia and New Zealand

CE Marking

CE marking on this product represents the product is in compliance with all directives that are

applicable to it.

USW-Flex-Mini Quick Start Guide

Click for

Table of Contents

All manuals and user guides at all-guidesbox.com

12/11/2020 USW-Flex-Mini Quick Start Guide

dl-origin.ubnt.com/qsg/USW-Flex-Mini/USW-Flex-Mini_EN.html 8/8

WEEE Compliance Statement

Online Resources
