Ubiquiti UF-Instant Manual de usuario

UFiber Instant

Package Contents

Installation Requirements

UFiber OLT

Ubiquiti product with SFP port

For more information, refer to:

ubnt.link/Using-UF-Instant

Before You Begin

Designing your rst GPON deployment requires specic knowledge and planning. For

information on GPON network design and installation, including important considerations

and best practices, refer to:

ubnt.link/UFiber-GPON-Getting-Started

ubnt.link/Designing-a-GPON-Network

For details on conguring U Fiber devices for the rst time, refer to:

ubnt.link/UFiber-

Initial-Conguration

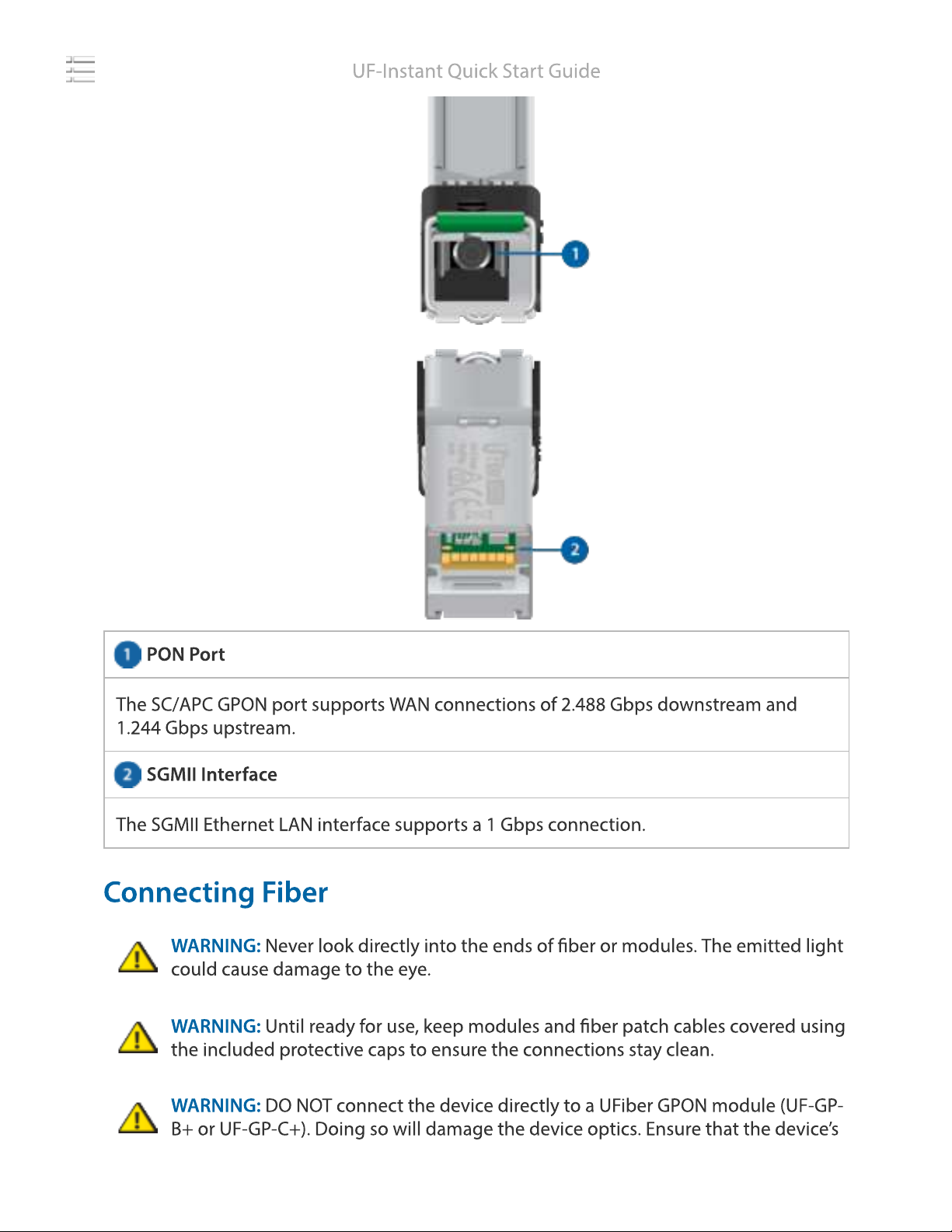

Hardware Overview

UF-Instant Quick Start Guide

PON Port

SGMII Interface

The SC/APC GPON port supports WAN connections of 2.488 Gbps downstream and

1.244 Gbps upstream.

The SGMII Ethernet LAN interface supports a 1 Gbps connection.

Connecting Fiber

WARNING:

Never look directly into the ends of ber or modules. The emitted light

could cause damage to the eye.

WARNING:

Until ready for use, keep modules and ber patch cables covered using

the included protective caps to ensure the connections stay clean.

WARNING:

DO NOT connect the device directly to a UFiber GPON module (UF-GP-

B+ or UF-GP-C+). Doing so will damage the device optics. Ensure that the device’s

UF-Instant Quick Start Guide

received signal level never exceeds -8 dBm. Use a UFiber PLC Splitter to add

attenuation as needed.

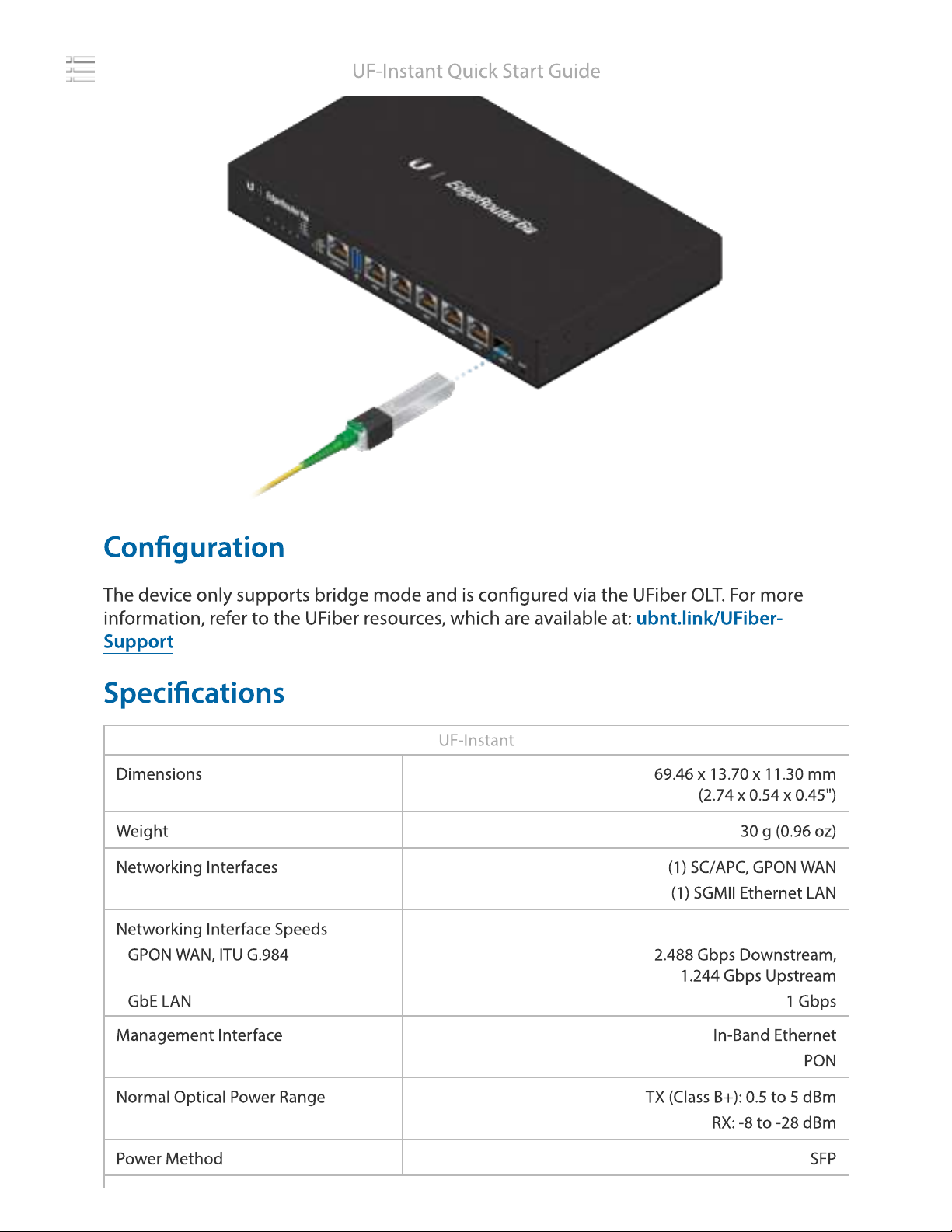

Connecting LAN

UF-Instant Quick Start Guide

Conguration

The device only supports bridge mode and is congured via the UFiber OLT. For more

information, refer to the UFiber resources, which are available at:

ubnt.link/UFiber-

Support

Specications

UF-Instant

Dimensions 69.46 x 13.70 x 11.30 mm

(2.74 x 0.54 x 0.45")

Weight 30 g (0.96 oz)

Networking Interfaces (1) SC/APC, GPON WAN

(1) SGMII Ethernet LAN

Networking Interface Speeds

GPON WAN, ITU G.984 2.488 Gbps Downstream,

1.244 Gbps Upstream

GbE LAN 1 Gbps

Management Interface In-Band Ethernet

PON

Normal Optical Power Range TX (Class B+): 0.5 to 5 dBm

RX: -8 to -28 dBm

Power Method SFP

UF-Instant Quick Start Guide

UF-Instant

Power Supply 3.3V

Max. Power Consumption 2W

Supported Voltage Range 3.3V

Processor Specs MIPS 100 MHz

Memory Information 32 MB DDR

Operating Temperature -10 to 45° C (14 to 113° F)

Operating Humidity 10 to 90% Noncondensing

Certications CE, FCC, IC

Safety Notices

1. Read, follow, and keep these instructions.

2. Heed all warnings.

3. Only use attachments/accessories specied by the manufacturer.

WARNING:

To reduce the risk of re or electric shock, do not expose this product to rain or

moisture.

WARNING:

Do not use this product in location that can be submerged by water.

WARNING:

Avoid using this product during an electrical storm. There may be a remote risk of

electric shock from lightning.

WARNING:

CLASS 1 LASER PRODUCT, IEC/EN 60825

‐

1:2014 - Do not look into the ends of the

ber optic cable or SFP modules while converters are powered.

Electrical Safety Information

1. Compliance is required with respect to voltage, frequency, and current requirements indicated on

the manufacturer’s label. Connection to a diﬀerent power source than those specied may result in

improper operation, damage to the equipment or pose a re hazard if the limitations are not

followed.

2. There are no operator serviceable parts inside this equipment. Service should be provided only by a

qualied service technician.

Limited Warranty

ui.com/support/warranty

UF-Instant Quick Start Guide

The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and,

where applicable, specify arbitration instead of jury trials or class actions.

Compliance

FCC

Changes or modications not expressly approved by the party responsible for compliance could void

the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions.

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired

operation.

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment oﬀ and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit diﬀerent from that to which the receiver is

connected.

Consult the dealer or an experienced radio/TV technician for help.

ISED Canada

CAN ICES-3(B)/NMB-3(B)

Australia and New Zealand

CE Marking

CE marking on this product represents the product is in compliance with all directives that are

applicable to it.

WEEE Compliance Statement

UF-Instant Quick Start Guide

Declaration of Conformity

Online Resources

UF-Instant Quick Start Guide
