GSM communicator G16

USER MANUAL

UAB “TRIKDIS”

Draugystės str. 17,

LT-51229 Kaunas

LITHUANIA

E-mail: info@trikdis.lt

Webpage: www.trikdis.lt

GSM communicator G16

Contents

SAFETY REQUIREMENTS......................................................................................................................................... 2

DESCRIPTION................................................................................................................................................. 3

LIST OF COMPATIBLE CONTROL PANELS.................................................................................................................3

TECHNICAL PARAMETERS....................................................................................................................................4

COMMUNICATOR BOARD....................................................................................................................................4

PURPOSE OF TERMINALS.....................................................................................................................................4

LIGHT INDICATION.............................................................................................................................................5

PACKAGE CONTENTS..........................................................................................................................................5

BEFORE YOU BEGIN............................................................................................................................................5

CONNECT G16 TO TRIKDISCONFIG................................................................................................................. 5

STATUS BAR DESCRIPTION ...................................................................................................................................7

SET OPERATION PARAMETERS ...................................................................................................................... 7

SYSTEM SETTINGS WINDOW ................................................................................................................................7

ARC REPORTING WINDOW→ARC REPORTING TAB .................................................................................................8

ARC REPORTING WINDOW→SETTINGS TAB...........................................................................................................9

USER REPORTING WINDOW →PROTEGUS SERVICE TAB ............................................................................................9

USER REPORTING WINDOW →SMS &CALL REPORTING TAB ..................................................................................10

USER REPORTING WINDOW →REMOTE CONTROL TAB ...........................................................................................10

3.6.1 SMS Commands list ................................................................................................................................................ 11

SIM CARD WINDOW ........................................................................................................................................11

EVENT SUMMARY WINDOW...............................................................................................................................12

PHYSICAL INSTALLATION PROCESS .............................................................................................................. 13

ADD COMMUNICATOR IN PROTEGUS.......................................................................................................... 15

MANUAL FIRMWARE UPDATE..................................................................................................................... 16

Safety Requirements

The security alarm system should be installed and maintained by qualified personnel.

Prior to installation, please read carefully this manual in order to avoid mistakes that can lead to malfunction or

even damage to the equipment.

Disconnect power supply before making any electrical connections.

Changes, modifications or repairs not authorized by the manufacturer shall void your rights under the warranty.

Please act according to your local rules and do not dispose of your unusable alarm system or its

components with other household waste.

GSM communicator G16

Description

Communicator G16 is intended to upgrade compatible intruder alarm panels for event signalling via cellular

network.

Communicator transmits full event information to Alarm Receiving Centre.

Customers are informed about security system events in Protegus apps or with SMS messages. They can Arm/Disarm

the alarm system remotely (via panel’s keyswitch zone or directly via Serial for Paradox panels).

Features

List of Compatible Control Panels*

*Compatible control panels list can be different, depending on which communicator firmware version is used.

Manufacturer

Model

DSC®

PC1404, PC1565, PC5020, PC1616, PC1832, PC1864

PARADOX®

SPECTRA SP4000, SP5500, SP6000, SP7000

MAGELLAN MG5000, MG5050

DIGIPLEX EVO192

UTC Interlogix®

NetworX (Caddx) NX-4v2, NX-6v2, NX-8v2, NX-8e

Texecom®

Premier 412, 816, 816+, 832

Premier Elite 12, 24, 48, 88, 168, 640

Connection

Connection to control panels via:

oKey bus direct connection; or

oSerial port connection

Communications

Communication modes:

oGPRS (by request 3G)

oSMS

Two main communication channels working

simultaneously

Each channel has a separate back-up channel

Connection control with ARC

Simultaneous event reporting to Protegus

Mobile/Web application, allowing user to remotely

monitor and control its alarm system

Event messages are transmitted in Contact ID codes

Event reporting via SMS messages to four different

users in user customized SMS messages

Direct control feature with Paradox.

Inputs and outputs

2 Outputs controlled via:

oMobile/Web application or

oSMS

1 Input, type: NC, NO

Configuration

Quick and easy configuration and firmware updates

Access to the device configuration is secured with

two level password

GSM communicator G16

Technical Parameters

Parameter

Description

GSM modem frequencies

850 / 900 / 1800 / 1900 MHz

3G modem frequencies

800 / 850 / 900 / 1900 / 2100 MHz

Power supply

DC 10-18V

Current consumption

60-100 mA (on standby)

Up to 250 mA (while sending data)

Transmission protocols

TRK, DC-09_2007, DC-09_2012

Message encryption

AES 128

Memory

Up to 60 messages

Inputs

1, NC/NO type

Output

2 x OC type, commutating up to 0,15 A DC, 30 V max

Parameter configuration

Locally via USB port or remotely

Operating environment

Temperature from -10 °C to 50 °C, relative humidity –

up to 80% at +20 °C

Communicator dimensions

65 x 77 x 25 mm

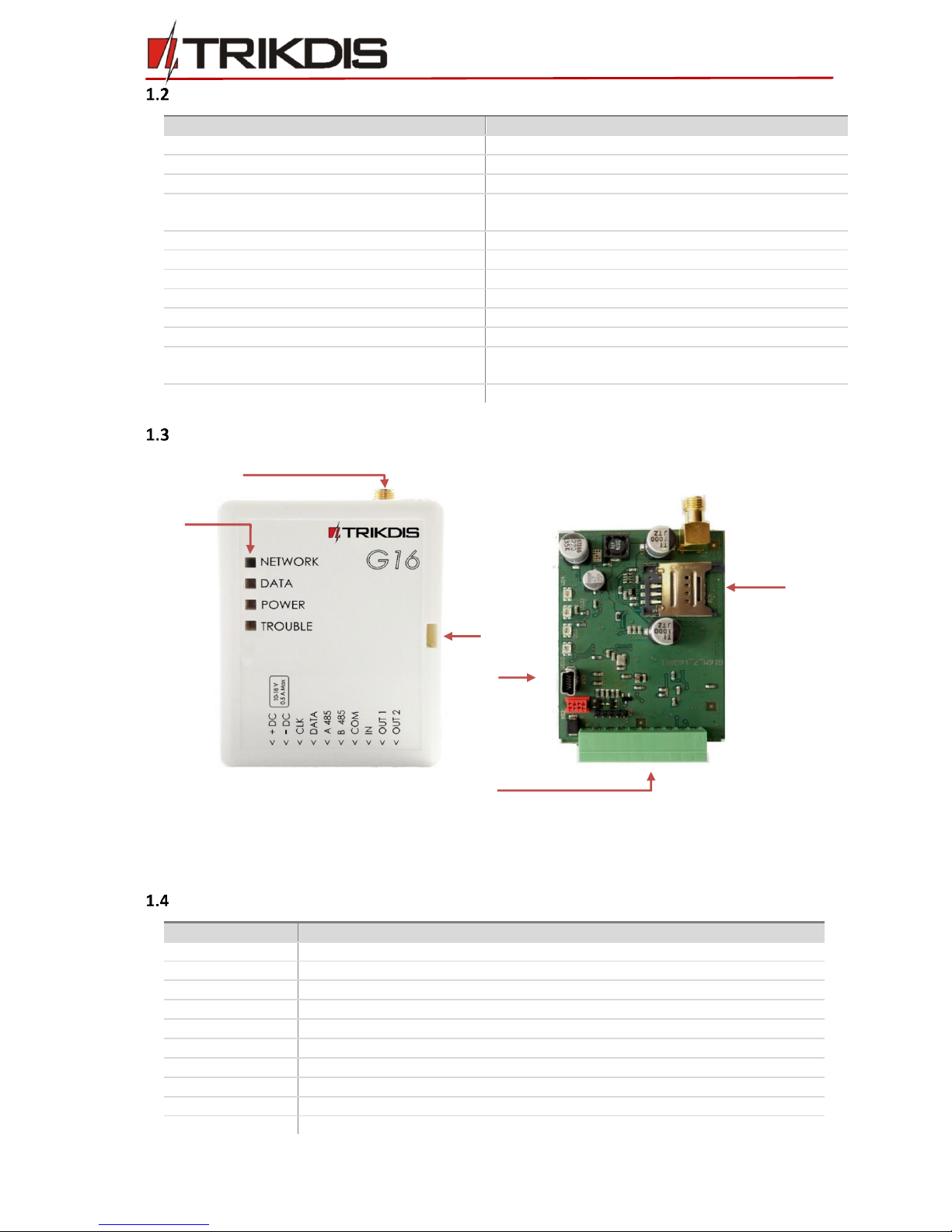

Communicator Board

Purpose of Terminals

Terminal

Description

+DC

+10 V/+18 V power supply

-DC

Common (negative)

CLK

Serial bus terminal for direct connection to control panel

DATA

Serial bus terminal for direct connection to control panel

A 485

For future use

B 485

For future use

COM

Common (negative)

Input

OUT1

1st open-collector output

OUT2

2nd open-collector output

1. GSM antenna SMA connector

2. Light indicators

3. Frontal case opening slot

4. Terminal for external connections

5. USB Mini-B port for communicator programming

6. SIM card slot

GSM communicator G16

Light Indication

Indicator

Light Status

Description

Network

Off

No connection to GSM network

Yellow

blinking

Connecting to GSM network

Green solid

with yellow

blinking

Communicator is connected to GSM network.

Sufficient GSM signal strength is level 5 (five yellow flashes)

Data

Off

No messages in buffer

Green solid

Unsent messages in communicator`s memory

Green

blinking

(Configuration mode) Data is transferred to/from communicator

Power

Off

No power supply

Green solid

Power supply is sufficient and microcontroller is functioning

Yellow solid

Power supply is insufficient (≤11.5V), microcontroller is

functioning

Green solid

and yellow

blinking

(Configuration mode) Communicator is ready for configuration

Yellow solid

(Configuration mode) No connection with computer

Trouble

OFF

No operation problems

1 red blink

No SIM card

2 red blinks

SIM card PIN code problem (incorrect PIN code)

3 red blinks

Programming problem (No APN)

4 red blinks

Registration to GSM network problem

5 red blinks

Registration to GPRS/UMTS network problem

6 red blinks

No connection with the receiver

7 red blinks

Lost connection with control panel

Red blinking

(Configuration mode) Memory fault

Red solid

(Configuration mode) Firmware is corrupted

Package Contents

G16 2G/3G Communicator

1 pc.

GSM antenna ANT01S

1 pc.

Before you begin

Before you begin, make sure that you have the necessary:

1) USB cable (Mini-B type) for configuration.

2) At least 4 wires cable for connecting communicator to control panel.

3) CRP2 cable for connecting to Paradox panel`s Serial port.

4) Flat-head screwdriver.

Order them separately from your local distributor.

Connect G16 to TrikdisConfig

Communicator can be configured using TrikdisConfig software for MS Window OS via USB cable or remotely.

1) Download TrikdisConfig from www.trikdis.com (in search field type TrikdisConfig), and install it.

2) Connect the communicator to TrikdisConfig:

Using USB cable: Carefully open the casing with flat-head screwdriver as shown below:

IMPORTANT: To use remote configuration function, Protegus service must be enabled.

GSM communicator G16

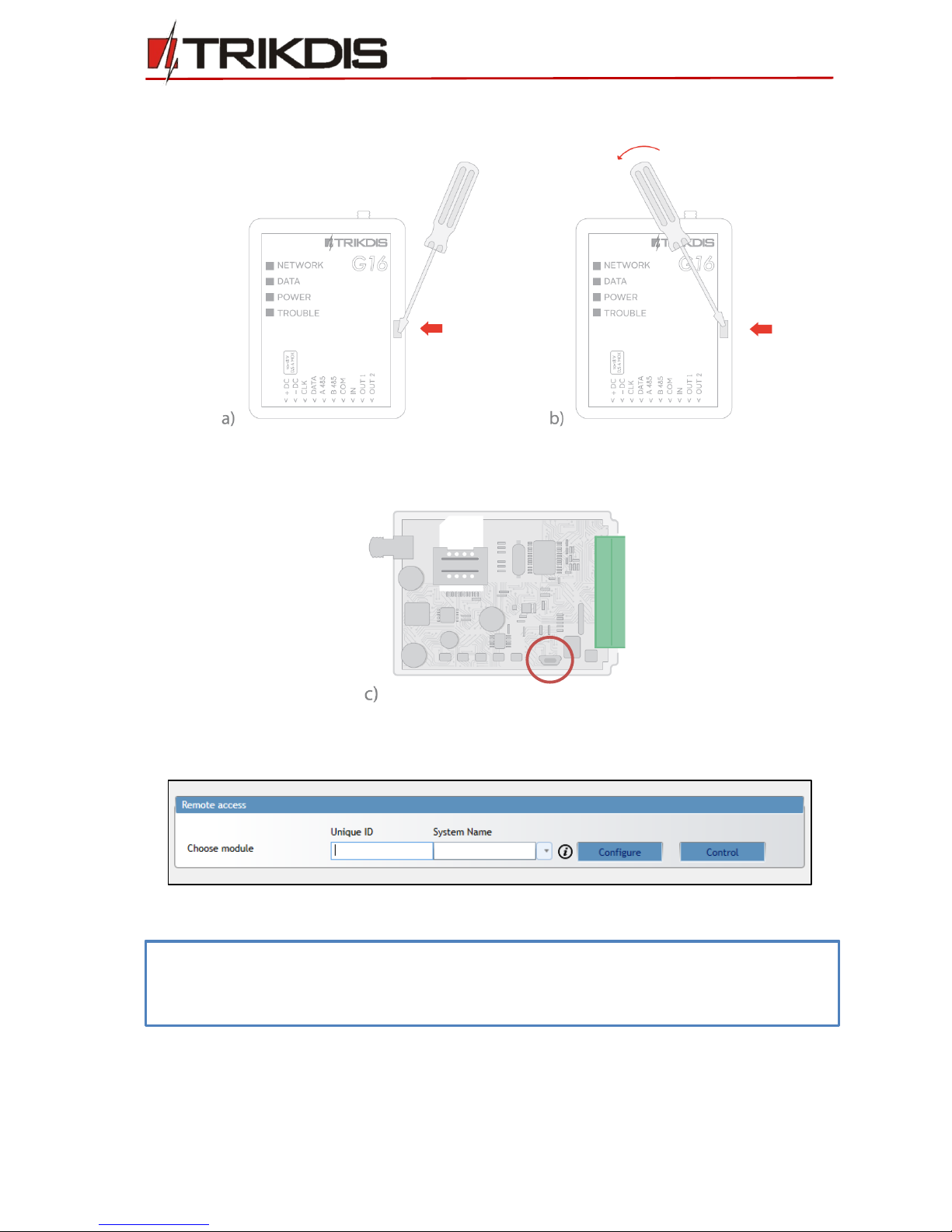

a) Insert screwdriver to the hole (red arrow). (it is unnecessary to put in screwdriver`s head to the

bottom of the casing).

b) Hold the casing`s bottom part with one hand and gently push screwdriver to the left side.

c) Plug in USB cable. Run the configuration software TrikdisConfig. The software will automatically

recognise connected communicator and will open a window for communicator configuration;

Remotely: run configuration program TrikdisConfig. In section, Remote access, field Unique ID enter IMEI

address of communicator (IMEI address is provided on the product package). (Optional) in the field System

Name enter the desired name to the communicator. Press Configure.

3) Click Read [F4] to read the communicators parameters and enter the Administrator or Installer code in pop-up

window. For the program to remember the code, check the box next to Remember password.

Note: If administrator code is set as default (123456), it is not required to enter it and the request window will not

appear.

To set up the communicator from a saved configuration file, click Open [F8] and browse your computer to find the

configuration file.

GSM communicator G16

Status bar description

Once the communicator parameters are read, the status bar will display information about the communicator.

Status bar

Name

Description

IMEI/Unique ID

IMEI number of the communicator

Status

Action status

Device

Communicator type (shows G16 or G16_3G)

Serial number

Bootloader version

Firmware version

Hardware version

State

Connection status

Admin

Access level (shows up after access code is confirmed)

Set operation parameters

System settings window

General

Write an appropriate Object number (4 symbols hexadecimal number).

Test period: periodic test messages will be sent according to a time interval set in this section.

For communication with control panel, panel type must be selected in Panel type.

For PARADOX control panel: to control directly (through Serial port) control panel with PROTEGUS service,

enable Direct control and enter PC download password.

For PARADOX control panel: PC download password –4-digit password identifies the PC to the panel before

establishing communication.

Choose an input operation type from list IN1.

Note: PC download password is not set as default parameter in control panel. To set this parameter connect control

panel with keyboard,

For MAGELLAN, SPECTRA series: enter 0000 and in 911 cell enter 4-digit number.

For DIGIPLEX EVO series: enter 0000 and in 3012 enter 4-digit number.

GSM communicator G16

Choose an output operation type from list OUT1-OUT2.

Specify time synchronization (Communicator will use time according to selected server) and output/input

parameters.

Access

The communicator G16 have two access levels for configuring the communicator:

Administrator code - allows full access to the configuration.

Installer code - allows limited access for installer to the configuration.

ARC reporting window→ ARC reporting tab

First and Second channels (and Backup channels)

First and second channels can work in parallel, by allowing the communicator to simultaneously transmit data via

both channels.

Select communication Mode and Protocol.

oIf SMS reporting will be used –enter TRK encryption key and receivers phone number.

Enter receiver`s Domain or IP address and Port.

Choose event transmission protocol TCP or UDP.

Enter Phone number which will receive messages (phone numbers must contain country code, for example

+370xxxxxxxx, 00370xxxxxxxx, or 370xxxxxxxx).

Backup SMS reporting number –when GPRS mode is set in first and backup channels, this channel 1) will send

message to the ARC when communicator will start working and 2) will serve as third backup channel.

Note: Administrator and Installer codes must be six symbols in length, and contain digits or Latin characters only.

GSM communicator G16

ARC reporting window→ Settings tab

Settings

Write Object ID in DC-09 code, if event is transferred using SIA DC-09 protocol (4-16 symbol hexadecimal number).

Enter required DC-09 line No.

Enter required DC-09 receiver No.

After a number of attempts to reconnect fails, as set in Backup reporting after field.

It will attempt to return to the primary channel after a time, as set in Return to primary after field.

GPRS ping period - and set time between signals in seconds (required for communication control).

Enter required DNS addresses.

User reporting window → Protegus service tab

Protegus service allows users to remotely monitor and control the communicator.

Protegus service allows simultaneous transmission of data to the Protegus server for Mobile/Web application. For

more information about PROTEGUS service visit www.protegus.eu.

Protegus service

Enable cloud service at User reporting > PROTEGUS service tab.

Enter Service code (default code –123456), for more safety change it to six symbol code.

IMPORTANT: When Protegus service is used –SMS & Call reporting tab will be disabled automatically.

GSM communicator G16

User reporting window → SMS & Call Reporting tab

Received event messages and internal communicator events can be reported to the users mobile phones via SMS

messaging and calls.

Each message come with an object name: enter the Object name of your choice to the text field.

From SMS language drop-down list select required language (SMS messages can be sent in various character

sets).

It is possible to choose Reporting mode, by which events will be reported to user:

oReport even not described events –reports all events, even not described, or

oReport event with described SMS text message - the ones that has zone, areas and user names entered.

Message can be send up to 4 different phone numbers. List them in Phone number table (Phone numbers must

contain country code, for example +370xxxxxxxx, 00370xxxxxxxx, or 370xxxxxxxx).

Information about the received events as Areas, Users and Zones are coded in digits. Each of them can be named

and the given names will be used in SMS messages sent to the users. Write your chosen names into their

appropriate tables.

To receive event messages, specify which CID events will be reported. Also, it can be selected which phone

numbers receives (SMS/Call) notifications about the events.

User reporting window → Remote control tab

Remote control

Answers to the SMS commands can be customised in SMS answer text field.

List a phone number for remote control to a table Phone numbers for remote control. SMS text, that user

receives after sending a command (to receive an SMS answer message, the user access code must be correct).

Note: SMS commands can be sent from any phone numbers if there is no described numbers in list.

Otros manuales para G16

Tabla de contenidos

Otros manuales de Teléfono móvil de Trikdis

Trikdis

Trikdis G09 Manual de usuario

Trikdis

Trikdis E10Tv2 Manual de usuario

Trikdis

Trikdis G17F Manual de usuario

Trikdis

Trikdis Ethernet E16 Manual de usuario

Trikdis

Trikdis E16T Manual de usuario

Trikdis

Trikdis E10T Manual de usuario

Trikdis

Trikdis G10T Manual de usuario

Trikdis

Trikdis G16T Manual de usuario

Trikdis

Trikdis G10D Manual de usuario

Trikdis

Trikdis G16 Manual de usuario

Trikdis

Trikdis G10 Manual de usuario

Trikdis

Trikdis G16T Manual de usuario

Trikdis

Trikdis E14 Manual de usuario

Trikdis

Trikdis G16T Manual de usuario

Trikdis

Trikdis GET Manual de usuario

Trikdis

Trikdis G17F Manual de usuario

Trikdis

Trikdis FireCom Manual de usuario

Trikdis

Trikdis G10 Manual de usuario

Trikdis

Trikdis G16T 3 Series Manual de usuario

Manuales populares de Teléfono móvil de otras marcas

Zte

Zte BLADE A520 Manual de usuario

Nokia

Nokia Lumia 620 Manual de usuario

Blackbe;rry

Blackbe;rry KEYone Manual de usuario

Bea-fon

Bea-fon X5 Premium Manual de usuario

Blackbe;rry

Blackbe;rry 8707 Series Manual de usuario

Blackbe;rry

Blackbe;rry Storm Instrucciones de funcionamiento

LG LM-X420QN Manual de usuario

LifeWatch

LifeWatch V Manual de usuario

Bea-fon

Bea-fon SILVER LINE SL860 Manual de usuario

IKI Mobile

IKI Mobile KF4.5i Manual de usuario

Hitech

Hitech HT-850 Manual de usuario

Yezz

Yezz Fashion F10 Manual de usuario

Point Mobile

Point Mobile PM60 Manual de usuario

Blackbe;rry

Blackbe;rry Q10 Manual de usuario

Blackbe;rry

Blackbe;rry Bold 9900 Manual de usuario

Blackbe;rry

Blackbe;rry STORM 9500 - VERSION 5.0 Manual de usuario

LG LM-K420EMW Manual de usuario

ISAFE MOBILE

ISAFE MOBILE IS655.2 Manual de usuario
