Trikdis E16T Manual de usuario

www.trikdis.lt  UAB Trikdis  Draugystės g. 17, LT-51229 Kaunas, Lietuva  +370 37 408 040  info@trikdis.lt

Ethernet communicator E16T

User manual

March, 2019

www.trikdis.com 2 March, 2019

Ethernet communicator E16T

Contents

SAFETY REQUIREMENTS ..................................................................................................................... 3

1 DESCRIPTION ............................................................................................................................. 4

1.1 SPECIFICATIONS ...................................................................................................................................... 5

1.2 COMMUNICATOR ELEMENTS ..................................................................................................................... 5

1.3 PURPOSE OF TERMINALS .......................................................................................................................... 5

1.4 LED INDICATION OF OPERATION ................................................................................................................ 6

1.5 STRUCTURAL SCHEMATIC WITH E16T USAGE ................................................................................................ 6

2 QUICK CONFIGURATION WITH TRIKDISCONFIG SOFTWARE ......................................................... 7

2.1 SETTINGS FOR CONNECTION WITH PROTEGUS APP ......................................................................................... 7

2.2 SETTINGS FOR CONNECTION WITH CENTRAL MONITORING STATION .................................................................. 8

3 INSTALLATION AND WIRING ..................................................................................................... 10

3.1 SCHEMATICS FOR WIRING THE COMMUNICATOR TO THE SECURITY CONTROL PANEL ............................................. 10

3.2 SCHEMATICS FOR WIRING INPUTS ............................................................................................................. 11

3.3 CONNECT LAN CABLE ............................................................................................................................ 11

3.4 SCHEMATIC FOR WIRING A RELAY AND LED ................................................................................................ 12

4 PROGRAMMING THE CONTROL PANEL ...................................................................................... 12

4.1 PROGRAMMING HONEYWELL VISTA LANDLINE DIALER .................................................................................. 12

4.1.1 Special settings for Honeywell Vista 48 panel ............................................................................. 12

5 REMOTE CONTROL.................................................................................................................... 13

5.1 ADDING THE SECURITY SYSTEM TO PROTEGUS APP ....................................................................................... 13

5.2 ADDITIONAL SETTINGS TO ARM/DISARM THE ALARM SYSTEM USING CONTROL PANEL’S KEYSWITCH ZONE ................. 13

5.3 ARMING/DISARMING THE ALARM SYSTEM WITH PROTEGUS ........................................................................... 15

6 REMOTE CONFIGURATION ........................................................................................................ 15

7 TRIKDISCONFIG WINDOW DESCRIPTION.................................................................................... 16

7.1 TRIKDISCONFIG STATUS BAR DESCRIPTION .................................................................................................. 16

7.2 “SYSTEM SETTINGS” WINDOW ................................................................................................................. 17

7.3 „REPORTING“ WINDOWS ....................................................................................................................... 18

7.4 „EVENT SUMMARY“ WINDOWS ............................................................................................................... 20

7.5 RESET FACTORY SETTINGS ....................................................................................................................... 21

8 TEST COMMUNICATOR PERFORMANCE ..................................................................................... 21

9 MANUAL FIRMWARE UPDATE ................................................................................................... 21

www.trikdis.com 3 March, 2019

Ethernet communicator E16T

Safety requirements

The Ethernet communicator should be installed and maintained by qualified personnel.

Prior to installation, please read this manual carefully in order to avoid mistakes that can lead to

malfunction or even damage to the equipment.

Disconnect the power supply before making any electrical connections.

Changes, modifications or repairs not authorized by the manufacturer shall void your rights under the

warranty.

Please act according to your local rules and do not dispose of your unusable alarm system or its

components with other household waste.

www.trikdis.com 4 March, 2019

Ethernet communicator E16T

1 Description

Communicator E16T improves security control panels with telephone communicator for sending and

managing events using a wired internet connection.

The communicator can transmit full event information to the receiver of the central monitoring station

(CMS).

The communicator works with Protegus apps. With Protegus, users can control their alarms remotely and

receive event notifications. The Protegus app works with all the security systems of other manufacturers

to, which the E16T is connected. The communicator can send messages to the CMS and work with Protegus

simultaneously.

The E16T is connected to the control panel telephone communicator by 2 wires to receive event messages

transmitted by DTMF tones using Contact ID protocol.

Features

Connects to panel’s landline dialer:

 Communicator can be connected to control panel’s

landline dialer with 2 or 4 wires.

 When connected with 4 wires, the landline between the

panel and communicator will be monitored.

Sends events to monitoring station receiver:

 Sends events to TRIKDIS software or hardware

receivers that work with any monitoring software.

 Can send event messages to SIA DC-09 receivers.

 Connection supervision by polling to IP receiver every

30 seconds (or by user defined period).

 Backup channel, that will be used if connection with the

primary channel is lost.

 When Protegus service is enabled, events are first delivered to CMS, and only then are sent to app

users.

Works with Protegus app:

 “Push” and special sound notifications informing about events.

 Remote system Arm/Disarm.

 Remote control of connected devices (lights, gates, ventilation systems, heating, sprinklers, etc.).

 Different user rights for administrator, installer and user.

Notifies users:

 Users can be notified about events with Protegus app.

Controllable outputs and inputs:

 1 output, controlled via:

o Protegus app.

 2 inputs, selectable type: NC; NO; EOL.

Quick setup:

www.trikdis.com 5 March, 2019

Ethernet communicator E16T

 Settings can be saved to file and quickly written to other communicators.

 Two access levels for configuring the device for CMS administrator and for installer.

 Remote configuration and firmware updates.

1.1 Specifications

Parameter Description

Power supply voltage 10-18 V DC

Current consumption Up to 0,5 A

Ethernet connection IEEE802.3, 10 Base-T, RJ45 socket

Data pack content Contact ID format codes

Memory Up to 100 messages

Inputs 2, NC/NO/EOL 2,2 kΩ type

Output 1 OC type, commutating voltage up to 30 V and current up to 0,15 A

Operating environment Temperature from -10 °C to 50 °C, relative humidity - up to 80% at +20 °C

Dimensions 88 x 62 x 26 mm

Weight 80 g

1.2 Communicator elements

1. Light indicators.

2. Frontal case opening slot.

3. Terminal for external

connections.

4. USB Mini-B port for

communicator programming.

5. Ethernet connection RJ45

socket.

1.3 Purpose of terminals

Terminal Description

+DC Power supply terminal (10-18 V DC positive terminal)

-DC Power supply terminal (10-18 V DC negative terminal)

TIP Terminal to connect with security control panel TIP terminal

RING Terminal to connect with security control panel RING terminal

www.trikdis.com 6 March, 2019

Ethernet communicator E16T

Terminal Description

T-1 / IN1

Terminal for monitoring the telephone line or an input terminal, selectable type: NC;

NO; EOL

R-1 / IN2 Terminal for monitoring the telephone line or an input

terminal, selectable type: NC;

NO; EOL

OUT Output terminal (OC type), current up to 0,15 A

COM Common terminal (negative)

A 485 RS485 bus A contact

B 485 RS485 bus B contact

1.4 LED indication of operation

Indicator Light status Description

NETWORK Green solid Communicator is connected to the Internet

Off Not connected to the LAN

DATA Yellow solid There are unsent events in the buffer memory

Green blinkings Messages are sent from the security control panel

POWER Green blinkings Power supply is on with sufficient voltage

Yellow blinkings Power supply is not sufficient (≤11,5 V)

TROUBLE Red solid LAN connection problem

Off Works without problems

LINE Green solid The control panel “raised” the handset

1.5 Structural schematic with E16T usage

Note : Before configuration, make sure you have all the necessary components:

1) USB Mini-B cable is required for configuration.

www.trikdis.com 7 March, 2019

Ethernet communicator E16T

2 Quick configuration with TrikdisConfig software

1. Download configuration software TrikdisConfig from www.trikdis.com (type “TrikdisConfig” in the

search field) and install it.

2. Open the casing of the E16T with a flat-head screwdriver as shown below:

3. Using a USB Mini-B cable connect the E16T to the computer.

4. Run TrikdisConfig. The software will automatically recognize the connected communicator and will

open a window for configuration.

5. Click Read [F4] to read the communicator’s settings. If requested, enter the Administrator or Installer

6-digit code in the pop-up window.

Below we describe what settings need to be set for the communicator to begin sending events to the

Central Monitoring Station and to allow the security control to be controlled with the Protegus app.

2.1 Settings for connection with Protegus app

In the “System Settings” window:

1) Select Security panel model that will be connected to the communicator.

2) „CAT-5 Ethernet“ cable (maximum 100 m in length).

3) At least 4 wired cable to connect communicator to the security alarm system.

4) Flat screwdriver.

5) User Manual for control panel to which Trikdis communicator will be connected.

Missing components order separately from your local distributor.

www.trikdis.com 8 March, 2019

Ethernet communicator E16T

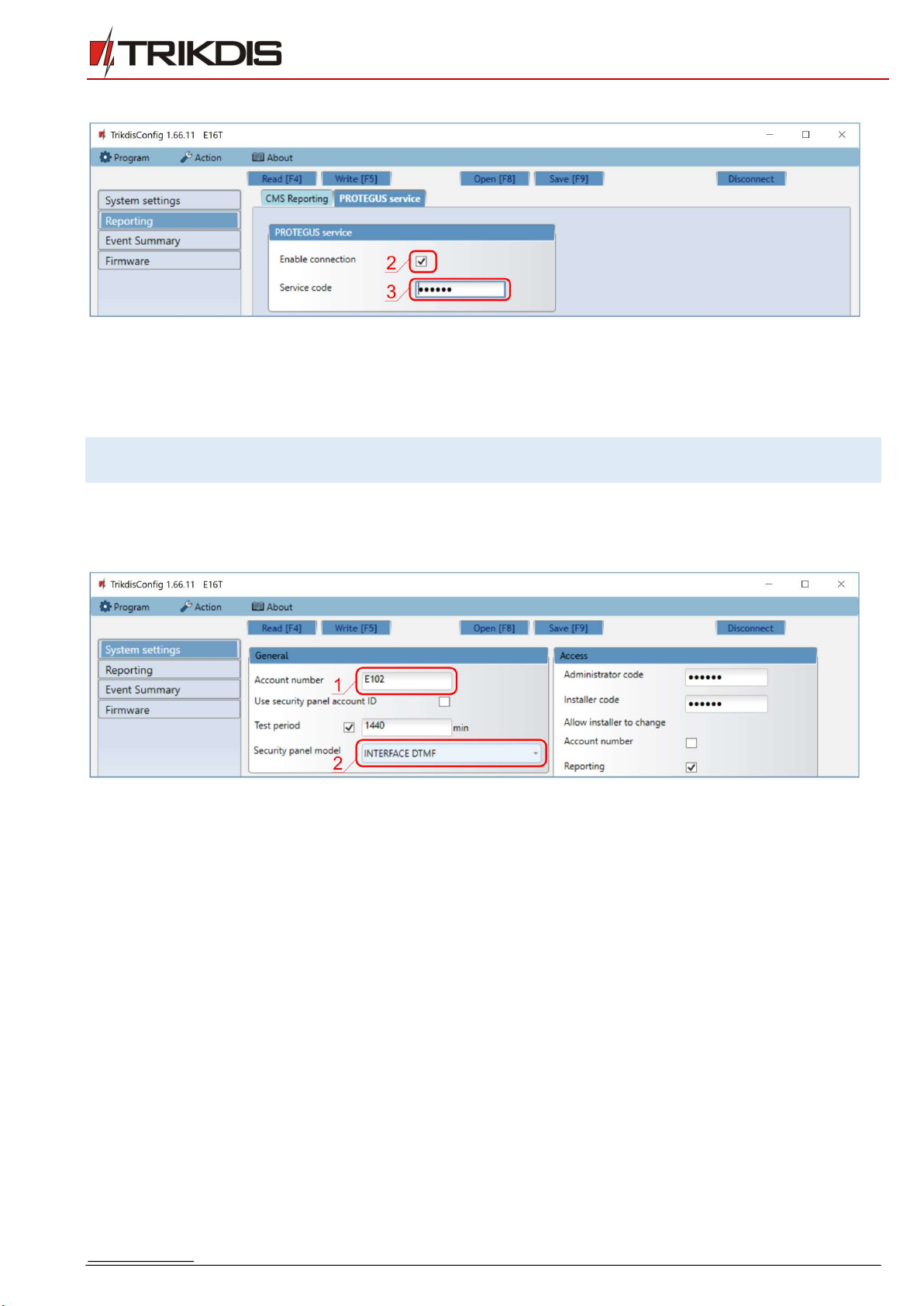

In “Reporting” window “Protegus Service” tab:

2) Check Enable connection in Protegus service checkbox.

3) Change the Service code for logging in to Protegus, if you want to ask users to add it by adding the

Protegus system in the application (factory default - 123456).

After finishing configuration, click the button Write [F5] and disconnect the USB cable.

For more information about other E16T settings in TrikdisConfig, see chapter 7 „TrikdisConfig window

description“.

2.2 Settings for connection with Central Monitoring Station

In “System settings” window:

1) Enter Account number provided by the Central Monitoring Station (4 characters, 0-9, A-F).

2) Select Security panel model that will be connected to the communicator.

www.trikdis.com 9 March, 2019

Ethernet communicator E16T

In “Reporting” window settings for „Primary“ channel:

3) Enable – enable primary communication channel.

4) Remote Host – enter the receiver’s IP address.

5) Remote Port – enter receiver’s network port number.

6) TCP or UDP – choose event transmission protocol (TCP or UDP) in which events should be sent.

7) PING Time – PING signal transmission period.

8) Encryption key – enter the encryption key that is set in the receiver.

9) (Recommended) Configure the Backup Channel Settings.

10) TCP protocol – select which encoding protocol will be use: TRK (for TRIKDIS receivers), DC-09_2007

or DC-09_2012 (for universal receivers).

11) Encription enabled - if TCP protocol SIA DC09_2012 is selected, encryption can be enabled.

12) DC-09 encryption key – enter encryption key that is set in the receiver.

13) DC-09 receiver No. - enter receiver number.

14) DC-09 line No. – enter receiver line number.

If you have selected DC-09 message transmission encoding, in addition to the “Reporting” window, on the

“Settings” tab, enter the object, line and receiver numbers

www.trikdis.com 10 March, 2019

Ethernet communicator E16T

In “Reporting” window “Protegus Service” tab:

15) Select checkbox Enable connection to the PROTEGUS Cloud.

16) You can change the Service code for logging into Protegus if you want users to be asked to enter it

when adding the system to Protegus app (default password - 123456).

After finishing configuration, click the button Write [F5] and disconnect the USB cable.

For more information about other E16T settings in TrikdisConfig, see chapter 7 „TrikdisConfig window

description“.

3 Installation and wiring

3.1 Schematics for wiring the communicator to the security control panel

Following the provided schematics connect the communicator to the control panel.

Tabla de contenidos

Otros manuales de Teléfono móvil de Trikdis

Trikdis

Trikdis E10Tv2 Manual de usuario

Trikdis

Trikdis G10 Manual de usuario

Trikdis

Trikdis FireCom Manual de usuario

Trikdis

Trikdis G09 Manual de usuario

Trikdis

Trikdis G10D Manual de usuario

Trikdis

Trikdis GET Manual de usuario

Trikdis

Trikdis G16T Manual de usuario

Trikdis

Trikdis G16 Manual de usuario

Trikdis

Trikdis G17F Manual de usuario

Trikdis

Trikdis Ethernet E16 Manual de usuario

Trikdis

Trikdis G16T 3 Series Manual de usuario

Trikdis

Trikdis G16T Manual de usuario

Trikdis

Trikdis G16 Manual de usuario

Trikdis

Trikdis G17F Manual de usuario

Trikdis

Trikdis E10T Manual de usuario

Trikdis

Trikdis E14 Manual de usuario

Trikdis

Trikdis G10 Manual de usuario

Trikdis

Trikdis G10T Manual de usuario

Trikdis

Trikdis G16T Manual de usuario

Manuales populares de Teléfono móvil de otras marcas

Zte

Zte BLADE A520 Manual de usuario

Nokia

Nokia Lumia 620 Manual de usuario

Blackbe;rry

Blackbe;rry KEYone Manual de usuario

Bea-fon

Bea-fon X5 Premium Manual de usuario

Blackbe;rry

Blackbe;rry 8707 Series Manual de usuario

Blackbe;rry

Blackbe;rry Storm Instrucciones de funcionamiento

LG LM-X420QN Manual de usuario

LifeWatch

LifeWatch V Manual de usuario

Bea-fon

Bea-fon SILVER LINE SL860 Manual de usuario

IKI Mobile

IKI Mobile KF4.5i Manual de usuario

Hitech

Hitech HT-850 Manual de usuario

Yezz

Yezz Fashion F10 Manual de usuario

Point Mobile

Point Mobile PM60 Manual de usuario

Blackbe;rry

Blackbe;rry Q10 Manual de usuario

Blackbe;rry

Blackbe;rry Bold 9900 Manual de usuario

Blackbe;rry

Blackbe;rry STORM 9500 - VERSION 5.0 Manual de usuario

LG LM-K420EMW Manual de usuario

ISAFE MOBILE

ISAFE MOBILE IS655.2 Manual de usuario
