TRENDnet TV-IP410PI Manual de usuario

Quick Installation Guide

TV-IP410PI (V1)

Table of Content

1 English

1. Before You Start

2. Hardware Installation and Configuration

ENGLISHFRANÇAISDEUTSCH

ESPAÑOLРORTUGUÊS

1. Before You Start

Package Contents

ŸTV-IP410PI

ŸCD-ROM (Utility and User's Guide)

ŸQuick Installation Guide

ŸMounting kit

Minimum Requirements

ŸPower over Ethernet (PoE) switch (e.g. TPE-S80) or PoE Injector (e.g. TPE-113GI)

ŸA networked computer and web browser

ŸWired network

ŸNetwork cable

Free Mobile App: TRENDnet IPView Requirements

Supported Operating Systems

Android (version 4.4 or above)

iOS (version 8.2 or above)

Note: The TV-IP410PI only works with Power over Ethernet (PoE) devices that follow the IEEE

802.3af standard.

2. Hardware Installation and Configuration

1. Do not install or mount the IP camera until after you complete the installation steps below.

Temporarily place the IP camera next to your computer.

2. Insert the Utility CD-ROM into your CD-ROM drive.

3. Click Install Camera Utility.

Note: You can also download the utility at http://www.trendnet.com/camerautility

ENGLISHFRANÇAISDEUTSCH

ESPAÑOLРORTUGUÊS

4 Run the utility and you will see your camera is set to Inactive under security..

5. After the utility is done scanning. Click on the IP address section of the camera you would like

to access.

6. Once you get to the login page you will be prompted to change the password. Please follow the

password requirements and enter your new password.

7. Once you login the camera will prompt you for a password change. Please change the default

password.

8. Now you can access the camera's configuration page for Live view and additional settings. For

more details, please refer to the User's Guide.

9. Scan the QR code below to download a free mobile app to view the camera from your IOS or

Android device. Please refer to the quick install guide for instructions on how to setup your

camera in the app from your cameras download page at www.TRENDnet.com.

Android iOS

Note

ŸSee User's Guide for advanced management functions

ŸWhen viewing live video, you may be required to install plug-ins.

ENGLISHFRANÇAISDEUTSCH

ESPAÑOLРORTUGUÊS

ŸConnect the provided network cable from the Power over Ethernet switch (e.g. TPE-S80) to

the network port on the IP Camera.

ŸConnect the switch to your network.

Using the TV-IP410PI with a PoE switch (TPE-S80)

10. Install the camera in your desired location. To connect the IP camera to your network with

PoE, please use either of the following examples:

PoE

Internet

Power

Switch

Non-PoE

TV-IP410PI

ŸConnect the power adapter to the TPE-113GI and then to a power outlet.

ŸConnect a network cable from the TV-IP410PI to the TPE-113GI's PWR+DATA OUT (PoE)

port.

ŸConnect a network cable from a switch or router (e.g. TEW-818DRU) to the TPE-113GI's

DATA IN (Non-PoE) port.

Using the TV-IP410PI with an Injector (TPE-113GI)

TV-IP410PI

Internet

Non-PoE

TPE-113GI

DATA

PWR+DATA

OUT

PoE

ENGLISHFRANÇAISDEUTSCH

ESPAÑOLРORTUGUÊS

Mounting the camera

Note:

1. Loosen the adjustable nut and manually position the camera as desired.

2. Place the provided template label on the mounting surface.

3. Drill holes for the provided screw anchors at each marked position on the template. Make sure

the drill bit matches the size of the provided screw anchors.

4. Insert the provided screw anchors into the holes.

5. Align the mounting bracket with the screw anchors, and then use the provided screws to

secure the camera to the mounting surface.

ŸBefore mounting the camera, the lens must be manually positioned and focused.

ŸFor tips on capturing appropriate camera viewing angle, please refer to the user's guide.

Front

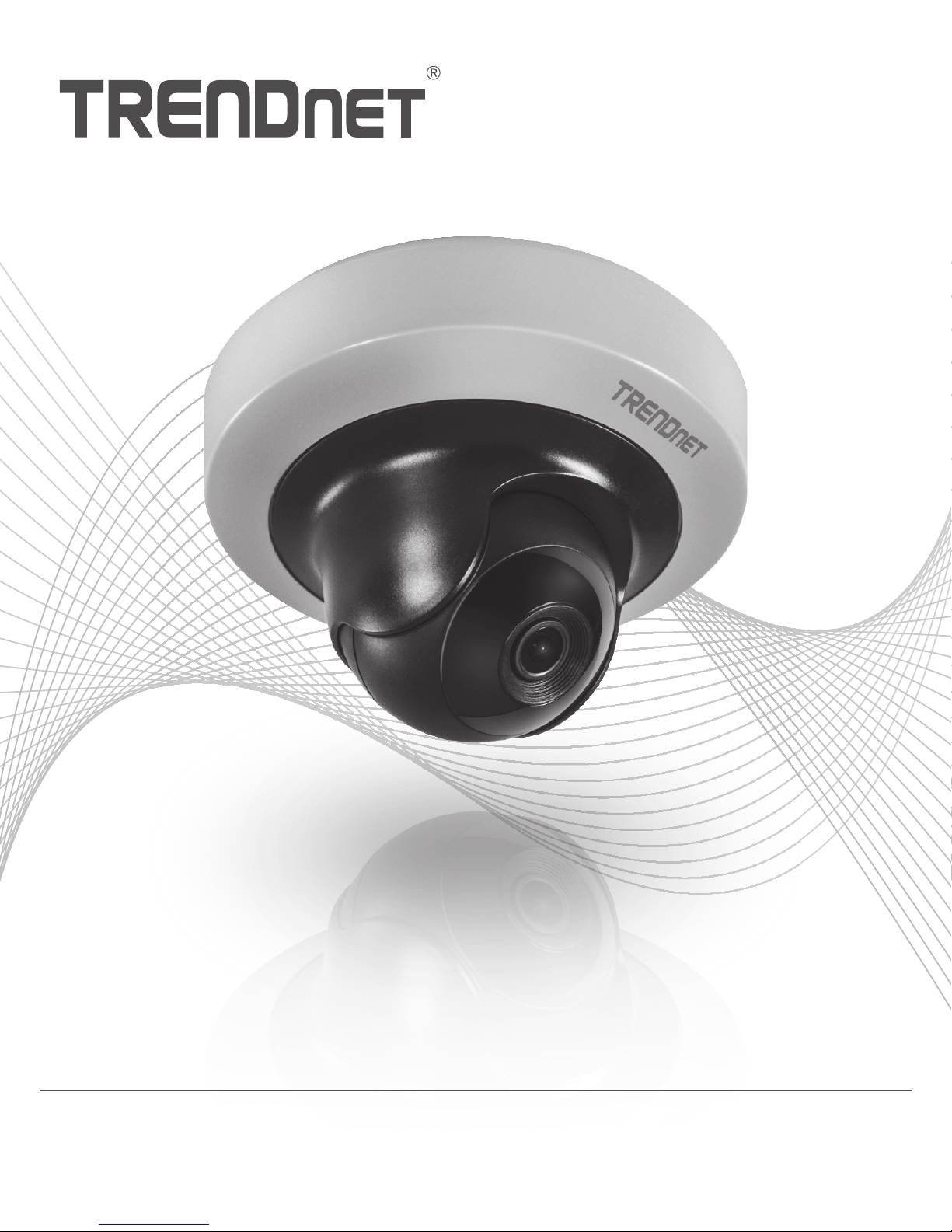

Indoor 2MP 1080p WDR Mini Pan/Tilt PoE IR Network Camera

Directives:

TRENDnet hereby declare that the product is in compliance with the essential requirements and

other relevant provisions under our sole responsibility.

This product is herewith confirmed to comply with the Directives.

Product Information:

Product Name:

Model Number: TV-IP410PI

Trade Name: TRENDnet

Safety

EMC

EMC Directive 2004/108/EC

RoHS Directive 2011/65/EU

WEEE Directive 2012/19/EU

REACH Regulation No.1907/2006

EN60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013

Manufacturer’s Name and Address

TRENDnet, Inc.

20675 Manhattan Place

Torrance, CA 90501 USA

Zwolsestraat 156 2587 WB

The Hague The Netherlands

Date: February 07, 2017

Title: Director of Technology

Person responsible for this declaration.

Place of Issue: Torrance, California, USA

Name: Sonny Su

Signature:

EN 55022:2010 CLASS B

EN 50130-4:2011

EN 61000-3-2:2014

EN 61000-3-3:2013
