TRENDnet TV-IP322P Manual de usuario

TRENDnet User’s Guide Cover Page

TRENDnet User’s Guide Table of Contents

Contents

Product Overview....................................................................................2

Package Contents......................................................................................................2

Features....................................................................................................................2

Product Hardware Features.......................................................................................3

Application Diagram..................................................................................................4

Installation...............................................................................................4

HardwareInstallation............................................................................................4

CameraInstallation...............................................................................................7

Starting Camera Finder (IPSetup) ............................................................9

Configuration.........................................................................................11

ViewingCameraBasic Function................................................................................11

Configuring the Camera Setting...............................................................................13

SmartWizard...........................................................................................................14

Basic........................................................................................................................15

Network..................................................................................................................18

Video& Audio.........................................................................................................21

EventServer............................................................................................................25

MotionDetect.........................................................................................................28

EventConfig............................................................................................................29

Tools.......................................................................................................................32

RS-485.....................................................................................................................33

SD Card...................................................................................................................35

DeviceInfo..............................................................................................................36

How to setup/access the camera behind a Router................................37

Technical Specifications.........................................................................40

Troubleshooting.....................................................................................42

TRENDnet User’s Guide TV-IP322P

Product Overview

TV-IP322P

Package Contents

TV-IP322P

Quick Installation Guide

CD-ROM (Utility&User’sGuide)

GPIO Connector (2 pcs)

Spiral Cable Wrap

Network cable (1.5m / 5ft)

Desiccant*

Power adapter (12V DC, 1.5A)

Camera mounting kit**

Note: If any package contents are missing or damaged, please contact the retail store,

online retailer, or reseller/distributor that the item was purchased.

* The camera provides two packs of desiccant: one packis pre-installed inside the camera

compartment before shipment; theextra pack is provided for replacement while you open

the backcover in thefuture.

** The provided screws included: (a) screws and washers for assembling the camera shield; (b)

expansion screws for mounting the camera to the wall.

Features

The SecurView Pro Outdoor PoE Megapixel Day/Night Internet Camera, model TV-

IP322P, provides powerful Megapixel night vision in complete darkness for up to 20

meters (66 feet).

This camera is outdoor installation ready with an IP66 rated weather proof and vandal

proof outdoorenclosure.No needtoinstall thiscamera near apower source,power and

data are received through a single Ethernet cable using Power over Ethernet (PoE)

technology.

Record 1280 x1024 pixel (SXGA) H.264 video at upto 15 frames per second(fps) or 640

x 480 pixel (VGA) resolution at up to 30 fps. Manage up to 32 TRENDnet cameras with

the included complimentary camera management software. Advanced features include

motion detection recording, email alerts, scheduled recording sessions, H.264/MPEG-4

image compression, 3GPP support, Samba client support, Input/Output ports to

network to alarm systems, date-and-time and other text overlays, mask overlays to

conceal sensitive areas, and digital zoom. A wall/ceiling mounting kit is included and a

sun visor shields thecamera from direct sunlight.

* TRENDnet’s Mobile APP supports iPhone®, iPad®, iPod® Touch and

Android. Search for SecurView Mobile from iTunes® or Google Play™.

For future updates, please check www.trendnet.com/App for details.

** Monitoringmultiple cameras may required a high performance CPU

TRENDnet User’s Guide TV-IP322P

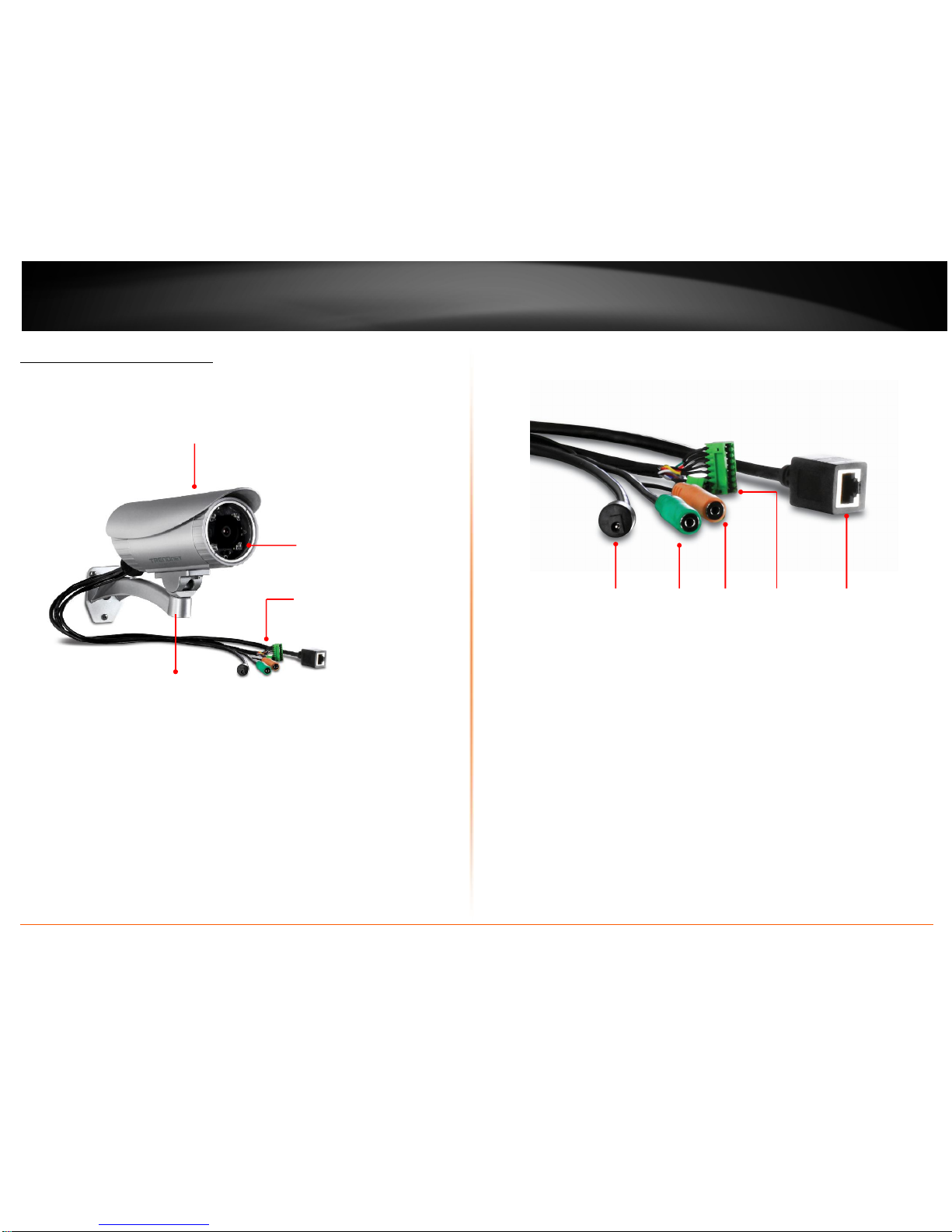

Product Hardware Features

Camera Overview

Shield: It is used to protect the camera for the inclement weather. Several

screw holes positions on the shield allows user to the shield forward/backward

for the need.

Lens: There are four IRlens for this camera.

Camera Stand: the mounting stand to hold the camera.

Camera Connectors

Power: Connectsthe power adapter to supply power to the camera.

Speaker Out: Connects an external audio device (such as the active speaker) to

deliver sound via the camera.

Microphone In: Connects an external microphone to receive the on-the-spot

sound where the camera is installed.

GPIO Port: Connects theexternal device that features additional controlling

function, suchas motiondetection, event triggering, alarm notification,and a

variety of external control functions.

NOTE: Connected the external GPIO adapters before connecting to the external device to

GPIO port.

Ethernet/PoE Port: Plugs the provided network cable to connect to your local

area network (LAN). If you are using the PoE, you must have the network cable

connect to your PoE switch or PoE Injector.

Lens

Shield

Camera

Stand

Camera Connectors Power

Connector

Speaker

Out

Microphone

GPIO

Port

Ethernet /PoE

Port

TRENDnet User’s Guide TV-IP322P

Application Diagram

Installation

Hardware Installation

1. Use the included drill template to drill three mounting holes on the desire location

and hammer the plastic anchors into the holes.

2. Secured the provided screws to the camera.

TRENDnet User’s Guide TV-IP322P

3. Assemble the sun visor to the camera by using the provided screws and washers.

4. Assemble the camera mounting bracket to the camera by using the provided

screws and washers.

5. Align themounting bracket to the anchors that you hammeron step 1, and

then use the provided screws to secure it. Secure the camera to the mounting

bracket.

6. Adjust the swivel ball on the mounting bracket to desired position.

7. The camera hardware installation is now completed.

TRENDnet User’s Guide TV-IP322P

Hardware Feature

Camera Focus:

Open the front cover and adjust the lens focus by turning the lens ring slowly in either

clockwise or counter clockwise direction.

SD Card Slot

The camera provides a SD card slot that allows you to install the memory card (not

included in the package) to store files.

To install the memory card:

1. Remove the backcover of the camera by unscrewing the three screws.

2. Locate the SD card slot inside the camera, and then insert the memory card into the

slot.

3. Replace the back cover and then screw the three screws.

Waterproofing

The camera is designed featuring waterproof. However, you need to protect the

connectors from water soak. For example, you can tape the junction points of the

connectors while you connect the cables or purchase aweatherproof cable/power cord

protector.

Lens

SDSlot

TRENDnet User’s Guide TV-IP322P

Camera Installation

1. Insert the Installation CD-ROM into your computer’s CD-ROM drive to initiate

the Auto-Run program.

2. Click the Install Camera.

3. Write down the MACaddressof your camera.

4. If using PoE, please skip to the next step. For non-PoE user, please plug and

connect the power adapter to the camera. Please wait for 60 seconds for the

camera to boot up.

TRENDnet User’s Guide TV-IP322P

5. Connect a network cable to the camera’s network port and then to your

network. If you are using PoE, please ensure the cable is connected to a PoE

switch or PoE injector.

6. Wait while camerais searching.

7. The founded cameras will show on the screen. The camera already selected by

default if you have only one camera installed. If you have more than one

camera in the same Network, you will need to identify the camera by the MAC

address.

8. Type in the Password. The password is “admin” by default. We strongly

suggested changing the camera’s password. The Change Password option is

enable by default.

TRENDnet User’s Guide TV-IP322P

9. Click here on the screen to access the camera now or click Next button for later

accessing. If you will access the camera later and the DHCP mode was selected,

you will need to run Camera Finder(IPSetup) utility as described in next

section.

10. Click Finish to exit the program or click Home return to the main screen.

Starting Camera Finder (IPSetup)

The camera comes with a conveniently utility, IPSetup,which isincludedin the

Installation CD-ROM, allowing you to search the camera on your network easily.

1. Insert the Installation CD-ROM into your computer’s CD-ROM drive to initiate

the Auto-Run program. Click the Camera Finder (IPSetup from the Auto-Run

menu screen.
