TV-IP252P

1.01

Quick Installation Guide

Table of Contents

Version 07.18.2009

English 1

1. Before You Start

2. Hardware Installation 2

3. Configure the IP Camera 3

4. Power over Ethernet (PoE) Installation 7

Troubleshooting 9

ENGLISHFRANÇAISDEUTSCHESPAÑOL

ÐÓÑÑÊÈÉ

1. Before You Start

Package Contents

?Multi-Language Quick Installation Guide

?Utility CD-ROM

?RJ-45 cable

?Mounting Kit

?AC Power Adapter (12V, 1.5A)

TV-IP252P

Note:

1. The TV-IP252P only works with Power over Ethernet (PoE) devices that follow

the IEEE 802.3af standard.

2. Before mounting the TV-IP252P, the lens must be manually positioned

and focused.

System Requirements

?10/100Mbps Ethernet Adapter

?CPU: 350MHz or above / 800MHz (Windows Vista)

?Memory: 256MB RAM or above / 512MB RAM or above (Windows Vista)

?Windows 2000/XP/Vista

?VGA Resolution: 800 x 600 or above

?Web Browser: Internet Explorer (6.0 or higher)

?Router

?An available DHCP Server (routers usually have a built-in DHCP server)

?Power over Ethernet (PoE) Switch (e.g. TPE-80WS) (Optional)

?Injector (e.g TPE-111GI ) (Optional)

ENGLISHFRANÇAISDEUTSCHESPAÑOL

ÐÓÑÑÊÈÉ

2. Hardware Installation

1. Connect the provided RJ-45 network cable

from a Switch/Router to the Ethernet port on

the IP Camera.

2. Connect the AC Power Adapter to the IP

Camera and then to a power outlet.

ENGLISHFRANÇAISDEUTSCHESPAÑOL

ÐÓÑÑÊÈÉ

2. Follow the IPSetup Setup Wizard

instructions and then click Next.

1. Insert the Utility CD-ROM into your CD-ROM

drive and then click IP Setup.

3. Click Close.

4. Go to Start -> Programs -> TRENDnet ->

IPSetup and click IPSetup.

3. Configure the IP Camera

Note:

1. It is recommended that you configure the IP Camera from a wired computer.

2. If you would like to use SecurView software, please refer to the User's Guide on

the CD for more information.

ENGLISHFRANÇAISDEUTSCHESPAÑOL

ÐÓÑÑÊÈÉ

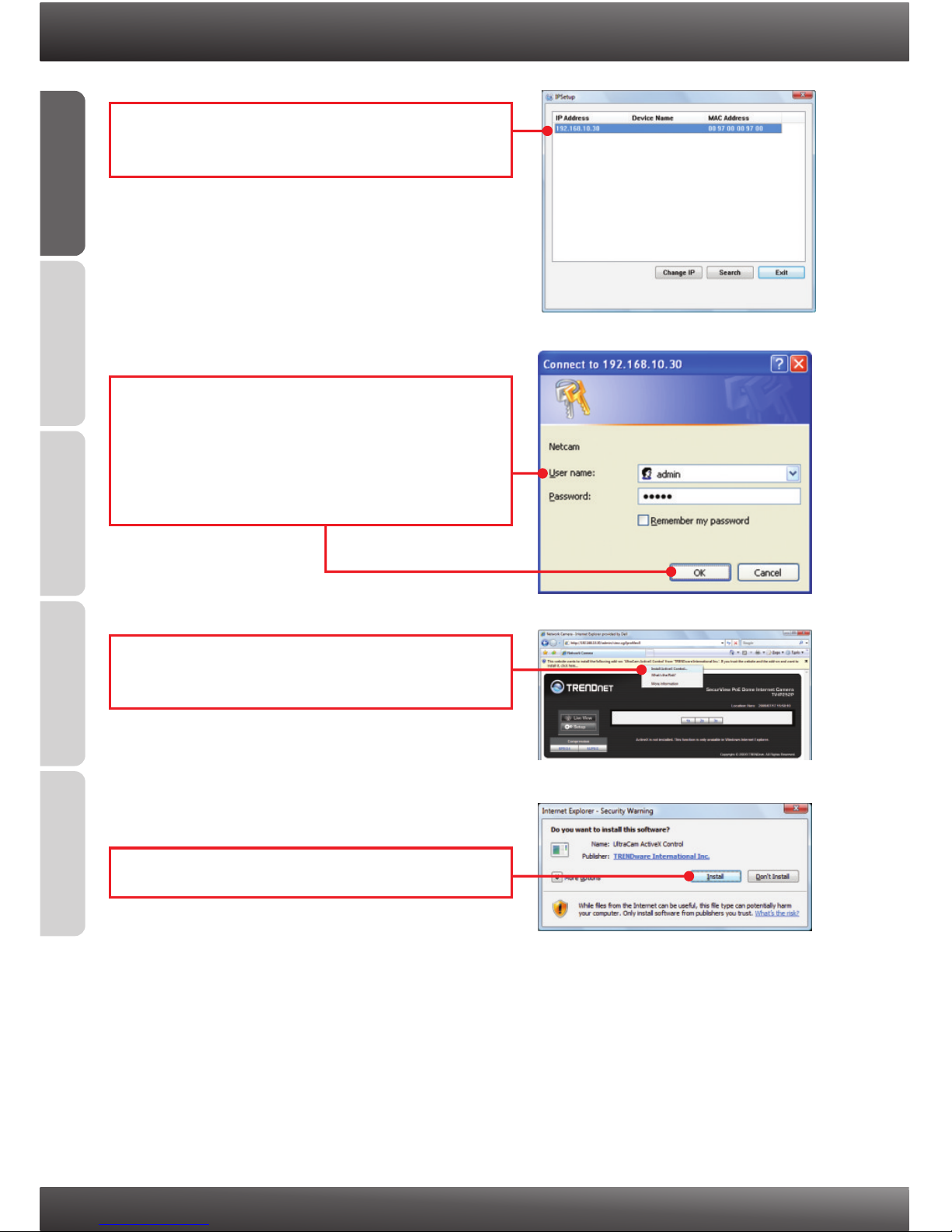

6. Configure the IP address to be in the same

subnet as your network, type in the

Administrator ID and Password and click

Change. By default:

ID: admin

Password: admin

Note:

By default, the IP setting on the TV-IP252P is set to DHCP. Please skip to step 9. If

you want to give the TV-IP252P a static IP address, continue on to step 5.

5. Select the IP camera and click Change IP.

7. Click OK and wait 30 seconds.

8. Click OK.

ENGLISHFRANÇAISDEUTSCHESPAÑOL

ÐÓÑÑÊÈÉ

11. Right click on the Internet Explorer Information

Bar and select Install ActiveX Control.

9. Double click the IP camera to access

the browser configuration.

10. Enter the User name and Password, and

then click OK. By default:

User Name: admin

Password: admin

12. Click Install.

ENGLISHFRANÇAISDEUTSCHESPAÑOL

ÐÓÑÑÊÈÉ

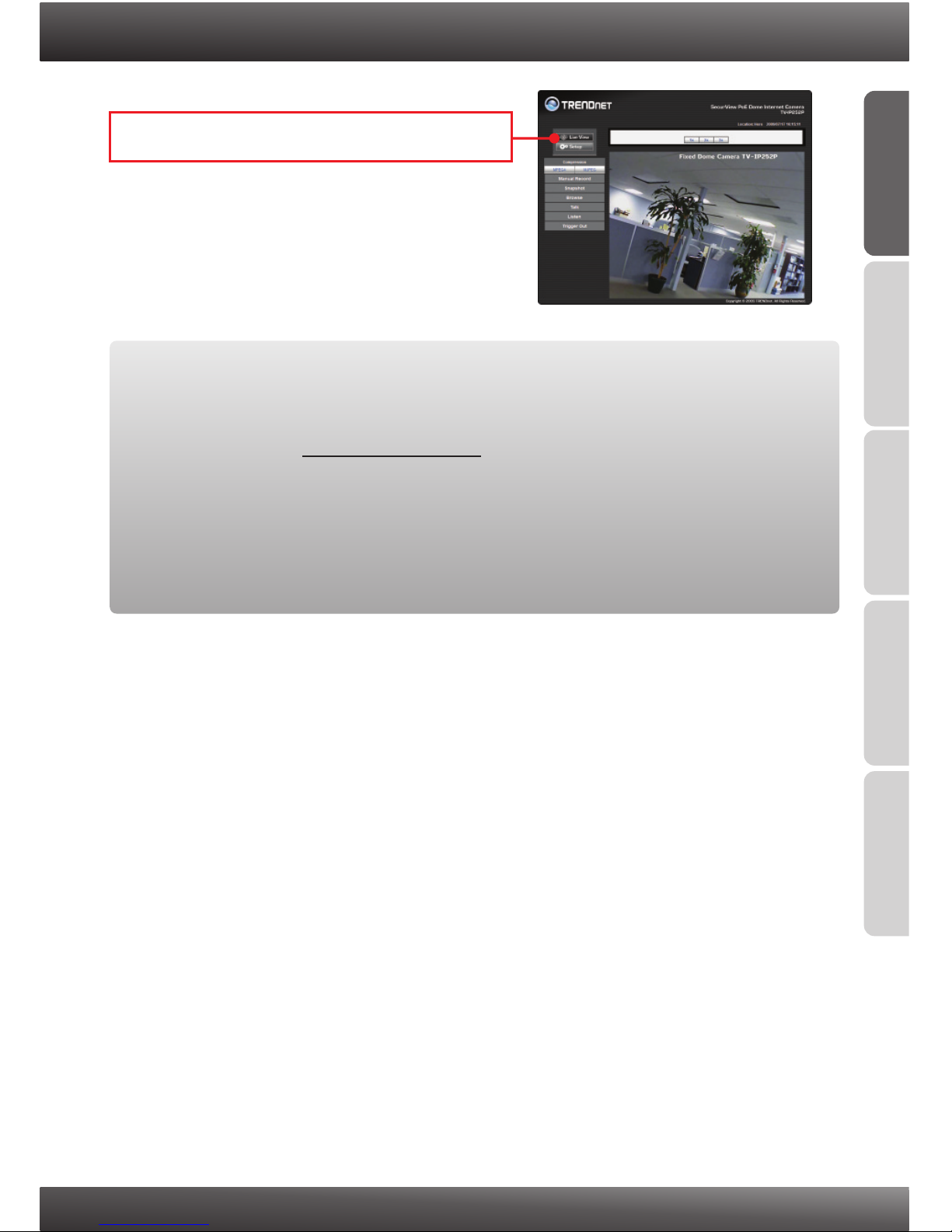

13. Click Live View.

Your Installation is complete

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet

For detailed information regarding the TV-IP252P configuration and advanced settings,

please refer to the Troubleshooting section, User's Guide on the Utility CD-ROM, or

TRENDnet's website at http://www.trendnet.com.

ENGLISHFRANÇAISDEUTSCHESPAÑOL

ÐÓÑÑÊÈÉ

4. Power over Ethernet (PoE) Installation

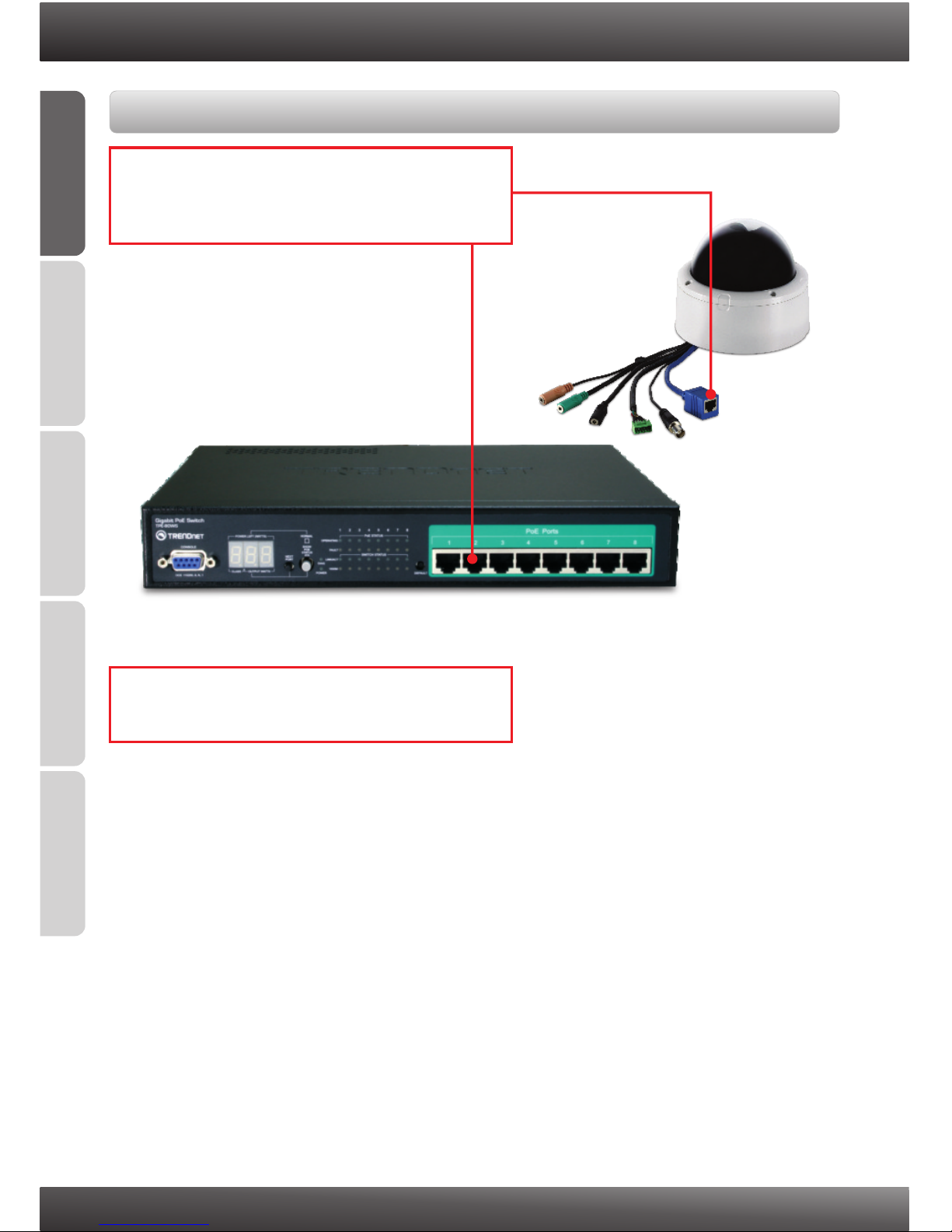

1. Connect a RJ-45 cable from the Power Over

Ethernet switch (e.g. TPE-80WS) to the LAN

port on the IP Camera.

2. Verify that the LEDs are on. Please refer to

step 4 in the Hardware Installation section.

Using the TV-IP252P with a PoE switch

ENGLISHFRANÇAISDEUTSCHESPAÑOL

ÐÓÑÑÊÈÉ

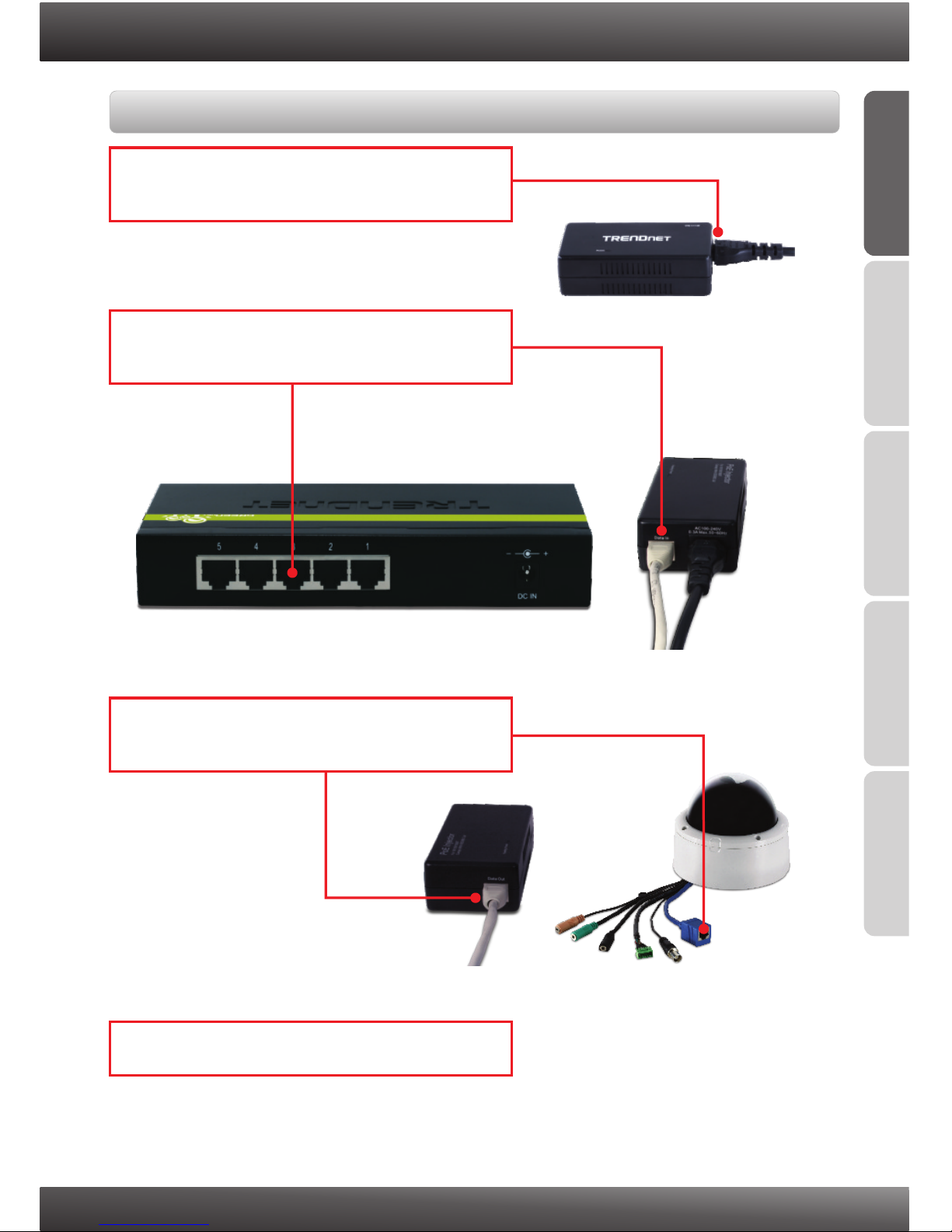

1. Connect the Power Cord to the Injector.

Then connect the Power Cord to an outlet.

2. Connect a CAT-5e/6 cable from a switch to

the TPE-111GI's DATA IN port.

3. Connect a CAT-5e/6 cable from the

TV-IP252P to the TPE-111GI's DATA OUT port.

4. Verify that the LEDs are on.

Using the TV-IP252P with an Injector (TPE-111GI)
