System Requirements

Package Contents

1. Before You Start

English

?Quick Installation Guide

?1 x 2dBi Detachable Antenna

(TV-IP100W-N

?AC Power Adapter (5V, 2.5A)

?Camera Mounting Stand

TV-IP100-N/TV-IP100W-N

Utility CD-ROM

)

?Wireless router or wireless access point (TV-IP100W-N)

10/100Mbps Ethernet

CPU: 1GHz processor or above

Memory: 256MB RAM or above/ 512MB RAM or above (Windows Vista)

VGA Resolution: 800 x 600 or above

Web Brower: Internet Exploreer (6.0 or higher)

Application

English

Wireless N Gigabit Router

(TEW-633GR)

Cable/DSL Modem

Internet

Parking Monitoring

(TV-IP100W-N)

Warehouse Monitoring

(TV-IP100W-N)

Office Monitoring

(TV-IP100-N)

Front Gate

(TV-IP100-N)

Monitoring

Office Monitoring

(TV-IP100-N)

Parking Monitoring

(TV-IP100W-N)

Wireless N Gigabit Router

(TEW-633GR)

Cable/DSL Modem

Internet

Front Gate Monitoring

(TV-IP100-N)

Warehouse

(TV-IP100W-N)

Monitoring

2. Hardware Installation

English

4. Verify the Power and Link LEDs

are on.

1. Connect a RJ-45 network cable

from a Switch/Router to the

Ethernet port of the Internet

Camera Server.

2. Attach the Antenna.

(TV-IP100W-N)

3. Connect the AC Power Adapter to

the Internet Camera Server and

then to a power outlet.

English

3. Configure the Internet Camera

Note: It is recommended that you configure the Internet Camera from a wired

computer. Since the Internet Camera's default IP address is 192.168.10.30,

make sure no other network devices are assigned an IP address of

192.168.10.30.

2. Follow the Installation Wizard

instructions and then click Finish.

3. Go to Start -> Programs ->

TRENDnet -> Setup Wizard and

click Setup Wizard.

4. Select the Internet Camera and

click Wizard.

For Windows Users

1. Insert the Utility CD-ROM into your

CD-ROM drive and then click

Setup Wizard.

English

5. Enter the Admin ID and Password,

and then click OK. By default:

Admin ID: admin

Password: admin

If you like to change the Admin ID

and password, click Change, enter

the New ID and the New Password

and confirm the New ID and New

Password. Then click on the right

arrow.

6. Click the right arrow. If you have

the TV-IP100-N skip to step 9. If

you have the TV-IP100W-N

continue on to step 7.

7. Enter the Network Name (SSID) of

your wireless network. If

encryption is enabled on your

wireless network, select the

desired Security Mode. If WEP is

enabled on your wireless network,

select Open, Shared or Both.

Then click the right arrow.

If no encryption is enable skip to

step 9.

9. Copy down the IP Address. Then

click the reboot button to save

settings.

10. Disconnect the RJ-45 cable and

unplug the power. Then plug the

power back in (TV-IP100W-N).

English

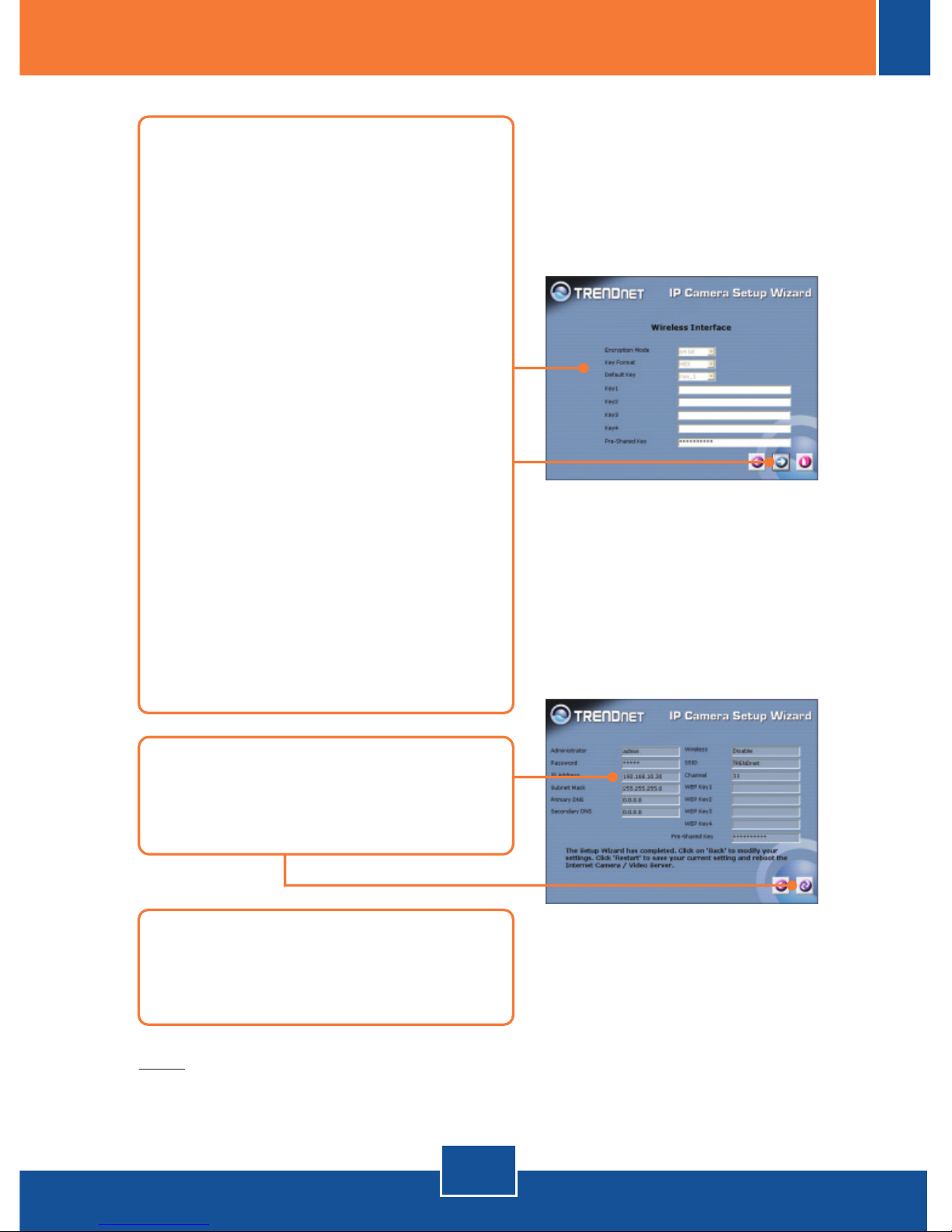

8. If WEP is enabled on your wireless

network, select the Encryption

Mode (e.g. 64-bit, 128-bit), the Key

Format (e.g. Hex, ASCII) and the

Default Key (e.g. Key_1, Key_2,

Key_3, Key_4). Then enter the

encryption key in the Key1, Key2,

Key3 or Key 4 field. Then click the

right arrow.

If WPA is enabled on your wireless

network, enter the encryption key

in the Pre-Shared Key field and

then click the right arrow button to

continue.

Note: If you do not know your

encryption key, contact your

network administrator for more

information

Note: The TV-IP100W-N will not work wirelessly until you disconnect the

Ethernet cable from the back of the camera.

English

14. If you clicked on View Video |

Active X, right click and select

Active X Control.

11. Verify the Power and Link LEDs

are on.

12. In the Setup Wizard, click Link.

13. Click View Video | Active X or

View Video | Java.

Your installation is now complete.

15. Click Install.

Note: For detailed information regarding the TV-IP100-N/IP100W-N

configuration and advanced settings, please refer to the Troubleshooting

section, User's Guide on the Utility CD-ROM, or TRENDnet's website at

http://www.trendnet.com.

Q1:

A1:

Q2:

A2:

Q3:

A3:

Q4:

A4:

Q5:

A5:

Q6:

A6:

The setup wizard is unable to detect my camera. What should I do?

First, verify that you have followed all the steps in the Section 2: Hardware Installation.

Second, disable any software firewall programs such as ZoneAlarm or Norton Internet

Security. If you are using Windows XP or Windows Vista, disable the built in firewall. Third,

click on Search in the setup wizard.

When I click on View Image | Active X mode or View Image | Java Mode, the image does

not load. What should I do?

First, make sure that you are using a browser that supports Active X or Java. Second,

make sure that Active X or Java is installed and enabled.

How do I connect the TV-IP100W-N to my wireless router or access point?

Make sure that you configure the camera to have the same SSID, encryption mode and

key (if enabled). Follow the instructions in section 2 to configure the camera with the SSID

and encryption key.

After I successfully configured the TV-IP100W-N to match my wireless network settings,

I can not connect to the camera.

First, verify that the wireless settings match your wireless network settings. Second,

verify in the wireless section of the browser configuration that the Enable option is checked.

Third, make sure to disconnect the Ethernet cable from the camera and verify that the LINK

LED is blinking red.

I setup a password on the camera, but I forgot it. What should I do?

Take a pin or paperclip and press the reset button on the back of the unit for 15 seconds.

This will return settings back to factory defaults. The default IP address is 192.168.10.30.

By default, the Admin ID and Password is admin.

If you still encounter problems or have any questions regarding the TV-IP100-N/TV-IP100W-N,

please contact TRENDnet’s Technical Support Department.

The Image is blurry. How can I adjust the focus on the Internet camera?

You can adjust the Internet Camera’s focus by rotating the lens.

Troubleshooting
