TRENDnet TV-IP612P Manual de usuario

Quick Installation Guide

TV-IP612P

1.01

Table of Contents

Version 08.20.2010

English 1

1. Before You Start

2. 2

3. 7

Hardware Installation and Configuration

Power over Ethernet (PoE) Installation

Troubleshooting 9

1. Before You Start

?VGAResolution: 800 x 600 or above

?Web Browser: Internet Explorer (6.0 or higher)

?Router

?An available DHCP Server –routers usually have a built-in DHCPserver

?Power over Ethernet (PoE) Switch (e.g. TPE-80WS) (Optional)

?Injector (e.g TPE-111GI) (Optional)

Acomputer with a wired network adapter properly installed

CD-ROM Drive

Package Contents

?CD-ROM (Utility and User’s Guide)

?Multi-Language Quick Installation Guide

?Cat. 5 Ethernet Cable (1.5m/5ft.)

?Mounting Kit

?PowerAdapter (12V DC, 2A)

TV-IP612P

System Requirements

Note: TheTV-IP612P only works with Power over Ethernet (PoE) devices

that follow the IEEE 802.3af standard.

Supported Operating Systems CPU Memory

Windows 7 (32/64-bit)

Windows Vista (32/64-bit)

Windows XP (32/64-bit) / 2000 1.3GHz or above 1GB RAM or above

512MB RAM or above

256MB RAM or above

1.3GHz or above

2. Hardware Installation and Configuration

1. Insert the Utility CD-ROM into your CD-ROM

drive.

Note:

1．It is recommended that you configure the IP Camera from a wired computer.

2．If you would like to use IPViewPro 2.0 software, please install the software by

clicking the Install IPView Pro 2.0 in theAutorun window and refer to the User's

Guide on the CD for more information

2. Click Run autorun.exe (Windows 7/Vista only).

3. Click Setup Wizard.

4. Click Next. Then follow the Setup Wizard

instructions.

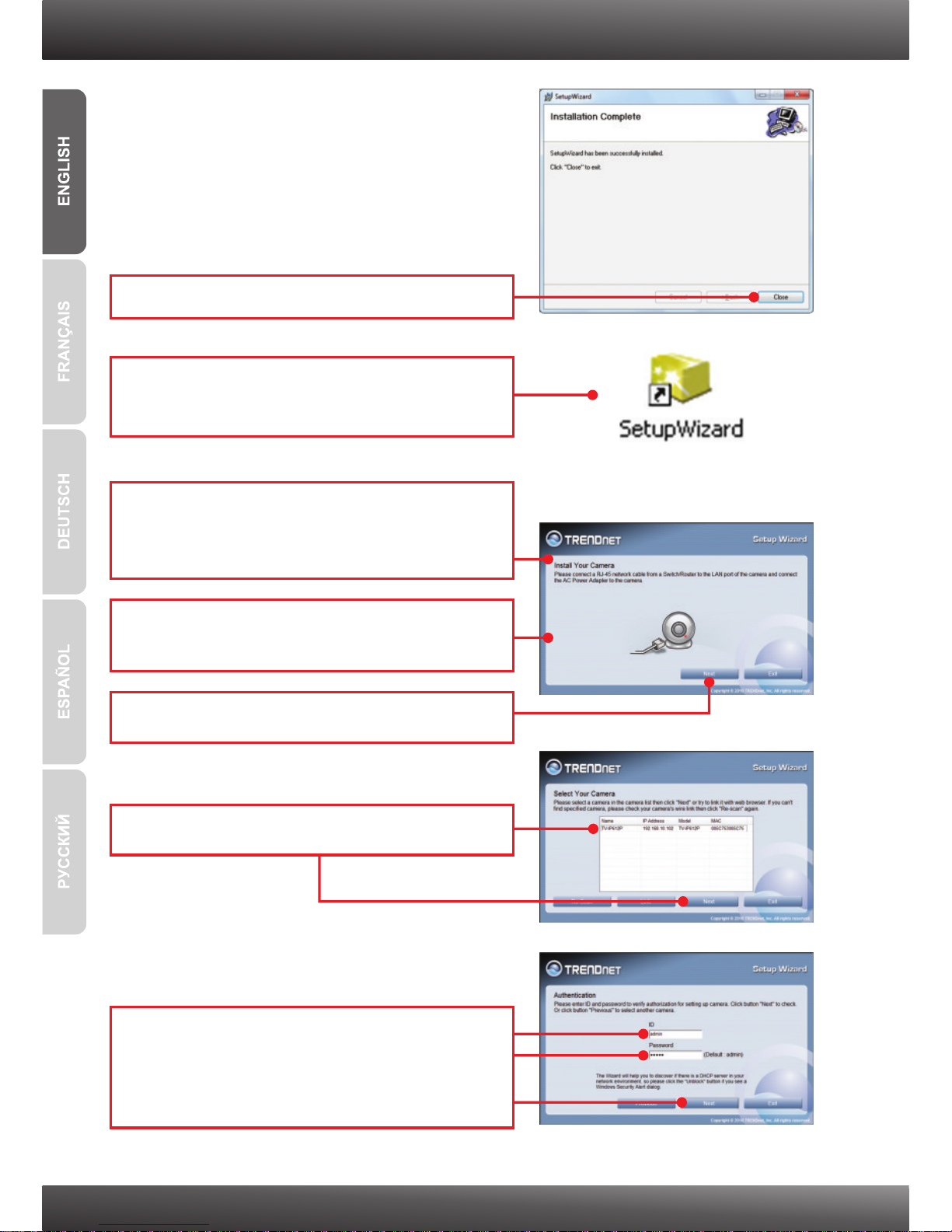

6. Double click on the SetupWizard icon on your

desktop.

5. Click Close.

9. Click Next.

7. Connect a RJ-45 network cable from a

Switch/Router to the Ethernet port on the IP

Camera.

8. Connect the PowerAdapter to the IP Camera

and then to a power outlet.

10. Select the IP camera and click Next.

10. Enter your ID and password. Then click Next.

By default:

ID: admin

Password: admin

12. Configure the Camera Name and Camera

Time. Click Copy Local Time to automatically

configure the Camera Time to match your

computer. Then click Next.

13. If you would like to change the administrator

password, click Change Password, enter a

new password, retype the new password and

then click Next. Leave Change Password

unchecked if you do not wish to change the

password.

Note: Password is limited to up to 8 characters.

14. Select DHCP and then click Next.

15. Click Next.

16. Please wait while the settings on your cameras

are being saved.

17. Click on the following URLor click Link to

open up the browser configuration.

18. Enter the User name and Password, and then

click OK. By default:

User Name: admin

Password: admin

19. Click Live View to view live video.

20. Right click on the information bar and select

Install ThisAdd-on for All Users on This

Computer. (Internet Explorer 8)

21. Click Install. (Internet Explorer 8)

22. Right click on the information bar and select

RunAdd-on (Internet Explorer 6/7).

23. Click Run (Internet Explorer 6/7).

25. Use the command icons to control the IP

camera.

24. Live Video will now appear.

Your installation is complete

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet

For detailed information regarding the TV-IP612P configuration and advanced settings,

please refer to the Troubleshooting section, User's Guide on the Utility CD-ROM, or

TRENDnet's website at http://www.trendnet.com.

3. Power over Ethernet (PoE) Installation

Using the TV-IP612P with a PoE switch

2. Verify that the LINK (RED) and Power (Solid

Blue) LEDs are on.

1. Connect a RJ-45 cable from the Power Over

Ethernet switch (e.g. TPE-80WS) to the LAN

port on the IP Camera.

Using the TV-IP612P with an Injector (TPE-111GI)

4. Verify that the LINK (RED) and Power (Solid

Blue) LEDs are on.

1. Connect the Power Cord to the Injector. Then

connect the Power Cord to an outlet.

2. Connect a CAT-5e/6 cable from a switch to the

TPE-111GI's DATA IN port.

3. Connect a CAT-5e/6 cable from the TV-IP612P

to the TPE-111GI's DATA OUT port.
