TRENDnet TV-IP322P - V1.01 QUICK Manual de usuario
Quick Installation Guide
TV-IP322P
1.01
Table of Contents
Version 04.14.2011
English 1
1. Before You Start
2. Hardware Installation 2
3. Configure the IP Camera 4
4. Mounting the TV-IP322P 7
1
Troubleshooting 9
1. Before You Start
Ÿ
ŸCD-ROM Drive
ŸVGA Resolution: 800 x 600 or above
ŸWeb Browser: Internet Explorer (6.0 or higher)
ŸPhillips Screwdriver
ŸInternet Router (Optional)
ŸAn available DHCP Server – routers usually have a built-in DHCP server (Optional)
ŸPower over Ethernet (PoE) Switch (e.g. TPE-80WS) (Optional)
ŸInjector (e.g. TPE-111GI ) (Optional)
A computer with a wired network adapter properly installed
Package Contents
System Requirements
1
Ÿ
ŸCD-ROM (Utility and User's Guide)
Ÿ
Ÿ
Ÿ
Ÿ
Ÿ
Ÿ
ŸPower Adapter (12V DC, 1.5A)
TV-IP322P
Multi-Language Quick Installation Guide
Network Cable (1.5m / 5ft)
Camera Mounting Bracket
GPIO Connector
Sun Visor
Spiral Cable Wrap
Supported Operating Systems CPU
1-8 Cameras
CPU
Memory Memory
9-32 Cameras
Windows 7 (32/64-bit)
Windows Vista (32/64-bit)
Windows XP (32/64-bit)
Intel Core
2 Duo
Intel Core
2 Quad
4GB RAM
or above
Intel Core
2 Duo
Intel Core
2 Quad
4GB RAM
or above
Intel Core
2 Duo
Intel Core
2 Quad
4GB RAM
or above
2GB RAM
or above
2GB RAM
or above
2GB RAM
or above
SecurView Pro Requirements
Note:
The TV-IP322P only works with Power over Ethernet (PoE) devices that follow the IEEE 802.3af
standard.
2
2. Hardware Installation
Note:
If you do not wish to use the PoE function of this camera, connect the provided power
adapter to the IP Camera and then to a power outlet. Then connect the provided
network cable from a router or switch on your network to the network port on the IP
camera.
Using the TV-IP322P with a PoE switch
Power + Data (PoE)
TV-IP322P TPE-80WS TEW-639GR
Data
Power Power
Jack
Internet
Cable/DSL
Modem
1. Connect the provided network cable from the
Power over Ethernet switch (e.g. TPE-80WS) to
the network port on the IP Camera. Then,
follow the steps in Section 3: Configure the IP
Camera.
3
Using the TV-IP322P with an Injector (TPE-111GI)
Power + Data (PoE)
TV-IP322P TPE-111GI TEW-639GR
Data
Power Power
Jack
Internet
Cable/DSL
Modem
4. Follow the steps in Section 3: Configure the IP
Camera.
1. Connect one end of the Power Cord to the
Injector. Then connect the other end of the
Power Cord to an outlet.
2. Connect a network cable from a switch or router
to the TPE-111GI's DATA IN port.
3. Connect a network cable from the TV-IP322P to
the TPE-111GI's DATA OUT port.
4
3. Configure the IP Camera
1. Insert the Utility CD-ROM into your CD-ROM
drive.
4. Follow the Installation Wizard instructions.
2. Click Run autorun.exe (Windows 7/Vista only).
5. Once installation is complete click Close.
3. Click IP Setup.
6. Click the Start (Windows XP) or Windows
(Windows 7/Vista ) icon.
7. Go to Programs Ž TRENDnet Ž
IPSetup and click IPSetup.
5
Note:
By default, the IP setting on the TV-IP322P is set to DHCP. If you want to give the
TV-IP322P a static IP address, please refer to the User's Guide on the Utility CD-ROM.
9. Enter the User name and Password, and then
click OK. By default:
User Name: admin
Password: admin
10. Right click on the information bar and select
Install This Add-on for All Users on This
Computer… (Internet Explorer 8) or Install
ActiveX Control (Internet Explorer 6/7).
8. Double click the IP Camera to access the
browser configuration. Verify that the MAC
address listed matches the MAC address on
your IP camera. The MAC address is listed on
the bottom of the TV-IP322P. Click Search if no
cameras are detected.
11. Click Install.
6
Your configuration is now complete
Register Your Product
To ensure the highest level of customer service and support, please take a moment to
register your product Online at: www.trendnet.com/register
Thank you for choosing TRENDnet
1. For detailed information regarding the ’s configuration and advanced settings,
please refer to the Troubleshooting section, User's Guide CD-ROM, or TRENDnet's website
at http://www.trendnet.com.
2. If you would like to use SecurView Pro software, please install the software by clicking
SecurView Pro in the Autorun window and refer to the User's Guide on the CD for more
information.
TV-IP322P

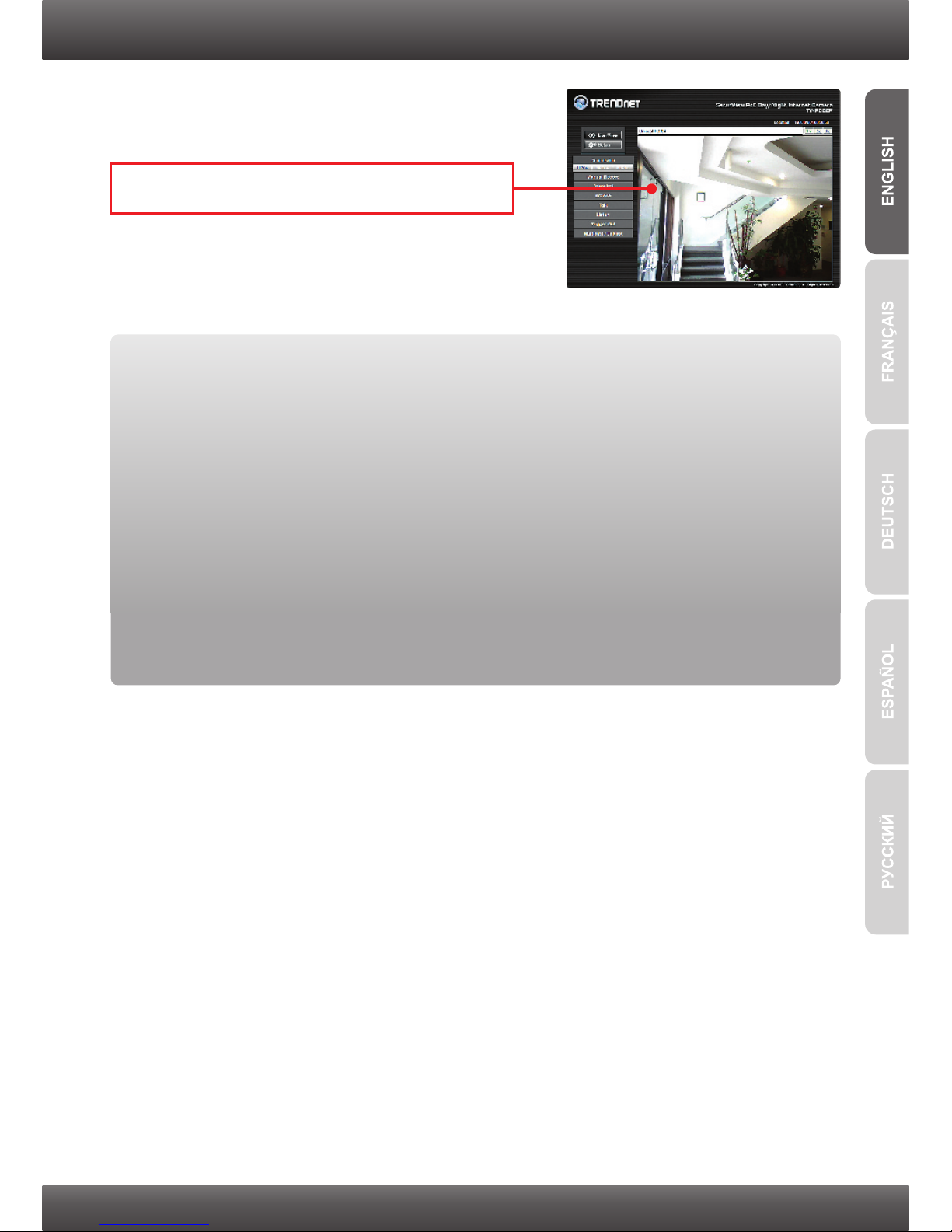

12. Live video will now appear.
7
4. Mounting the TV-IP322P
Note:
The camera's connectors are not waterproof. Please have all of the cable connectors
protected by the waterproof housing.
1. Use the provided spiral cable wrap to secure
the cables.
4. Place the mounting bracket against the wall
and mark each of the three holes with a pencil.
5. Drill holes for the provided screw anchors at
each marked position. Make sure the drill bit
matches the size of the provided screw anchors.
2. Connect the provided screws to the top of the
TV-IP322P.
3. Connect the sun visor to the TV-IP322P using
the provided screws and washers.
8
10. Use the provided Allen wrench to secure the
position of the swivel.
9. Move the swivel on the mounting bracket to the
desired position.
8. Secure the TV-IP322 to the mounting bracket
using the provided screws and a Phillips screw
driver.
7. Align the mounting bracket with the screw
anchors, and then use the provided wood
screws to secure it.
6. Insert the provided screw anchors into the
holes.
