TP-Link Auranet EAP115 Manual de usuario

Quick Installation Guide

Wall-Plate Access Point

CONTENT

English............................................................................................................... 1

Български ....................................................................................................... 6

Čeština............................................................................................................11

Қазақша .........................................................................................................16

Magyar ............................................................................................................21

Polski................................................................................................................26

Русский язык...............................................................................................31

Română...........................................................................................................36

Slovenčina .....................................................................................................41

Srpski jezik.....................................................................................................46

Українська мова.........................................................................................51

Lietuvių............................................................................................................56

Slovenščina...................................................................................................61

Hrvatski...........................................................................................................66

Latviski............................................................................................................71

Eesti..................................................................................................................76

English

Note: The following introduction takes EAP115-Wall as an

example.

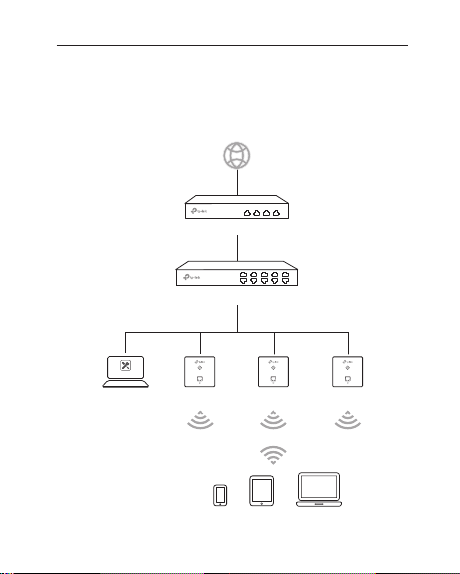

Network Topology

A typical network topology for the EAP is shown below.

Omada Controller

Router

PoE Switch

Management Host EAP EAP EAP

Clients

English

The EAP can only be powered by a PSE device, such as a PoE

switch. A DHCP server (typically a router) is required to assign

IP addresses to the EAPs and clients in your local network.

The management host can be in the same or dierent network

segment with the EAPs.

Pre-Installation Checklist

Before installation, be sure that you have the following items:

• A pre-installed wall junction box

• An RJ45 plug

• A triangular screwdriver (Only for EAP115-Wall)

• A Phillips screwdriver

• A PoE switch

Installation Steps

The EAP can be mounted into either an 86mm wall junction box

or a standard EU wall junction box. The junction box should be

pre-installed with a running-in-wall Ethernet cable connected to

a PoE switch.

86mm wall

junction box Standard EU wall

junction box

Standard US wall

junction box

(Only for EAP225-Wall)

English

1. Detach the faceplate of the junction box with a Phillips

screwdriver (demonstrated with an 86mm wall junction box).

2. Detach the faceplate of the EAP with a screwdriver.

3. Connect the Ethernet cable inside the junction box to an

RJ45 plug. Then connect the cable to the UPLINK+PoE port.

Position the Ethernet cable to ensure it is not strained.

English

Note: If the junction box does not have enough room to accommodate

the EAP without straining the Ethernet cable, replace the junction box

with an open-end or deeper one.

4. Insert the enclosed screws and tighten them with a triangular

screwdriver to secure the mounting bracket.

Note:

• Do not over tighten the screws. If the enclosed screws do not t the

junction box, use the screws attached to the junction box instead.

• For EAP225-Wall, switch the order of Step 3 and Step 4.

English

5. Press the faceplate of the EAP back into position.

Software Configuration

To quickly set up a wireless network connection with mass EAPs,

please follow the steps below.

1. On the management host, download the Omada Controller

installation le. Run the le and follow the wizard to install the

Omada Controller.

2. Launch the Omada Controller and follow the configuration

wizard to create a primary wireless network.

3. Adopt the EAP devices in the Controller management

interface to change their status from Pending to Connected.

Български

Забележка: Уводът по-долу взима EAP115-Wall като пример.

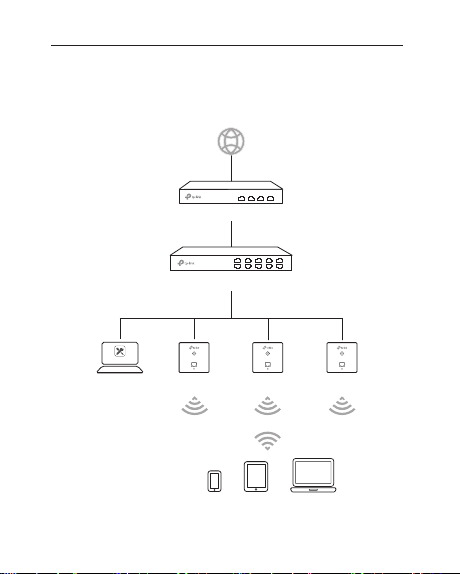

Мрежова топология

Една типична мрежова топология за EAP е показана по-долу.

Omada Controller

Рутер

PoE комутатор

Хост за управление EAP EAP EAP

Клиенти

Български

EAP (Точка за достъп за външна инсталация) може да се

захранва само от PSE устройство като PoE комутатор.

Нужен е DHCP сървър (в типичния случай - рутер), които да

присвоява IP адреси на EAP устройствата и клиентите във

вашата локална мрежа. Управляващият хост може да бъде в

същия или различен мрежов сегмент с EAP устройствата.

Списък с необходимите неща преди

инсталация

Преди инсталация, моля, уверете се, че имате следните неща:

• Предварително инсталирана розетка за свързване на

стената

• RJ45 накрайник

• Триъгълна отвертка (Само за EAP115-Wall)

• Отвертка с накрайник тип “звезда”

• PoE комутатор

Стъпки за инсталация

EAP устройствата може да се монтират или в 86 mm

разклонителна кутия за стена, или в стандартна ЕС

разклонителна кутия за стена. Разклонителната кутия трябва

да бъде инсталирана предварително с прокаран в стената

Ethernet кабел свързан към PoE комутатор.

86mm разклонителна

кутия за стена

Стандартна ЕС

разклонителна

кутия за стена

Стандартна стенна кутия

за свързване (САЩ)

(Само за EAP225-Wall)

Български

1. Отделете лицевата страна на разклонителната кутия с

отвертка “звезда” (илюстрацията е с 86 mm разклонителна

кутия за стена).

2. Отделете лицевата страна на EAP с отвертка.

3. Свържете Ethernet кабела в разединителната кутия

към RJ45 накрайник. След това свържете кабела към
