TP-Link Omada EAP110-Outdoor Manual de usuario

Installation Guide

EAP110-Outdoor

300Mbps Wireless N Outdoor Access Point

Contents

Overview

Typical Network Topology

Lightning and ESD Protection

Hardware Installation

Mount EAP

Connect Cables

Power On

Software Configuration

Overview

Package Contents

Power Cord

D3×28 Plastic Wall

Anchors(Qty.4)

ST3×20 Self-tapping

Screws (Qty.4)

Antennas (Qty.2)

Pole Mounting Strap

Installation Guide

Passive PoE Adapter

Waterproof Rubber

Insert

Mounting Bracket

(for EAP)

Mounting Bracket

(for PoE Adapter)

EAP

Installation Guide

EAP110-Outdoor

300MbpsWireless N Outdoor Access Point

The Panel of EAP

Panel Layout

RESETShielded Ethernet

Port LAN

SYS LED Explanation

LED Status Indication

Passive PoE Adapter

Solid green The device is initializing or working properly .

Flashes red System errors. RAM, Flash, Ethernet, WLAN or

rmware may be malfunctioning.

Flashes yellow Firmware update is in progress. Do not disconnect

or power o the device.

Double ashes red,

green, yellow

The device is being reset to its factory default

settings.

Flashes green twice Initialization is completed.

Power LED:

On: Power on

Off: Power off

Remote Reset:

Press and hold for 8 seconds

to reset the EAP to its factory

default settings.

A DHCP server (typically a router) with DHCP function enabled is required to

assign IP addresses to the EAPs and clients in your local network.

EAP EAP EAPPC

Switch

Router

Internet

Clients

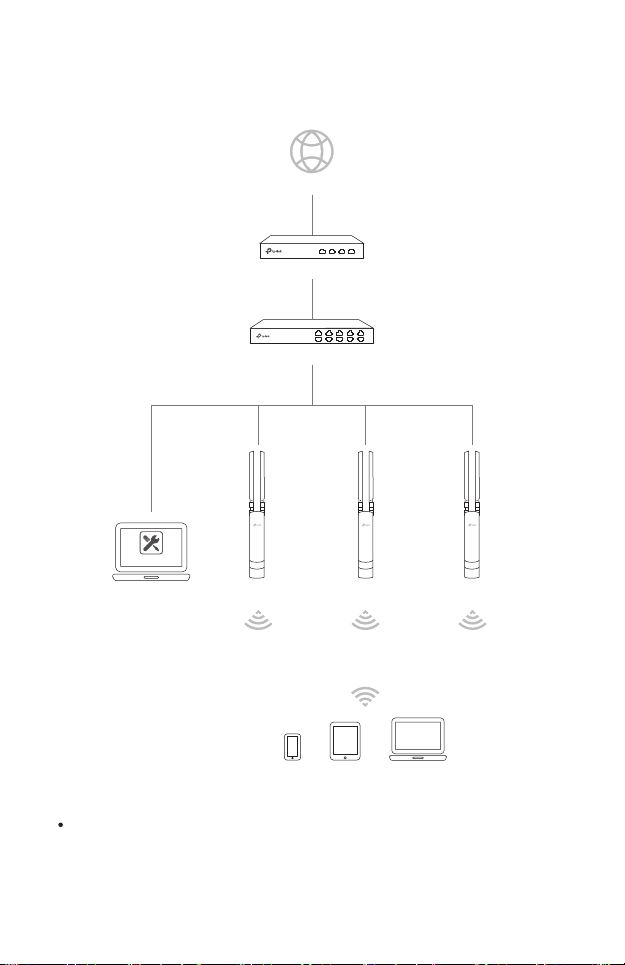

Typical Network Topology

EAP Controller

Lightning and ESD Protection

Before mounting EAP, you should consider Lightning and ESD

Protection to ensure safety.

Proper grounding is extremely important for outdoor devices. By

using a shielded CAT5e (or above) cable for connection, you can

reduce the damage of ESD attacks.

EAP

Grounded 3-wire

Power Outlet

Grounded PoE Adapter

Shielded CAT5e (or above)

Cable

Hardware Installation

Mount EAP

Option 1: Pole Mounting

Lead the end of the pole mounting

strap through the back of the EAP.

Step 1:

Position the EAP and wrap the pole

mounting strap around the pole.

Feed the end through the

screw-block and tighten the strap

until the EAP is secure.

Step 2:

Connect the antennas to the EAP.

Step 3:

The EAP can be pole-mounted or wall-mounted when working

independently.

Step 4:

Connect the antennas to the EAP.

Step 1:

Place the mounting bracket (for

EAP) in the right position. Mark two

positions for the screw holes .

Drill two 6mm holes for the screws

at the marked positions.

Step 2:

Insert the plastic wall anchors into

the 6mm holes. Align the bracket

(for EAP) to the plastic wall anchors

and drive the self-tapping screws

into the anchors through the

bracket (for EAP).

Step 3:

Align the mounting tabs on the

back of the EAP with the slot of

the mounting bracket (for EAP).

Push and slide the EAP downward

until it locks into place.

Option 2: Wall Mounting

Connect Cables

Firmly grasp the rear of the interface

cover and pull it downward.

Step 1:

Use an adequate Ethernet cable to

connect the LAN port. The length of

cable is up to 100m for steady

power supply. Shielded CAT5e (or

above) cable is recommended.

Step 2:

Attach the waterproof rubber insert

to the groove at the underside of

the device for waterproofing and

replace the cover until it firmly locks

into place.

Step 3:
