TP-Link Auranet EAP330 Manual de usuario

7106506302 REV1.0.0

Specifications are subject to change without notice. TP-LINK is a registered

trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product

names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any

means or used to make any derivative such as translation, transformation,

or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD.

www.tp-link.com

›English

› Български

› Čeština

› Қазақша

› Lietuvių

› Magyar

›Polski

› Русский язык

› Română

› Slovenčina

› Srpski jezik

› Українська мова

Ceiling Mount Access Point

Installation Guide

CONTENTS

English..................................................................................................1

Български ............................................................................................7

Čeština ...............................................................................................13

Қазақша .............................................................................................19

Lietuvių ...............................................................................................25

Magyar................................................................................................31

Polski..................................................................................................37

Русский язык .....................................................................................43

Română..............................................................................................49

Slovenčina..........................................................................................55

Srpski jezik .........................................................................................61

Українська мова ................................................................................67

English

Note: The image may differ from the actual product.

Network Topology

A typical network topology for the EAP is shown below.

EAP Controller

A DHCP server (typically a router) is required to assign IP addresses to the EAPs

and clients in your local network. A computer running the EAP Controller software,

which can be in the same or different subnet with the EAPs, is used to centrally

manage the EAPs.

You can get the EAP Controller software from our website http://www.tp-link.com.

Hardware Installation

■Option1：

Ceiling Rail Mounting

Follow the steps below to install the EAP with the provided accessories:

1Position the Ceiling T-rail Clip and push the

movable part toward the rail base.

Controller

Host

Router Switch Clients

Ceiling T-rail Clip M3×6 Pan-head Screws (Qty.5)

Internet

EAP

English

2Use an M3×6 pan-head screw to secure the T-rail

Clip onto the ceiling rail.

3Attach the mounting bracket to the Ceiling T-rail

Clip using four M3x6 pan-head screws.

4Make the Ethernet Cable pass through the fixing

hole of the mounting bracket. Connect the cable

to the ETHERNET port and attach the EAP to the

bracket.

5Push the EAP along the direction of arrows until

it locks into place. Then adjust the cable to make

the exposed part hidden behind the EAP.

English

■Option2：

Ceiling Mounting

Follow the steps below to install the EAP with the provided accessories:

1Remove the ceiling tile.

2Place the mounting bracket in the center of

the ceiling tile. Mark the four positions of

the screw holes and a hole for the Ethernet

cable to feed through. Drill four 4mm holes

for the screws and a 10mm hole for the

Ethernet cable.

3Secure the mounting bracket to the ceiling

tile using four M3x30 pan-head screws,

washers and wing nuts.

Washers

(Qty.4)

M3×30 Pan-head Screws

(Qty.4)

Wing Nuts

(Qty.4)

Hole for Ethernet cable

English

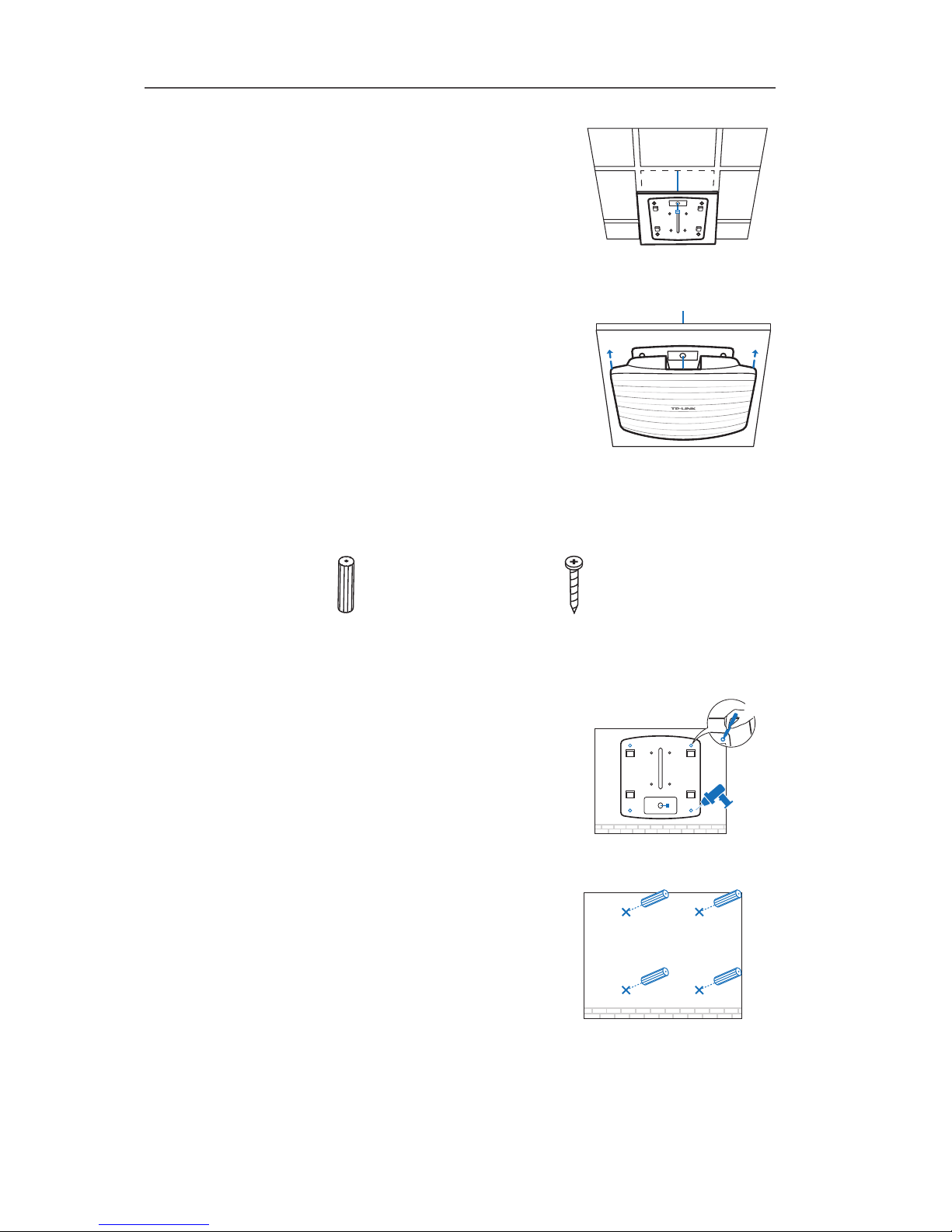

4Feed the Ethernet cable through the hole.

Then set the ceiling tile back into place.

5Connect the Ethernet cable to the

ETHERNET port and push the EAP along

the direction of arrows until it locks into place.

Then adjust the cable to make the exposed

part hidden behind the EAP.

■Option3：

Wall Mounting

Follow the steps below to install the EAP with the provided accessories:

1If your Ethernet cable feeds through the wall,

you can position the mounting bracket to make

the cable through the fixing hole. Mark the four

positions of the screw holes and then drill four

6mm holes.

2Insert the plastic wall anchors into the 6mm

holes.

M3×28 Plastic Wall Anchors

(Qty.4)

M3×20 Self-tapping Screws

(Qty.4)

English

3Secure the mounting bracket to the wall

by driving the self-tapping screws into the

anchors. Make sure that the shoulders of the

mounting bracket are on the outside.

4Connect the Ethernet cable to the ETHERNET

port on the EAP and attach the EAP to the

mounting bracket.

5Push the EAP along the direction of arrows

until it locks into place, and then adjust the

cable to make the exposed part hidden behind

the EAP.

English

Power Supply

EAP can be powered via a PSE device (such as a PoE switch) or a power adapter.

■Via PoE Switch

Connect the Ethernet cable from the PoE switch to the ETHERNET port.

■Via Power Adapter

Plug one end of the provided power adapter into the POWER port of the EAP and

the other end to a standard electrical wall outlet.

Switch

PoE Switch

Български

Забележка: Изображението може да се различава от реалния продукт.

Мрежова топология

Типична мрежова топология за EAP (точки за достъп с протокол за

разширена автентификация) е показана по-долу.

EAP Controller

Необходим е един DHCP сървър (в типичния случай - рутер) за задаване

на IP адреси на EAP устройствата и клиентите във вашата локална мрежа.

Един компютър, на който върви софтуера EAP Controller, който може да

бъде в същата или различна подмрежа с EAP устройствата, се използва за

централно управление на EAP устройствата.

Можете да получите софтуера EAP Controller от нашия уебсайт http://www.tp-

link.com.

Инсталация на хардуера

■Опция 1: Монтаж на релса на тавана

Следвайте стъпките, описани по-долу, за да инсталирате EAP с доставените

в комплекта аксесоари:

1Позиционирайте стягата за релса на тавана

и натиснете движещата се част към основата

на релсата.

Контролер

хост

Рутер Суич Клиенти

Стяга за Т-образна

релса на тавана

M3×6 винтове с глава тип

звезда (5 бр.)

Интернет

EAP

Български

2Използвайте един M3×6 винт звезда, за да

закрепите стягата към релсата на тавана.

3Закрепете монтажната скоба към стягата на

релсата на тавана с четири M3x6 винтове с

глава тип звезда.

4Прокарайте Ethernet кабела през фиксиращия

отвор на монтажната скоба. Свържете кабела

към ETHERNET порта и закрепете EAP

устройството към скобата.

5Натиснете ЕАР устройството по посоката на

стрелките, докато щракне на място, както

е посочено. След това нагласете кабела,

за да скриете подаващата се част зад ЕАР

устройството.
