Stratasys F120 Instrucciones de funcionamiento

Part No. 405680-0001_REV_B

F120 Shared Office

3D Printing System

Site Preparation Guide



Site Preparation Guide

Page ii

No part of this document may be photocopied, reproduced, or translated into any human or computer

language in any form, nor stored in a database or retrieval system, without prior permission in writing from

Stratasys. This document may be printed for internal use only. All copies, shall contain a full copy of this

Liability

Stratasys shall not be liable for errors contained herein or for incidental or consequential damages in

connection with the furnishing, performance, or use of this material. Stratasys makes no warranty of any kind

with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness

for a particular purpose. It is the responsibility of the system owner/material buyer to determine that Stratasys

material is safe, lawful, and technically suitable for the intended application as well as identify the proper

disposal (or recycling) method consistent with local environmental regulations. Except as provided in

Stratasys' standard conditions of sale, Stratasys shall not be responsible for any loss resulting from any use of

its products described herein.

Trademarks

Stratasys, GrabCAD, Insight and FDM are trademarks of Stratasys and/or subsidiaries or affiliates and may

be registered in certain jurisdictions. All other product names and trademarks are the property of their

respective owners.

Disclaimer

Customer acknowledges the contents of this document and that Stratasys parts, materials, and supplies are

subject to its standard terms and conditions, available on http://www.stratasys.com/legal/terms-and-

conditions-of-sale, which are incorporated herein by reference.

The specifications and/or information on which this document is based are subject to change without notice.

Page iii

Stratasys Confidential

Contents

Revision Log ................................................................................................. iv

Safety............................................................................................................ iv

Safe Environment................................................................................................................ iv

About the F120 Printer................................................................................... 1

Components ........................................................................................................................ 1

Highlights............................................................................................................................. 1

How to Use This Guide........................................................................................................ 1

Site Prep Tasks .............................................................................................. 2

Selecting the Site ................................................................................................................ 2

Physical Specifications and Space Requirements .............................................................. 2

Environmental Requirements .............................................................................................. 5

Electrical Requirements ...................................................................................................... 6

Workstation Requirements .................................................................................................. 6

LAN Requirements .............................................................................................................. 6

Receiving the Printer ..................................................................................... 7

Inspect Crate for Damage ................................................................................................... 7

Preparing For Installation............................................................................... 7

Required Tools and Equipment ........................................................................................... 7

Unpacking and Positioning the Printer ................................................................................ 8

Site Preparation Checklist ........................................................................... 12

Electrical Installation Requirements .................................................................................. 12

Environmental Requirements ............................................................................................ 12

Required Installation Tasks................................................................................................ 12



Site Preparation Guide Revision Log

Page iv

Revision Log

Revision Date Description of Changes

AJune 2019 First release of this document.

BMarch 2020 Added 240VAC note.

Safety

The following basic safety tips are given to ensure safe installation, operation, and

maintenance of Stratasys equipment and are not to be considered as comprehensive on

matters of safety. Although the F120 printers are designed to be safe and reliable, access to

areas of the printer are potentially dangerous and should be approached with caution.

Safe Environment

• Connect equipment to a grounded facility power source. Do not defeat or bypass the

ground lead.

• Know the location of equipment branch circuit interrupters or circuit breakers and how to

turn them on and off in case of emergency.

• Know the location of fire extinguishers and how to use them. Use only ABC type

extinguishers on electrical fires.

• Know local procedures for first aid and emergency assistance at the customer facility.

• Use adequate lighting at the equipment.

• Maintain the recommended range of temperature and humidity in equipment area.

• Do not use this product in an environment containing volatile or flammable compounds.



Site Preparation Guide About the F120 Printer

Page 1

About the F120 Printer

The Stratasys F120 3D printer incorporates the latest in innovative technology to provide you

with precise 3D-printed parts from a CAD design. Stratasys’ Fused Deposition Modeling (FDM)

technology provides accurate parts, including internal features, which can be used to field-test

form, fit, and function. Direct Digital Manufacturing (DDM) allows for the creation of customized

end-use parts straight from 3D CAD data. The F120 printer features a servo/belt driven XY

gantry with multiple modeling material capability.

Components

• The F120 Printer

• Welcome Kit (containing documentation on how to download your user guide and common

tools for maintaining the printer)

• GrabCAD Print Software Package

• A Computer Workstation (not sold by Stratasys, for preparing build files)

Highlights

• Maximum build area of 10 x 10 x 10 inch (254 x 254 x 254 mm)

• Touchscreen Graphical User Interface

• Wi-Fi capabilities

• Two front USB ports

• Camera for remote monitoring

How to Use This Guide

This guide provides information for selecting an appropriate location for the F120 printer. This

guide also provides instructions for unpacking and preliminary set-up. Information of particular

importance is presented in one of three formats:

A Warning: indicates a procedure that may cause injury to an operator if the

procedure is not followed. 

A Warning: will precede the paragraph of instruction to which it relates.

A Caution: indicates a procedure that may cause damage to equipment if the

procedure is not followed. 

A Caution: will precede the paragraph of instruction to which it relates.

A NOTE is used to highlight a specific point or to provide an operational tip. While

useful, a NOTE does not indicate a procedure that can cause injury or damage if it is

not followed. 

A NOTE will follow the paragraph of instruction to which it relates.



Site Preparation Guide Site Prep Tasks

Page 2

Site Prep Tasks

Selecting the Site

Decide where to install the printer based on the following:

1. Space Requirements

2. Environmental Requirements

3. Electrical Requirements

4. LAN Requirements

The F120 printers are capable of generating vibrations depending mainly on part

build geometry and material characteristics. This consideration will need to be

taken into account if locating the printer near vibration sensitive equipment.

Physical Specifications and Space Requirements

Dimensions and Weights

Make sure that the installation site floor space can accommodate the printer’s weight and

dimensions, plus required clearances. The installation location must be a flat level surface that

is stable and capable of holding 500 pounds (227 kg).

Caution:

Due to the physical size and weight of the F120 printer, it is recommended to use

a forklift when positioning the printer.

If a table is used to support the printer, the recommended height is 30 inches ± 3

inches (76 cm ± 7.6cm) and it should be capable of holding 500 pounds (227 kg).

If the table has casters, they must be lockable.

Description Weight Dimensions

Printer Crated 350 pounds (159 kg)

Width: 48 inches (122 cm)

Depth: 40 inches (102 cm)

Height: 42.75 inches (109 cm)

Printer Uncrated 295 pounds (134 kg)

Width: 34 inches (86 cm)

Depth: 28 inches (71 cm)

Height: 36 inches (92 cm)



Site Preparation Guide Site Prep Tasks

Page 3

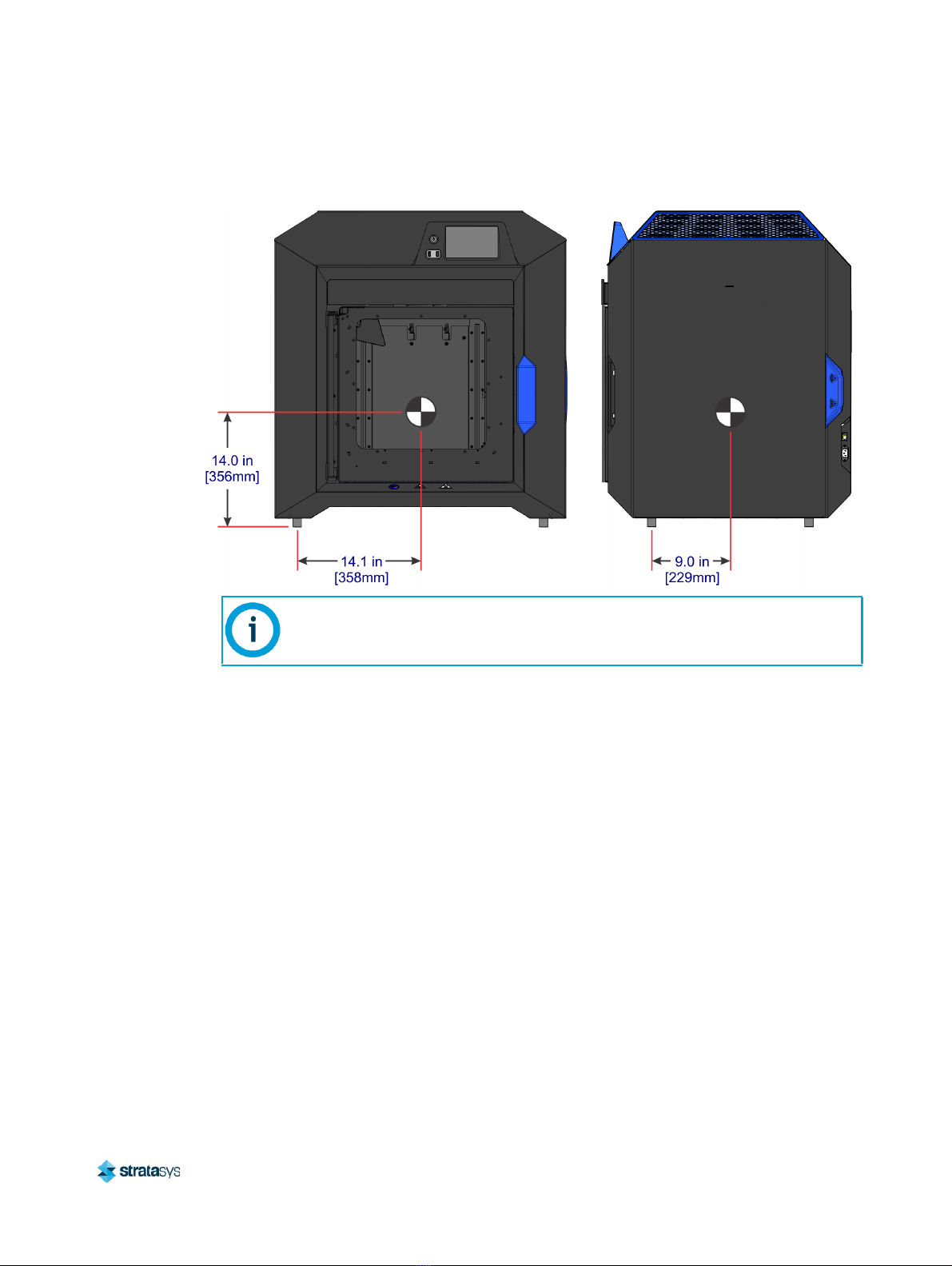

Figure 1: F120 Center of Mass

The center of mass dimensions shown are taken from the bottom center of the

front left foot.



Site Preparation Guide Site Prep Tasks

Page 4

Minimum Operational Clearances

Sufficient rear and side clearances allow for proper air circulation, while sufficient front

clearance allows enough room for the oven door and drawers to be opened.

Right Side Clearance

(Includes additional space for

material coil boxes)

Minimum 20 inches (50.8 cm)

Left Side Clearance Minimum 4 inches (10.16 cm)

Rear Clearance Minimum 6 inches (15.24 cm)

Front Clearance Minimum 20 inches (50.8 cm)

Overhead Clearance Minimum 20 inches (50.8 cm)

Figure 2: Minimum Clearances

20 inches (50.8 cm) minimum for overhead clearance

20 inches

(50.8 cm)

Front

Rear

6 inches

(15.24 cm)

20 inches

(50.8 cm)

4 inches

(10.16 cm)



Site Preparation Guide Site Prep Tasks

Page 5

Environmental Requirements

• The F120 printer can be used in any controlled environment.

• Air quality conditions with excessive solid particulates (conductive or non-conductive) may

result in system damage.

• Air quality conditions in which airborne oils are allowed to accumulate on or within the

printer can damage the plastic components.

• System operating temperature shall be in the range of 59°F to 86°F (15°C to 30°C), with

relative humidity range of 30% to 70% non-condensing.

• System storage temperature shall be in the range of 32°F to 95°F (0°C to 35°C), with

relative humidity range of 20% to 90% non-condensing.

• Altitude shall not exceed 6561.68 feet (2000 m).

• Material storage shall be in the range of 55°F to 86°F (13°C to 30°C), with relative humidity

less than 70%.

•Noise emission (acoustic):

• <32dBA when idle

• <46dBA when building

Heat Output

Heat dissipation occurs mostly through the top of the printer. Heat output is material dependent

due to the various temperatures maintained in the build chamber.

Material Type Heat Output (while building) Heat Output (while idle)

ABS ~2300 BTU/hr ~1800 BTU/hr

ASA ~2300 BTU/hr ~1800 BTU/hr

Power Consumption

Power consumption is material dependent due to the various temperatures maintained in the

build chamber.

Material Type

Power

Consumption

(while building)

Power Consumption

(while idle)

Power

Consumption

(while sleeping)

ABS 650 W 510 W 10 W

ASA 650 W 510 W 10 W



Site Preparation Guide Site Prep Tasks

Page 6

Electrical Requirements

AC Power Requirements

• 50/60 Hz.

• Voltage: 100-132, 200-240 VAC.

Caution:

In regions with input power above 240 VAC, a step-down transformer must be

installed to the system.

• Current: 15/7A.

• The grounded electrical outlet must connect to either a Euro or a US power cord plug

(provided in the Welcome Kit) and must be located within 2 m (80 inches) of the printer.

Caution:

A power cable is provided for connecting the printer to the AC electric source. Do not

use it with other equipment.

Operation of the printer outside this range is not recommended; degradation of performance

and shortened component life expectancy will be experienced. Facilities who are unsure of

their power quality should contact their service provider.

Caution:

Do not use an extension cord or power strip; doing so can result in intermittent power

issues. Connect the power cord directly into the receptacle.

Workstation Requirements

For GrabCAD Print workstation requirements please visit:

http://help.grabcad.com/article/195-system-requirements-for-grabcad-print.

While on the GrabCAD website, be sure to join the F120 GrabCAD community.

LAN Requirements

If utilizing a LAN connection for communication and file transfer functions, the LAN connection

is a 100 base T, Ethernet protocol, RJ45 connector. One 15 foot (4.57 m) CAT6, 10/100 base T

cable is supplied with the printer, located in the Welcome Kit. The printer will function in either

DHCP or Static IP configurations.

A LAN connection is not required however, as the printer is also capable of file transfer via a

Wi-Fi connection or a USB flash drive plugged into either of the printer’s USB ports. See the

F120 User Guide for detailed information and instructions on transferring files to the printer.

Otros manuales para F120

Tabla de contenidos

Otros manuales de Impresora 3D de Stratasys

Stratasys

Stratasys Prodigy Plus Manual de usuario

Stratasys

Stratasys Objet350 Manual de usuario

Stratasys

Stratasys uPrint Manual de usuario

Stratasys

Stratasys Origin One Manual de usuario

Stratasys

Stratasys Fortus 900mc Guía de referencia

Stratasys

Stratasys Objet30 Manual de usuario

Stratasys

Stratasys Finishing Touch Manual de usuario

Stratasys

Stratasys J750 Manual de usuario

Stratasys

Stratasys Objet1000 Plus Manual de usuario

Stratasys

Stratasys Eden260VS Instrucciones de funcionamiento

Stratasys

Stratasys uPrint SE Instrucciones de funcionamiento

Stratasys

Stratasys F120 Manual de usuario

Stratasys

Stratasys F770 Instrucciones de funcionamiento

Stratasys

Stratasys Fortus 450mc Manual de usuario

Stratasys

Stratasys Fortus 900mc Manual de instrucciones

Stratasys

Stratasys Fortus 250mc Instrucciones de funcionamiento

Stratasys

Stratasys Dimension 768/Elite Instrucciones de funcionamiento

Stratasys

Stratasys F770 Manual de usuario

Stratasys

Stratasys Eden350V Manual de usuario

Stratasys

Stratasys Fortus 360mc Manual de usuario

Stratasys

Stratasys Dimension BST 1200 Manual de usuario

Stratasys

Stratasys J3 Series Manual de usuario

Stratasys

Stratasys Objet1000 Connex 2 Manual de usuario

Stratasys

Stratasys Objet1000 Plus Instrucciones de funcionamiento

Manuales populares de Impresora 3D de otras marcas

Ultimaker

Ultimaker S5 Material Station Manual de usuario

EcubMaker

EcubMaker TOYDIY Manual de usuario

AnyCubic

AnyCubic Kossel Plus Manual de usuario

ReDeTec

ReDeTec ProtoCycler Manual de usuario

Kywoo3D

Kywoo3D Tycoon IDEX Manual de usuario

CraftBot

CraftBot PLUS PRO Manual de usuario

3DGence

3DGence INDUSTRY F340 Manual de usuario

HP Jet Fusion 4200 Instrucciones de funcionamiento

Rokit

Rokit AEP Series Manual de usuario

AnkerMake

AnkerMake M5 Manual de usuario

DIYElectronics

DIYElectronics PRUSA I3 Instrucciones de montaje

Ackuretta

Ackuretta FreeShape 120 Manual de usuario

LONGER

LONGER LK5Pro Manual de usuario

MakerBot

MakerBot Replicator Manual de usuario

ZYYX

ZYYX Pro II Manual de usuario

FLASHFORGE 3D PRINTER

FLASHFORGE 3D PRINTER Creator Guía del usuario

LONGER

LONGER LK4 Pro Manual de usuario

German RepRap

German RepRap X400 Pro V3 Manual de usuario
