StarTech.com HDVGADP2HD Manual de usuario

Manual Revision: 07/11/2017

For the latest information, technical specications, and support for

this product, please visit www.startech.com/HDVGADP2HD

FR: Guide de l’utilisateur - fr.startech.com

DE: Bedienungsanleitung - de.startech.com

ES: Guía del usuario - es.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

IT: Guida per l’uso - it.startech.com

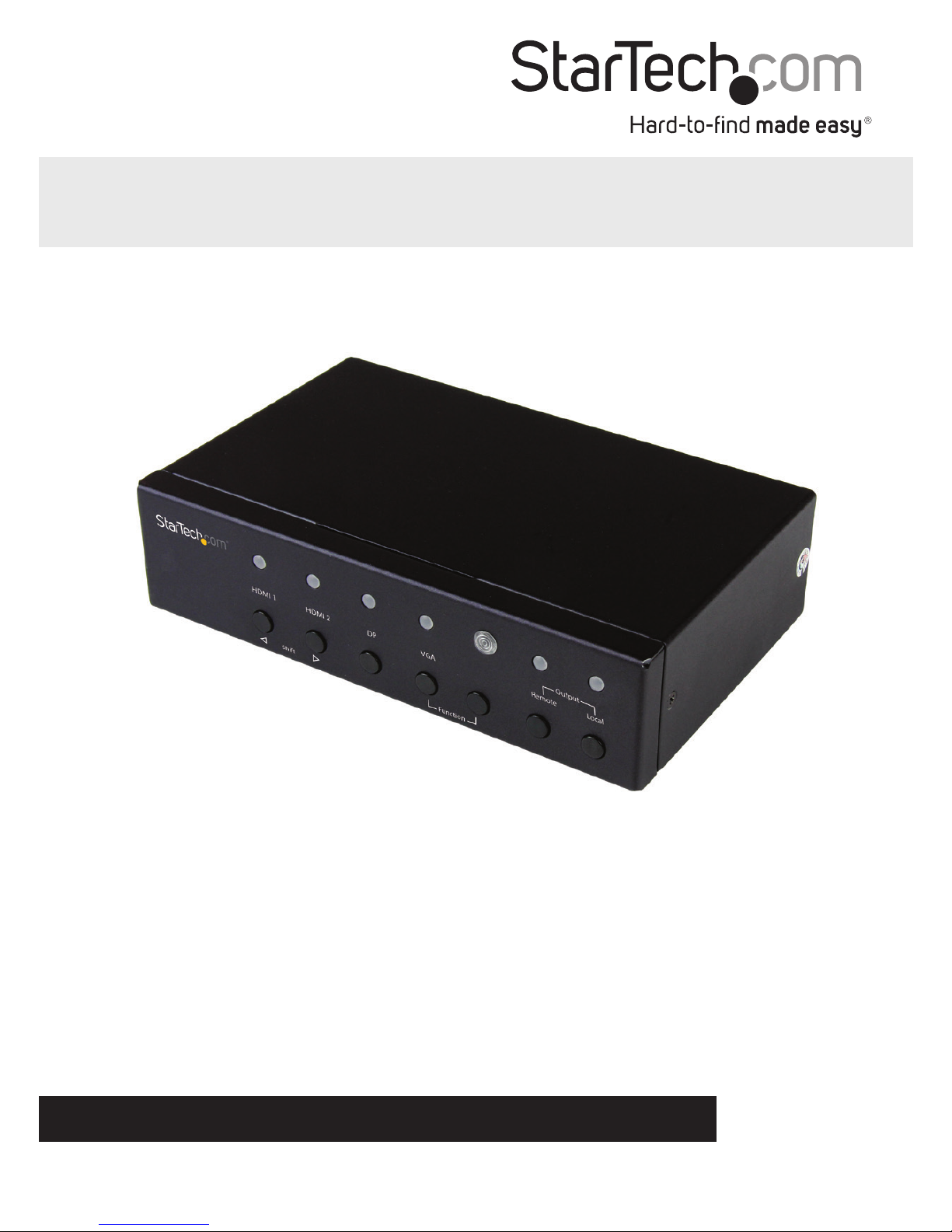

HDVGADP2HD

HDMI®, VGA and DP to HDMI Converter

Switch - 4K

*actualproductmayvaryfromphotos

Instruction manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses and can radiate radio frequency energy and,

if not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is

likely to cause harmful interference in which case the user will be required to correct the

interference at his own expense.

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired operation.

Changes or modications not expressly approved by StarTech.com could void the user’s

authority to operate the equipment.

Industry Canada Statement

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [A] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (A)/NMB-3(A)

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction manual

Table of Contents

Switch diagram ................................................................................................... 1

Front view .................................................................................................................................................... 1

Rear view...................................................................................................................................................... 2

Introduction......................................................................................................... 3

Packaging contents.................................................................................................................................. 3

System requirements............................................................................................................................... 3

Installation............................................................................................................ 4

Operation.............................................................................................................. 5

Mode selection and switch operation............................................................................................... 5

VGA screen shifting.................................................................................................................................. 6

Manual operation with serial control................................................................................................. 7

LED indicators ..................................................................................................... 10

Technical support............................................................................................... 11

Warranty information ....................................................................................... 11

1. Selected port LEDs

2. Input selection buttons

3. IR sensor

4. Function button

5. Status LED

6. Power button

Front view

Switch diagram

Instruction Manual

Rear view

1. DC12V power adapter port

2. Control port (RJ11 serial jack)

3. (In) Control port (IR extender)

4. HDMI output port

5. Mode switch

6. 3.5 mm audio input port (for VGA)

7. VGA input port

678

8. DisplayPort input port

9. HDMI input port #1

10. HDMI input port #2

Instruction manual

Introduction

Packaging contents

• 1 x converter switch

• 1 x IR remote control

• 1 x screw kit

• 1 x mounting bracket kit

• 1 x footpad set

• 1 x RJ11-to-RS232 converter

• 1 x RJ11 cable

• 1 x universal power adapter (NA/EU/UK/AU)

• 1 x quick start guide

System requirements

• 1 x HDMI video display with cabling

• 1 x DisplayPort video source with cabling

• 1 x VGA video source with cabling

• 2 x HDMI video sources with cabling

Instruction manual

Installation

Note: Ensure your display and video sources are powered o before you begin

installation.

1. Connect each of your video sources to the input ports on the video converter switch

using the required cabling (not included).

2. Connect an HDMI cable (not included) to your display and to the converter switch’s

HDMI output port.

3. Power on your HDMI display.

4. Power on each of your of your video sources.

5. Connect the power adapter to the switch’s power adapter port and to an AC outlet.

6. (Optional for serial control) Connect the RJ11 cable to the switch’s Control port

(RJ11 serial jack) and to the RJ11-to-RS232 serial converter. Then, connect a 9-pin

serial cable (not included) to the RJ11-to-RS232 switch and to your computer’s 9-pin

serial port.

Instruction Manual

Operation

Mode selection and switch operation

This switch features multiple operating modes. Review the description and operating

steps for each mode in this section, then use the Mode switch to the switch to your

desired operating mode.

Switch mode operation (1. Switch)

Switch mode enables you to switch between video sources by pressing the Input

selection button that corresponds with your desired video source. The active selected

port LEDs will light up indicating which port is selected.

Automatic mode operation (2. Auto)

Automatic mode enables the video converter switch to automatically select the most

recently activated or connected video source. Connect a new device or turn on an

already connected device to automatically switch video sources. The active selected

port LEDs will light up indicating which port is selected.

Priority-A mode operation (3. Pri-A)

Priority-A mode prioritizes the HDMI #1, DisplayPort, VGA, and HDMI #2 input ports

respectively. When you turn on a video source that is connected to a higher prioritized

input port, that video source will automatically be selected. Turning o the device will

automatically switch back to the lower prioritized video source.

Priority B mode operation (4. Pri-B)

Priority B mode prioritizes the HDMI #2, VGA, DisplayPort, and HDMI #1 input ports

respectively. When you turn on a video source that is connected to a higher prioritized

input port, that video source will automatically be selected. Turning o the device will

automatically switch back to the lower prioritized video source.

Instruction Manual

VGA screen shifting

Screen shifting can move alignment of the VGA video input image to the right or left of

the monitor, depending upon your requirements.

1. Press and hold both of the Function buttons (Function+VGA) simultaneously for 2

seconds until the VGA input LED turns blue and ashes orange.

2. Press the left Function button (VGA) or right Function button to move the screen

position.

Notes:

• The VGA port is the only video input that’s affected.

• The switch will exit VGA screen shifting mode after being inactive for 20 seconds.

• The maximum number of adjustments is 50 steps right or left from the default

starting point.

• The switch will automatically retain your most recent setting.

Manual operation with remote control

1. Press buttons 1 through 4 on the right side of the IR remote control to switch

between the HDMI #1, HDMI#2, DisplayPort, and VGA ports respectively.

2. The active selected port LEDs will light up on the extender switch, indicating which

port is selected, and your desired video source will appear on the HDMI and HDMI

display.

Instruction Manual

Manual operation with serial control

1. Congure the settings on your serial port according to the values shown below.

Baud Rate: 38400 bps

Data Bits: 8

Parity: None

Stop Bits: 1

Flow control: None

2. Open your terminal software and congure it to communicate through the COM

port that the switch is connected to. Pressing ? Enter (or any non-valid command

followed by Enter) in the terminal will list the below command readout.

AVI=n - AV Input Port (n: 1~max)

OLE - Output Local Enable (AV)

OLD - Output Local Disable (AV)

VS - View Settings

PI - Product Information

FACTORY - Reset as factory default setting

REBOOT - Reboot device

VL - VGA Horizontal Position Shift Left

VR - VGA Horizontal Position Shift Right

TI=n - Set Terminal Interface n: 0 - Human 167 - Machine

LCK=n - Lock / Unlock device n: 0 - Unlock 167 - Lock

Note: There are several commands that will be listed in your terminal readout

and are supported by the switch. However these commands will not impact the

switches’s operation and are not included in our readout above. These commands are

supported as a result of the same firmware being used on different devices.

Supported commands that do not have an impact on the operation of the switch are:

CE, ORE, ORD, EQ, IVG, OVG, VDT, VMC, RCID.
