StarTech.com ST4200USBM Manual de usuario

ST4200USBM

Mountable USB 2.0 Metal Hub

4 Ports

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital de-

vice, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected

names and/or symbols of third-party companies not related in any way to StarTech.com. Where

they occur these references are for illustrative purposes only and do not represent an endorse-

ment of a product or service by StarTech.com, or an endorsement of the product(s) to which

this manual applies by the third-party company in question. Regardless of any direct acknowl-

edgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols

contained in this manual and related documents are the property of their respective holders.

Instruction Manual

Table of Contents

Introduction ................................................................................... 1

Features ......................................................................................1

Package Contents .......................................................................1

Connector Layout .......................................................................... 2

Hardware Installation .................................................................... 3

Checking the Hub Installation ...................................................... 4

Environmental Speciﬁcations ...................................................... 4

Technical Support ......................................................................... 5

Warranty Information .................................................................... 5

Instruction Manual

Introduction

Thank you for purchasing a StarTech.com ST4200USBM High-Speed

4-Port USB2.0 hub. This ruggedly built hub is ideal for industrial environ-

ments and can be wall-mounted or installed onto a DIN rail for convenient

access to the ports. This four port industrial hub can be bus-powered or

self powered, with a three wire terminal block connector (7-24V).

Features

Choice of Bus Power and/or External Terminal Block Power•

Compact space saving and mountable design (mount on a wall or DIN•

rail)

Maximum data transfer rate of up to 480 Mbps and backwards com•

patible with USB 1.1

Includes a 2 meter USB cable for quick and easy installations•

Package Contents

1 x USB 2.0 Hub•

1 x User’s Manual•

1 x 2m USB A-B cable•

Instruction Manual

Connector Layout

Activity LEDs for Downstream Ports: These 4 LED indicators will blink

whenever the USB ports are transferring data.

Upstream Port Connector: Type-B USB connector for upstream USB

connection.

Self-Power Input Connectors: 3-Pin terminal block connectors used to

connect the hub to an available power source. The voltage can be in the

range of +7V to 24VDC.

WARNING: Ensure that the polarity of the input power is correctly

matched to that of the terminal block pins. Otherwise, it may damage the

hub.

Power LED

Upstream Port

Connector

Downstream Port

Connectors

Self Power Input

Connectors

Activity LEDs for

Downstream Ports

Instruction Manual

Hardware Installation

Use static electricity discharge precautions1.

Eliminate the potential for static discharge from any objects that the hub

may come in contact with before the installation. This can be accom-

plished by touching a bare metal chassis rail after you have turned off the

power.

Apply DC power to the 3-pin Terminal Block Connector2.

The terminal block connector adds power to ensure there is enough to

run the 4 downstream USB ports.

Connect the USB host cable3.

The host cable is a standard A-to-B USB2.0 cable. Connect the type-A

connector to the upstream USB port being used, then connect the type-B

connector to the USB hub. Since the hub is plug and play, it can be con-

nected while the host computer is powered on.

Connect the USB devices to the downstream ports of the hub.4.

Mount the hub on the wall or DIN RAIL if required.5.

Instruction Manual

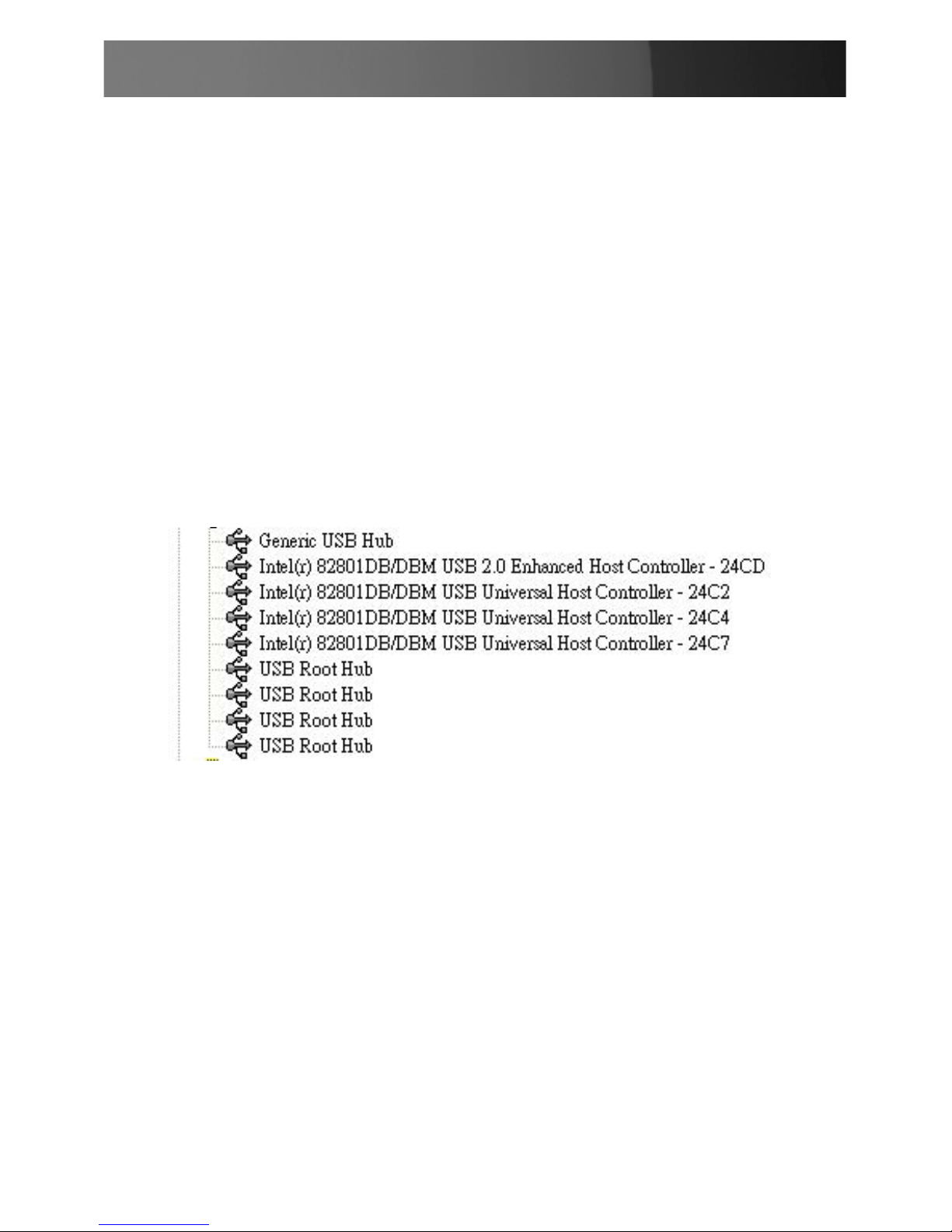

Checking the Hub Installation

To check the USB hub installation in Windows Device Manager, follow

these steps:

Click Start1.

Click Control Panel2.

Click System3.

Click Device Manager4.

Double click Universal Serial Bus Controller5.

Double click Generic USB HUB6.

The message should show that the device is working properly7.

Environmental Specications

Operating temperature: 0 to 55°C (32 to 131°F)

Operating humidity: 5 to 95% RH

Dimensions (LxWxH) 4.50”(L)x2.26”(W)x1.03”(H)

(11.45x5.73x2.63 cm)

Instruction Manual

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commit-

ment to provide industry-leading solutions. If you ever need help with your

product, visit www.startech.com/support and access our comprehensive

selection of online tools, documentation, and downloads.

Warranty Information

This product is backed by a one year warranty. In addition, StarTech.

com warrants its products against defects in materials and workman-

ship for the periods noted, following the initial date of purchase. During

this period, the products may be returned for repair, or replacement with

equivalent products at our discretion. The warranty covers parts and labor

costs only. StarTech.com does not warrant its products from defects or

damages arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA

LLP (or their ofﬁcers, directors, employees or agents) for any damages

(whether direct or indirect, special, punitive, incidental, consequential, or

otherwise), loss of proﬁts, loss of business, or any pecuniary loss, arising

out of or related to the use of the product exceed the actual price paid

for the product. Some states do not allow the exclusion or limitation of

incidental or consequential damages. If such laws apply, the limitations or

exclusions contained in this statement may not apply to you.

StarTech.com has been making “hard-to-ﬁnd easy” since 1985,

providing high quality solutions to a diverse IT and A/V customer

base that spans many channels, including government, education

and industrial facilities to name just a few. We offer an unmatched

selection of computer parts, cables, A/V products, KVM and Serv-

er Management solutions, serving a worldwide market through our

locations in the United States, Canada, the United Kingdom and

Taiwan.

Visit www.startech.com today for complete information about all

our products and to access exclusive interactive tools such as the

Cable Finder, Parts Finder and the KVM Reference Guide.
